7 W.J. KEATING LIMITED

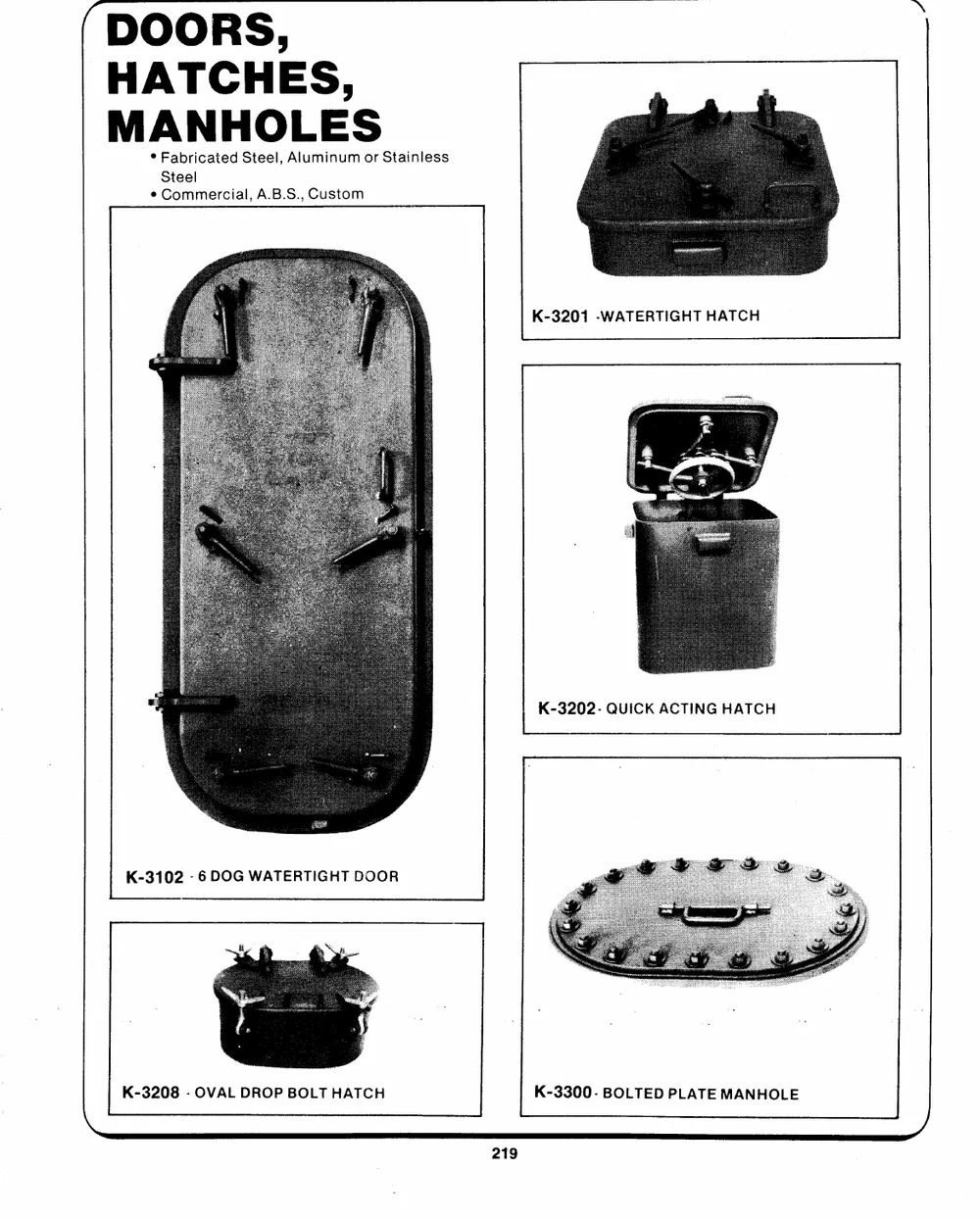

DOORS,
HATCHES,
MANHOLES
* Fabricated Steel, Aluminum or Stainless
Steel
* Commercial, A.B.S., Custom
K-3201 -WATERTIGHT HATCH
K-3202- QUICK ACTING HATCH
K-3102 - 6 DOG WATERTIGHT DOOR
K-3208 - OVAL DROP BOLT HATCH K-3300- BOLTED PLATE MANHOLE

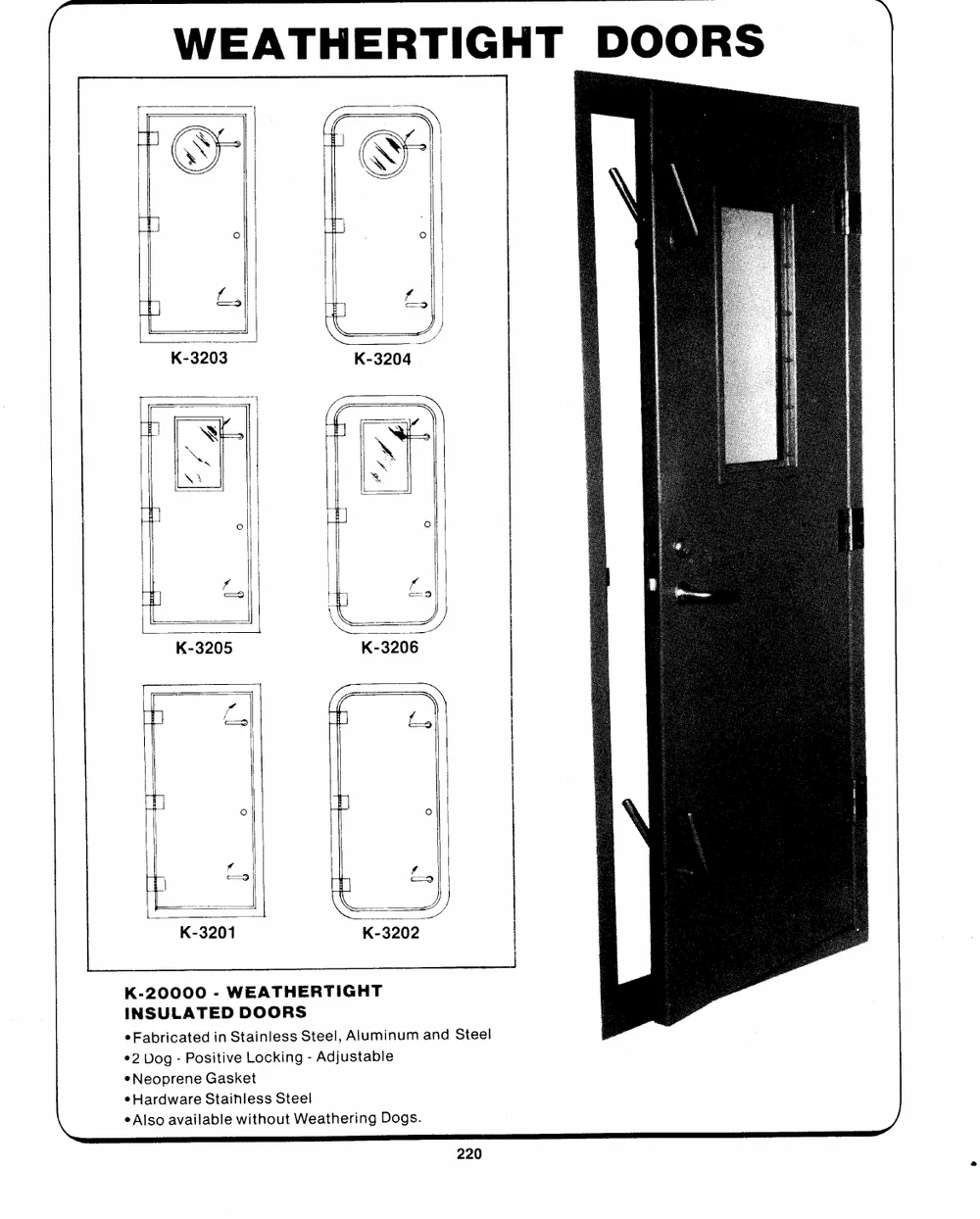

WEATHERTIGHT DOORS
S raH f f, Hy Srf_
D ; a5 :
4 fs a4 e)tL, |
K-3204
K-3203
NS
S
N\A
0 ;
| ft
40 =
K-3205
a CZ,
i Oo
L fy
---- K-3202
K-3201
K-20000 - WEATHERTIGHT
INSULATED DOORS
� Fabricated in Stainless Steel, Aluminum and Steel
*2 Dog - Positive Locking - Adjustable
�Neoprene Gasket
\ e*AHlasrodwaavarielaSbtlaeinwlietshsouStteWeelathering Dogs. >,
K-3325 -FIXED WINDOW
The type K-325-F matches in appearance the
K-322-C and K-325 and is used in conjunction
with them or as a separate unit. Made of ex-
truded bronze, aluminum, or stainless steel.
Windows can be made to suit curved bulk-
head, with square or round corners. Windows
may be bevelled to suit sheer or camber.
e Watertight
e Flanged Frame
e Glass - %4"' Heat Treated
to 1" Thermopane
e Available to suit custom shapes
K-3325 WINDOW K-3322 WINDOW
CRANK OPERATED VERTICALLY SLIDING Counter Balanced Vertically Sliding
� Aluminum, Bronze or Stainless Steel
* Aluminum, Bronze or Stainless Steel e Weathertight
� Weathertight
* Flanged Frame e Flanged Frame
* Stainless Steel Drain Pan
e Stainless Steel Drain Pan
K-3110-SIDE HINGED � Side or Top Hinge
Type K-1100 side hinge window designed for
installation in Deckhouse, Bridge Fronts and � Watertight
other locations where a heavy-duty watertight
e Adjustable Hinges
window is required.
e Screw Type Weathering Dogs
� Standard Size 18" x 24" Clear Opening
e Matching Fixed K-1100F Available
* Bolt-on or Weld-in Main Frame Available
e Aluminum, Bronze or Stainless Steel
REFLECTION PROOF
WHEELHOUSE FRONT
WINDOW
K-3015 WINDOW
e Available in Single-Double-Triple Panels * Top Sash Sliding Down Bottom Sash Fixed |
Fixed or Hinged � Weathertight
� Weathertight � Fianged Frame
* Frames - Aluminum, Steel, Bronze or e Aluminum, Bronze or Stainless Steel
Stainless Steel
R ~

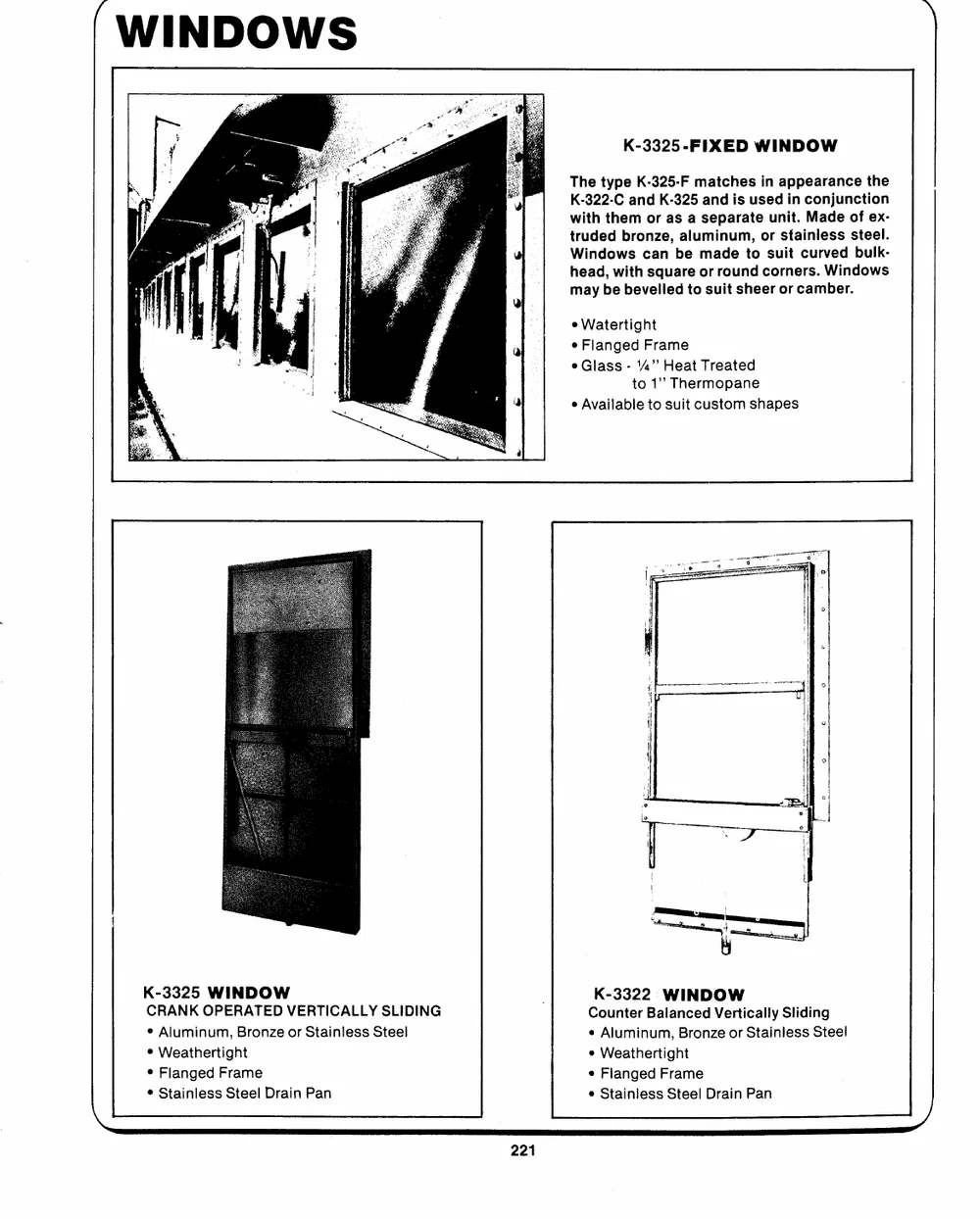

K-3325-FIXED WINDOW
The type K-325-F matches in appearance the
K-322-C and K-325 and is used in conjunction
with them or as a separate unit. Made of ex-
truded bronze, aluminum, or stainless steel.
Windows can be made to suit curved bulk-
head, with square or round corners. Windows
may be bevelled to suit sheer or camber.
e Watertight
e Flanged Frame
*Glass - %" Heat Treated
to 1" Thermopane
e Available to suit custom shapes
K-3325 WINDOW K-3322: WINDOW
CRANK OPERATED VERTICALLY SLIDING Counter Balanced Vertically Sliding
� Aluminum, Bronze or Stainless Steel
� Aluminum, Bronze or Stainless Steel
� Weathertight
* Weathertight
e Flanged Frame
* Flanged Frame
� Stainless Steel Drain Pan � Stainless Steel Drain Pan
`WINDOWS

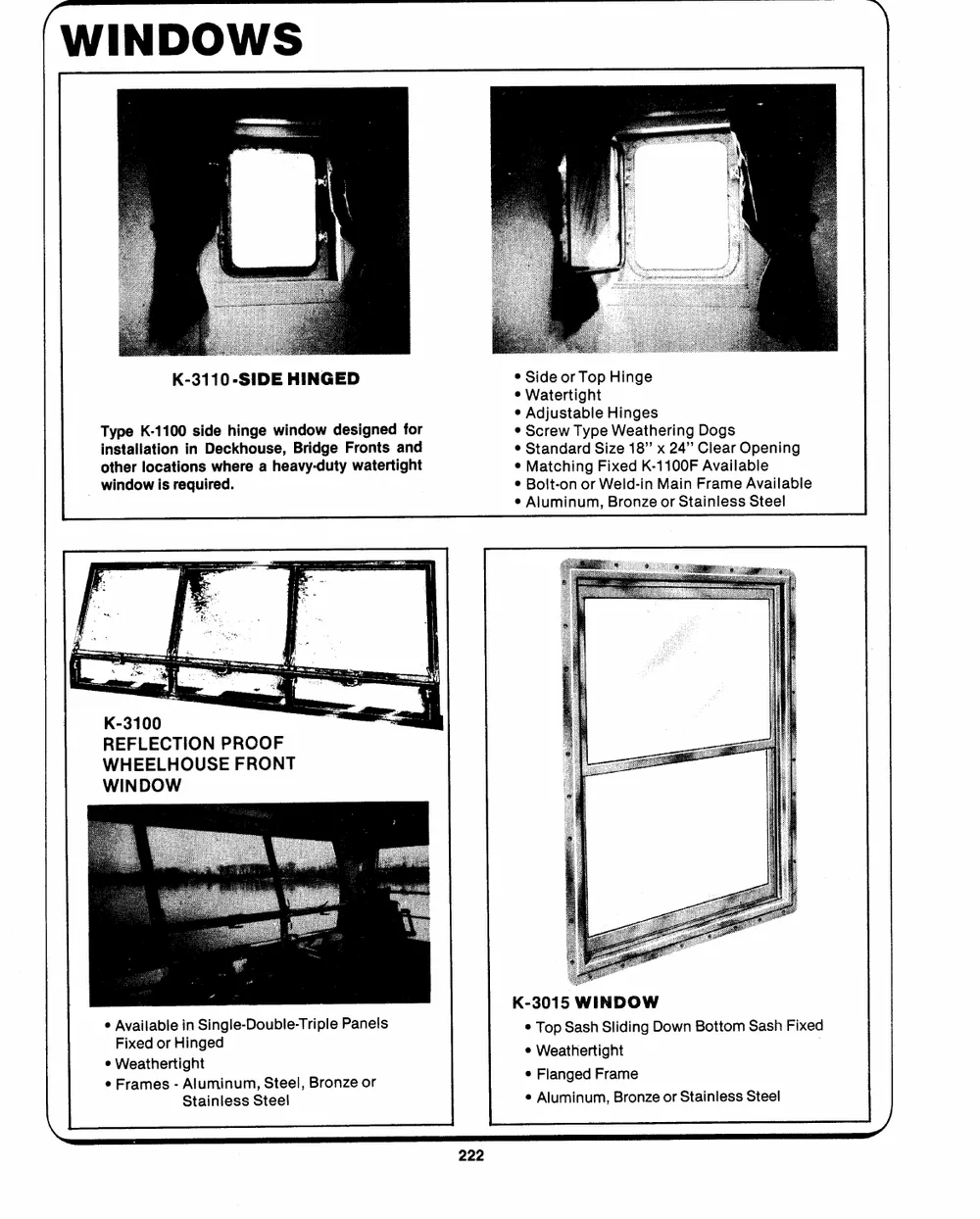

K-3110-SIDE HINGED * Side or Top Hinge
Type K-1100 side hinge window designed for
installation in Deckhouse, Bridge Fronts and � Watertight
other locations where a heavy-duty watertight
� Adjustable Hinges
window is required.
� Screw Type Weathering Dogs
� Standard Size 18" x 24" Clear Opening
� Matching Fixed K-1100F Available
* Bolt-on or Weld-in Main Frame Available
e Aluminum, Bronze or Stainless Steel
K-3100
REFLECTION PROOF
WHEELHOUSE FRONT
WINDOW
* Available in Single-Double-Triple Panels K-3015 WINDOW
� Top Sash Sliding Down Bottom Sash Fixed
Fixed or Hinged � Weathertight
e Flanged Frame
� Weathertight � Aluminum, Bronze or Stainless Steel
e Frames - Aluminum, Steel, Bronze or
Stainless Steel
`WINDOWS

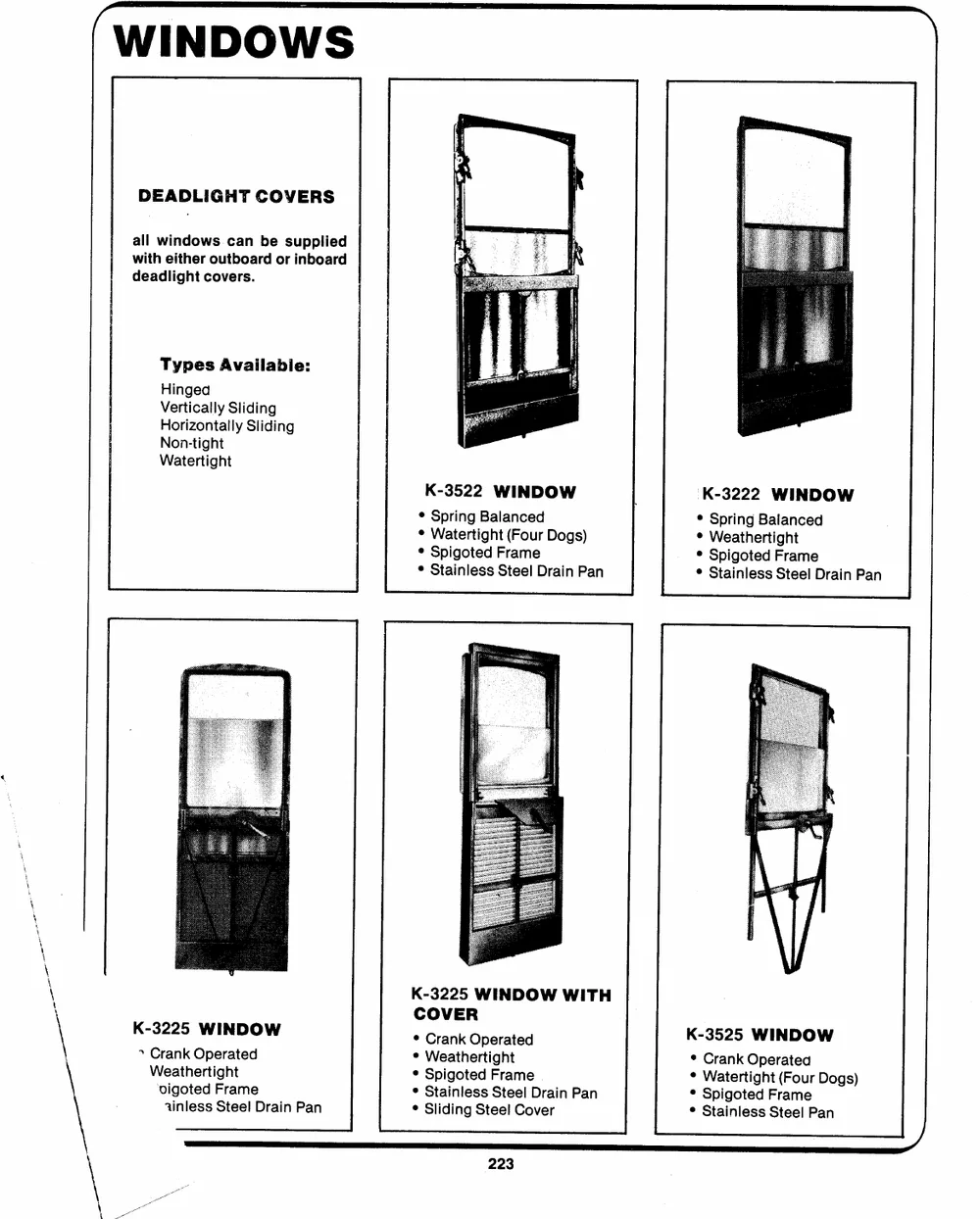

DEADLIGHT COVERS
all windows.can be supplied
with either outboard or inboard
deadlight covers.
Types Available:
Hinged
Vertically Sliding
Horizontally Sliding
Non-tight
Watertight
K-3522 WINDOW K-3222 WINDOW
* Spring Balanced * Spring Balanced
* Watertight (Four Dogs) * Weathertight
* Spigoted Frame * Spigoted Frame
* Stainless Steel Drain Pan * Stainless Steel Drain Pan
------ K-3225 WINDOW WITH
COVER
K-3225 WINDOW * Crank Operated K-3525 WINDOW
� Weathertight
> Crank Operated * Spigoted Frame * Crank Operated
Weathertight * Stainless Steel Drain Pan * Watertight (Four Dogs)
`oigoted Frame * Sliding Stee! Cover * Spigoted Frame
ainless Steel Drain Pan * Stainless Steel Pan
y
�& .
+ ----SLIDING--> |
=-- SLIDIN--G
30�
�&
' -- SLIDING ----

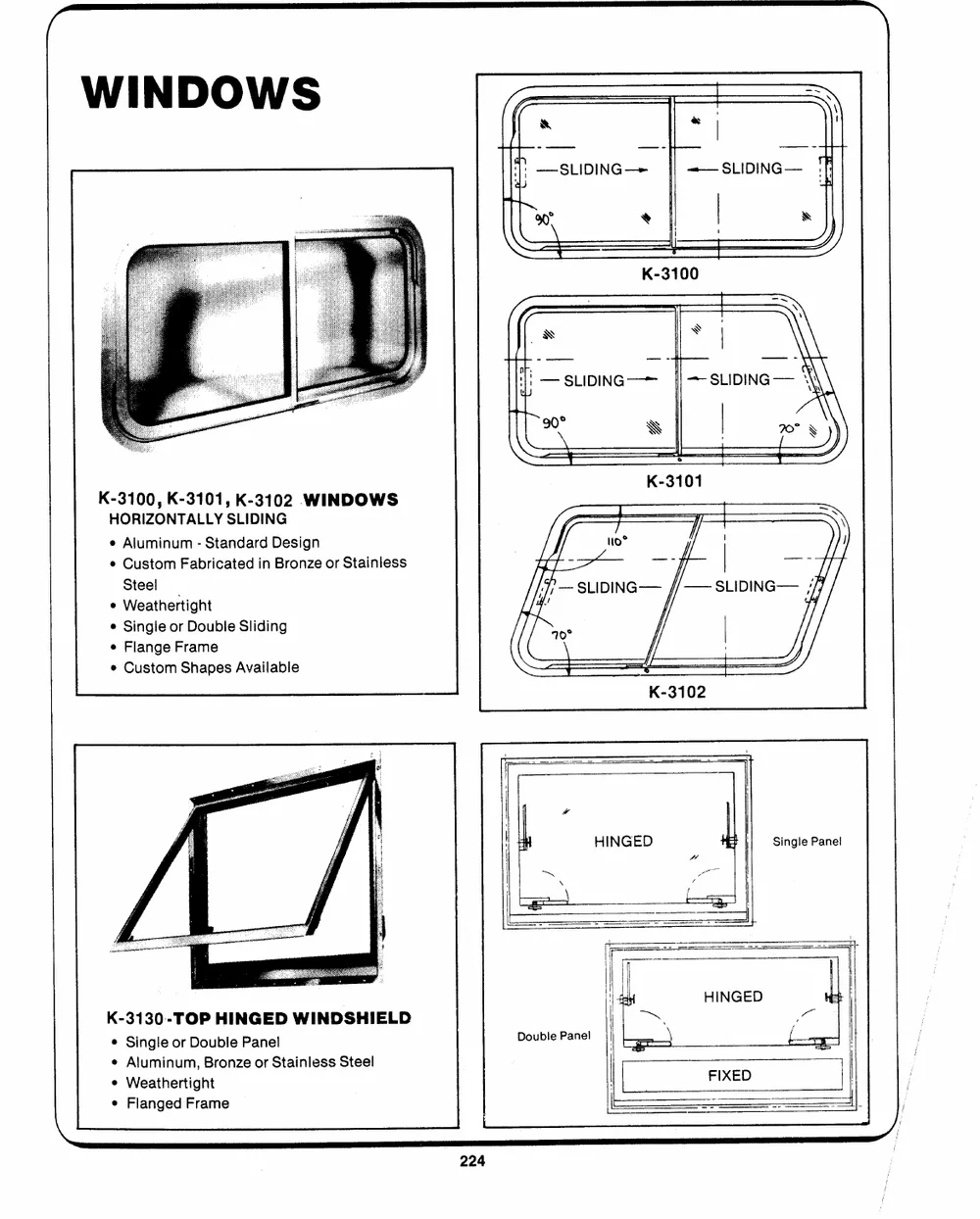

K-3100, K-3101, K-3102 WINDOWS
HORIZONTALLY SLIDING
e Aluminum - Standard Design
� Custom Fabricated in Bronze or Stainless
Steel
* Weathertight
e Single or Double Sliding
e Flange Frame
e Custom Shapes Available
| _ =
| '
| HINGED + i} Single Panel
|| de
|) ~ [ee|
Sa a |
K-3130-TOP HINGED WINDSHIELD Double Panel HINGED I
a
� Single or Double Panel a
e Aluminum, Bronze or Stainless Steel
e Weathertight FIXED |
e Flanged Frame

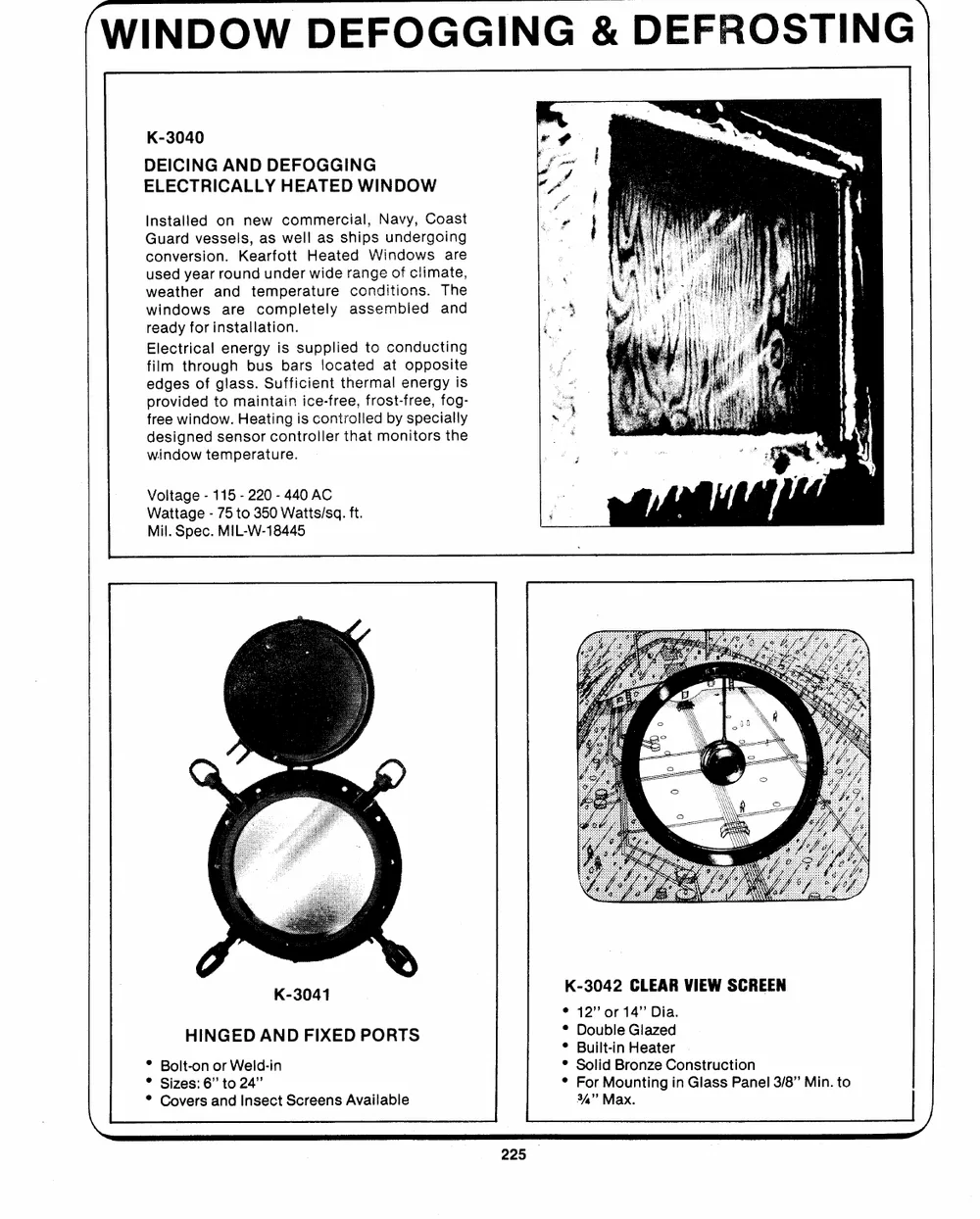

K-3040
DEICING AND DEFOGGING
ELECTRICALLY HEATED WINDOW
installed on new commercial, Navy, Coast
Guard vessels, as well as ships undergoing
conversion. Kearfott Heated Windows are
used year round under wide range of climate,
weather and temperature conditions. The
windows are completely assembled and
readyforinstallation.
Electrical energy is supplied to conducting
film through bus bars located at opposite
edges of glass. Sufficient thermal energy is
provided to maintain ice-free, frost-free, fog-
free window. Heating is controlled by specially
designed sensor controller that monitors the
window temperature.
Voltage - 115 - 220 - 440 AC
Wattage - 75 to 350 Watts/sq. ft.
Mil. Spec. MIL-W-18445
K-3041 K-3042 CLEAR VIEW SCREEN
HINGED AND FIXED PORTS 12" or 14" Dia.
Double Glazed
* Bolt-on or Weld-in Built-in Heater
* Sizes: 6" to 24" Solid Bronze Construction
* Covers and Insect Screens Available For Mounting in Glass Panel 3/8" Min. to
34" Max.
XC

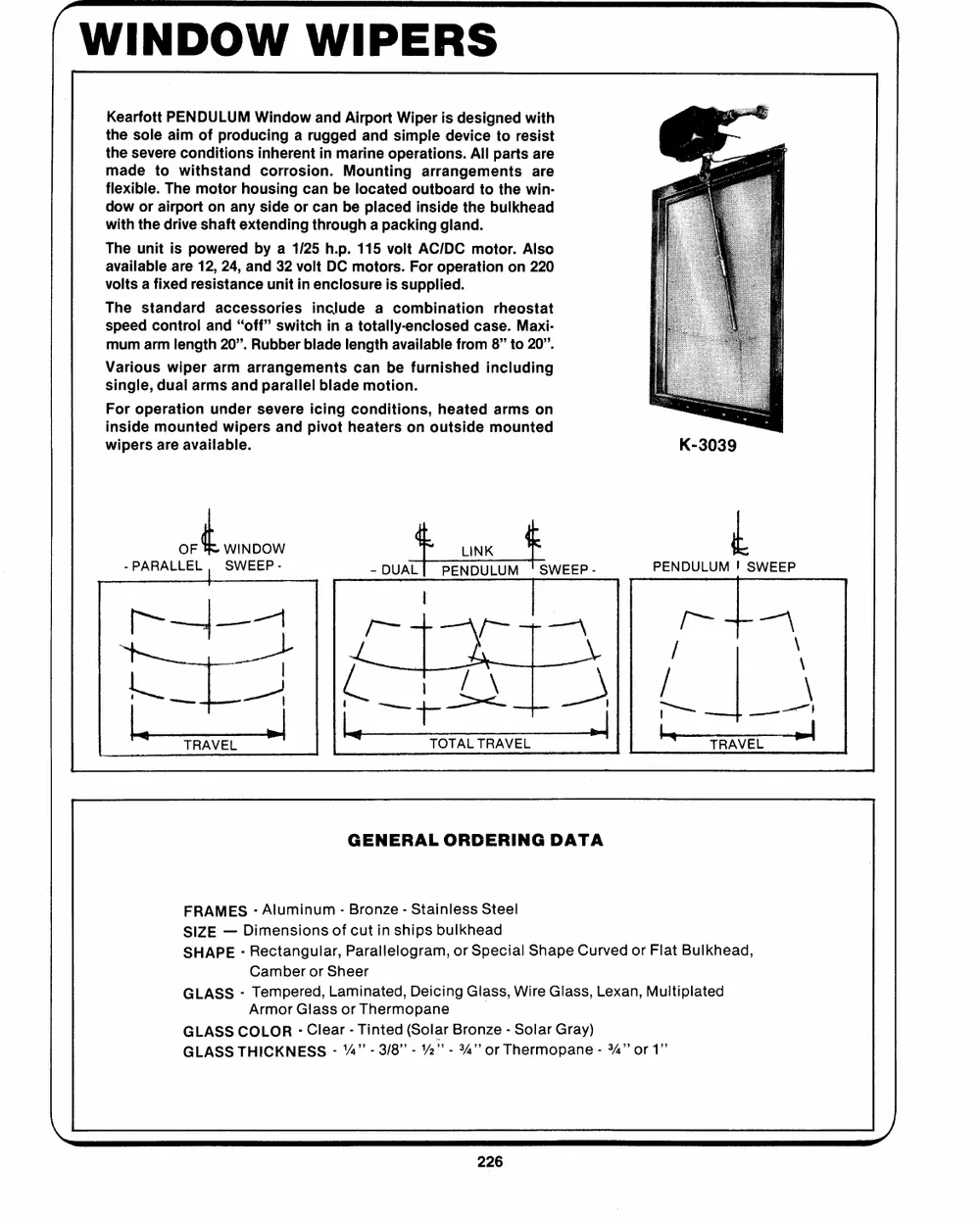

`WINDOW WIPERS
Kearfott PENDULUM Window and Airport Wiper is designed with K-3039
the sole aim of producing a rugged and simple device to resist
the severe conditions inherent in marine operations. All parts are
made to withstand corrosion. Mounting arrangements are
flexible. The motor housing can be located outboard to the win-
dow or airport on any side or can be placed inside the bulkhead
with the drive shaft extending through a packing gland.
The unit is powered by a 1/25 h.p. 115 volt AC/DC motor. Also
available are 12, 24, and 32 volt DC motors. For operation on 220
volts a fixed resistance unit in enclosure is supplied.
The standard accessories include a combination rheostat
speed control and "off" switch in a totally-enclosed case. Maxi-
mum arm length 20". Rubber blade length available from 8" to 20".
Various wiper arm arrangements can be furnished including
single, dual arms and parallel blade motion.
For operation under severe icing conditions, heated arms on
inside mounted wipers and pivot heaters on outside mounted
wipers are available.
oth WINDOW - DUAL PENDULUM -- SWEEP- t
- PARALLEL | SWEEP - f[~T7+ k--\eVV- + 7" PENDULUM ! SWEEP
� C Leo eyT r S. TRAVEL |
TOTAL TRAVEL
K[~H--4,--- 71
Leof 8
TRAVEL
GENERAL ORDERING DATA
FRAMES - Aluminum - Bronze - Stainless Steel
SIZE -- Dimensions of cut in ships bulkhead
SHAPE - Rectangular, Parallelogram, or Special Shape Curved or Flat Bulkhead,
Camber or Sheer
GLASS - Tempered, Laminated, Deicing Glass, Wire Glass, Lexan, Multiplated
Armor Glass or Thermopane
GLASS COLOR- Clear - Tinted (Solar Bronze - Solar Gray)
GLASS THICKNESS - %4" - 3/8" - Yo" - 4" Or Thermopane - *%4"' or 1"

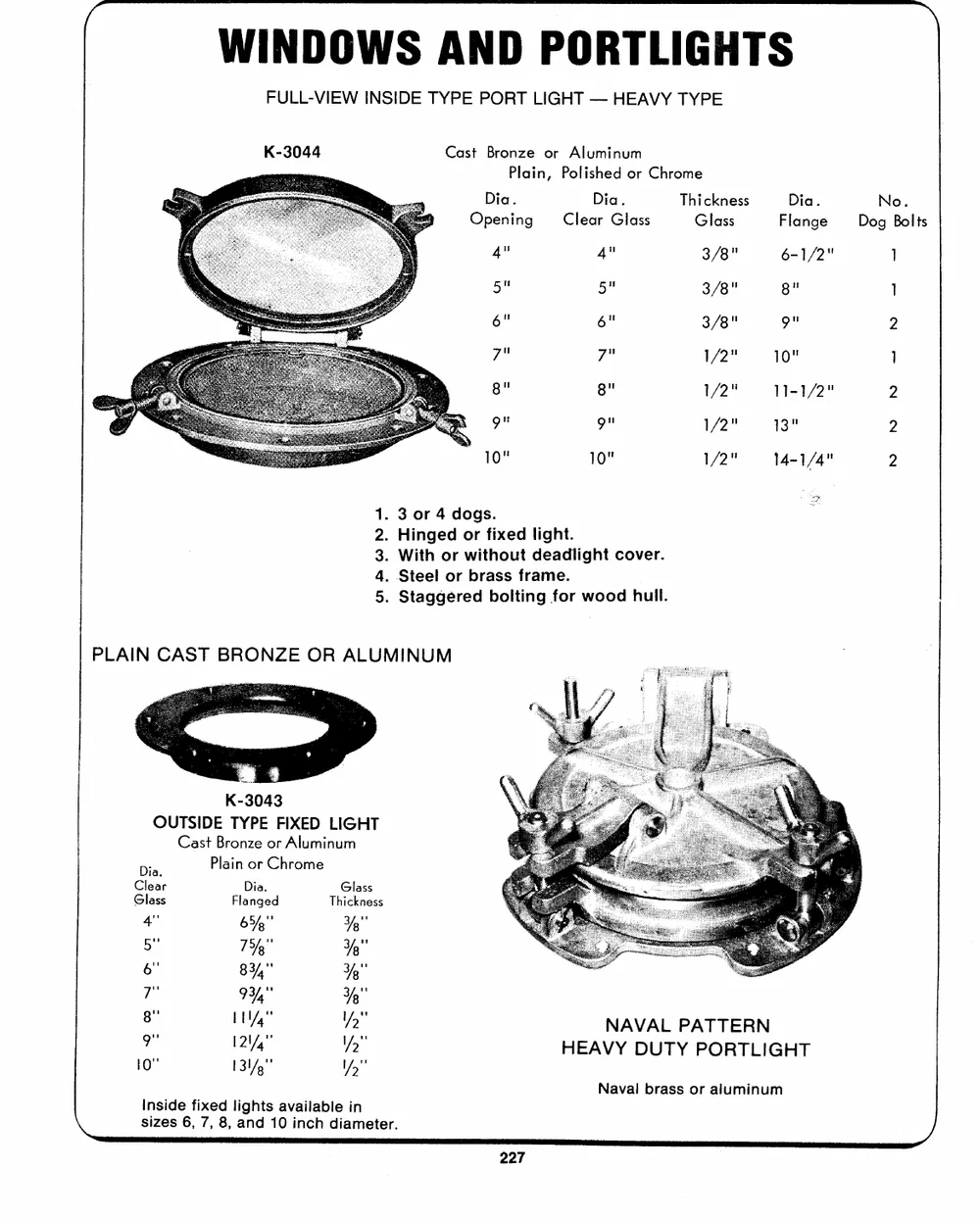

WINDOWS AND PORTLIGHTS
FULL-VIEW INSIDE TYPE PORT LIGHT -- HEAVY TYPE
K-3044 Cast Bronze or Aluminum
Plain, Polished or Chrome
Dia. Dia. Thickness Dia.
Opening Clear Glass Glass Flange
4 4? 3/8 HH] 6-1/2"
5" 5" 3/8 " 3H
6" 6" 3/8 it 9m
7" 7" 1/2 WW 10"
gt g" 1-1/2"
gu 9" 1/ li 13"
10" 10" 14-1/4"
KR
V/ n NO
1/ u
NR
"Pwr 3 or 4 dogs.
Hinged or fixed light.
With or without deadlight cover.
Steel or brass frame.
Staggered bolting for wood hull.
PLAIN CAST BRONZE OR ALUMINUM
K-3043
OUTSIDE TYPE FIXED LIGHT
Cast Bronze or Aluminum
D; Plain or Chrome
ta.
Dia. Glass
Clear
6%," Flanged A Thickness
4"Glass �g""
Ss" 7g
r6"" 18%"" Hih "
08" " bI12/Y4y"" VVy2""
10" I3Yq" NAVAL PATTERN
HEAVY DUTY PORTLIGHT
\ Inside fixed lights available in
sizes 6, 7, 8, and 10 inch diameter. Naval brass or aluminum

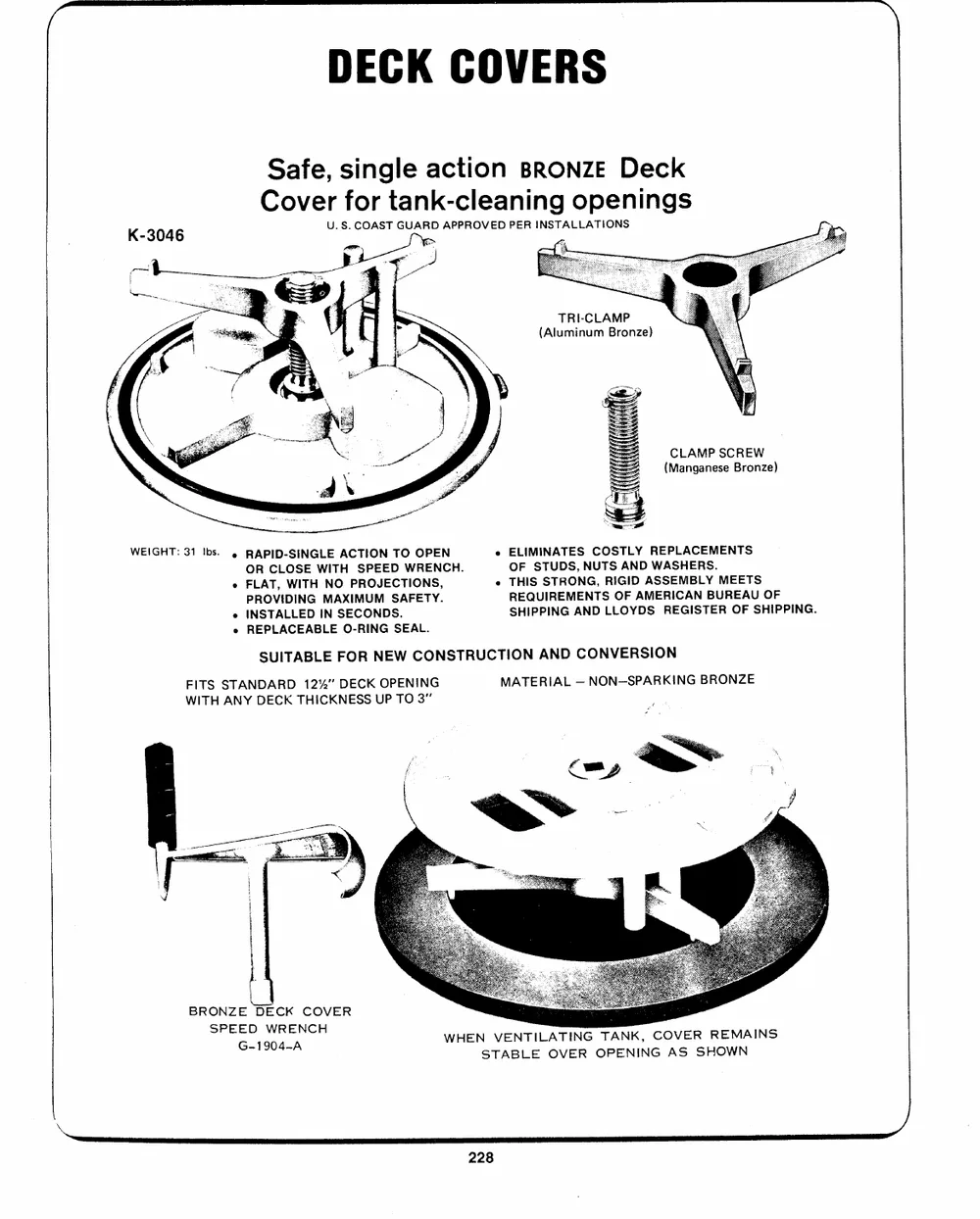

DECK COVERS
Safe, single action BRONZE Deck
Cover for tank-cleaning openings
U.S. COAST GUARD APPROVED PER INSTALLATIONS
TRI-CLAMP
(Aluminum Bronze}
CLAMP SCREW
(Manganese Bronze)
aes;
WEIGHT: 31 lbs. . RAPID-SINGLE ACTION TO OPEN e ELIMINATES COSTLY REPLACEMENTS
OR CLOSE WITH SPEED WRENCH. OF STUDS, NUTS AND WASHERS.
e FLAT, WITH NO PROJECTIONS, e TSRHHEIIQSPUPISITRNREGOMANENGN,DTSRLILOGOFIYDADMASESRSRIEECMGAIBNSLTYBEURMREOEEFATUSSHOIFPPING.
PROVIDING MAXIMUM SAFETY.
e INSTALLED IN SECONDS.
e REPLACEABLE O-RING SEAL.
SUITABLE FOR NEW CONSTRUCTION AND CONVERSION
MATERIAL -- NON---SPARKING BRONZE
FITS STANDARD 12%" DECK OPENING
WITH ANY DECK THICKNESS UP TO 3"
BRONZE DECK COVER WHEN VENTILATING TANK, COVER REMAINS
SPEED WRENCH STABLE OVER OPENING AS SHOWN
G-1904-A

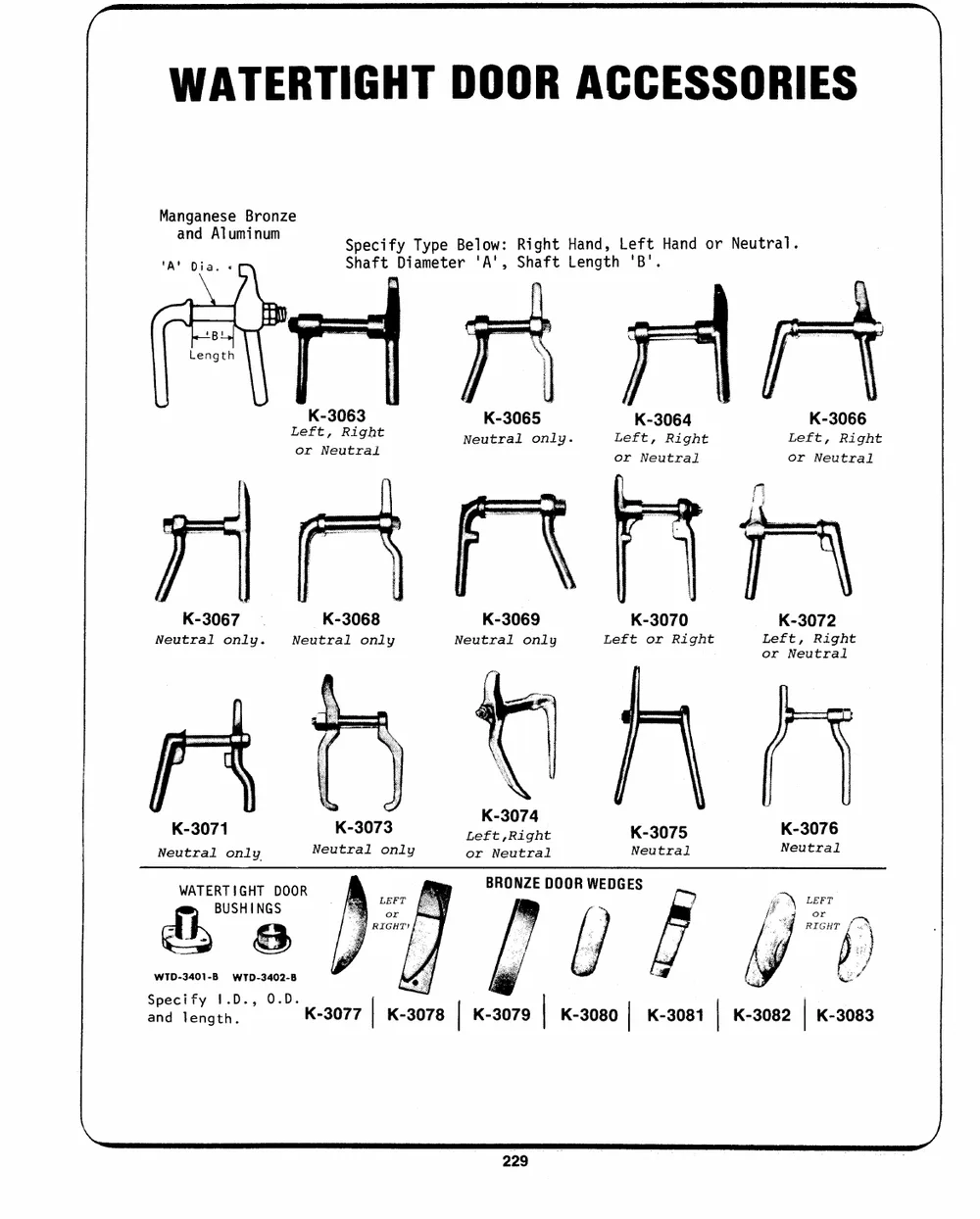

WATERTIGHT DOOR ACCESSORIES
Manganese Bronze Specify Type Below: Right Hand, Left Hand or Neutral.
and Aluminum Shaft Diameter 'A', Shaft Length 'B'.
'A' Dia. �
eB!
Length
K-3063 K-3065 K-3064 K-3066
Left, Right Neutral only. Left, Right Left, Right
or Neutral or Neutral or Neutral
K-3067 | K-3068 K-3069 K-3070 K-3072
Neutral only. Neutral only Neutral only Left or Right Left, Right
or Neutral
K-3071 K-3073 LeKft-3,0Ri7g4ht K-3075 K-3076
Neutral only Neutral only or Neutral Neutral Neutral
WATERTIGHT DOOR BRONZE DOOR WEDGES
BUSHINGS
WTD-3401-B WTD-3402-B
aSnpdecilfeyngt1h..D., 0.D. K-3077| K-3078 | K-3079 | K-3080 | K-3081 | K-3082 |. K-3083
for porthole glass
installation.

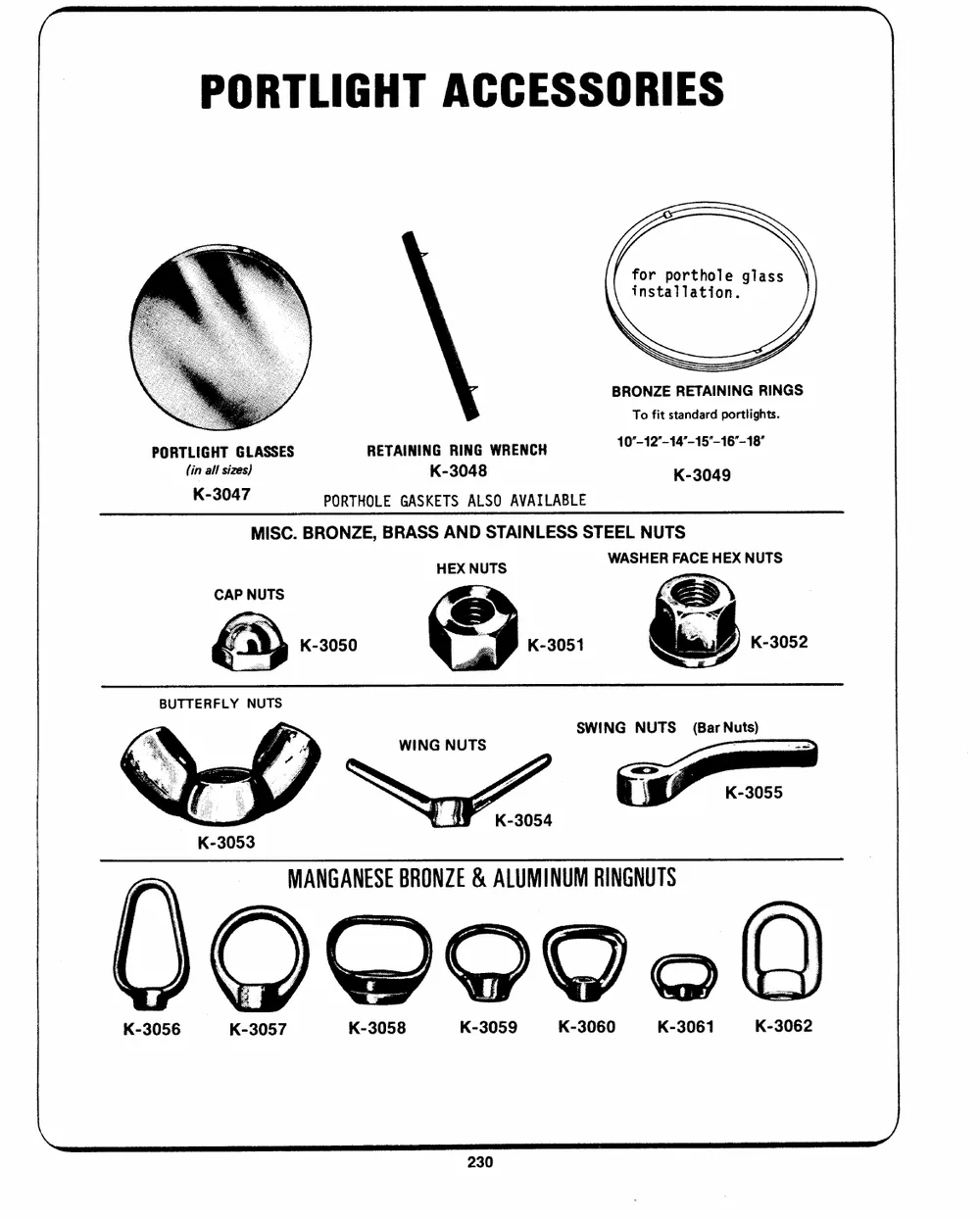

BRONZE RETAINING RINGS
To fit standard portlights.
PORTLIGHT GLASSES RETAINING RING WRENCH 10�-12"-14"-15'-16"-18"
K-3049
(in all sizes) K-3048
K-3047 PORTHOLE GASKETS ALSO AVAILABLE
MISC. BRONZE, BRASS AND STAINLESS STEEL NUTS
HEX NUTS WASHER FACE HEX NUTS
CAP NUTS
@ K-3050
BUTTERFLY NUTS
WING NUTS SWING NUTS (Bar Nuts)
--
K-3053
K-3056 K-3057 K-3058 K-3059 K-3060 K-3061 K-3062
em WJ. KEATING LIMITED TELEX 05-822633
Qe 735 AVOCA AVENUE, DORVAL, QUE., CANADA, HSP 1G4 TEL. 514-631-9815

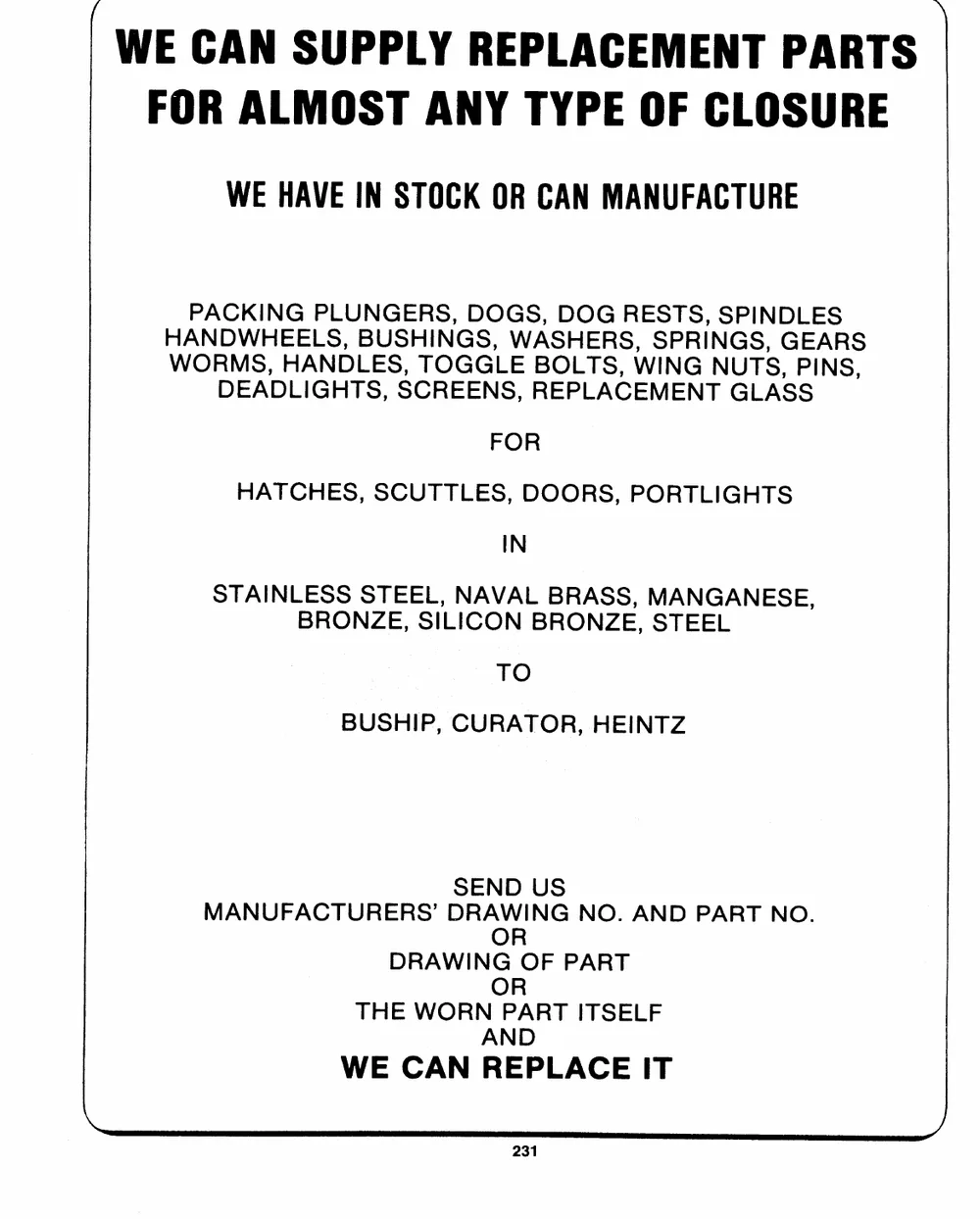

WE CAN SUPPLY REPLACEMENT PARTS
FOR ALMOST ANY TYPE OF CLOSURE
WE HAVE IN STOCK OR CAN MANUFACTURE
PACKING PLUNGERS, DOGS, DOG RESTS, SPINDLES
HANDWHEELS, BUSHINGS, WASHERS, SPRINGS, GEARS
WORMS, HANDLES, TOGGLE BOLTS, WING NUTS, PINS,
DEADLIGHTS, SCREENS, REPLACEMENT GLASS
FOR
HATCHES, SCUTTLES, DOORS, PORTLIGHTS
IN
STAINLESS STEEL, NAVAL BRASS, MANGANESE,
BRONZE, SILICON BRONZE, STEEL
TO
BUSHIP, CURATOR, HEINTZ
SEND US
MANUFACTURERS' DRAWING NO. AND PART NO.
OR
DRAWING OF PART
OR
THE WORN PART ITSELF
AND
WE CAN REPLACE IT
