Mining Chain and Attachments

Round-link mining chain, conveyor flight chain, and the attachment hardware (pushers, scrapers, side-plates) used in underground haulage, surface bucket conveyors, and mineral processing.

Mining Chain and Attachments — page 1 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 176 — original catalog

Mining chain is engineered for impact and abrasion service inherent to bulk-material handling. Round-link sections are heat-treated for toughness; conveyor flight chain is supplied with matched cross-flights, side-plates, and attachment hardware for retrofit on existing flight conveyors. Service environments include coal, potash, salt, gold, and aggregate operations.

Product types

  • Heat-treated round-link mining chain
  • Conveyor flight chain with matched cross-flights
  • Side-plates, pushers, scrapers
  • Replacement attachment hardware

Typical applications

  • Underground haulage
  • Surface conveyor systems
  • Mineral processing plants
  • Bulk-material handling

The original catalog pages

Pages digitized from the Dibblee Industries printed catalog (W.J. Keating lineage, 1940–). Click any page to enlarge; the chapter PDF remains the authoritative source.

Detailed product specs

Full chapter text (extracted from the original PDF)

Verbatim text extracted from the original chapter PDF (1940–). The original catalog is in English; spec tables may render imperfectly — the PDF remains the authoritative source.

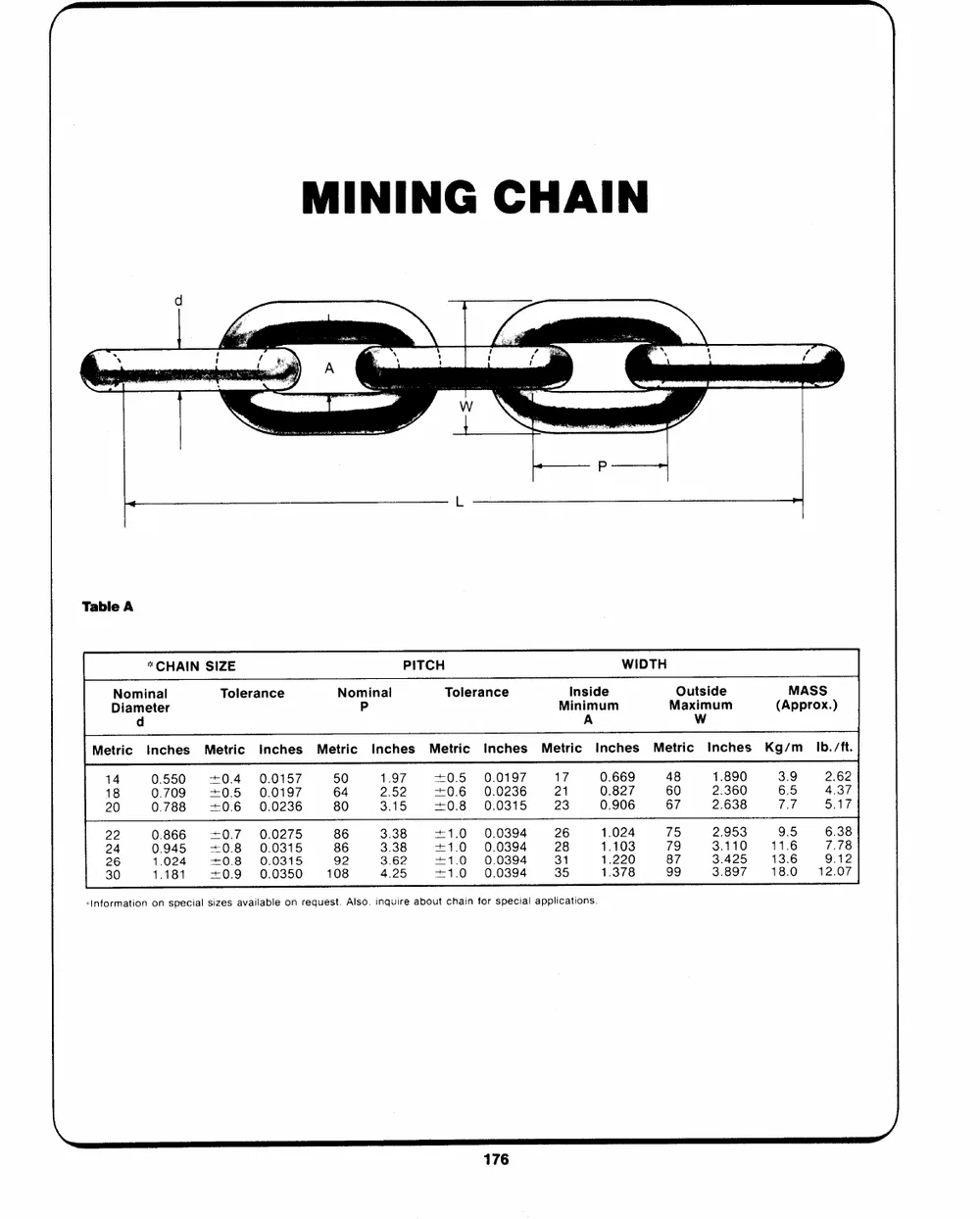

Table A
*CHAIN SIZE PITCH WIDTH
Nominal Tolerance Nominal Tolerance Inside Outside MASS
Diameter P Minimum Maximum (Approx.)
d A WwW
Metric Inches Metric Inches Metric Inches Metric Inches Metric Inches Metric Inches Kg/m_ Ib./ft.
14 0.550 +0.4 0.0157 50 1.97 +0.5 0.0197 17 0.669 48 1.890 3.9 2.62
18 0.709 +0.5 0.0197 64 2.52 +0.6 0.0236 21 0.827 60 2.360 6.5 4.37
20 0.788 +0.6 0.0236 80 3.15 +0.8 0.0315 23 0.906 67 2.638 t7 5.17
22 0.866 +0.7 0.0275 86 3.38 +1.0 0.0394 26 1.024 75 2.953 9.5 6.38
24 0.945 +08 0.0315 86 3.38 +1.0 0.0394 28 1.103 79 3.110 11.6 7.78
26 1.024 +0.8 0.0315 92 3.62 +1.0 0.0394 31 1.220 87 3.425 13.6 9.12
30 1.181 +0.9 0.0350 108 4.25 +1.0 0.0394 35 1.378 99 3.897 18.0 12.07
«Information on special sizes available on request. Also, inquire about chain for special applications

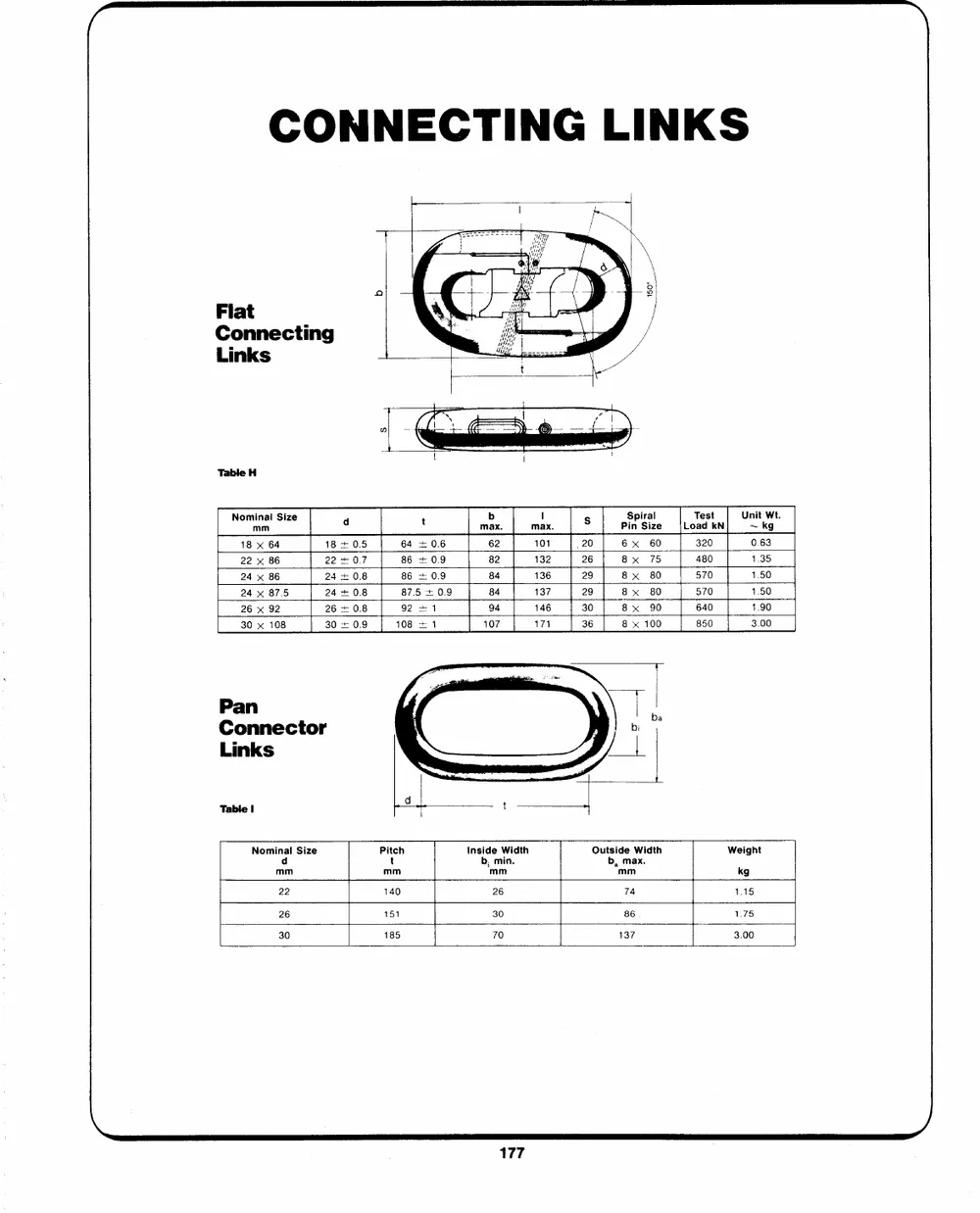

Connecting 2 ee
Links mR. Zé
Table H
Nominal Size Spiral Test Unit Wt.
mm Pin Size Load kN ~ kg
24 x 87.5 24+ 0.8 e75+09 | 84 | 137 | 29 | 8x 80 570 1.50
Pan
Connector ; bi
Links Z|
Nominal Size Inside Width Outside Width Weight

d b, min. b, max.

c —EEE

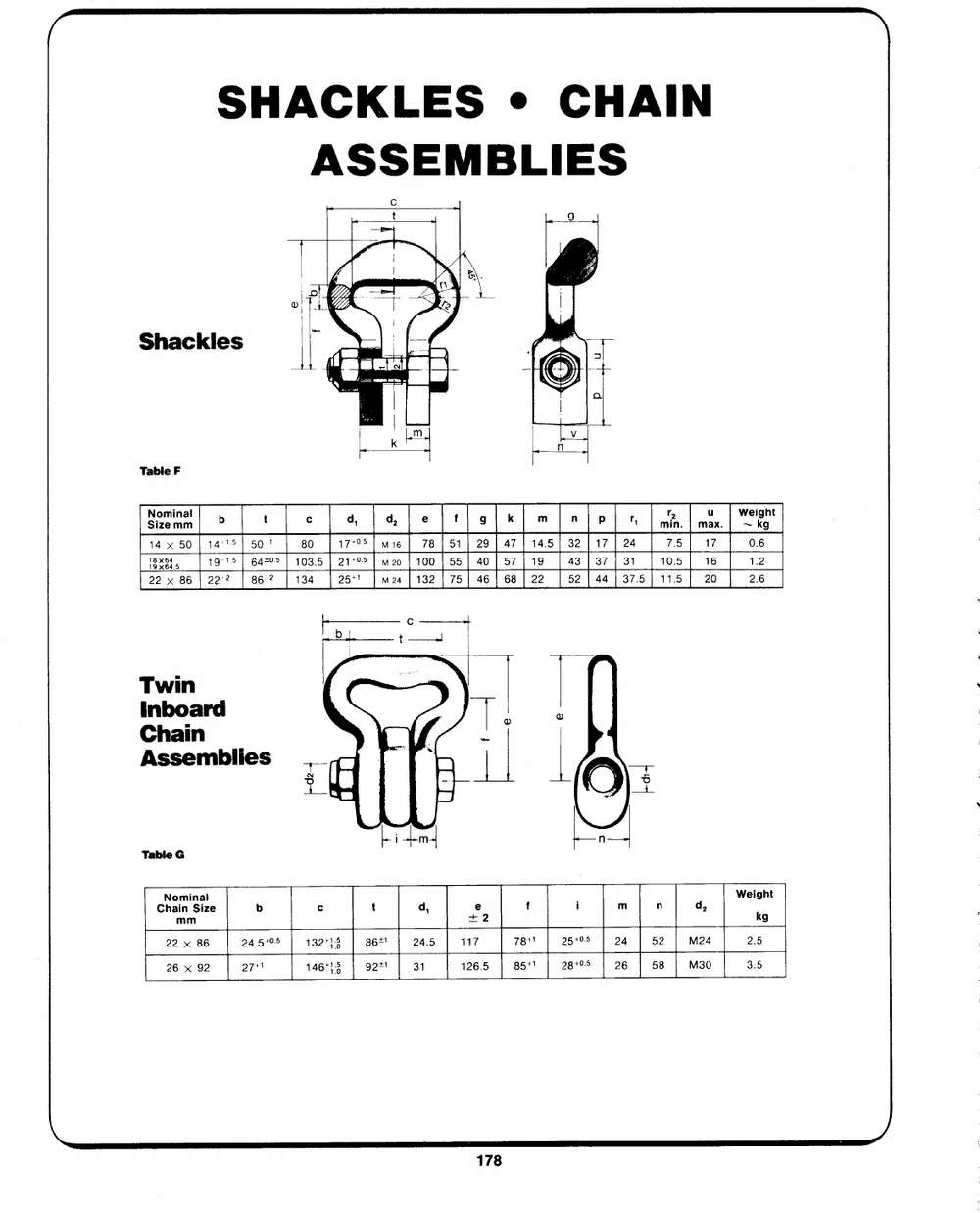

Shackles = j
11 ff —habaaeig — |} ii ©)
Table F
Nominal Weight
Size mm ~kg
fia so [ies] so* | 00 [17 [we] re] si] 20] a7|ras| se li7[ea | 7s] 7 | 06 |
ise, [19 | 6422 [ 1035 [2r** | wz [v0] 55| ao] s7[r9 [«s[a7[ar [ros] 1 [ 12 |
[ee x 86 | 227 [se* [124 | 25% [wx [192 [75] a6] 6822 | s2[aalors[ ris] 20 | 26 |
Twin
Inboard | | "
Chain ! |
Assemblies __ |
agi nd
Table G
Nominal
Chain Size e

oad ower
—+—!————_ Conveying Direction

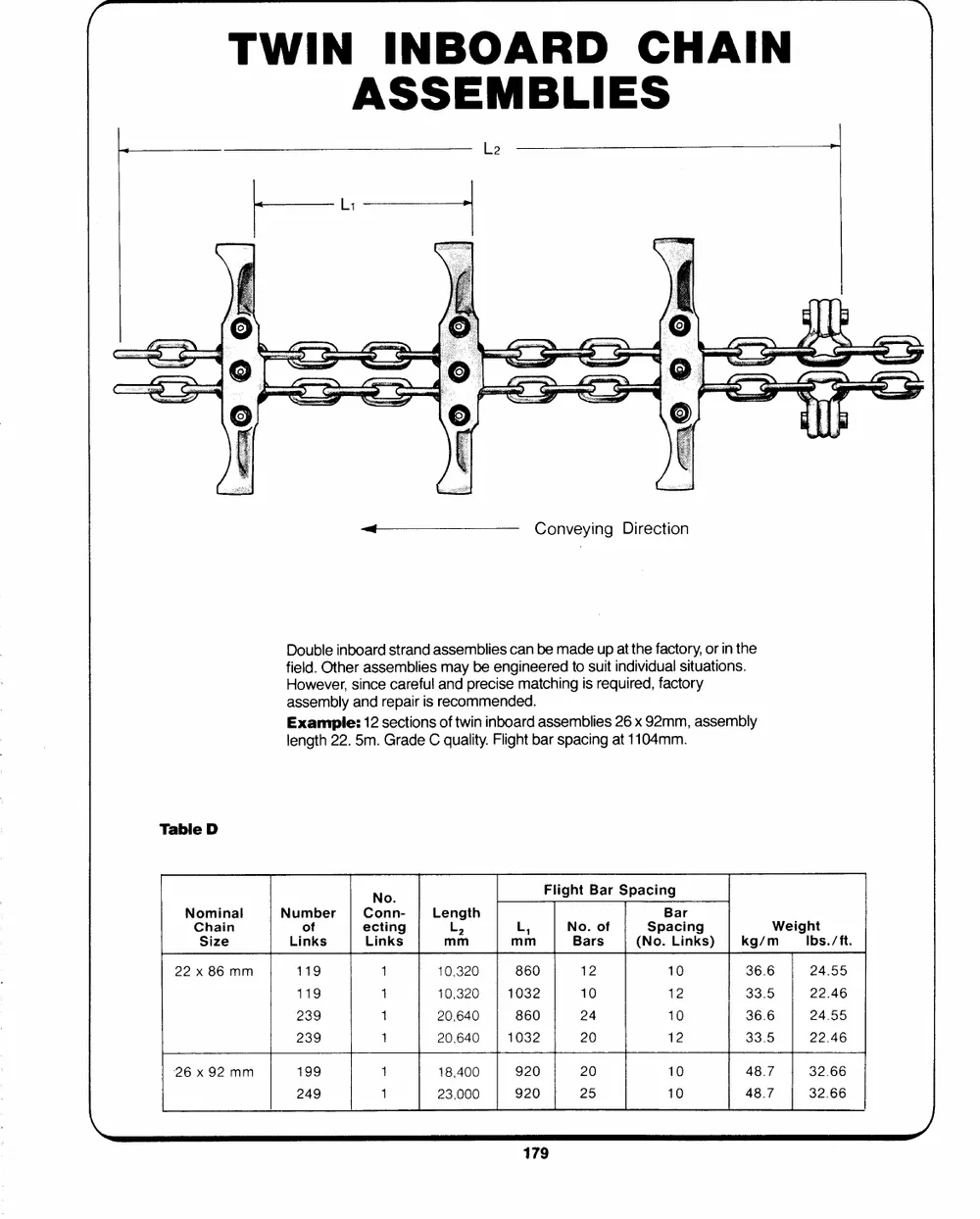

Double inboard strand assemblies can be made up at the factory, or in the
field. Other assemblies may be engineered to suit individual situations.
However, since careful and precise matching is required, factory
assembly and repair is recommended.
Example: 12 sections of twin inboard assemblies 26 x 92mm, assembly
length 22. 5m. Grade C quality. Flight bar spacing at 1104mm.
Table D
No Flight Bar Spacing
Nominal Number Conn- Length Bar
Chain of ecting L. L, No. of Spacing Weight
Size Links Links mm mm Bars (No. Links) | kg/m Ibs./ft.
22 x 86 mm 119 t 10,320 860 12 10 36.6 24.55
119 J 10,320 1032 10 12 33.5 22.46
239 1 20,640 860 24 10 36.6 24.55
239 1 20,640 | 1032 20 12 33.5 22.46
26 x 92 mm 199 1 18,400 920 20 10 48.7 32.66
249 1 23,000 920 25 10 48.7 32.66

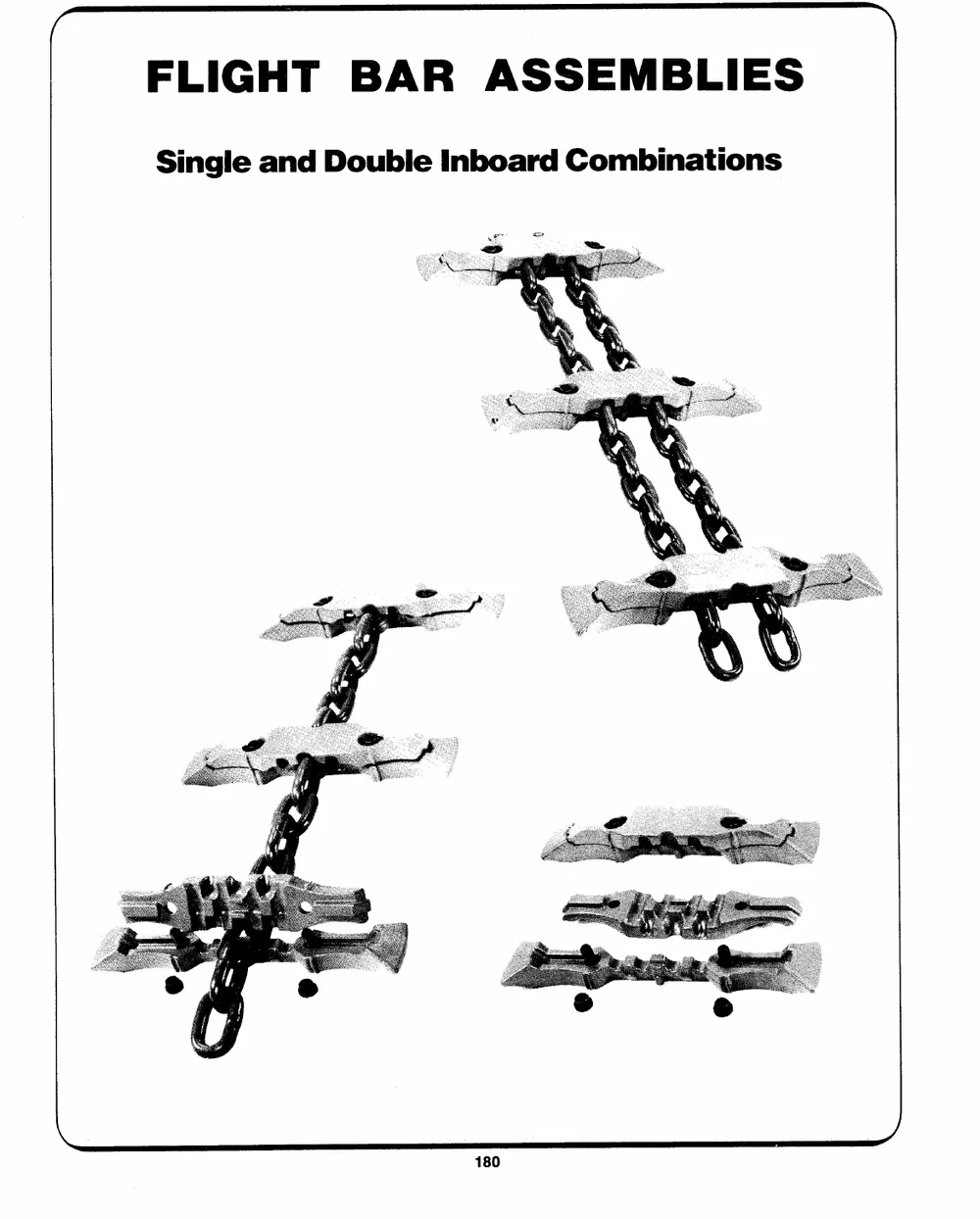

FLIGHT BAR ASSEMBLIES
Single and Double Inboard Combinations
ena

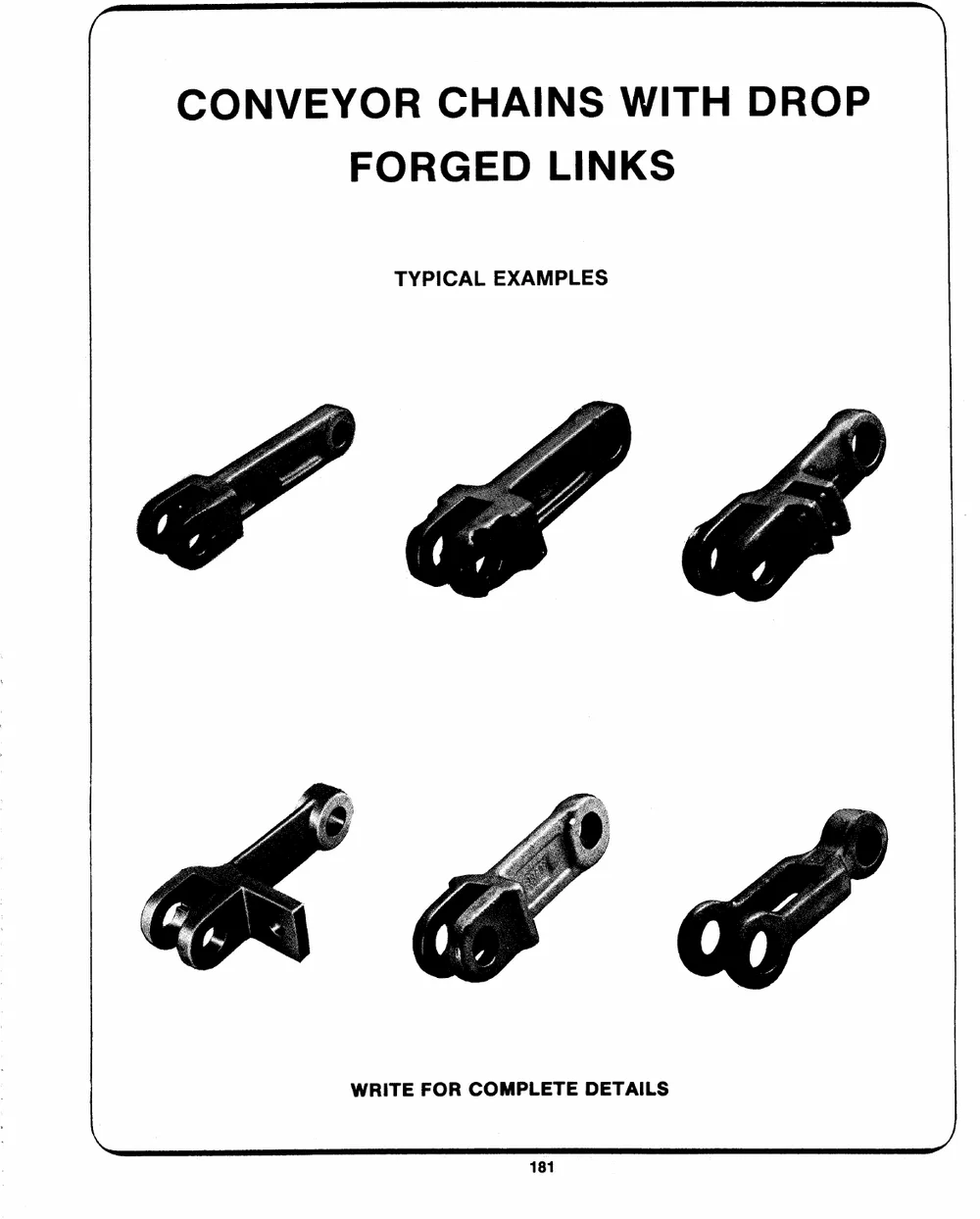

CONVEYOR CHAINS WITH DROP
FORGED LINKS
TYPICAL EXAMPLES
> Lioy ie
Fa al alti

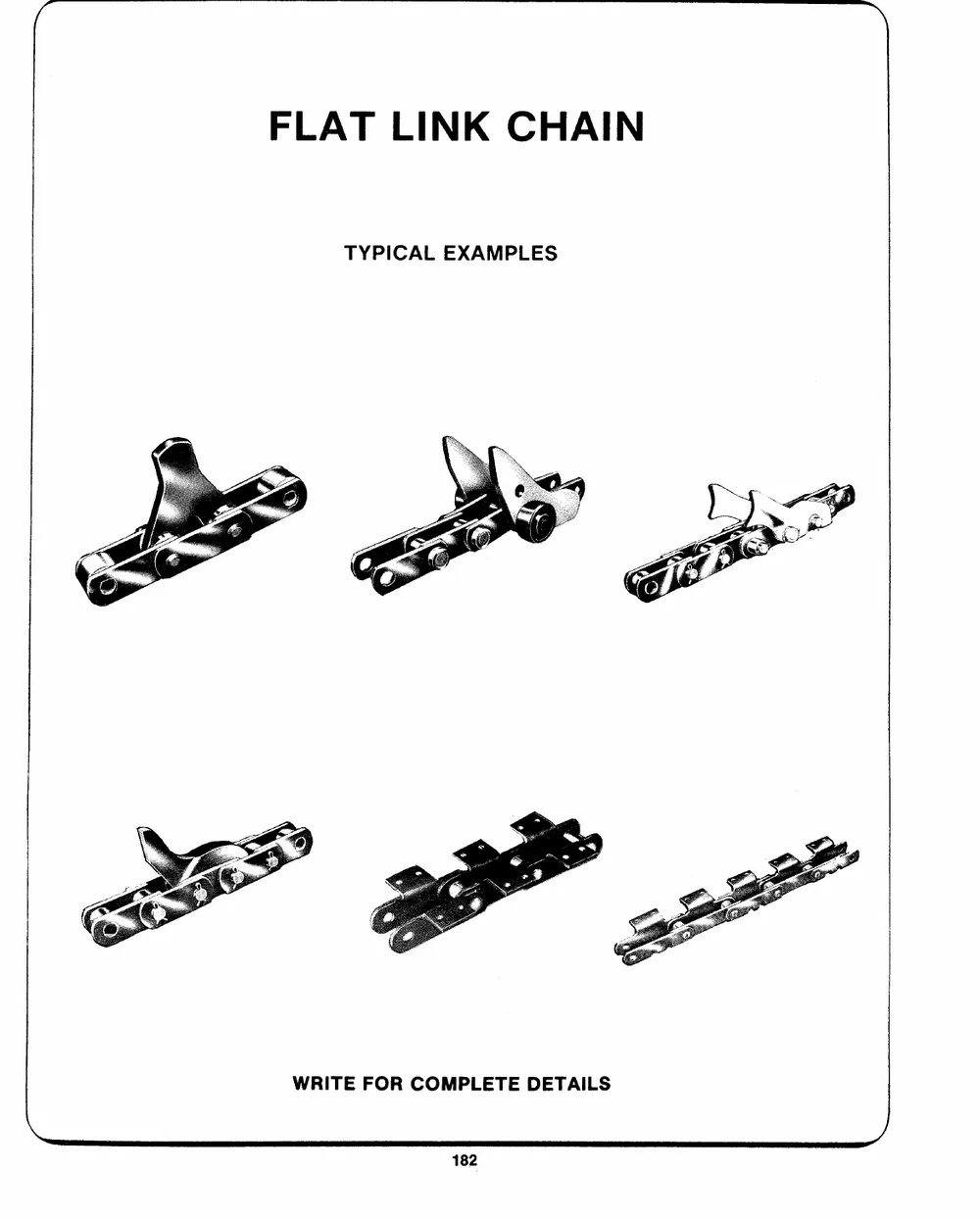

FLAT LINK CHAIN
TYPICAL EXAMPLES
WRITE FOR COMPLETE DETAILS
