Part of chapter: Marine Anchors

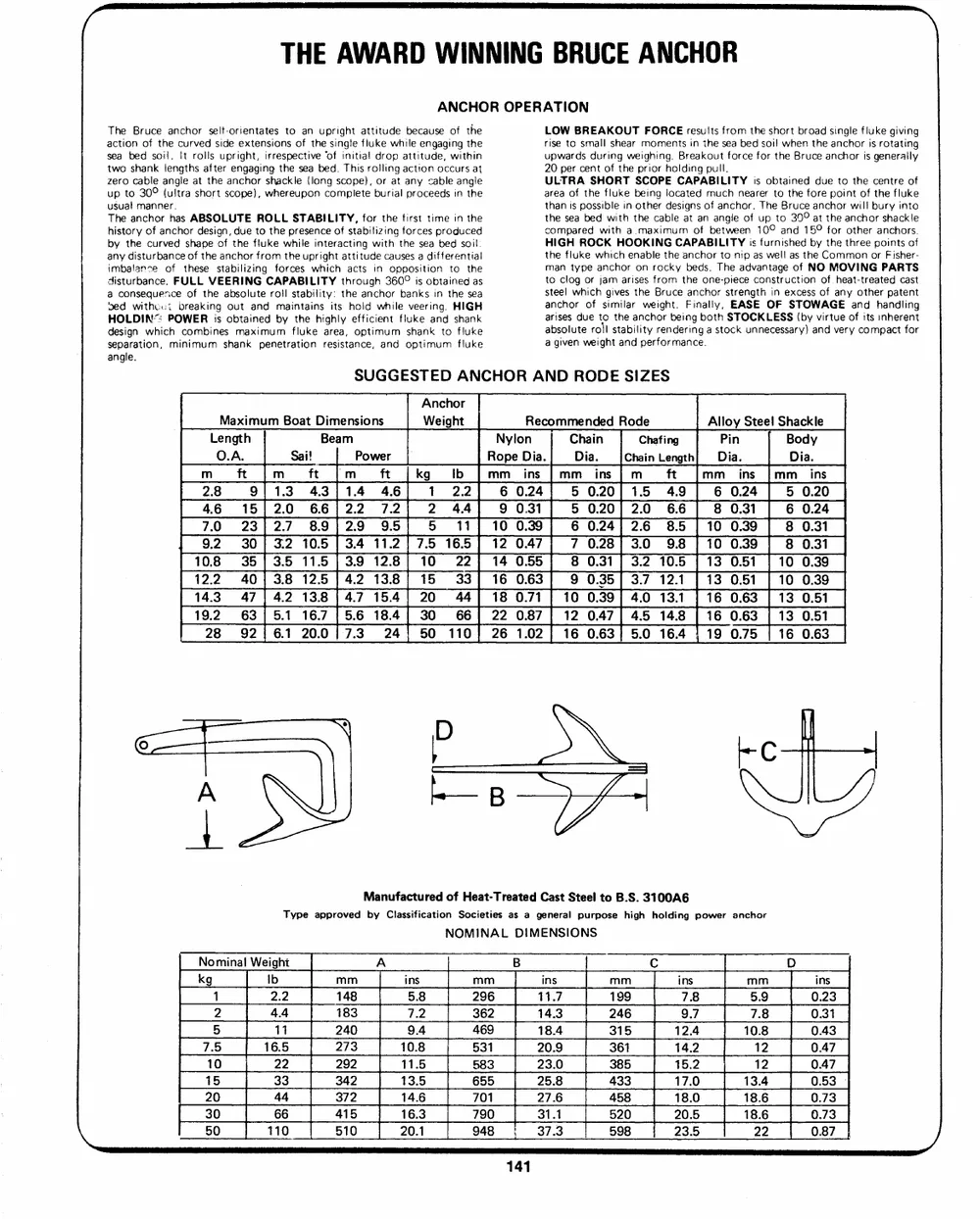

Original catalog page
Specifications (extracted from the original catalog)
| Length O.A. m | Length O.A. ft | Beam Sail m | Beam Sail ft | Beam Power m | Beam Power ft | Anchor Weight kg | Anchor Weight lb | Nylon Rope Dia. mm | Nylon Rope Dia. ins | Chain Dia. mm | Chain Dia. ins | Chafing Chain Length m | Chafing Chain Length ft | Shackle Pin Dia. mm | Shackle Pin Dia. ins | Shackle Body Dia. mm | Shackle Body Dia. ins |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.8 | 9 | 1.3 | 4.3 | 1.4 | 4.6 | 1 | 2.2 | 6 | 0.24 | 5 | 0.20 | 1.5 | 4.9 | 6 | 0.24 | 5 | 0.20 |
| 4.6 | 15 | 2.0 | 6.6 | 2.2 | 7.2 | 2 | 4.4 | 9 | 0.31 | 5 | 0.20 | 2.0 | 6.6 | 8 | 0.31 | 6 | 0.24 |
| 7.0 | 23 | 2.7 | 8.9 | 2.9 | 9.5 | 5 | 11 | 10 | 0.39 | 6 | 0.24 | 2.6 | 8.5 | 10 | 0.39 | 8 | 0.31 |
| 9.2 | 30 | 3.2 | 10.5 | 3.4 | 11.2 | 7.5 | 16.5 | 12 | 0.47 | 7 | 0.28 | 3.0 | 9.8 | 10 | 0.39 | 8 | 0.31 |
| 10.8 | 35 | 3.5 | 11.5 | 3.9 | 12.8 | 10 | 22 | 14 | 0.55 | 8 | 0.31 | 3.2 | 10.5 | 13 | 0.51 | 10 | 0.39 |
| 12.2 | 40 | 3.8 | 12.5 | 4.2 | 13.8 | 15 | 33 | 16 | 0.63 | 9 | 0.35 | 3.7 | 12.1 | 13 | 0.51 | 10 | 0.39 |
| 14.3 | 47 | 4.2 | 13.8 | 4.7 | 15.4 | 20 | 44 | 18 | 0.71 | 10 | 0.39 | 4.0 | 13.1 | 16 | 0.63 | 13 | 0.51 |
| 19.2 | 63 | 5.1 | 16.7 | 5.6 | 18.4 | 30 | 66 | 22 | 0.87 | 12 | 0.47 | 4.5 | 14.8 | 16 | 0.63 | 13 | 0.51 |
| 28 | 92 | 6.1 | 20.0 | 7.3 | 24 | 50 | 110 | 26 | 1.02 | 16 | 0.63 | 5.0 | 16.4 | 19 | 0.75 | 16 | 0.63 |
Frequently asked questions
- What is Bruce Anchor - Suggested Anchor and Rode Sizes?
- Bruce Anchor - Suggested Anchor and Rode Sizes is a product family in Dibblee Industries' Marine Anchors catalog. The printed catalog lists 9 catalogued variants.
- What length o.a. m options are available for Bruce Anchor - Suggested Anchor and Rode Sizes?
- Dibblee catalogues Bruce Anchor - Suggested Anchor and Rode Sizes across 9 length o.a. m options: 2.8, 4.6, 7.0, 9.2, 10.8, 12.2, 14.3, 19.2, 28.
- How do I order Bruce Anchor - Suggested Anchor and Rode Sizes from Dibblee Industries?
- Dibblee Industries supplies Bruce Anchor - Suggested Anchor and Rode Sizes to government and commercial buyers, quoted on request. Request a quote or download the chapter PDF for full specifications.
