Part of chapter: Marine Anchors

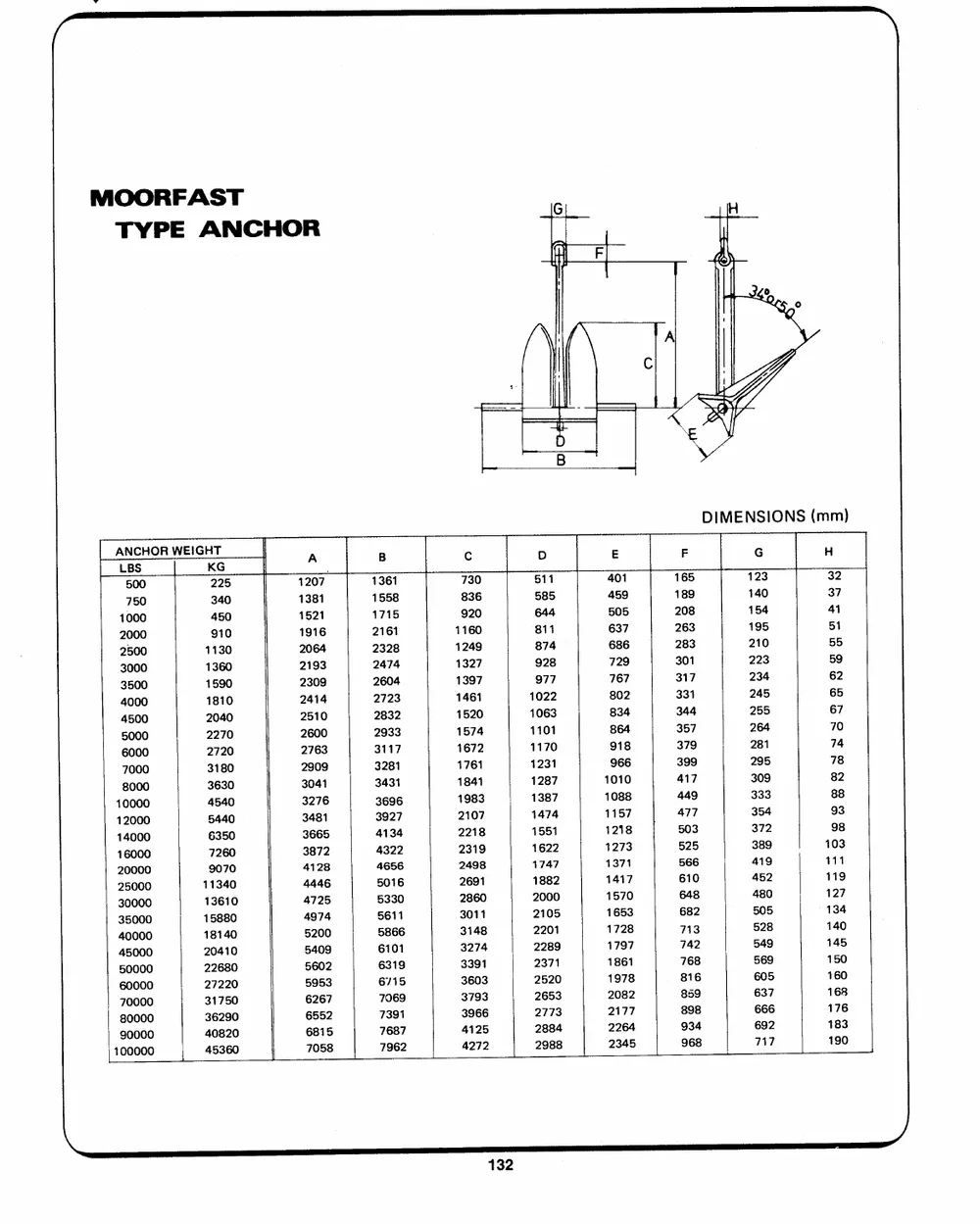

Original catalog page
Specifications (extracted from the original catalog)
| ANCHOR WEIGHT LBS | ANCHOR WEIGHT KG | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|
| 500 | 225 | 1207 | 1361 | 730 | 511 | 401 | 165 | 123 | 32 |
| 750 | 340 | 1381 | 1558 | 836 | 585 | 459 | 189 | 140 | 37 |
| 1000 | 450 | 1521 | 1715 | 920 | 644 | 505 | 208 | 154 | 41 |
| 2000 | 910 | 1916 | 2161 | 1160 | 811 | 637 | 263 | 195 | 51 |
| 2500 | 1130 | 2064 | 2328 | 1249 | 874 | 686 | 283 | 210 | 55 |
| 3000 | 1360 | 2193 | 2474 | 1327 | 928 | 729 | 301 | 223 | 59 |
| 3500 | 1590 | 2309 | 2604 | 1397 | 977 | 767 | 317 | 234 | 62 |
| 4000 | 1810 | 2414 | 2723 | 1461 | 1022 | 802 | 331 | 245 | 65 |
| 4500 | 2040 | 2510 | 2832 | 1520 | 1063 | 834 | 344 | 255 | 67 |
| 5000 | 2270 | 2600 | 2933 | 1574 | 1101 | 864 | 357 | 264 | 70 |
| 6000 | 2720 | 2763 | 3117 | 1672 | 1170 | 918 | 379 | 281 | 74 |
| 7000 | 3180 | 2909 | 3281 | 1761 | 1231 | 966 | 399 | 295 | 78 |
| 8000 | 3630 | 3041 | 3431 | 1841 | 1287 | 1010 | 417 | 309 | 82 |
| 10000 | 4540 | 3276 | 3696 | 1983 | 1387 | 1088 | 449 | 333 | 88 |
| 12000 | 5440 | 3481 | 3927 | 2107 | 1474 | 1157 | 477 | 354 | 93 |
| 14000 | 6350 | 3665 | 4134 | 2218 | 1551 | 1218 | 503 | 372 | 98 |
| 16000 | 7260 | 3872 | 4322 | 2319 | 1622 | 1273 | 525 | 389 | 103 |
| 20000 | 9070 | 4128 | 4656 | 2498 | 1747 | 1371 | 566 | 419 | 111 |
| 25000 | 11340 | 4446 | 5016 | 2691 | 1882 | 1417 | 610 | 452 | 119 |
| 30000 | 13610 | 4725 | 5330 | 2860 | 2000 | 1570 | 648 | 480 | 127 |
| 35000 | 15880 | 4974 | 5611 | 3011 | 2105 | 1653 | 682 | 505 | 134 |
| 40000 | 18140 | 5200 | 5866 | 3148 | 2201 | 1728 | 713 | 528 | 140 |
| 45000 | 20410 | 5409 | 6101 | 3274 | 2289 | 1797 | 742 | 549 | 145 |
| 50000 | 22680 | 5602 | 6319 | 3391 | 2371 | 1861 | 768 | 569 | 150 |
| 60000 | 27220 | 5953 | 6715 | 3603 | 2520 | 1978 | 816 | 605 | 160 |
| 70000 | 31750 | 6267 | 7069 | 3793 | 2653 | 2082 | 859 | 637 | 168 |
| 80000 | 36290 | 6552 | 7391 | 3966 | 2773 | 2177 | 898 | 666 | 176 |
| 90000 | 40820 | 6815 | 7687 | 4125 | 2884 | 2264 | 934 | 692 | 183 |
| 100000 | 45360 | 7058 | 7962 | 4272 | 2988 | 2345 | 968 | 717 | 190 |
Frequently asked questions
- What is Moorfast Type Anchor?
- Moorfast Type Anchor is a product family in Dibblee Industries' Marine Anchors catalog. The printed catalog lists 29 catalogued variants.
- What anchor weight lbs options are available for Moorfast Type Anchor?
- Dibblee catalogues Moorfast Type Anchor across 29 anchor weight lbs options: 500, 750, 1000, 2000, 2500, 3000, 3500, 4000, 4500, 5000, 6000, 7000.
- How do I order Moorfast Type Anchor from Dibblee Industries?
- Dibblee Industries supplies Moorfast Type Anchor to government and commercial buyers, quoted on request. Request a quote or download the chapter PDF for full specifications.
