Part of chapter: Marine Anchors

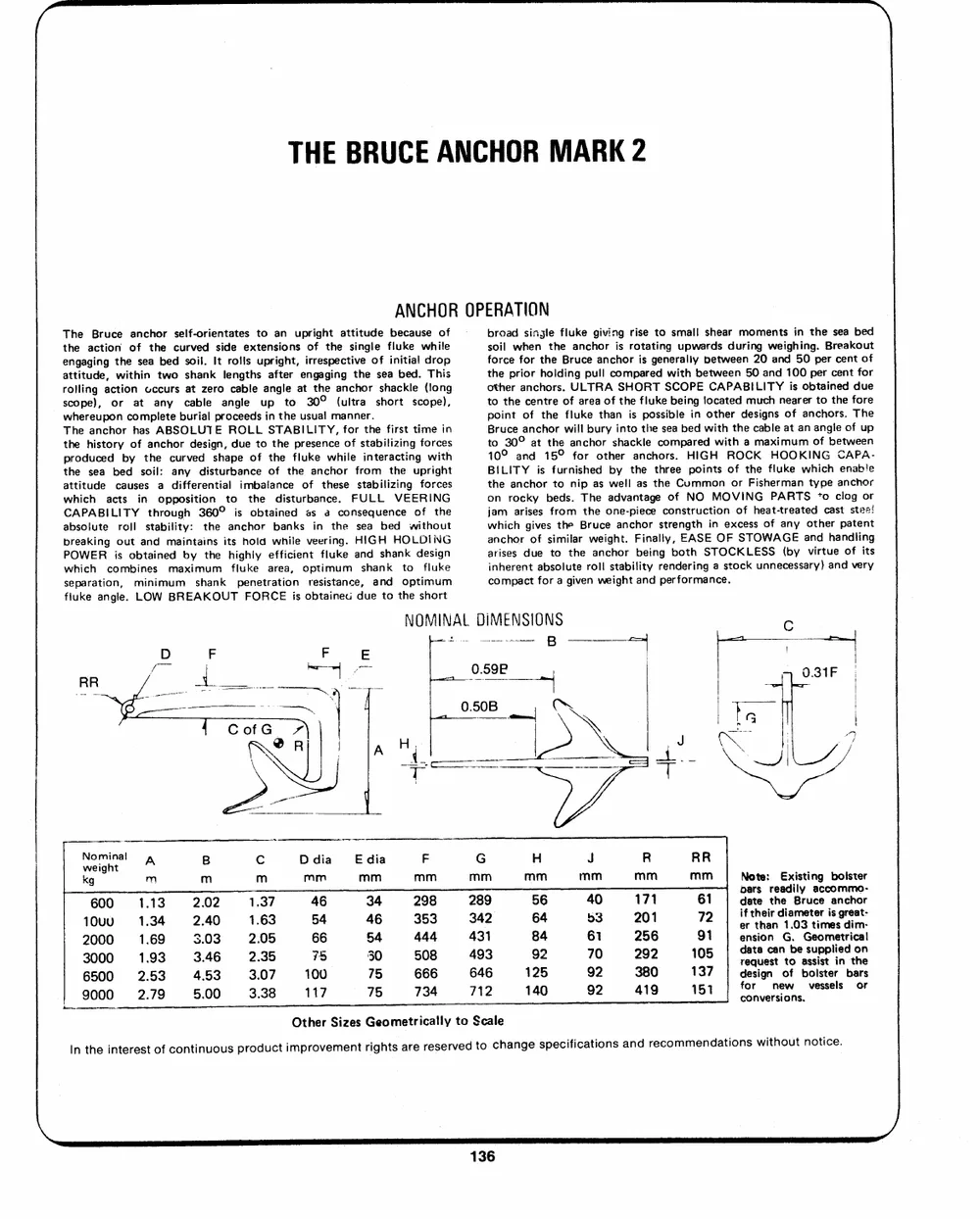

Original catalog page
Specifications (extracted from the original catalog)
| Nominal weight (kg) | A (m) | B (m) | C (m) | D dia (mm) | E dia (mm) | F (mm) | G (mm) | H (mm) | J (mm) | R (mm) | RR (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 600 | 1.13 | 2.02 | 1.37 | 46 | 34 | 298 | 289 | 56 | 40 | 171 | 61 |
| 1000 | 1.34 | 2.40 | 1.63 | 54 | 46 | 353 | 342 | 64 | 53 | 201 | 72 |
| 2000 | 1.69 | 3.03 | 2.05 | 66 | 54 | 444 | 431 | 84 | 61 | 256 | 91 |
| 3000 | 1.93 | 3.46 | 2.35 | 75 | 30 | 508 | 493 | 92 | 70 | 292 | 105 |
| 6500 | 2.53 | 4.53 | 3.07 | 100 | 75 | 666 | 646 | 125 | 92 | 380 | 137 |
| 9000 | 2.79 | 5.00 | 3.38 | 117 | 75 | 734 | 712 | 140 | 92 | 419 | 151 |
Frequently asked questions
- What is The Bruce Anchor Mark 2?
- The Bruce Anchor Mark 2 is a product family in Dibblee Industries' Marine Anchors catalog. The printed catalog lists 6 catalogued variants.
- What nominal weight (kg) options are available for The Bruce Anchor Mark 2?
- Dibblee catalogues The Bruce Anchor Mark 2 across 6 nominal weight (kg) options: 600, 1000, 2000, 3000, 6500, 9000.
- How do I order The Bruce Anchor Mark 2 from Dibblee Industries?
- Dibblee Industries supplies The Bruce Anchor Mark 2 to government and commercial buyers, quoted on request. Request a quote or download the chapter PDF for full specifications.
