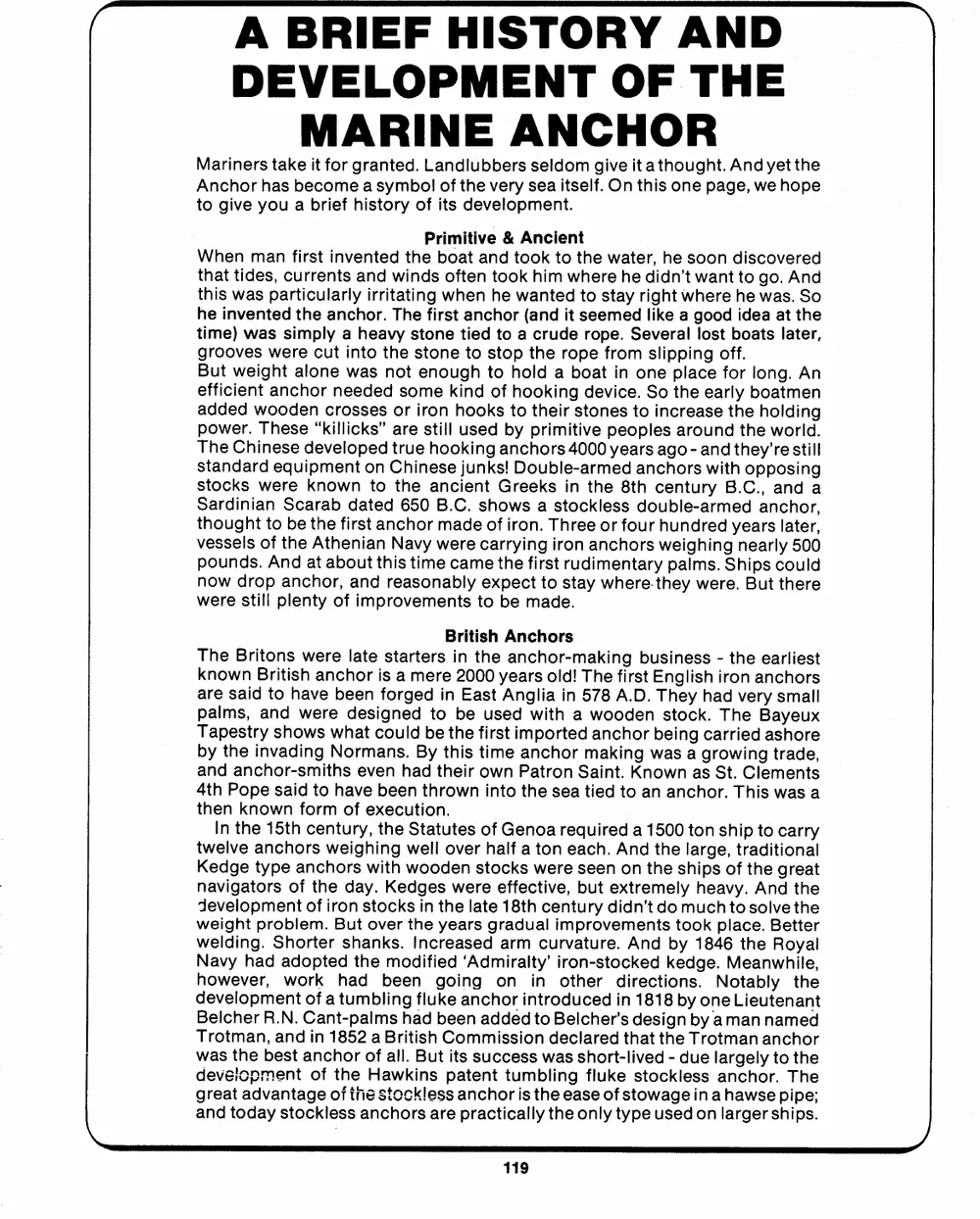

Marine Anchors

Verbatim text extracted from the original chapter PDF (1940–). The original catalog is in English; spec tables may render imperfectly — the PDF remains the authoritative source.

Mariners take it for granted. Landlubbers seldom give it a thought. And yet the
Anchor has become a symbol of the very sea itself. On this one page, we hope
to give you a brief history of its development.
Primitive & Ancient

When man first invented the boat and took to the water, he soon discovered
that tides, currents and winds often took him where he didn’t want to go. And
this was particularly irritating when he wanted to stay right where he was. So
he invented the anchor. The first anchor (and it seemed like a good idea at the
time) was simply a heavy stone tied to a crude rope. Several lost boats later,
grooves were cut into the stone to stop the rope from slipping off.
But weight alone was not enough to hold a boat in one place for long. An
efficient anchor needed some kind of hooking device. So the early boatmen
added wooden crosses or iron hooks to their stones to increase the holding
power. These “killicks” are still used by primitive peoples around the world.
The Chinese developed true hooking anchors 4000 years ago - and they’re still
standard equipment on Chinese junks! Double-armed anchors with opposing
stocks were known to the ancient Greeks in the 8th century B.C., and a
Sardinian Scarab dated 650 B.C. shows a stockless double-armed anchor,
thought to be the first anchor made of iron. Three or four hundred years later,
vessels of the Athenian Navy were carrying iron anchors weighing nearly 500
pounds. And at about this time came the first rudimentary palms. Ships could
now drop anchor, and reasonably expect to stay where-they were. But there
were still plenty of improvements to be made.

British Anchors
The Britons were late starters in the anchor-making business - the earliest
known British anchor is a mere 2000 years old! The first English iron anchors
are said to have been forged in East Anglia in 578 A.D. They had very small
palms, and were designed to be used with a wooden stock. The Bayeux
Tapestry shows what could be the first imported anchor being carried ashore
by the invading Normans. By this time anchor making was a growing trade,
and anchor-smiths even had their own Patron Saint. Known as St. Clements
4th Pope said to have been thrown into the sea tied to an anchor. This was a
then known form of execution.

In the 15th century, the Statutes of Genoa required a 1500 ton ship to carry
twelve anchors weighing well over half a ton each. And the large, traditional
Kedge type anchors with wooden stocks were seen on the ships of the great
navigators of the day. Kedges were effective, but extremely heavy. And the
development of iron stocks in the late 18th century didn’t do much to solve the
weight problem. But over the years gradual improvements took place. Better
welding. Shorter shanks. Increased arm curvature. And by 1846 the Royal
Navy had adopted the modified ‘Admiralty’ iron-stocked kedge. Meanwhile,
however, work had been going on in other directions. Notably the
development of a tumbling fluke anchor introduced in 1818 by one Lieutenant
Belcher R.N. Cant-palms had been added to Belcher’s design by aman named
Trotman, and in 1852 a British Commission declared that the Trotman anchor
was the best anchor of all. But its success was short-lived - due largely to the
development of the Hawkins patent tumbling fluke stockless anchor. The
great advantage of the stockless anchor is the ease of stowage in a hawse pipe;
and today stockless anchors are practically the only type used on larger ships.

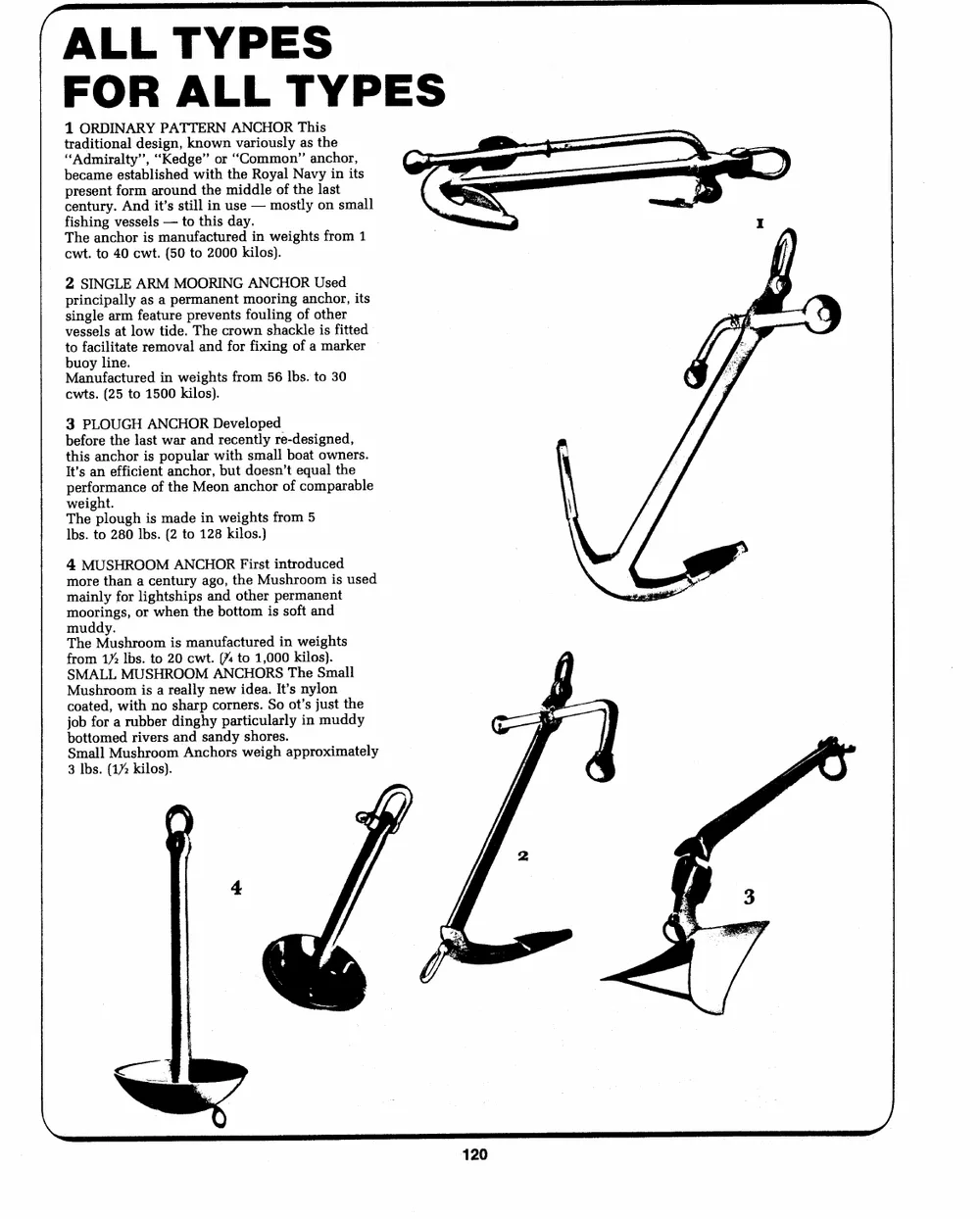

1 ORDINARY PATTERN ANCHOR This
traditional design, known variously as the
“Admiralty”, “Kedge” or “Common” anchor,
became established with the Royal Navy in its
present form around the middle of the last
century. And it’s still in use — mostly on small
fishing vessels — to this day. I
The anchor is manufactured in weights from 1
cwt. to 40 cwt. (50 to 2000 kilos).
2 SINGLE ARM MOORING ANCHOR Used
principally as a permanent mooring anchor, its
single arm feature prevents fouling of other .
vessels at low tide. The crown shackle is fitted
to facilitate removal and for fixing of a marker ;
buoy line.
Manufactured in weights from 56 lbs. to 30 a
cwts. (25 to 1500 kilos).
3 PLOUGH ANCHOR Developed
before the last war and recently re-designed,
this anchor is popular with small boat owners.
It’s an efficient anchor, but doesn’t equal the
performance of the Meon anchor of comparable
weight. \
The plough is made in weights from 5
Ibs. to 280 Ibs. (2 to 128 kilos.)
4 MUSHROOM ANCHOR First introduced ‘
more than a century ago, the Mushroom is used
mainly for lightships and other permanent
moorings, or when the bottom is soft and
muddy.
The Mushroom is manufactured in weights
from 1) lbs. to 20 cwt. (% to 1,000 kilos). la
SMALL MUSHROOM ANCHORS The Small /
Mushroom is a really new idea. It’s nylon is
coated, with no sharp corners. So ot’s just the ‘a
job for a rubber dinghy particularly in muddy C—— y |
bottomed rivers and sandy shores. f
Small Mushroom Anchors weigh approximately y p Sa
3 Ibs. (1% kilos). (3 y a

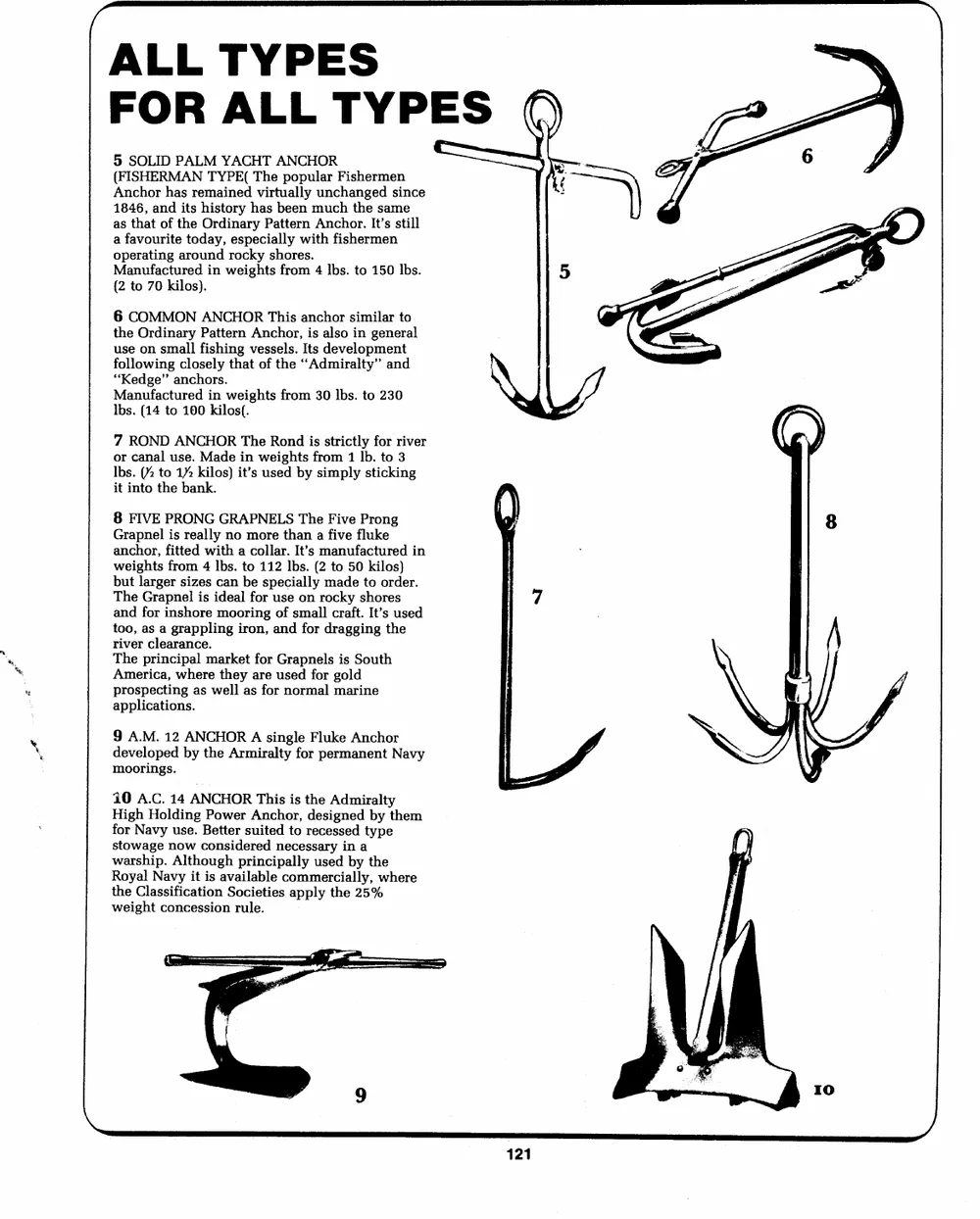

5 SOLID PALM YACHT ANCHOR 5 if 6
(FISHERMAN TYPE( The popular Fishermen ?

Anchor has remained virtually unchanged since :

1846, and its history has been much the same

as that of the Ordinary Pattern Anchor. It’s still D
a favourite today, especially with fishermen

operating around rocky shores. ZA d s
Manufactured in weights from 4 lbs. to 150 Ibs. 5 ;

(2 to 70 kilos). Z

6 COMMON ANCHOR This anchor similar to ~ S

the Ordinary Pattern Anchor, is also in general

use on small fishing vessels. Its development

following closely that of the “Admiralty” and }

“Kedge” anchors.

Manufactured in weights from 30 lbs. to 230

Ibs. (14 to 100 kilos(.

7 ROND ANCHOR The Rond is strictly for river

or canal use. Made in weights from 1 lb. to 3

Ibs. (2 to 1/2 kilos) it’s used by simply sticking

it into the bank.

8 FIVE PRONG GRAPNELS The Five Prong 38
Grapnel is really no more than a five fluke

anchor, fitted with a collar. It’s manufactured in :

weights from 4 lbs. to 112 lbs. (2 to 50 kilos)

but larger sizes can be specially made to order.

The Grapnel is ideal for use on rocky shores 7

and for inshore mooring of small craft. It’s used

too, as a grappling iron, and for dragging the A
river clearance. .

The principal market for Grapnels is South

America, where they are used for gold /
prospecting as well as for normal marine

applications.

9 A.M. 12 ANCHOR A single Fluke Anchor SN

developed by the Armiralty for permanent Navy

moorings.

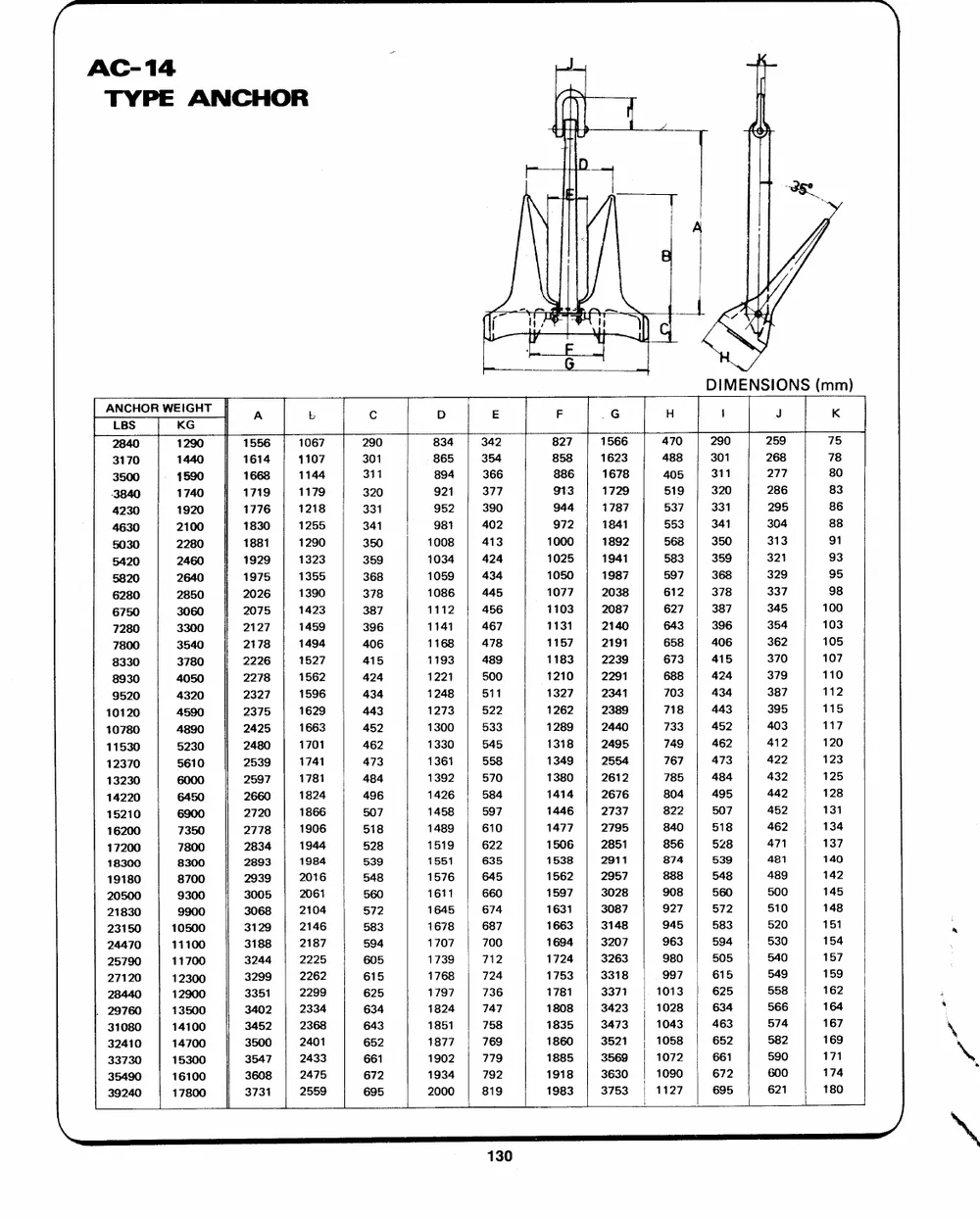

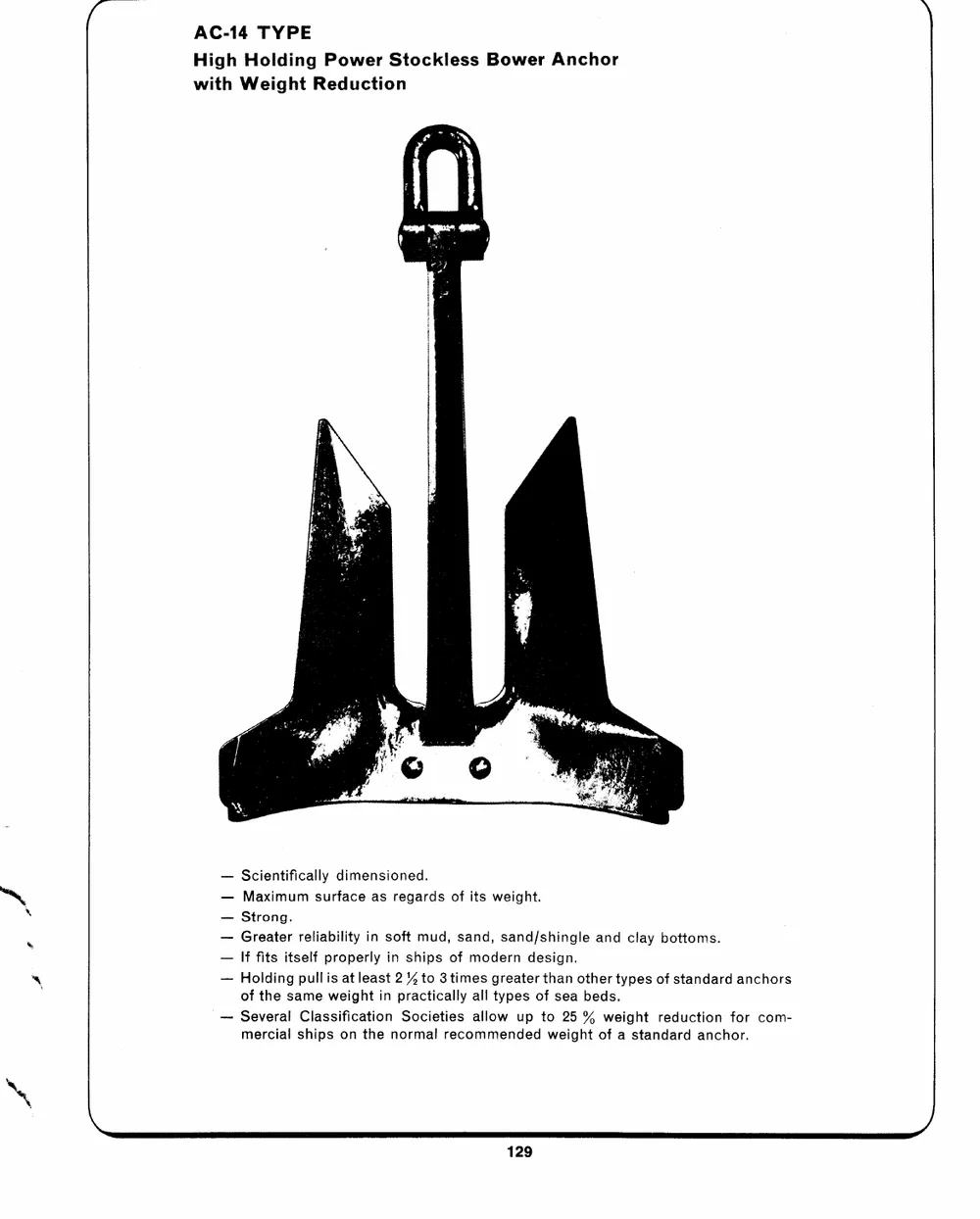

10 A.C. 14 ANCHOR This is the Admiralty

High Holding Power Anchor, designed by them

for Navy use. Better suited to recessed type

stowage now considered necessary in a [}

warship. Although principally used by the tg

Royal Navy it is available commercially, where

the Classification Societies apply the 25%
weight concession rule.

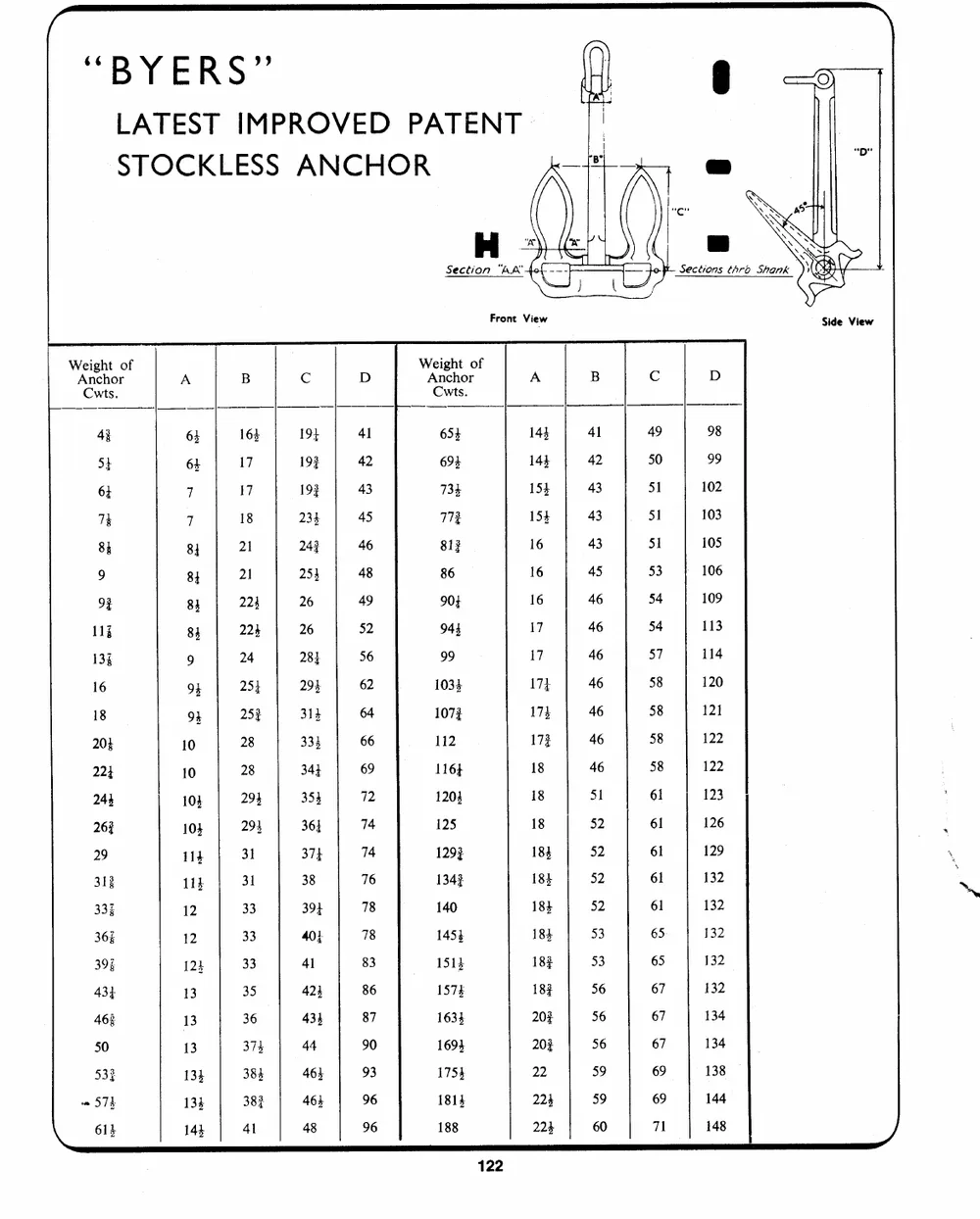

LATEST IMPROVED PATENT :

STOCKLESS ANCHOR ty og

A A = =) Sections thrb. Shank ae :
Front View Side View
Weight of Weight of
Anchor A B Cc D Anchor A B Cc D
Cuts. Cwrts.
43 64 163 19} 41 654 143 41 49 98
5} 63 17 193 42 694 144 42 50 99
6} 7 17 193 43 734 15} 43 51 102
7k 7 18 234 45 772 154 43 51 103
84 84 21 243 46 81} 16 43 51 105
9 84 21 254 48 86 16 45 53 106
93 83 223 26 49 904 16 46 54 109
11g 84 224 26 52 944 17 46 54 113
13% 9 24 28} 56 99 17 46 57 114
16 94 25} 294 62 1034 174 46 58 120
18 94 253 314 64 1073 174 46 58 121
204 10 28 334 66 112 173 46 58 122
224 10 28 344 69 1164 18 46 58 122
244 104 294 354 72 1203 18 51 61 123
263 103 294 36} 74 125 18 52 61 126
29 114 31 37} 74 129} 183 52 61 129
312 11} 31 38 16 1343 184 52 61 132
335 12 33 39} 78 140 184 52 61 132
36% 12 33 40} 78 145} 184 53 65 132
39% 123 33 41 83 1514 183 53 65 132
434 13 35 424 86 157% 18} 56 67 132
463 13 36 433 87 1634 203 56 67 134
50 13 374 44 90 1694 203 56 67 134
533 134 384 463 93 1753 22 59 69 138
574 134 383 464 96 1814 224 59 69 144
614 144 41 48 96 188 224 60 71 148

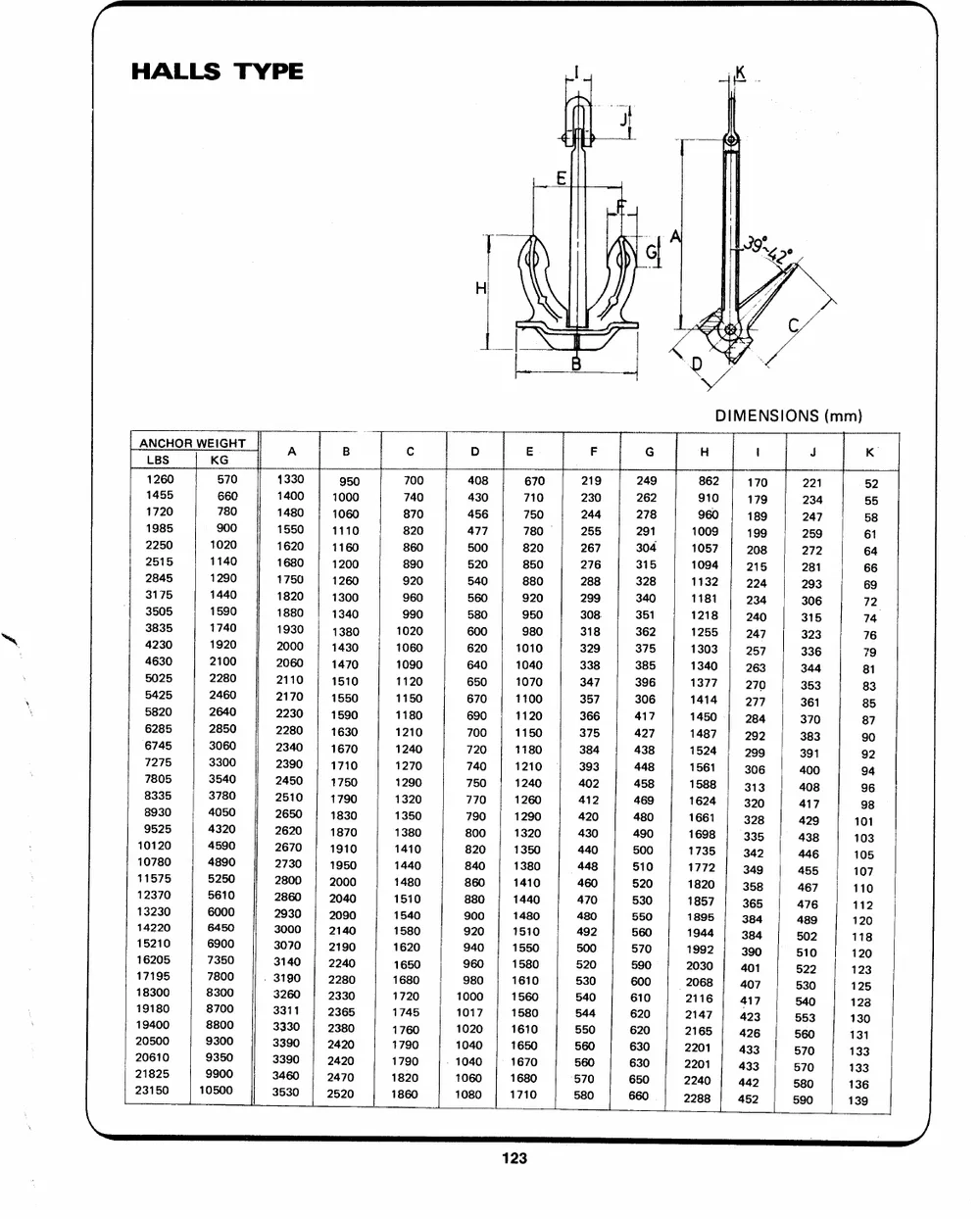

HALLS TYPE I K
DIMENSIONS (mm)
rae ce
1260 570 1330 950 700 408 670 219 249 862 170 221 52
1455 660 1400 1000 740 430 710 230 262 910 179 234 55
1720 780 1480 1060 870 456 750 244 278 960 189 247 58
1985 900 1550 1110 820 477 780 255 291 1009 199 259 61
2250 1020 1620 1160 860 500 820 267 304 1057 208 272 64
2515 1140 1680 1200 890 520 850 276 315 1094 215 281 66
2845 1290 1750 1260 920 540 880 288 328 1132 224 293 69
3175 1440 1820 1300 960 560 920 299 340 1181 234 306 72
3505 1590 1880 1340 990 580 950 308 351 1218 240 315 74
3835 1740 1930 1380 1020 600 980 318 362 1255 247 323 76
4230 1920 2000 1430 1060 620 1010 329 375 1303 257 336 79
4630 2100 2060 1470 1090 640 1040 338 385 1340 263 344 81
5025 2280 2110 1510 1120 650 1070 347 396 1377 270 353 83
5425 2460 2170 1550 1150 670 1100 357 306 1414 277 361 85
5820 2640 2230 1590 1180 690 1120 366 417 1450 284 370 87
6285 2850 2280 1630 1210 700 1150 375 427 1487 292 383 90
6745 3060 2340 1670 1240 720 1180 384 438 1524 299 391 92
7275 3300 2390 1710 1270 740 1210 393 448 1561 306 400 94
7805 3540 2450 1750 1290 750 1240 402 458 1588 313 408 96
8335 3780 2510 1790 1320 770 1260 412 469 1624 320 417 98
8930 4050 2650 1830 1350 790 1290 420 480 1661 328 429 101
9525 4320 2620 1870 1380 800 1320 430 490 1698 335 438 103
10120 4590 2670 1910 1410 820 1350 440 500 1735 342 446 105
10780 4890 2730 1950 1440 840 1380 448 510 1772 349 455 | 107
11575 5250 2800 2000 1480 860 1410 460 520 1820 358 467 110
12370 5610 2860 2040 1510 880 1440 470 530 1857 365 476 112
13230 6000 2930 2090 1540 900 1480 480 550 1895 384 489 120
14220 6450 3000 2140 1580 920 1510 492 560 1944 384 502 118
15210 6900 3070 2190 1620 940 1550 500 570 1992 390 510 120
16205 7350 3140 2240 1650 960 1580 520 590 2030 401 522 123
17195 7800 3190 2280 1680 980 1610 530 600 2068 407 530 125
18300 8300 3260 2330 1720 1000 1560 540 610 2116 417 540 122
19180 8700 3311 2365 1745 1017 1580 544 620 2147 423 553 130
19400 - | 8800 3330 2380 1760 1020 1610 550 620 2165 426 560 131
20500 9300 3390 2420 1790 1040 1650 560 630 2201 433 570 133
20610 9350 3390 2420 1790 1040 1670 560 630 2201 433 570 133
21825 9900 3460 2470 1820 1060 1680 570 650 2240 442 580 136
23150 10500 3530 2520 1860 1080 1710 580 660 2288 452 590 139

SN ead ewe

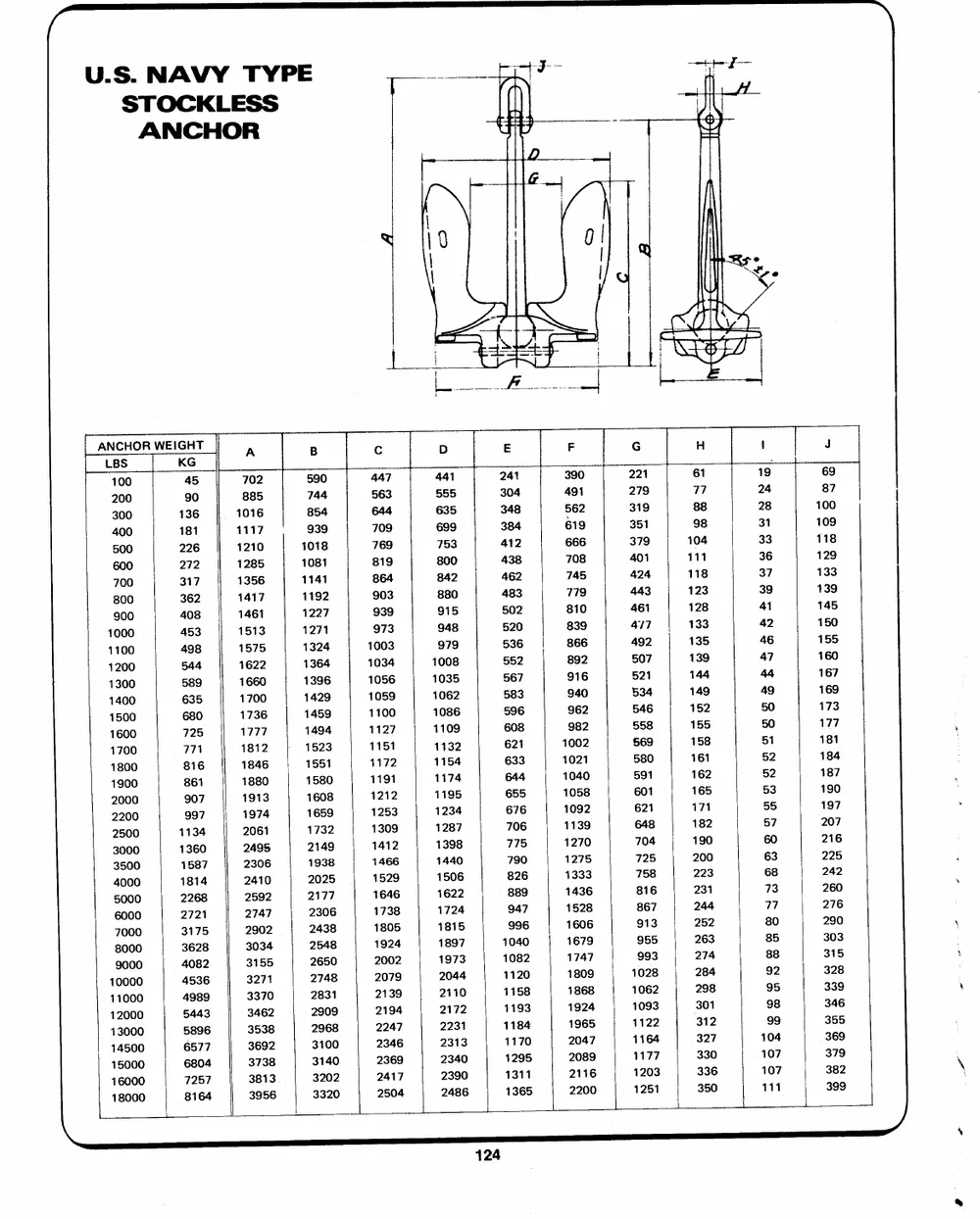

U.S. NAVY TYPE es a
STOCKLESS () i
ANCHOR si (e)
| aie
GEERT aT
100 45 | 702 590 447 441 241 390 221 61 19 69
200 90 885 744 563 555 304 491 279 77 24 87
300 136 1016 854 644 635 348 562 319 88 28 100 |
400 181 1117 939 709 699 384 619 351 98 31 109
500 226 1210 1018 769 753 412 666 379 104 33 118
600 272 1285 1081 819 800 438 708 401 111 36 129
700 317 1356 1141 864 842 462 745 424 118 37 133
800 362 1417 1192 903 880 483 779 443 123 39 139
900 408 | 1461 1227 939 915 502 810 461 128 41 145
1000 453 1513 1271 973 948 520 | 839 47/7 133 42 150
1100 498 1575 1324 1003 979 536 866 492 135 46 155
1200 544 | 1622 1364 1034 1008 552 | 892 507 139 47 160
1300 589 1660 1396 1056 1035 567 916 521 144 44 167
1400 635 1700 1429 1059 1062 583 940 534 149 49 169
1500 680 1736 1459 1100 1086 596 962 546 152 50 173
1600 725 1777 1494 1127 1109 608 | 982 558 155 50 177
1700 771 1812 1523 1151 1132 621 | 1002 569 158 51 181
1800 816 1846 1551 1172 1154 633 | 1021 580 | 161 52 184
1900 861 1880 1580 1191 1174 644 | 1040 591 162 52 187
2000 907 1913 1608 1212 1195 655 | 1058 601 165 53 190
2200 997 1974 1659 1253 1234 676 | 1092 621 171 55 197
2500 1134 2061 1732 1309 1287 706 1139 648 182 57 207
3000 1360 2495 2149 1412 1398 775 | 1270 704 190 60 216
3500 1587 2306 1938 1466 1440 790 1275 725 200 63 225
4000 1814 2410 2025 1529 1506 826 1333 758 223 68 242
5000 2268 2592 2177 1646 1622 889 1436 816 231 73 260
6000 2721 2747 2306 1738 1724 947 1528 867 244 77 276
7000 3175 2902 2438 1805 1815 996 | 1606 913 252 80 290
8000 3628 | 3034 2548 1924 1897 1040 | 1679 | 955 263 | 85 303
9000 4082 3155 2650 2002 1973 1082 | 1747 993 274 | 88 315
10000 4536 3271 2748 2079 2044 1120 | 1809 | 1028 284 92 328
11000 4989 3370 2831 2139 2110 1158 1868 1062 298 95 | 339
12000 5443 3462 2909 2194 2172 1193 1924 1093 301 98 346
13000 5896 3538 2968 2247 2231 1184 1965 1122 312 99 355
14500 6577 3692 3100 2346 2313 1170 2047 1164 327 104 369
15000 6804 3738 3140 2369 2340 1295 2089 1177 330 107 379
16000 7257 3813 3202 2417 2390 1311 2116 1203 336 107 382
18000 8164 3956 3320 2504 2486 1365 2200 1251 350 111 399

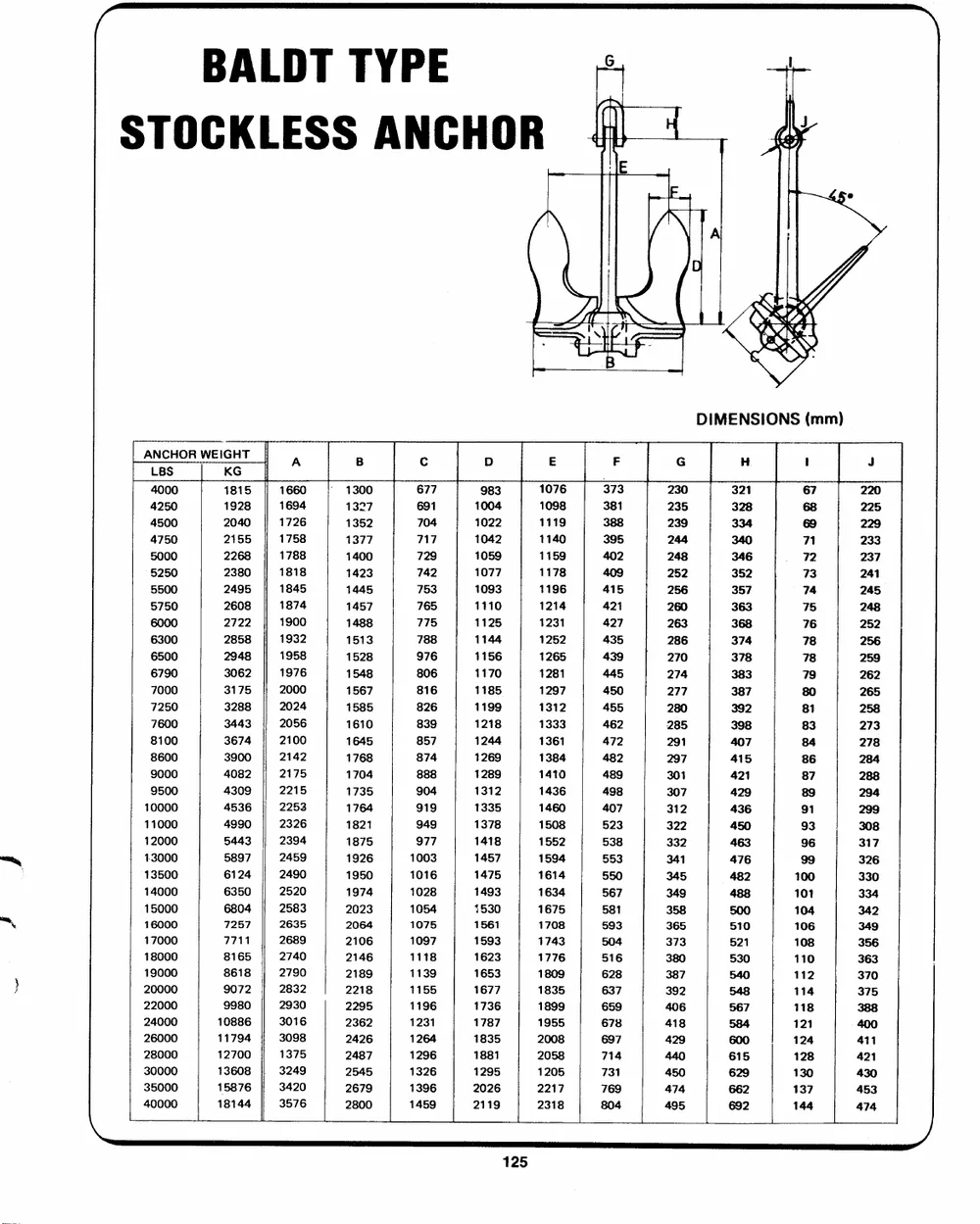

BALDT TYPE ; |
STOGKLESS ANCHOR i f
e— aaa
DIMENSIONS (mm)
See
4000 1815 1660 1300 677 983 1076 373 230 321 67 220
4250 1928 1694 1327 691 1004 1098 381 235 328 68 225
4500 2040 1726 1352 704 1022 1119 388 239 334 6 229
4750 2155 1758 1377 717 1042 1140 395 244 340 71 233
5000 2268 1788 1400 729 1059 1159 402 248 346 72 237
5250 2380 1818 1423 742 1077 1178 409 252 352 73 241
5500 2495 1845 1445 753 1093 1196 415 256 357 74 245
5750 2608 1874 1457 765 1110 1214 421 260 363 75 248
6000 2722 1900 1488 775 1125 1231 427 263 368 76 252
6300 2858 1932 1513 788 1144 1252 435 286 374 78 256
6500 2948 1958 1528 976 1156 1265 439 270 378 78 259
6790 3062 1976 1548 806 1170 1281 445 274 383 79 262
7000 3175 2000 1567 816 1185 1297 450 277 387 80 265
7250 3288 2024 1585 826 1199 1312 455 280 392 81 258
7600 3443 2056 1610 839 1218 1333 462 285 398 83 273
8100 3674 2100 1645 857 1244 1361 472 291 407 84 278
8600 3900 2142 1768 874 1269 1384 482 297 415 86 284
9000 4082 2175 1704 888 1289 1410 489 301 421 87 288
9500 4309 2215 1735 904 1312 1436 498 307 429 89 294
10000 4536 2253 1764 919 1335 1460 407 312 436 91 299
11000 4990 2326 1821 949 1378 1508 523 322 450 93 308
12000 5443 2394 1875 977 1418 1552 538 332 463 96 317
13000 5897 2459 1926 1003 1457 1594 553 341 476 99 326
13500 6124 2490 1950 1016 1475 1614 550 345 482 100 330
14000 6350 2520 1974 1028 1493 1634 567 349 488 101 334
15000 6804 2583 2023 1054 1530 1675 581 358 500 104 342
16000 7257 2635 2064 1075 1561 1708 593 365 510 106 349
17000 7711 2689 2106 1097 1593 1743 504 373 521 108 356
18000 8165 2740 2146 1118 1623 1776 516 380 530 110 363
19000 8618 2790 2189 1139 1653 1809 628 387 540 112 370
20000 9072 2832 2218 1155 1677 1835 637 392 548 114 375
22000 9980 2930 2295 1196 1736 1899 659 406 567 118 388
24000 10886 3016 2362 1231 1787 1955 678 418 584 121 400
26000 11794 3098 2426 1264 1835 2008 697 429 600 124 411
28000 12700 1375 2487 1296 1881 2058 714 440 615 128 421
30000 13608 3249 2545 1326 1295 1205 731 450 629 130 430
35000 15876 3420 2679 1396 2026 2217 769 474 662 137 453
40000 18144 3576 2800 1459 2119 2318 804 495 692 144 474

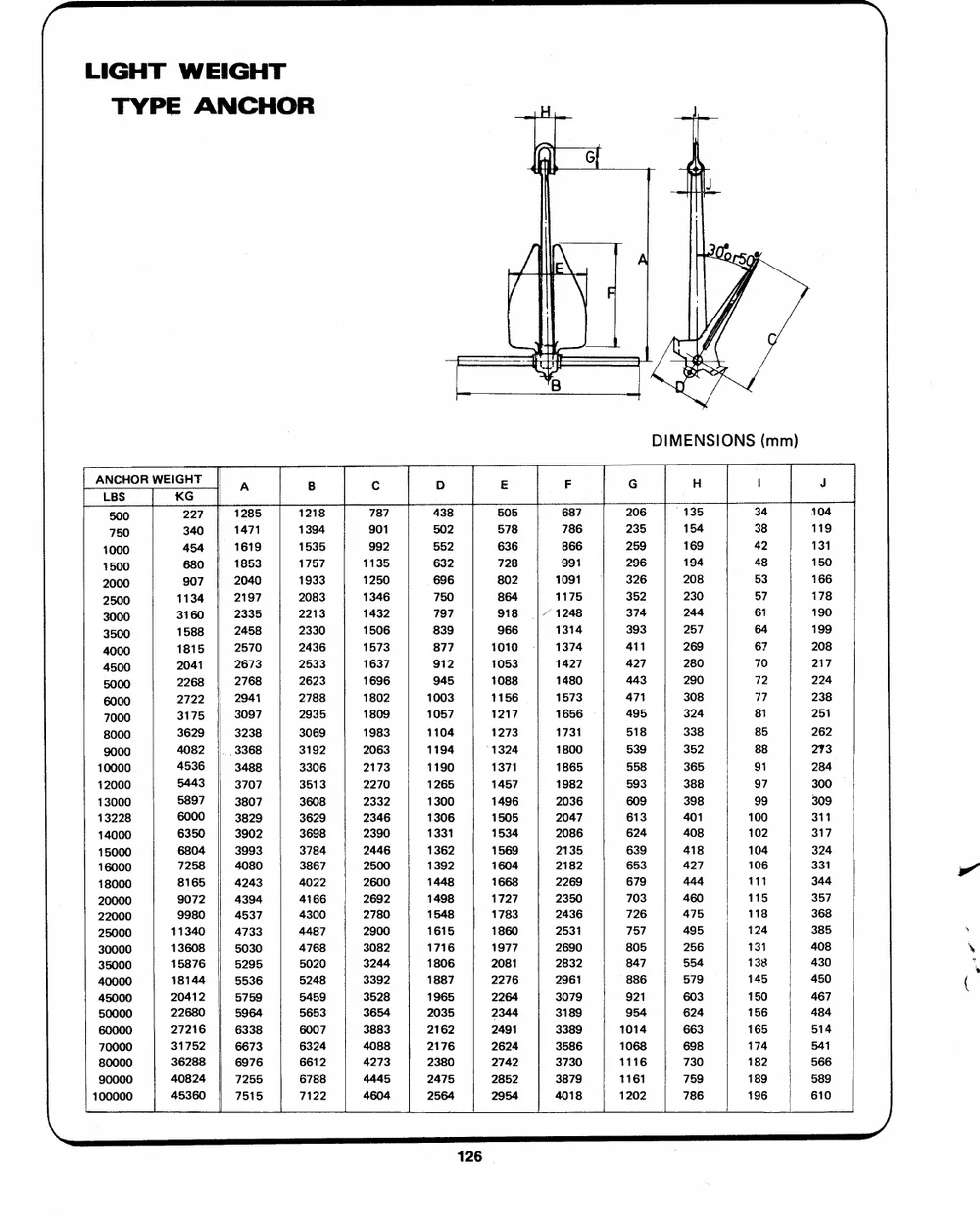

LIGHT WEIGHT

TYPE ANCHOR

mile
a. Bry
DIMENSIONS (mm)
ere ee
tes | Ke |
500 227 || 1285 1218 787 438 505 687 206 135 34 104
750 340 || 1471 1394 901 502 578 786 235 154 38 119
1000 454 || 1619 1535 992 552 636 866 259 169 42 131
1500 eso || 1853 1757 1135 632 728 991 296 194 48 150
2000 907 || 2040 1933 1250 696 802 1091 326 208 53 166
2500 1134 || 2197 2083 1346 750 864 1175 352 230 57 178
3000 3160 || 2335 2213 1432 797 918 | 1248 374 244 61 190
3500 1588 || 2458 2330 1506 839 966 1314 393 257 64 199
4000 1815 || 2570 2436 1573 877 1010 1374 411 269 67 208
4500 2041 || 2673 2533 1637 912 1053 1427 427 280 70 217
5000 2268 || 2768 2623 1696 945 1088 1480 443 290 72 224
6000 2722 || 2941 2788 1802 1003 1156 1573 471 308 77 238
7000 3175 || 3097 2935 1809 1057 1217 1656 495 324 81 251
8000 3629 || 3238 3069 1983 1104 1273 1731 518 338 85 262
9000 4082 || 3368 3192 2063 1194 1324 1800 539 352 88 273
10000 4536 || 3488 3306 2173 1190 1371 1865 558 365 91 284
12000 5443 3707 3513 2270 1265 1457 1982 593 388 97 300
13000 5897 || 3807 3608 2332 1300 1496 2036 609 398 99 309
13228 6000 || 3829 3629 2346 1306 1505 2047 613 401 100 311
14000 6350 || 3902 3698 2390 1331 1534 2086 624 408 102 317
15000 6804 || 3993 3784 2446 1362 1569 2135 639 418 104 324
16000 7258 || 4080 3867 2500 1392 1604 2182 653 427 106 331
18000 8165 || 4243 4022 2600 1448 1668 2269 679 444 114 344
20000 9072 || 4394 4166 2692 1498 1727 2350 703 460 115 387
22000 9980 || 4537 4300 2780 1548 1783 2436 726 475 118 368
25000 11340 || 4733 4487 2900 1615 1860 2531 757 495 124 385
30000 13608 5030 4768 3082 1716 1977 2690 805 256 131 408
35000 15876 || 5295 5020 3244 1806 2081 2832 847 554 138 430
40000 18144 | 5536 5248 3392 1887 2276 2961 886 579 145 450
45000 20412 5759 5459 3528 1965 2264 3079 921 603 150 467
50000 22680 || 5964 5653 3654 2035 2344 3189 954 624 156 484
60000 27216 6338 6007 3883 2162 2491 3389 1014 663 165 514
70000 31752 || 6673 6324 4088 2176 2624 3586 1068 698 174 541
80000 36288 || 6976 6612 4273 2380 2742 3730 1116 730 182 566
90000 40824 7255 6788 4445 2475 2852 3879 1161 759 189 589
100000 45360 7515 7122 4604 2564 2954 4018 1202 786 196 610

Sead ows

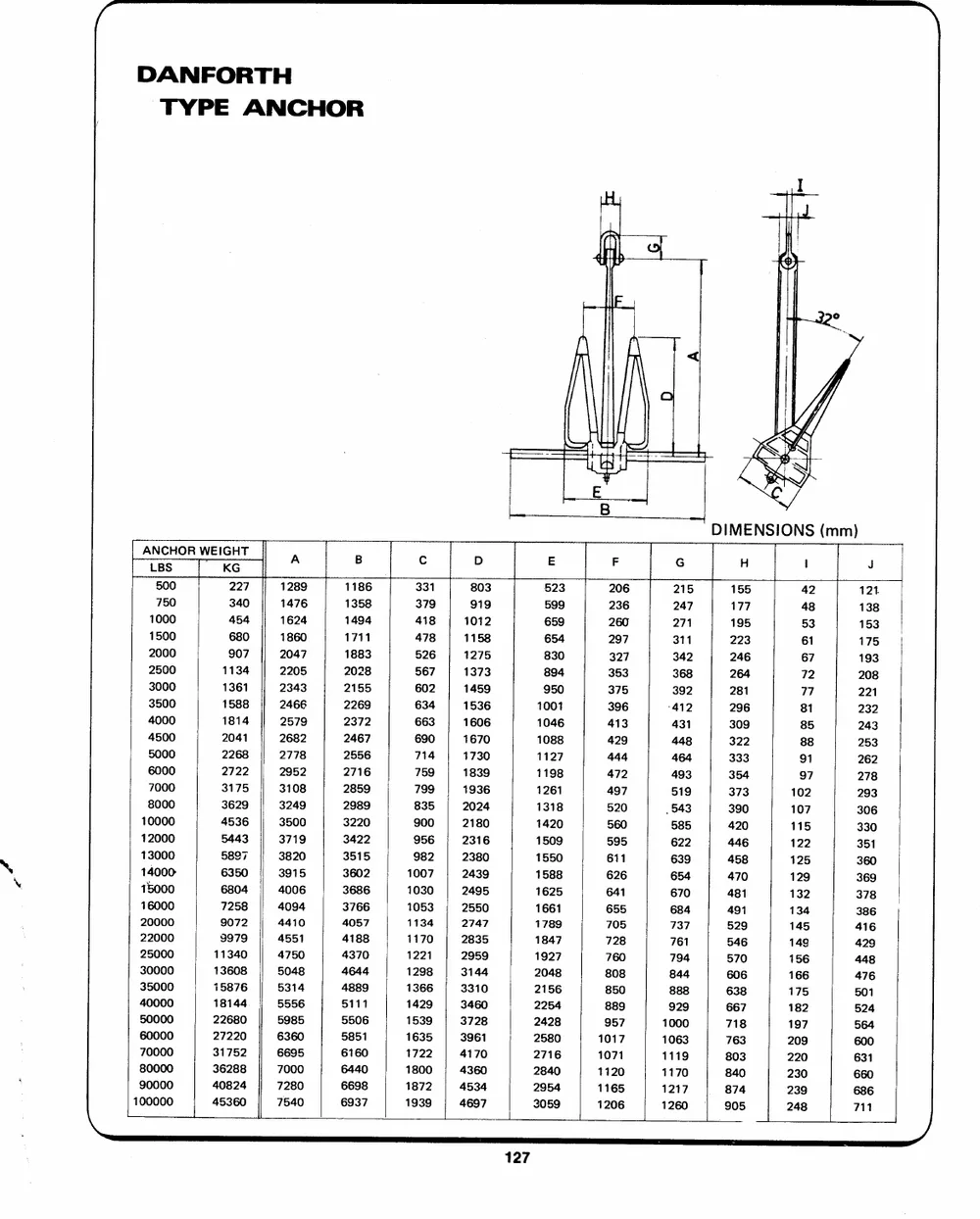

DANFORTH
TYPE ANCHOR
ues SC
DIMENSIONS (mm)
MR eee pe
tas [Ke
500 227 || 1289 1186 331 803 523 206 215 155 42 121 |
750 340 || 1476 1358 379 919 599 236 247 177 48 138
1000 454 || 1624 1494 418 | 1012 659 260 271 195 53 153 |
1500 680 || 1860 1711 478 | 1158 654 297 311 223 61 175 |
2000 907 || 2047 1883 526 | 1275 830 327 342 246 67 193
2500 1134 |) 2205 2028 567 | 1373 894 353 368 264 72 208
3000 1361 || 2343 2155 602 | 1459 950 375 392 281 77 221 |
3500 1588 || 2466 2269 634 | 1536 1001 396 412 296 81 232 |
4000 1814 || 2579 2372 663 | 1606 1046 413 431 309 85 243
4500 2041 || 2682 2467 690 | 1670 1088 429 448 322 88 253 |
5000 2268 || 2778 2556 714 | 1730 1127 444 464 333 91 262
6000 2722 || 2952 2716 759 | 1839 1198 472 493 354 97 278
7000 3175 || 3108 2859 799 | 1936 1261 497 519 373 102 293
8000 3629 || 3249 2989 835 | 2024 1318 520 543 390 107 306
10000 4536 || 3500 3220 900 | 2180 1420 560 585 420 115 330 |
12000 5443 || 3719 3422 956 | 2316 1509 595 622 446 122 351
13000 5897 || 3820 3515 982 | 2380 1550 611 639 458 125 360 |
14000 6350 || 3915 3602 1007 | 2439 1588 626 654 470 129 369
15000 6804 || 4006 3686 1030 | 2495 1625 641 670 481 132 378
16000 7258 || 4094 3766 1053 | 2550 1661 655 684 491 134 386 |
20000 9072 || 4410 4057 1134 | 2747 1789 705 737 529 145 416 |
22000 9979 || 4551 4188 1170 | 2835 1847 728 761 546 149 429
25000 11340 || 4750 4370 1221 | 2959 1927 760 794 570 156 448
30000 13608 || 5048 4644 1298 | 3144 2048 808 844 606 166 476
35000 15876 || 5314 4889 1366 | 3310 2156 850 888 638 175 501
40000 18144 || 5556 5111 1429 | 3460 2254 889 929 667 182 524
50000 22680 || sogs 5506 1539 | 3728 2428 957 1000 718 197 564
60000 27220 || 6360 5851 1635 | 3961 2580 1017 1063 763 209 600
70000 31752 || 6695 6160 1722 | 4170 2716 1071 1119 803 220 631
80000 36288 | 7000 6440 1800 | 4360 2840 1120 1170 840 230 660
90000 40824 || 7280 6698 1872 | 4534 2954 1165 1217 874 239 686 |
100000 45360 || 7540 6937 1939 | 4697 3059 1206 1260 905 248 711

SN ead ower
9 y) key

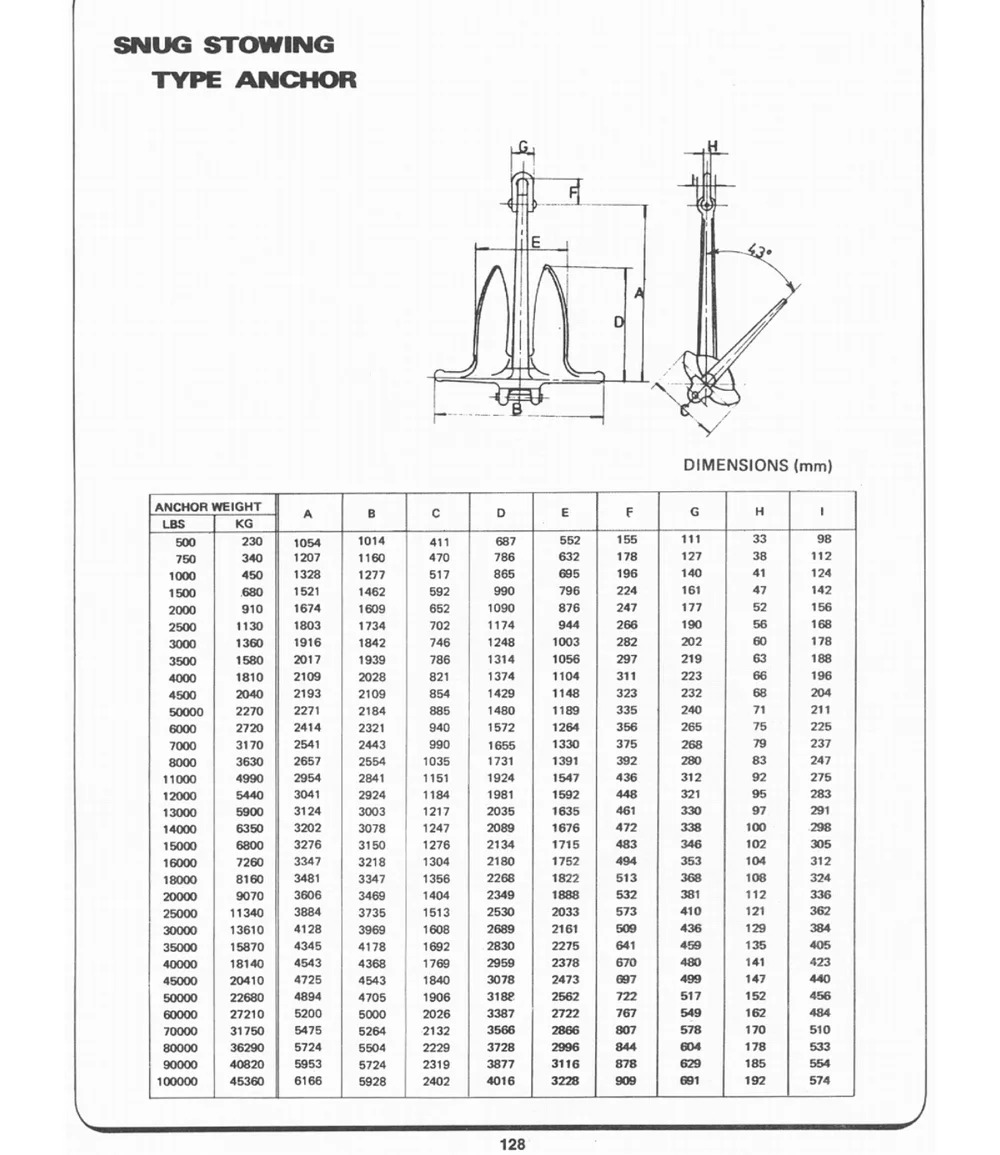

SNUG STOWING
TYPE ANCHOR
DIMENSIONS (mm)
500 230 1054 1014 411 687 552 155 111 33 98
750 340 1207 1160 470 786 632 178 127 38 112
1000 450 1328 1277 517 865 695 196 140 41 124
1500 680 1521 1462 592 990 796 224 161 47 142
2000 910 1674 1609 652 1090 876 247 177 52 156
2500 1130 1803 1734 702 1174 944 266 190 56 168
3000 1360 1916 1842 746 1248 1003 282 202 60 178
3500 1580 2017 1939 786 1314 1056 297 219 63 188
4000 1810 2109 2028 821 1374 1104 311 223 66 196
4500 2040 2193 2109 854 1429 1148 323 232 68 204
50000 2270 2271 2184 885 1480 1189 335 240 71 211
6000 2720 2414 2321 940 1572 1264 356 265 75 225
7000 3170 2541 2443 «| 990 1655 1330 375 268 79 237
8000 3630 2657 2554 1035 1731 1391 392 280 83 247
11000 4990 2954 2841 1151 1924 1547 436 312 92 275
12000 5440 3041 2924 1184 1981 1592 448 321 95 283
13000 5900 3124 3003 1217 2035 1635 461 330 97 291
14000 6350 3202 3078 1247 2089 1676 472 338 100 298
15000 6800 3276 3150 1276 2134 1715 483 346 102 305
16000 7260 3347 3218 1304 2180 1752 494 353 104 312
18000 8160 3481 3347 1356 2268 1822 513 368 108 324
20000 9070 3606 3469 1404 2349 1888 532 381 112 336
25000 11340 3884 3735 1513 2530 2033 573 410 121 362
30000 13610 4128 3969 1608 2689 2161 509 436 129 384
35000 15870 4345 4178 1692 2830 2275 641 459 135 405
40000 18140 4543 4368 1769 2959 2378 670 480 141 423
45000 20410 4725 4543 1840 3078 2473 697 499 147 440
50000 22680 4894 4705 1906 3182 2562 722 517 152 456
60000 27210 5200 5000 2026 3387 2722 767 549 162 484
70000 31750 5475 5264 2132 3566 2866 807 578 170 510
80000 36290 5724 5504 2229 3728 2996 844 604 178 533
90000 40820 | 5953 5724 2319 3877 3116 878 185 554
100000 45360 | 6166 5928 2402 4016 3228 909 691 192 574

AC-14 TYPE
High Holding Power Stockless Bower Anchor
with Weight Reduction
we oC OC mia
— Scientifically dimensioned.
— Maximum surface as regards of its weight.
— Strong.
— Greater reliability in soft mud, sand, sand/shingle and clay bottoms.
— If fits itself properly in ships of modern design.
— Holding pullis at least 2 % to 3 times greater than other types of standard anchors
of the same weight in practically all types of sea beds.
— Several Classification Societies allow up to 25 % weight reduction for com-
mercial ships on the normal recommended weight of a standard anchor.

Nad awe

TYPE ANCHOR a

CRN SG
DIMENSIONS (mm)
P tas | KG |
2840 1290 1556 | 1067 290 834 | 342 827 | 1566 470 | 290 259 75
3170 1440 1614 | 1107 301 865 | 354 858 | 1623 488 | 301 268 78
3500 1590 | 1668 | 1144 311 894 | 366 886 | 1678 405 | 311 277 80
3840 1740 1719 | 1179 320 921 | 377 913 | 1729 519 | 320 286 83
4230 1920 1776 | 1218 331 952 | 390 944 | 1787 537 | 331 295 86
4630 2100 1830 | 1255 341 981 | 402 972 | 1841 553 | 341 304 88
5030 2280 | 1881 | 1290 350 1008 | 413 1000 | 1892 568 | 350 313 91
5420 2460 1929 | 1323 359 1034 | 424 1025 | 1941 583 | 359 321 93
5820 2640 1975 | 1355 368 1059 | 434 1050 | 1987 597 | 368 329 95
6280 2850 2026 | 1390 378 1086 | 445 1077 | 2038 612 | 378 337 98
6750 3060 2075 | 1423 387 1112 | 456 1103 | 2087 627 | 387 345 100
7280 3300 2127 | 1459 396 1141 | 467 1131 | 2140 643 | 396 354 103
7800 3540 2178 | 1494 406 1168 | 478 1157 | 2191 658 | 406 362 105
8330 3780 2226 | 1527 415 1193 | 489 1183 | 2239 673 | 415 370 107
8930 4050 2278 | 1562 424 1221 | 500 1210 | 2291 688 | 424 379 110
9520 4320 2327 | 1596 434 1248 | 511 1327 | 2341 703 | 434 387 112
10120 4590 2375 | 1629 443 1273 | 522 1262 | 2389 718 | 443 395 115
10780 4890 2425 | 1663 452 1300 | 533 1289 | 2440 733 | 452 403 117
11530 5230 2480 | 1701 462 1330 | 545 1318 | 2495 749 | 462 412 120
12370 5610 2539 | 1741 473 1361 | 558 1349 | 2554 767 | 473 422 123
13230 6000 2597 | 1781 484 1392 | 570 1380 | 2612 785 | 484 432 | 125
14220 6450 2660 | 1824 496 1426 | 584 1414 | 2676 804 | 495 442 128
15210 6900 2720 | 1866 507 1458 | 597 1446 | 2737 822 | 507 452 131
16200 7350 2778 | 1906 518 1489 | 610 1477 | 2795 840 | 518 462 134
17200 7800 2834 | 1944 528 1519 | 622 1506 | 2851 856 | 528 471 137
18300 8300 2893 | 1984 539 1551 | 635 1538 | 2911 874 | 539 481 140
19180 8700 2939 | 2016 548 1576 | 645 1562 | 2957 888 | 548 489 142
20500 9300 3005 | 2061 560 1611 | 660 1597 | 3028 908 | 560 500 145
21830 9900 3068 | 2104 572 1645 | 674 1631 | 3087 927 | 572 510 148
23150 | 10500 3129 | 2146 583 1678 | 687 1663 | 3148 945 | 583 520 151
24470 | 11100 3188 | 2187 594 1707 | 700 1694 | 3207 963 | 594 530 154
25790 | 11700 3244 | 2225 605 1739 | 712 1724 | 3263 980 | 505 540 157
27120 | 12300 3299 | 2262 615 1768 | 724 1753 | 3318 997 | 615 549 159
28440 | 12900 3351 | 2299 625 1797 | 736 1781 | 3371 | 1013 | 625 558 162
29760 | 13500 3402 | 2334 634 1824 | 747 1808 | 3423 | 1028 | 634 566 164
31080 | 14100 3452 | 2368 643 1851 | 758 1835 | 3473 | 1043 | 463 574 167
32410 | 14700 3500 | 2401 652 1877 | 769 1860 | 3521 | 1058 | 652 582 169
33730 | 15300 3547 | 2433 661 1902 | 779 1885 | 3569 | 1072 | 661 590 171
35490 | 16100 3608 | 2475 672 1934 | 792 1918 | 3630 | 1090 | 672 600 174
39240 | 17800 3731 | 2559 695 2000 | 819 1983 | 3753 | 1127 | 695 621 180

als
Standard stock sizes are listed, intermediate weights can be supplied by AY
the addition of extra metal in the crown cavity. Larger sizes available. ie ff
The standard angle of swing of 40° can be altered on request at 4 yf.
manufacturing stage. pA
Flukes manufactured of cast steel. B.S. 1456. , oy y
Forged steel shanks up to 7,000 lb.—over this weight cast steel B.S.1456. « pv & v3
Finished in black rust resistant paint. XK a 4
500 lb. sizes and below can be galvanised at extra cost. ;
The following classification Societies have accepted the Stokes Anchor as \ dl
a high efficiency Anchor and allow 25% weight reduction below the 23
equipment weight—Germanischer Lloyd, Det Norske Veritas. Lloyds, \
Bureau Veritas, R.I.Na.—20% weight reduction—American Bureau of
Shipping.

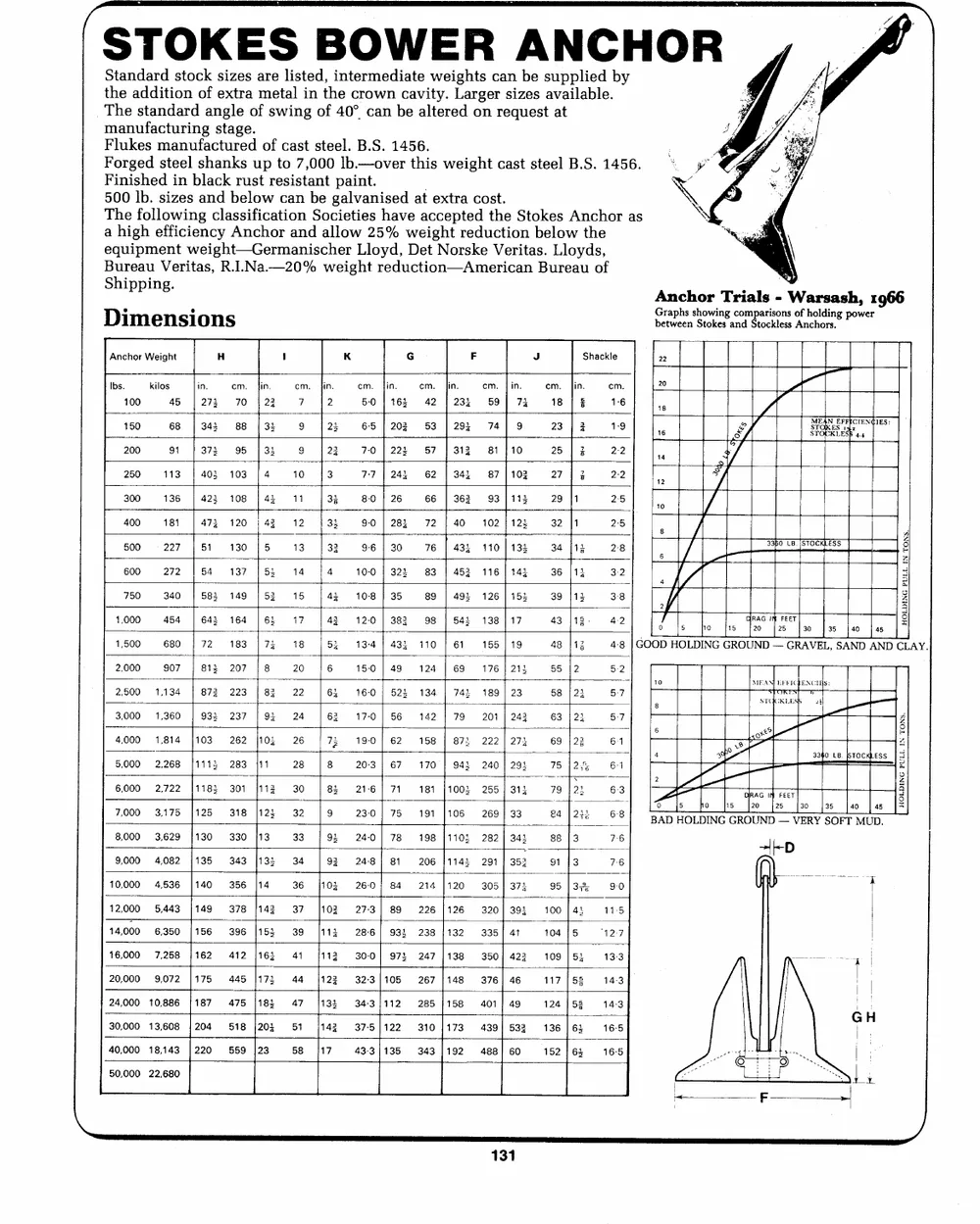

Anchor Trials - Warsash, 1966
. ° Graphs showing comparisons of holding power
Dimensions between Stokes and Stockless Anchors.
A de swe | fe | | | | | TTT |
Ibs. kilos in. cm. jin. cm. fin. cm. fin. cm. fin. cm. | in. cm. jin. cm. >| | | | PTT I
woe [os “ofa Tf fe Sf Bl) eT
7 MEAD ENG
ew fs els > [a el ells als «| el) io)
Pm sf [ae fa vols ofa ofo lial PTAC D IT Td
ma fos [ee fs af ef ef @ [se] TA PT
Poe fos a a we wf ale =f | CD
Pwo fom fae [a elm fo ef e fas! TAD,
ae wr nofey afi ae) [pee
= = - pte tT | j| f [| | yz
wom [a w|i fe wla ela mla xfs | PAT T1111:
mo so [wiv [ae [a wefw ew fon vel meme] CATT Po
oo [nw [ev [a wel fon elo e fee] Pee eto
1,500 680 5; 13-4 [asi 110 | 61155; 19 48 |12 4-8 |GOOD HOLDING GROUND — GRAVEL, SAND AND CLAY.
ETT founds TT
zsc0 1.134 | e7 223 as?) |p teh fo
so ram [i ae) eee
a — | | eet | | ate broods |
S000 2268 [1115 289 m spa | [Perry ok
sean [eh 3 esol atte tH
ix. ons eel

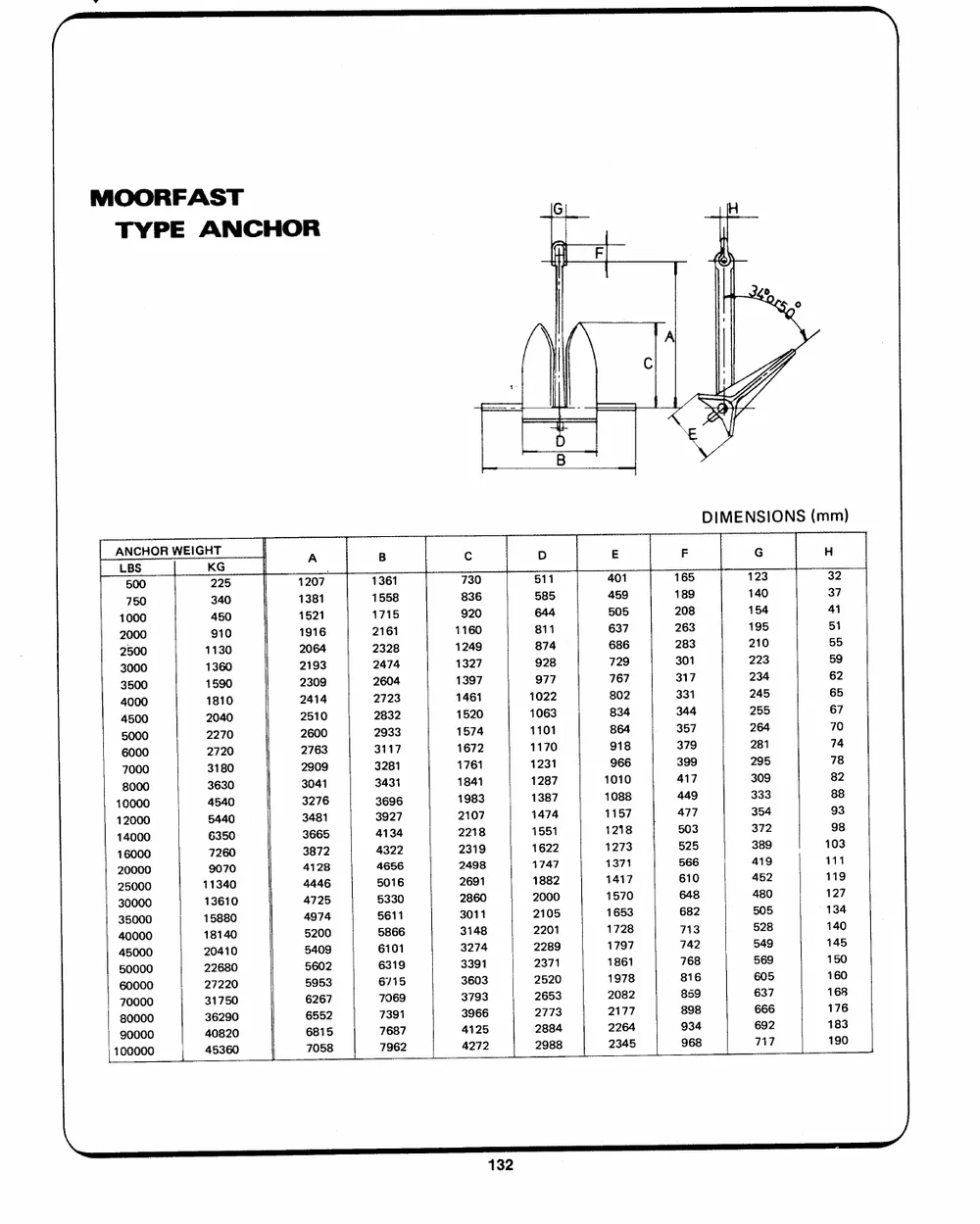

MOORFAST
TYPE ANCHOR | A
Rasy *
DIMENSIONS (mm)
500 225 1207 1361 730 511 401 165 123 32
750 340 1381 1558 836 585 459 189 140 37
1000 450 1521 1715 920 644 505 208 154 41
2000 910 1916 2161 1160 811 637 263 195 51
2500 1130 2064 2328 1249 874 686 283 210 55
3000 1360 2193 2474 1327 928 729 301 223 59
3500 1590 2309 2604 1397 977 767 o17 234 62
4000 1810 2414 2723 1461 1022 802 331 245 65
4500 2040 2510 2832 1520 1063 834 344 255 67
5000 2270 2600 2933 1574 1101 864 357 264 70
6000 2720 2763 3117 1672 1170 918 379 281 74
7000 3180 2909 3281 1761 1231 966 399 295 78
8000 3630 3041 3431 1841 1287 1010 417 309 82
10000 4540 3276 3696 1983 1387 1088 449 333 88
12000 5440 3481 3927 2107 1474 1157 477 354 93
14000 6350 3665 4134 2218 1551 1218 503 372 98
16000 7260 3872 4322 2319 1622 1273 525 389 103
20000 9070 4128 4656 2498 1747 1371 566 419 111
25000 11340 4446 5016 2691 1882 1417 610 452 119
30000 13610 4725 5330 2860 2000 1570 648 480 127
35000 15880 4974 5611 3011 2105 1653 682 505 134
40000 18140 5200 5866 3148 2201 | 1728 713 528 140
45000 20410 5409 6101 3274 2289 1797 742 549 145
50000 22680 5602 6319 3391 2371 1861 768 569 150
60000 27220 5953 6715 3603 2520 1978 816 605 160
70000 31750 6267 7069 3793 2653 2082 859 637 168
80000 36290 6552 7391 3966 2773 2177 898 666 176
90000 40820 6815 7687 4125 2884 2264 934 692 183
100000 45360 7058 7962 4272 2988 2345 968 717 190

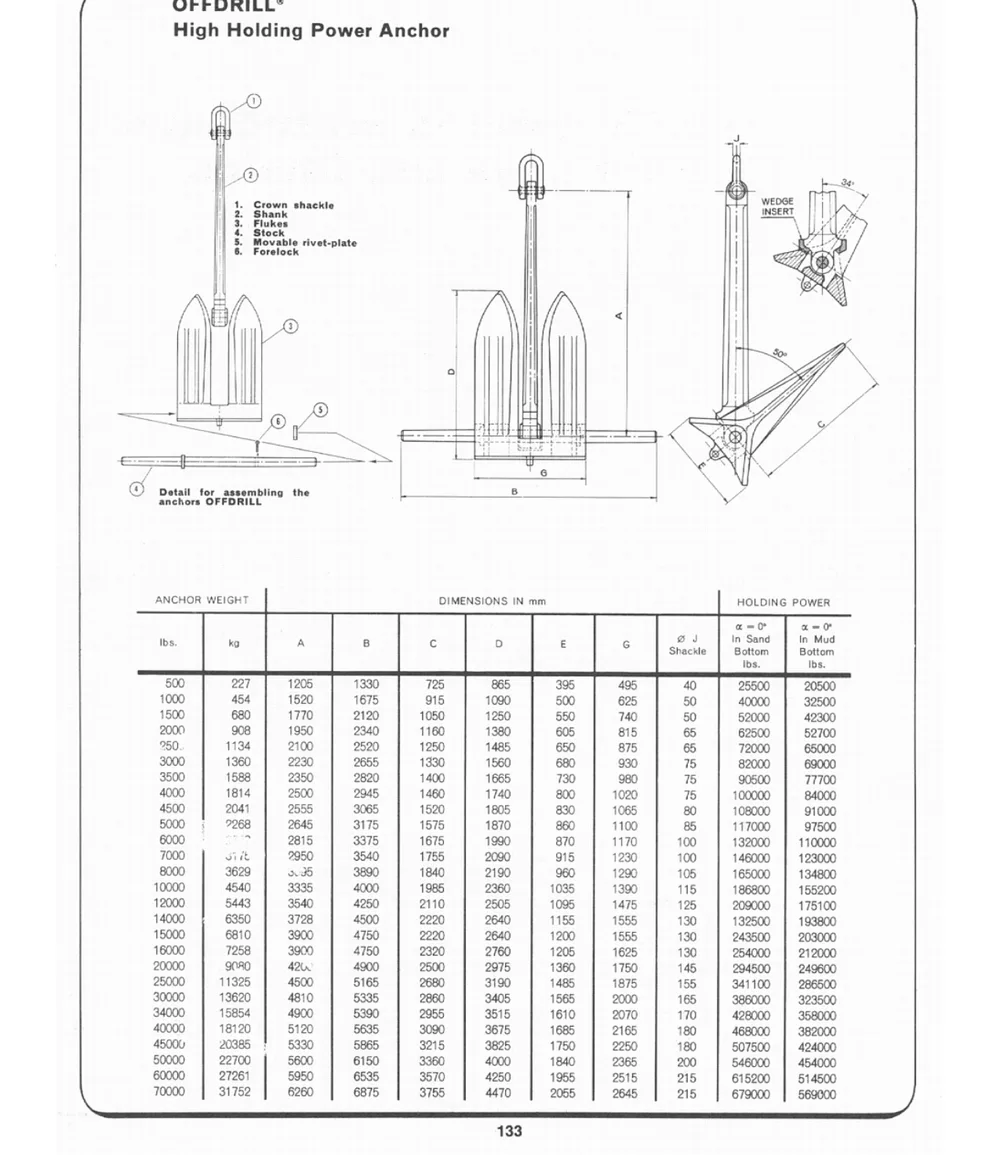

OFFDRILL®
High Holding Power Anchor
1. Crown shackle | hee it 7
5. Movable rivet-plate 1 RG a
6. Forelock | KB) \
CAC
Sf ArT deh eth yi Y
os = ee ee ee SB
| Maes te DOE
of Detail for assembling the Lo
anchors OFFDRILL
ANCHOR WEIGHT DIMENSIONS IN mm HOLDING POWER
@J In Sand In Mud
hs. kg 7 c Shackle Bottom Bottom
Ibs. Ibs,
500 227 1205 1330 725 865 395 495 40 25500 20500
1000 454 1520 1675 915 1090 500 625 50 40000 32500
1500 680 1770 2120 1050 1250 550 740 50 52000 42300
2000 908 1950 2340 1160 1380 605 815 65 62500 52700
250. 1134 2100 2520 1250 1485 650 875 65 72000 65000
3000 1360 2230 2655 1330 1560 680 930 75 82000 69000
3500 1588 2350 2820 1400 1665 730 980 75 90500 77700
4000 1814 2500 2945 1460 1740 800 1020 75 100000 84000
4500 2041 2555 3065 1520 1805 830 1065 80 108000 91000
5000 : 2268 2645 3175 1575 1870 860 1100 85 117000 97500
6000 — 2815 3375 1675 1990 870 1170 100 132000 110000
7000 ort 2950 3540 1755 2090 915 1230 100 146000 123000
8000 3629 od5 3890 1840 2190 960 1290 105 165000 134800
10000 4540 3335 4000 1985 2360 1035 1390 115 186800 155200
12000 5443 3540 4250 2110 2505 1095 1475 125 209000 175100
; 14000 6350 3728 4500 2220 2640 1155 1555 130 132500 193800
\ 15000 6810 3900 4750 2220 2640 1200 1555 130 243500 203000
16000 7258 3900 4750 2320 2760 1205 1625 130 254000 212000
20000 9080 420. 4900 2500 2975 1360 1750 145 294500 249600
25000 11325 4500 5165 2680 3190 1485 1875 155 341100 286500 '
30000 13620 4810 5335 2860 3405 1565 2000 165 386000 323500
34000 15854 4900 5390 2955 3515 1610 2070 170 428000 358000
40000 18120 5120 5635 3090 3675 1685 2165 180 468000 382000
45000 20385 | 5330 5865 3215 3825 1750 2250 180 507500 424000
50000 22700 5600 6150 3360 4000 1840 2365 200 546000 454000
60000 27261 5950 6535 3570 4250 1955 2515 215 615200 514500
70000 31752 6260 6875 3755 4470 2055 2645 215 679000 569000

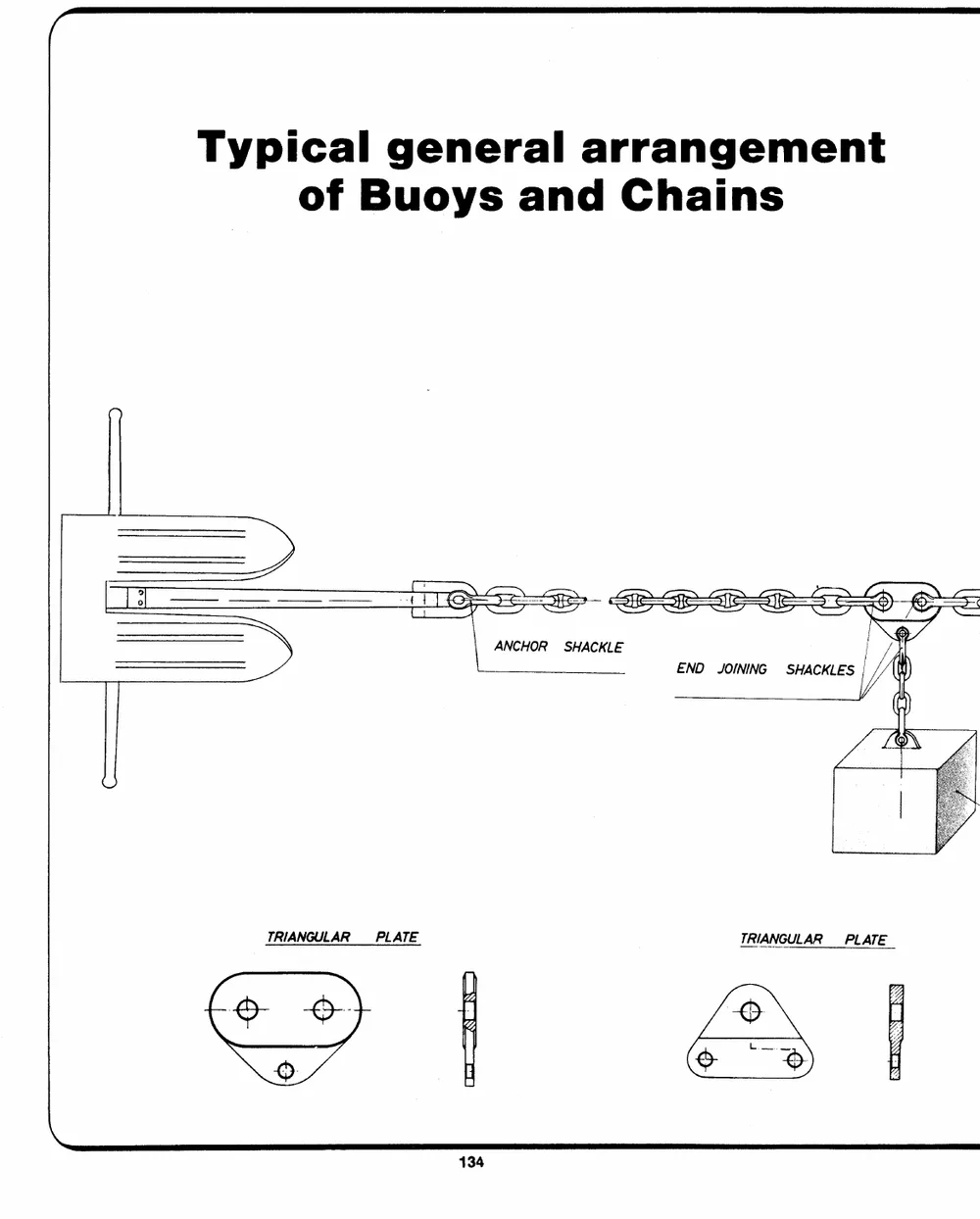

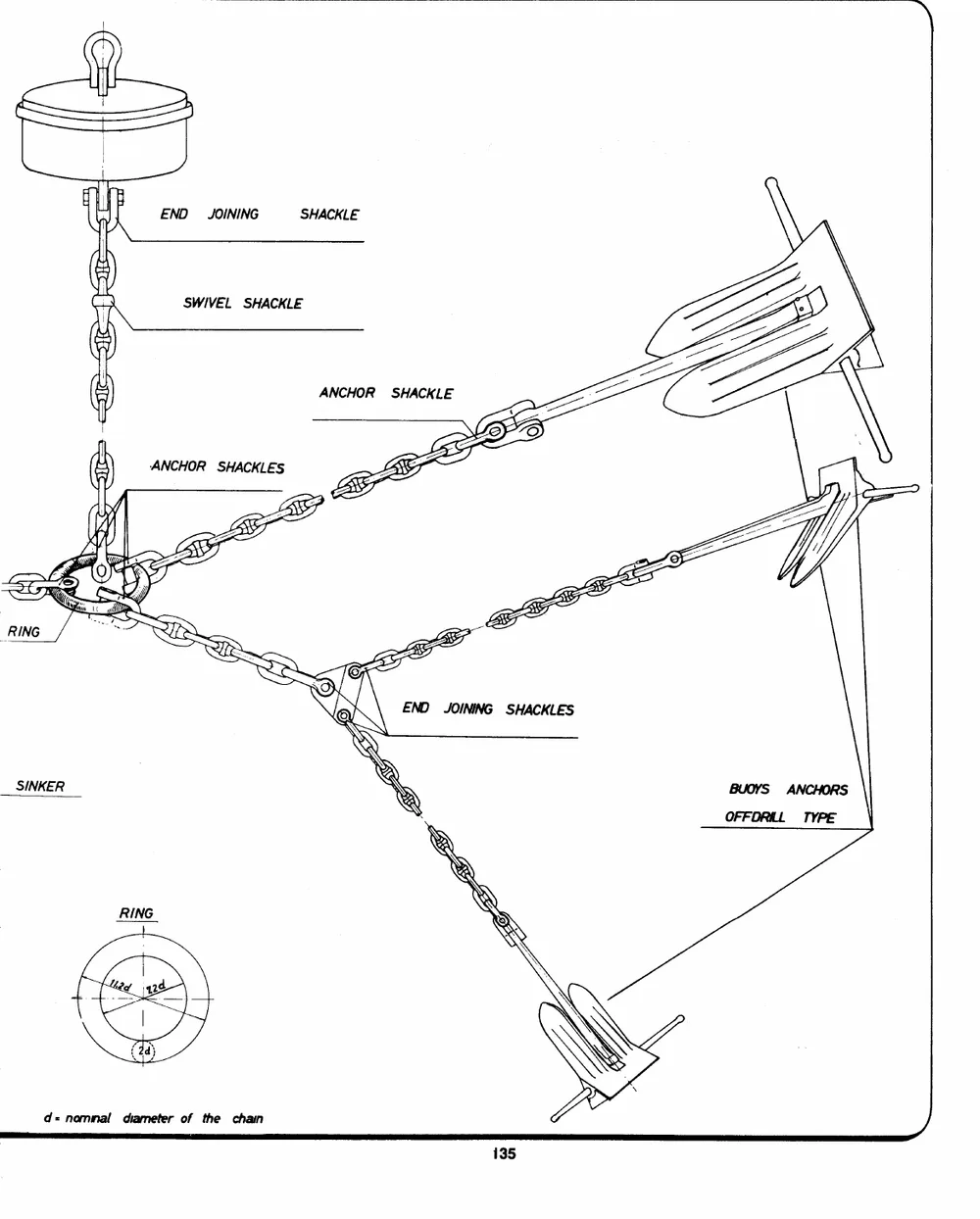

Typical general arrangement
of Buoys and Chains
E _ —— —— —— —— e625 48-ap-ab- P= se ©
ANCHOR SHACKLE | / i
Se END JOINING SHACKLES o
TRIANGULAR __ PLATE TRIANGULAR PLATE

Y END JOINING SHACKLE \

id SWIVEL SHACKLE 3 \

@ ANCHOR SHACKLE B

) ANCHOR SHACKLES “ ~ aad \
aaa LEE Y

\@ END JOINING SHACKLES
INKER Ss —
& . OFFORILL TYPE
d= nommal diameter of the chain Va 0

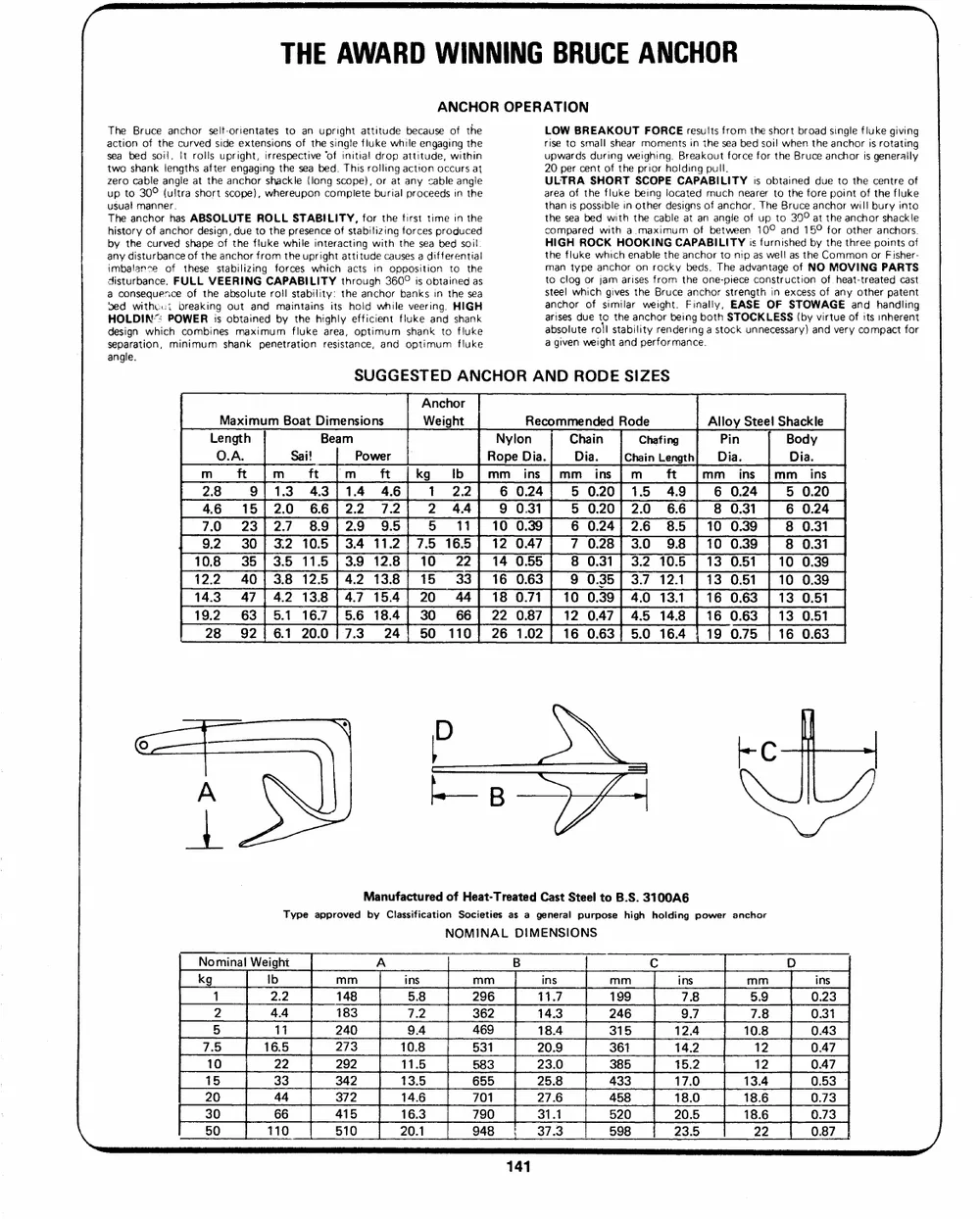

ANCHOR OPERATION

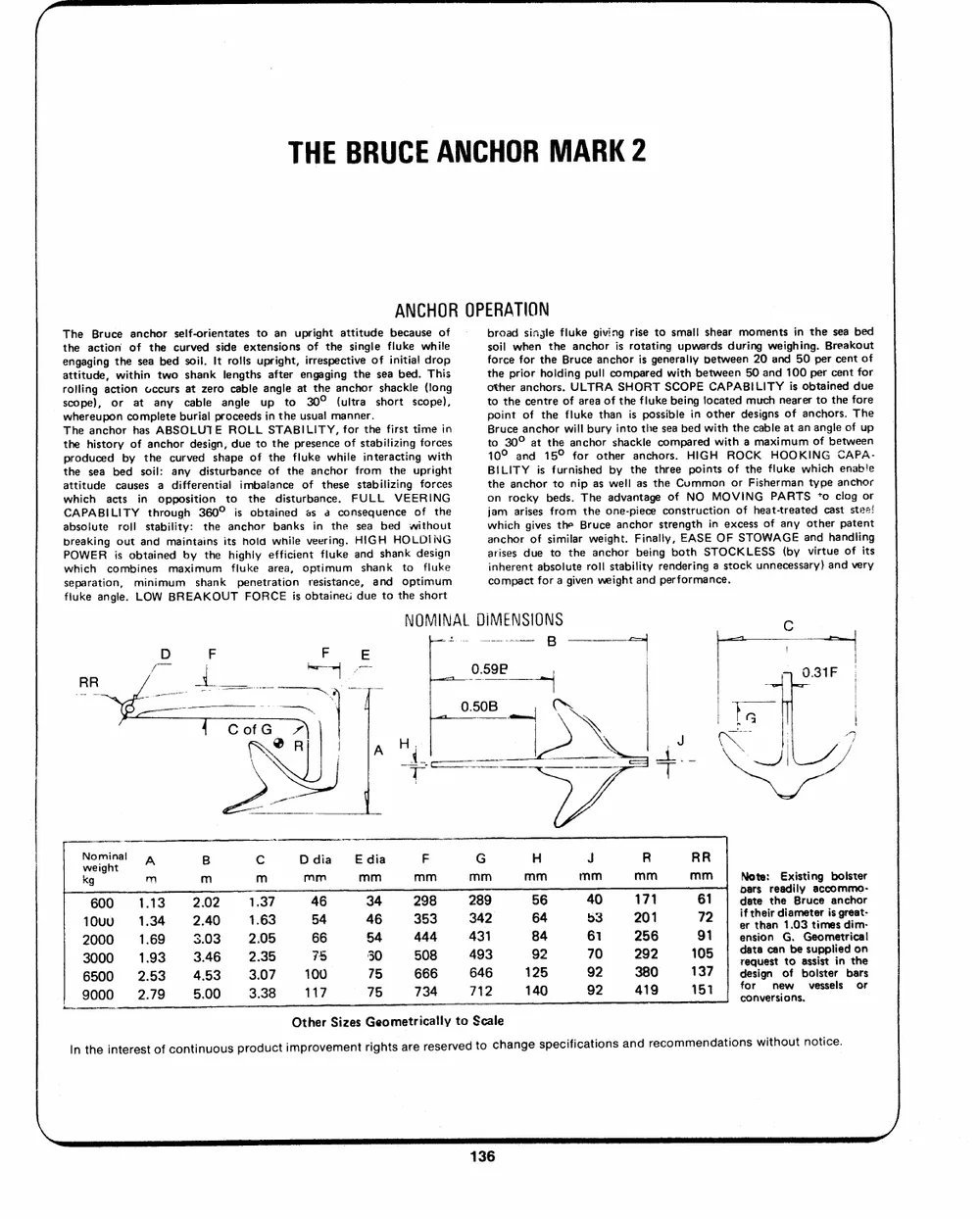

The Bruce anchor self-orientates to an upright attitude because of broad single fluke giving rise to small shear moments in the sea bed
the action of the curved side extensions of the single fluke while soil when the anchor is rotating upwards during weighing. Breakout
engaging the sea bed soil. It rolls upright, irrespective of initial drop force for the Bruce anchor is generally between 20 and 50 per cent of
attitude, within two shank lengths after engaging the sea bed. This the prior holding pull compared with between 50 and 100 per cent for
rolling action occurs at zero cable angle at the anchor shackle (long other anchors. ULTRA SHORT SCOPE CAPABILITY is obtained due
scope), or at any cable angle up to 30° (ultra short scope), to the centre of area of the fluke being located much nearer to the fore
whereupon complete burial proceeds in the usual manner. point of the fluke than is possible in other designs of anchors. The
The anchor has ABSOLUTE ROLL STABILITY, for the first time in Bruce anchor will bury into the sea bed with the cable at an angle of up
the history of anchor design, due to the presence of stabilizing forces to 30° at the anchor shackle compared with a maximum of between
produced by the curved shape of the fluke while interacting with 10° and 15° for other anchors. HIGH ROCK HOOKING CAPA-
the sea bed soil: any disturbance of the anchor from the upright BILITY is furnished by the three points of the fluke which enable
attitude causes a differential imbalance of these stabilizing forces the anchor to nip as well as the Common or Fisherman type anchor
which acts in opposition to the disturbance. FULL VEERING on rocky beds. The advantage of NO MOVING PARTS ‘*o clog or
CAPABILITY through 360° is obtained as a consequence of the jam arises from the one-piece construction of heat-treated cast stes!
absolute roll stability: the anchor banks in the sea bed without which gives the Bruce anchor strength in excess of any other patent
breaking out and maintains its hold while veering. HIGH HOLDING anchor of similar weight. Finally, EASE OF STOWAGE and handling
POWER is obtained by the highly efficient fluke and shank design arises due to the anchor being both STOCKLESS (by virtue of its
which combines maximum fluke area, optimum shank to fluke inherent absolute roll stability rendering a stock unnecessary) and very
separation, minimum shank penetration resistance, and optimum compact for a given weight and performance.
fluke angle. LOW BREAKOUT FORCE is obtainec due to the short
NOMINAL DIMENSIONS Cc
dee vow a B ee
RR Yo i | ; 0.31F
| 8 cre
@al| ia H PY XS
sea A B C Ddia Edia F G H J R RR
kg m m m mm mm mm mm mm mm mm mm Note: Existing bolster
pars readily accommo-
600 1.13 2.02 1.37 46 34 298 289 56 40 171 61 date the Bruce anchor
% if their diameter is great-
10u0—s:1.34 2.40 1.63 54 46 353 342 64 63 201 72 er than 1.03 times dim-
2000 1.69 3.03 2.05 66 54 444 431 84 61 256 91 ension G. Geometrical
3000 193 346 2.35 75 30 508 493 92 70 292 105 _ apg ging
6500 253 453 3.07 100 75 666 646 125 92 380 137 | design of bolster bars
for mew vessels or
i= 9000 2.79 5.00 3.38 117 75 734 712 140 92 419 151 canversiatis!
Other Sizes Geometrically to Scale
In the interest of continuous product improvement rights are reserved to change specifications and recommendations without notice.

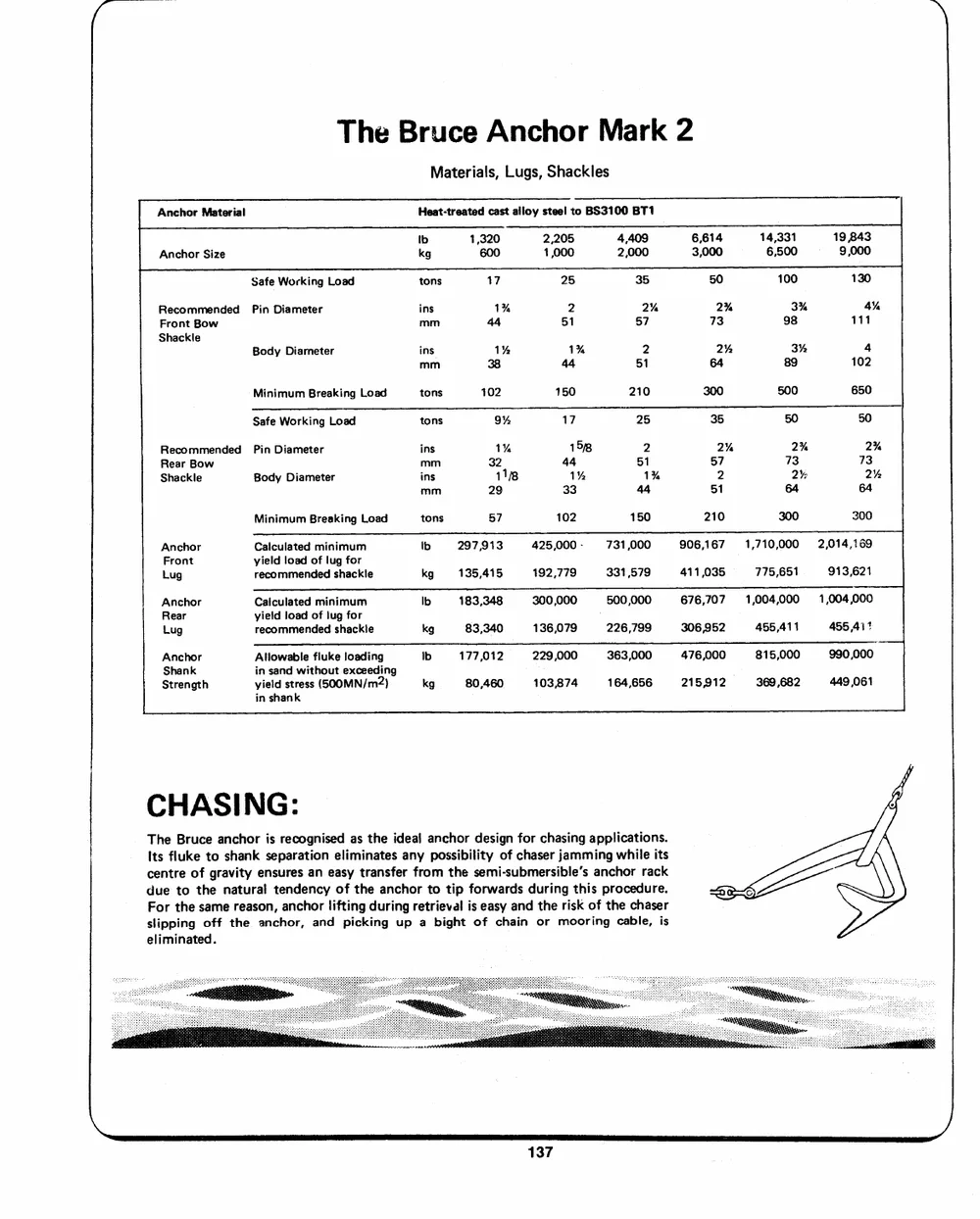

Materials, Lugs, Shackles
Anchor Material Heat-treated cast alloy steel to BS3100 BT1
Ib 1,320 2,205 4,409 6,614 14,331 19 843 d
Anchor Size kg 600 1,000 2,000 3,000 6,500 9,000
Safe Working Load tons 17 25 35 50 100 130
Recommended Pin Diameter ins 1% 2 2% 2% 3% 4%
Front Bow mm 44 51 57 73 98 111
Shackle
Body Diameter ins 1% 1% 2 2% 3% 4
mm 38 44 51 64 89 102
Minimum Breaking Load tons 102 150 210 300 500 650
Safe Working Load tons 9% 17 25 35 50 50
Recommended Pin Diameter ins 1% 158 2 2% 2% 2%
Rear Bow mm 32 44 51 57 73 73
Shackle Body Diameter ins 118 1% 1% 2 2% 2%
mm 29 33 44 51 64 64
Minimum Breaking Load tons 57 102 150 210 300 300
Anchor Calculated minimum Ib 297,913 425,000 - 731,000 906,167 1,710,000 2,014,169
Front yield load of lug for
Lug recommended shackle kg 135,415 192,779 331,579 411,035 775,651 913,621
Anchor Calculated minimum Ib 183,348 300,000 500,000 676,707 1,004,000 1,004,000
Rear yield load of lug for .
Lug recommended shackle kg 83,340 136,079 226,799 306,952 455,411 455,411
Anchor Allowable fluke loading Ib 177,012 229,000 363,000 476,000 815,000 990,000
Shank in sand without exceeding
Strength yield stress (500MN/m2) kg 80,460 103,874 164,656 215,912 369,682 449 061
in shank
CHASING
The Bruce anchor is recognised as the ideal anchor design for chasing applications.
Its fluke to shank separation eliminates any possibility of chaser jamming while its
centre of gravity ensures an easy transfer from the semi-submersible’s anchor rack
due to the natural tendency of the anchor to tip forwards during this procedure.
For the same reason, anchor lifting during retrieval is easy and the risk of the chaser
slipping off the anchor, and picking up a bight of chain or mooring cable, is
eliminated.

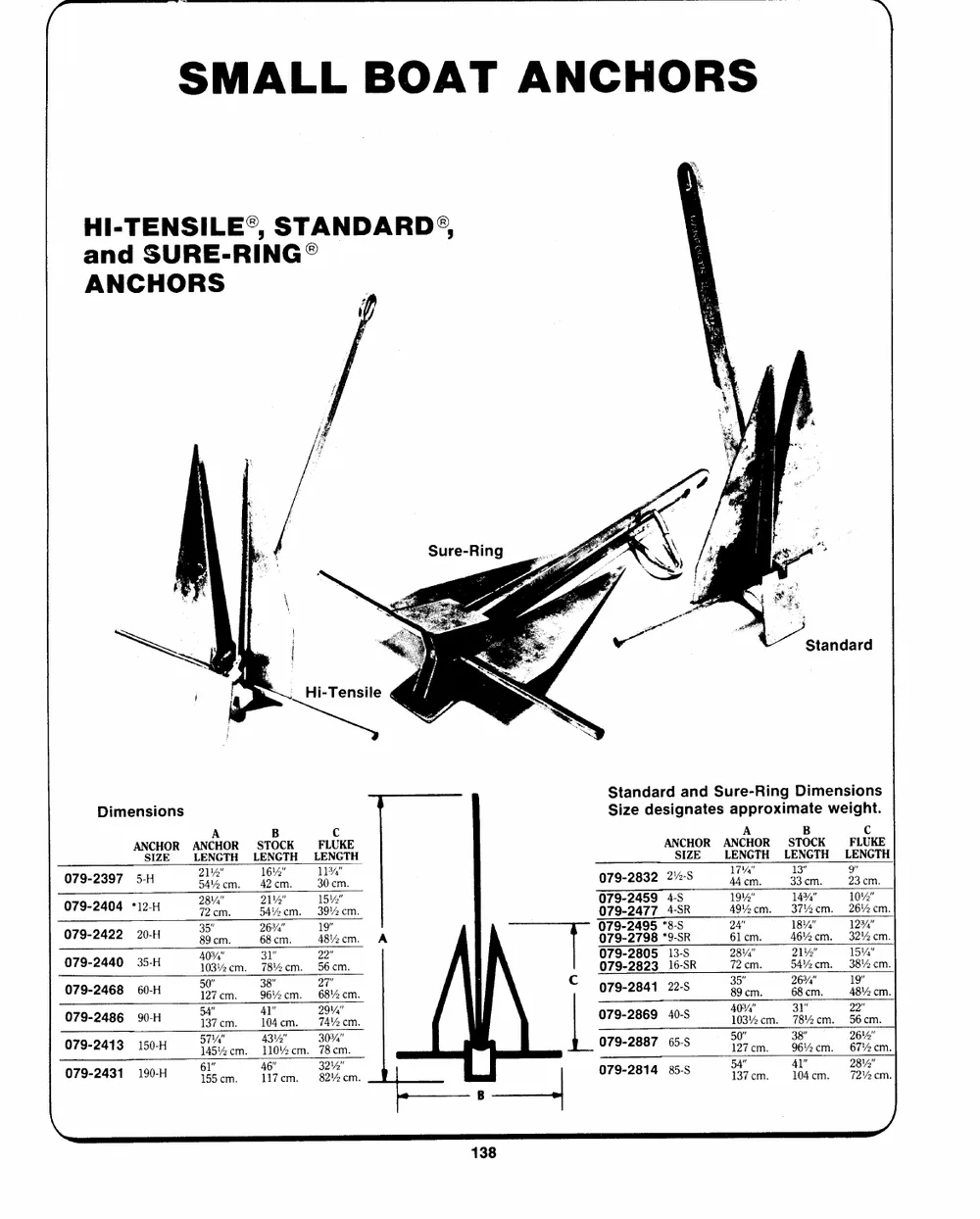

HI-TENSILE®, STANDARD®,
and SURE-RING® es
2? Lae { f A
be. ¢ Sure-Ring ; [? ee
| ~ 7 e Y Standard
j Hi-Tensile Gay ~
Standard and Sure-Ring Dimensions
Dimensions Size designates approximate weight.
ANCHOR ANCHOR STOCK FLUKE ANCHOR ANCHOR STOCK FLUKE
SIZE LENGTH LENGTH LENGTH SIZE LENGTH LENGTH LENGTH
21%" 1644" 11%" 17%" 13” 9"
079-2397 5-H 54cm. 42cm. 30cm. 079-2832 2%-S Adem. 33cm. Bem.
- . 28%," 211%" 154" 079-2459 4-S 19%" 14%" 10%"
079-2404 *12-H 72 cm. 544% cm. 39% cm. 079-2477 4-SR 49% cm. 37\4 cm. 26% cm.
35” 26%" 19” 079-2495 “8-S 24” 18" 1234"
079-2422 20-H B9cm. 68cm. —48Y%em. A 079-2798 *9-SR Glem.  46¥4cm. _32¥4em.
403" 31” 22” 079-2805 13-S 2814" 21%" 15%"
079-2440 35-H 103%cm. 78%cm. 56cm. 079-2823 16SR 72cm. __Sh¥eem._38%4em.
50" 38” 27” Cc 35” 26%" 19”
079-2468 60-H 127cm. 96%cm. 684m. 079-2841 22-S ee a
54” 41” 29%," 40°" 31" 22”
079-2486 90-H 137cm. 104cm. 74% em. | 079-2869 40-S 103%cm. 78%ecm. 56cm.
7 57" 434" 30%” 7 50” 38” 261%"
079-2413 150-H 145¥2cm. 110%cm. 78cm. 079-2887 65-S 127cm.  96¥2em. 67cm.
61” 46" 321%" 54” 41" 2812"
079-2431  190-H 155 cm. 117cm. 82%cm. 079-2814 85-s 137 cm. 104 cm. 72¥3 cm.

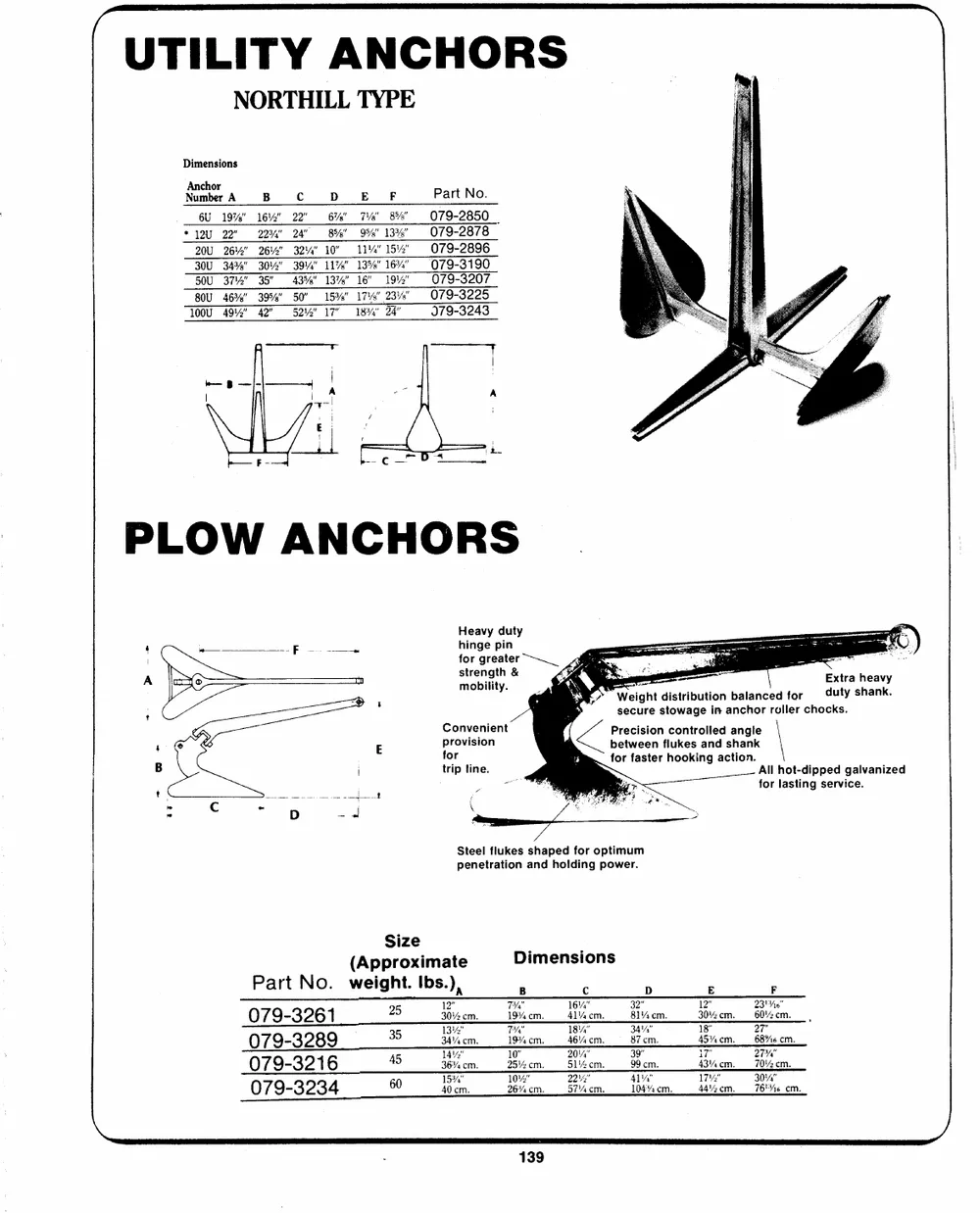

NORTHILL TYPE q
Dimensions 1
Anchor . E
Number A BC DE F Part No. iE
6U 19%" 16%" 22” 6%" = 7Y%5" BY" 079-2850 . | A
*12U 22" 22%" 24" 8%" 9%" 13%" 079-2878 #1
20U 26%" 26%" 32%" 10" 11%" 1514" 079-2896 a
30U 34%" 30%" 39%" 11%" 13%" 16%” 079-3190 A ; i
50U 37%" 35” 43%" 13%” 16” 19%" 079-3207 : |
80U 46%” 395%" 50” 15%" 17%" 23%" 079-3225 “ :
100U 49%" 42” = 52%" 17" 18%" 24” 979-3243 = ~ a
Heavy duty ———
' i-—_—_____--F -..-__. hinge pin a
A C) hcl YX as —— Extra heavy
>, ; ,” Weight distribution balanced for duty shank.
t y secure stowage in anchor roller chocks.
¥S Convenient f( Precision controlled angle |
i é E Provision between flukes and shank \
B for — ft. for faster hooking action.
i trip line. All hot-dipped galvanized
t i Z - a ; a> for lasting service.
Steel flukes shaped for optimum
penetration and holding power.
Size
(Approximate Dimensions
Part No. weight. Ibs.), 5 ¢ D 5 7
25 12" TH" 16%" 32” 12” 23'%6"
079-3261 30cm. -19%em. Alem. BlYcm. 30%ecm. __60%cem.
35 13%" TH" 18%" 34" 18” 27"
079-3289 34% cm. 19% cm. 46% cm. 87cm. 45¥%cm. __ 68%6 cm.
45 14%" 10” 20%" 39” 17” 27%"
079-321 6 36% cm. 25% cm. 51% cm. 99 cm. 43% cm. 70% cm.
60 15%" 10%" 22%" 41y" 1714" 30%"
079-3234 40 cm. 26cm. 57% cm. 104% cm. 44% cm. 76'Vis_cm.
a eM FOV CIN.

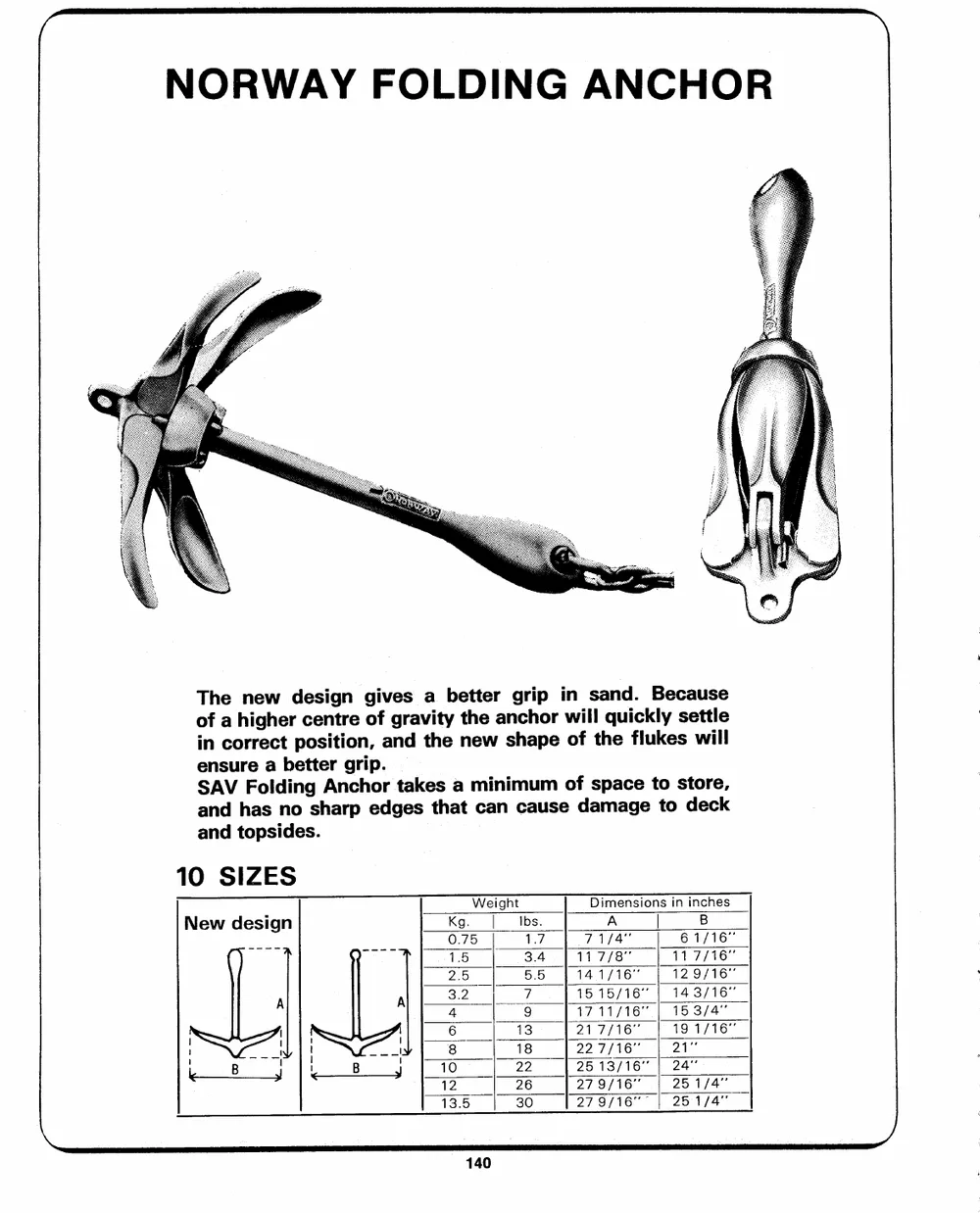

The new design gives a better grip in sand. Because
of a higher centre of gravity the anchor will quickly settle
in correct position, and the new shape of the flukes will
ensure a better grip.
SAV Folding Anchor takes a minimum of space to store,
and has no sharp edges that can cause damage to deck
and topsides.
| 10 SIZES
Weight Dimensions in inches
New design Kg. | __Ibs. A l B
a _ 0.75 [ 1.7 71/4" 61/16"
a 1.5 | 3.4 11 7/8" 117/16"
25 | 55 | 141/16" | 129/16"
P A 32 | 7 15 15/16" | 143/16”
4 | 9 1711/16" | 15 3/4"
i} |? | 6 | 13 | 217/16" | 19 1/16”
Tw |! <a 8 18__| 227/16" | 21”
AB 1 BY 10 22 25 13/16" | 24”
12. | +26 279/16" | 251/4"
13.5 | 30 279/16" | 251/4" —

ANCHOR OPERATION
The Bruce anchor selt-orientates to an upright attitude because of the LOW BREAKOUT FORCE results from the short broad single fluke giving
action of the curved side extensions of the single fluke while engaging the rise to small shear moments in the sea bed soil when the anchor is rotating
sea bed soil. It rolls upright, irrespective ‘of initial drop attitude, within upwards during weighing. Breakout force for the Bruce anchor is generally
two shank lengths after engaging the sea bed. This rolling action occurs at 20 per cent of the prior holding pull.
zero cable angle at the anchor shackle (long scope), or at any cable angle ULTRA SHORT SCOPE CAPABILITY is obtained due to the centre of
up to 30° (ultra short scope), whereupon complete burial proceeds in the area of the fluke being located much nearer to the fore point of the fluke
usual manner. than is possible in other designs of anchor. The Bruce anchor will bury into
The anchor has ABSOLUTE ROLL STABILITY, for the first time in the the sea bed with the cable at an angle of up to 39° at the anchor shackle
history of anchor design, due to the presence of stabilizing forces produced compared with a.maximum of between 10° and 15° for other anchors.
by the curved shape of the fluke while interacting with the sea bed soil HIGH ROCK HOOKING CAPABILITY is furnished by the three points of
any disturbance of the anchor from the upright attitude causes a differential the fluke which enable the anchor to nip as well as the Common or Fisher-
imbalance of these stabilizing forces which acts in opposition to the man type anchor on rocky beds. The advantage of NO MOVING PARTS
disturbance. FULL VEERING CAPABILITY through 360° is obtained as to clog or jam arises from the one-piece construction of heat-treated cast
a consequence of the absolute roll stability: the anchor banks in the sea steel which gives the Bruce anchor strength in excess of any other patent
bed withcut oreaking out and maintains its hold while veering. HIGH anchor of similar weight. Finally, EASE OF STOWAGE and handling
HOLDING POWER is obtained by the highly efficient fluke and shank arises due to the anchor being both STOCKLESS (by virtue of its inherent
design which combines maximum fluke area, optimum shank to fluke absolute roll stability rendering a stock unnecessary) and very compact for
separation, minimum shank penetration resistance, and optimum fluke a given weight and performance.
angle.
SUGGESTED ANCHOR AND RODE SIZES
Anchor
Maximum Boat Dimensions Weight Recommended Rode Alloy Steel Shackle
Length Beam Nylon Chain Chafing Body
O.A. Sai! Power Rope Dia. Dia. Chain Length Dia.
m__ft_|m__ ft [kg Ib [mm ins [mm_ins [m_ft_[mm_ins [mm _ins |
| 46 15/20 66/22 721 2 44] 9 o31| 5 020/20 66] 8 031 | 6 0.24 |
7.0 23[27 89/29 95| 5 11| 10030] 6024/26 8510039] 8 0.31 |
[9230/52 105]34 112/75 165] 12 047] 7 028] 30 98] 10 039] 8 031
[708 35/35 15/39 128] 10 22] 14 055] 8 0.31] 32 105 | 13 051 | 10 0.39 |
[12.2 40/38 125/42 138| 18 33| 16 063| 9 035] 37 12.1 | 13 081 | 10 0.39
14.347 [42 138 [47 164] 20 44 | 18 0.71 | 100.39] 40 131 | 16 0.63 13 051
| 19.2 63/51 167 [56 184/30 66] 22 087| 12 047| 45 148 | 16 063 | 13 0.51 |
| 28 92/61 200173 24] 50 110] 26 1.02] 16 0.63| 5.0 164 | 19 0.75 | 16 0.63
Manufactured of Heat-Treated Cast Steel to B.S. 3100A6
Type approved by Classification Societies as a general purpose high holding power anchor
NOMINAL DIMENSIONS
Nominal Weight A B | Cc D
| kg [tb mm Tins [mm Tins [mm [ins | omm | _ins_—|
| 1 | 22 7 4g | 68 [26 T oi7 | 19 | 78 | 59 | 023 |
| 2 df 4a | iss [72 | 362 [143 2ae [97 [78 | 031 |
| 5 | 1 fT a0 Tao tea Tas | 24 | 108 | 0.43 |
| 75 [ 165 | 273 | 108 [531 | 209 | 361 | 142 | 12 | 047 |
| 10 | 622 | on Ts | ses [230 | 385 ff 52 [12 | (047 |
| 15 | 33 [| 342 [ 135 [655 [258 | 433 [ 170 ~| 134 | 053 |
| 20 | 44 | 372 [ 146 | 701 | 276 | 458 | 180 | 186 | 073 |
| 30 | 66 [| 45 | 163 | 790 [311 | 520 | 205 | 186 | 073 |
50 110 | 510 [ 201 | 948 {373 598 23.5 22
