Dibblee Industries

Blocks and Sheaves

Mortise wood blocks, metal-shell blocks, and sheaves for manila and wire rope rigging — single, double, and triple, with iron, roller, or self-lubricating bronze bushings.

Blocks and Sheaves — page 1 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 2 — original catalog

The Dibblee blocks-and-sheaves catalog covers the K-1001/1002/1003 series of regular mortise wood blocks for manila rope, with drop-forged fittings and a choice of iron, roller, or self-lubricating bronze bushings. Metal parts may be supplied painted or galvanized. Configurations range from 3-inch to 12-inch block sizes, supporting working loads from 500 lb to 5,000 lb (single) up to 10,000 lb (triple). Sheaves are stocked across iron, brass-bushed, and bronze variants for marine, industrial, and rigging applications.

Download Chapter 1 PDF Request a quote

Product types

  • Single, double, and triple mortise wood blocks (K-1001 / K-1002 / K-1003)
  • Iron-bushed, roller-bushed, and self-lubricating bronze-bushed configurations
  • Loose hook, fixed hook, swivel hook, and shackle fittings
  • Snatch blocks for wire rope
  • Sheaves: iron, brass-bushed, bronze

Typical applications

  • Marine rigging and ship fitting
  • Industrial hoisting and tackle
  • Cargo handling
  • General-purpose mechanical advantage

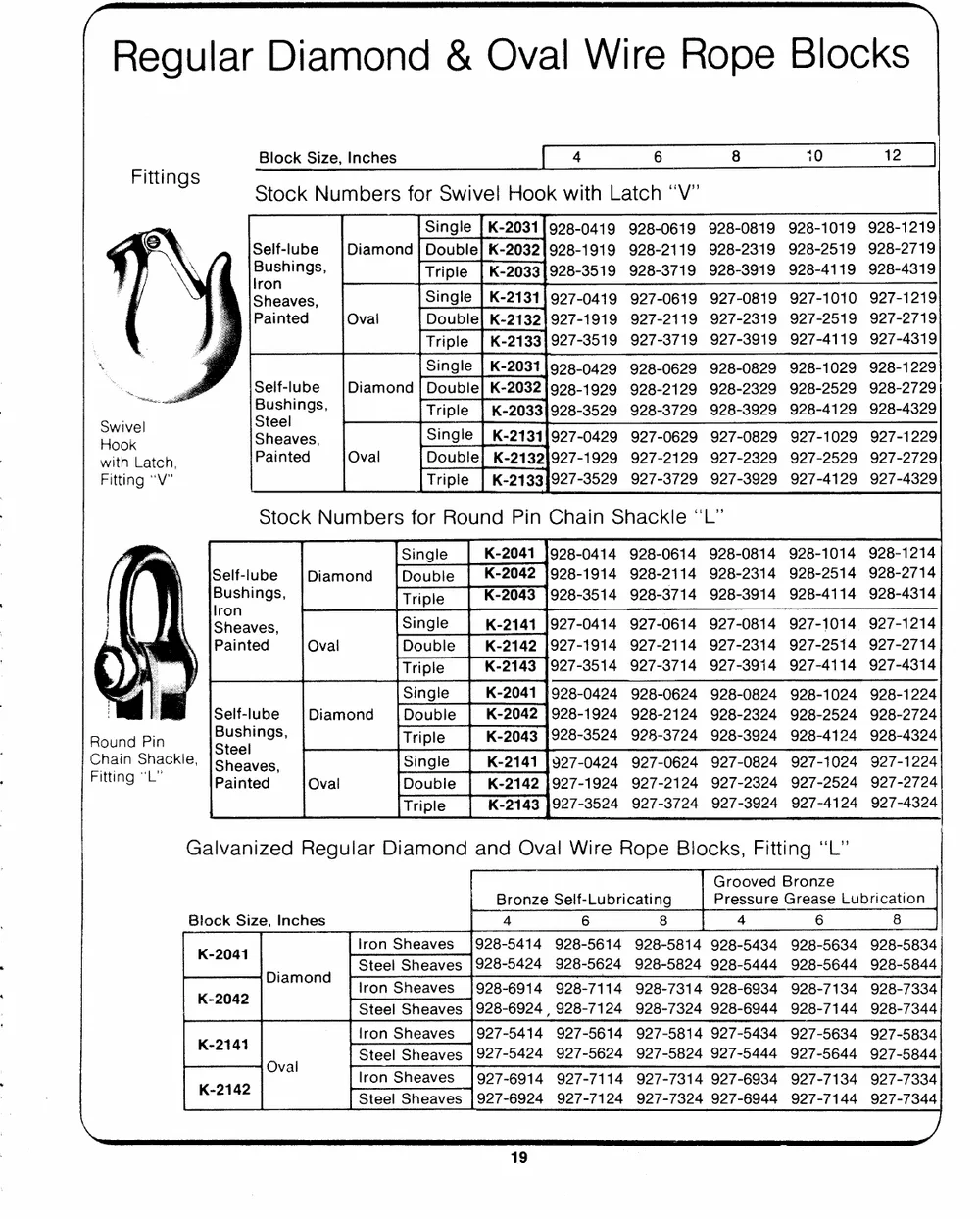

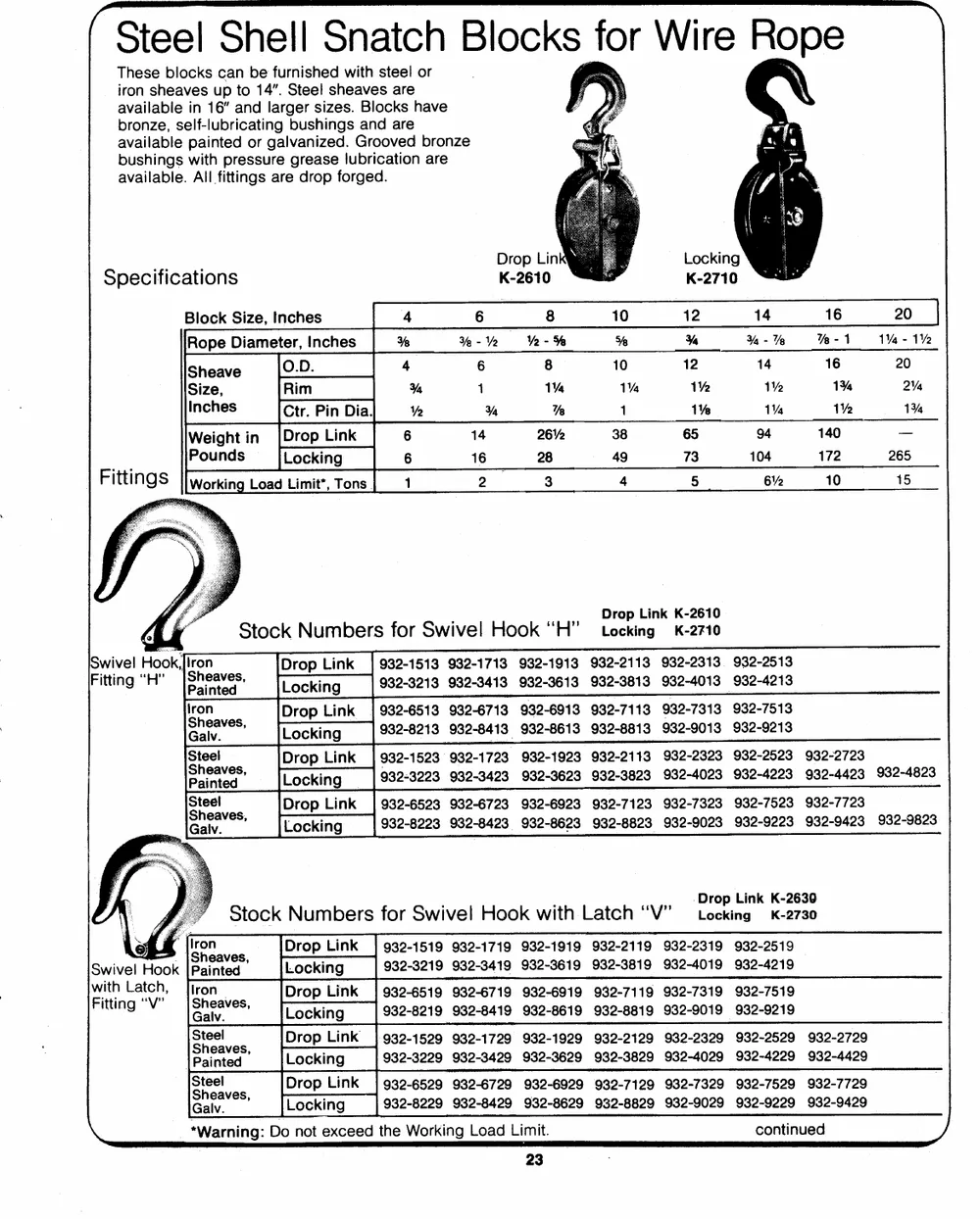

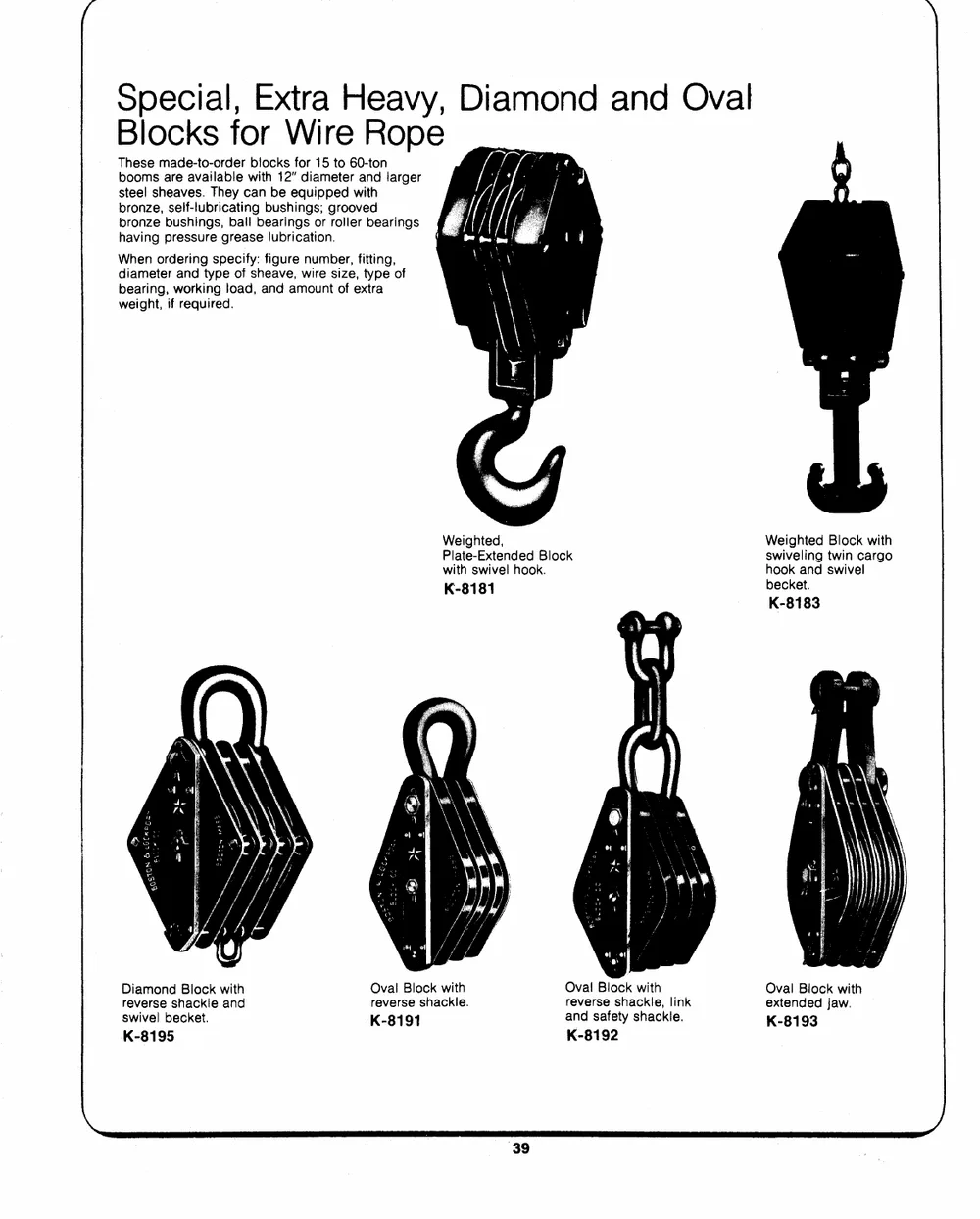

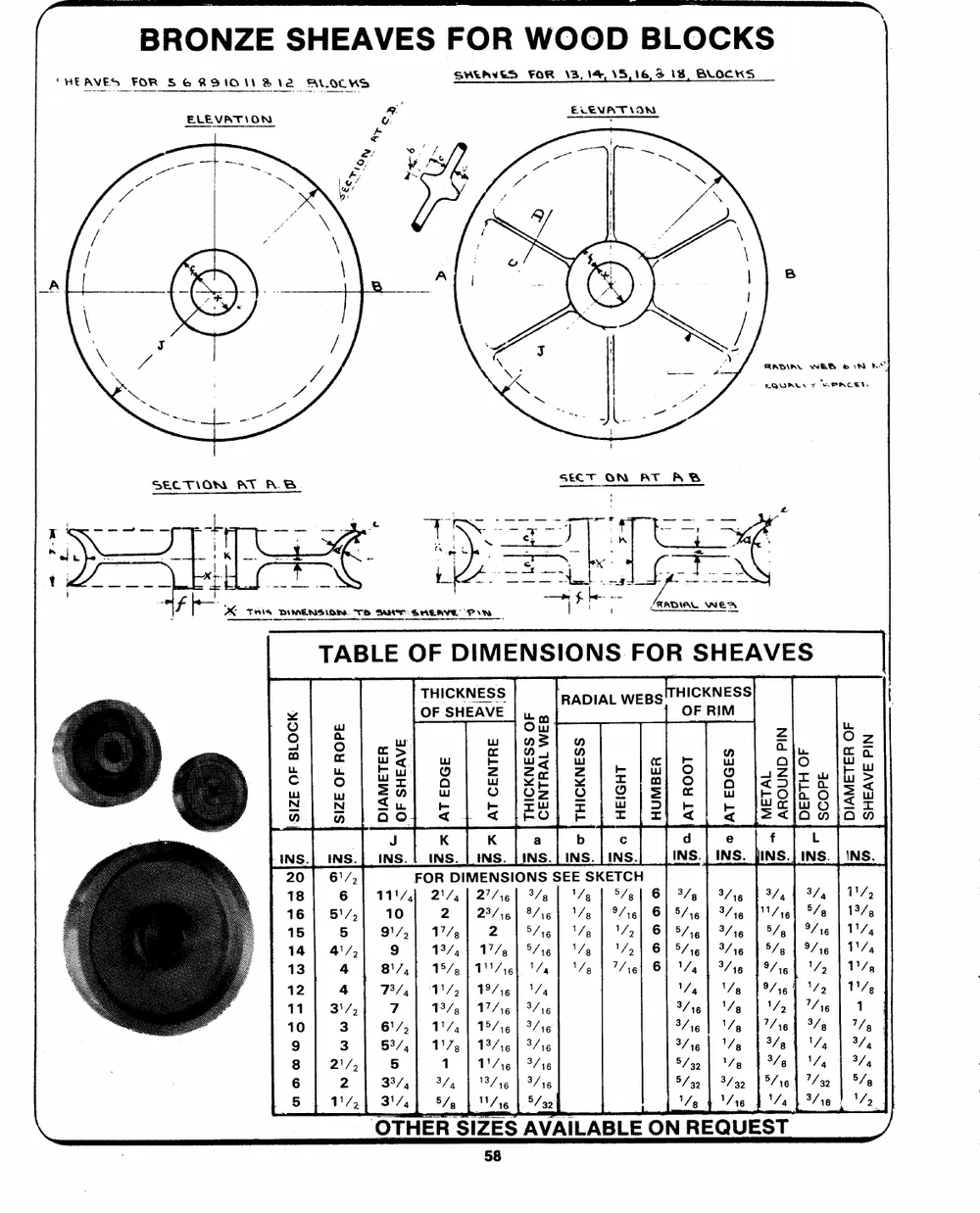

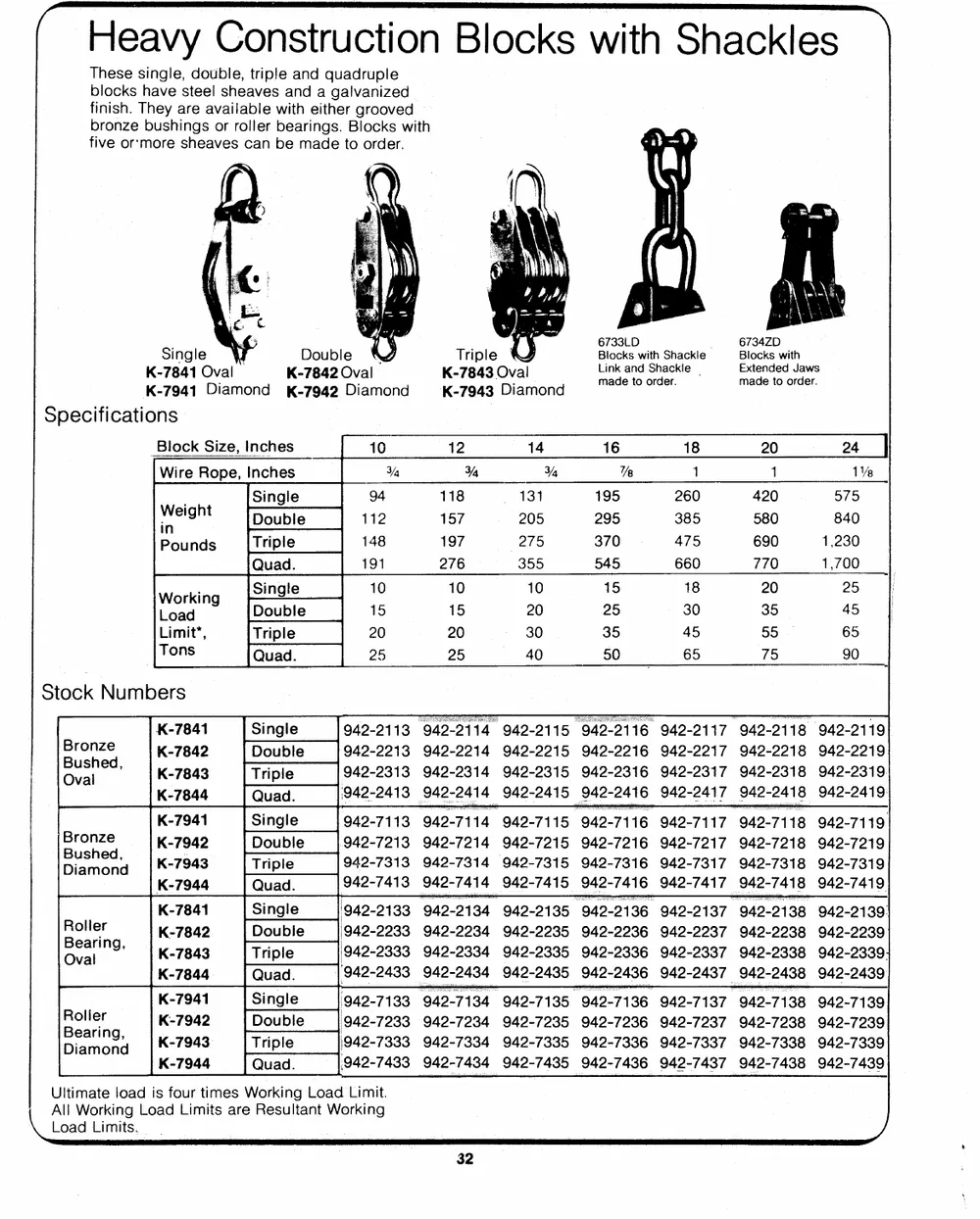

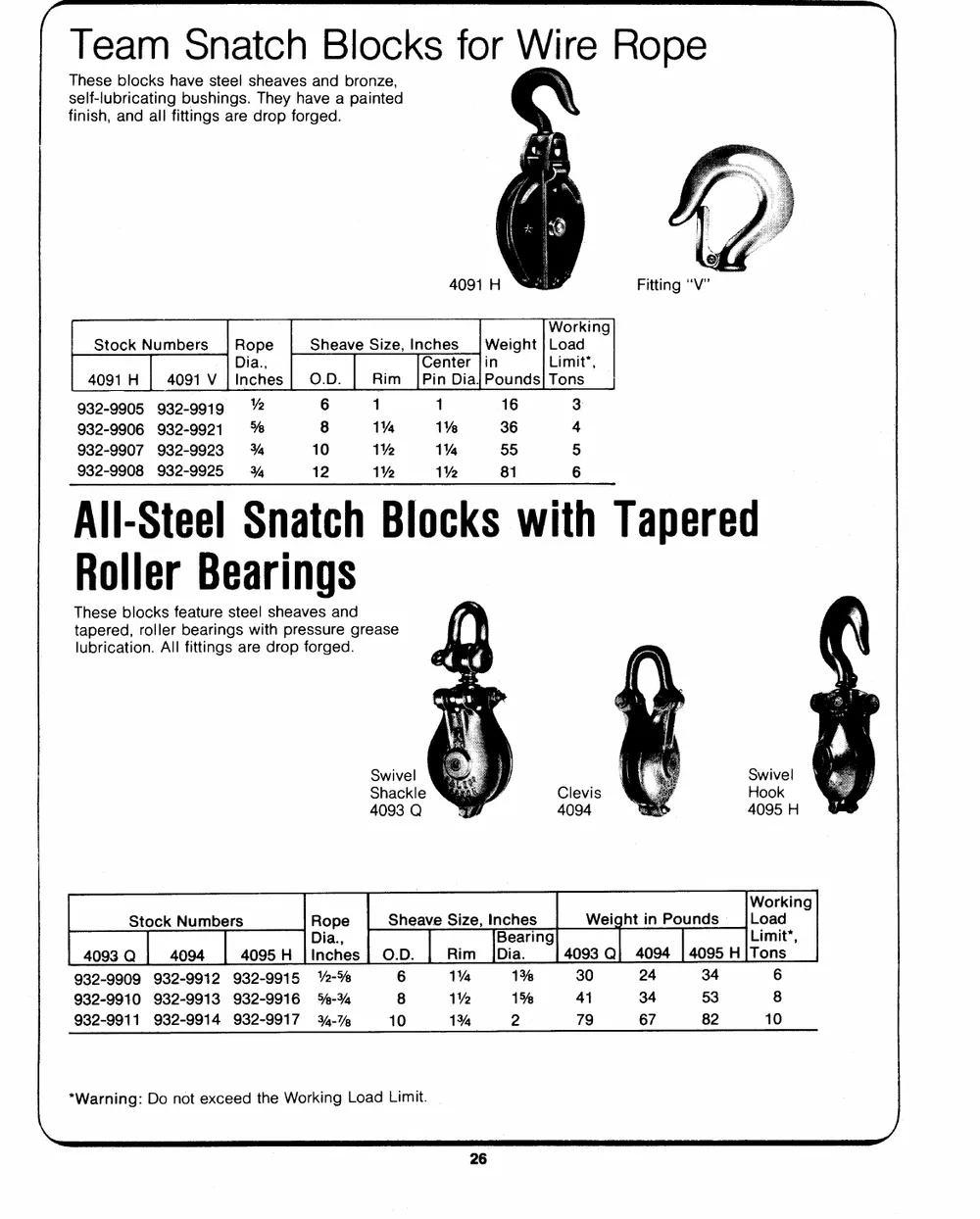

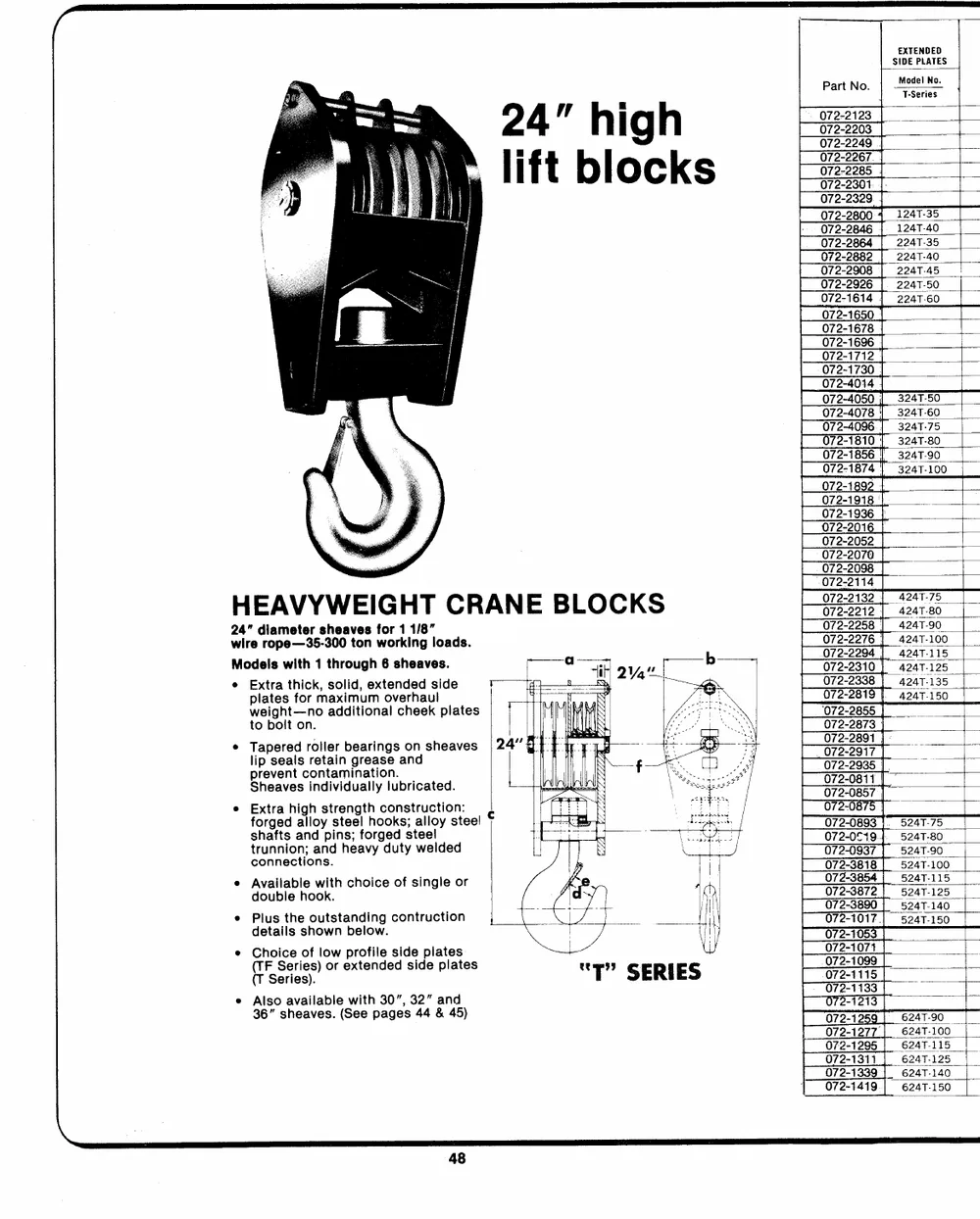

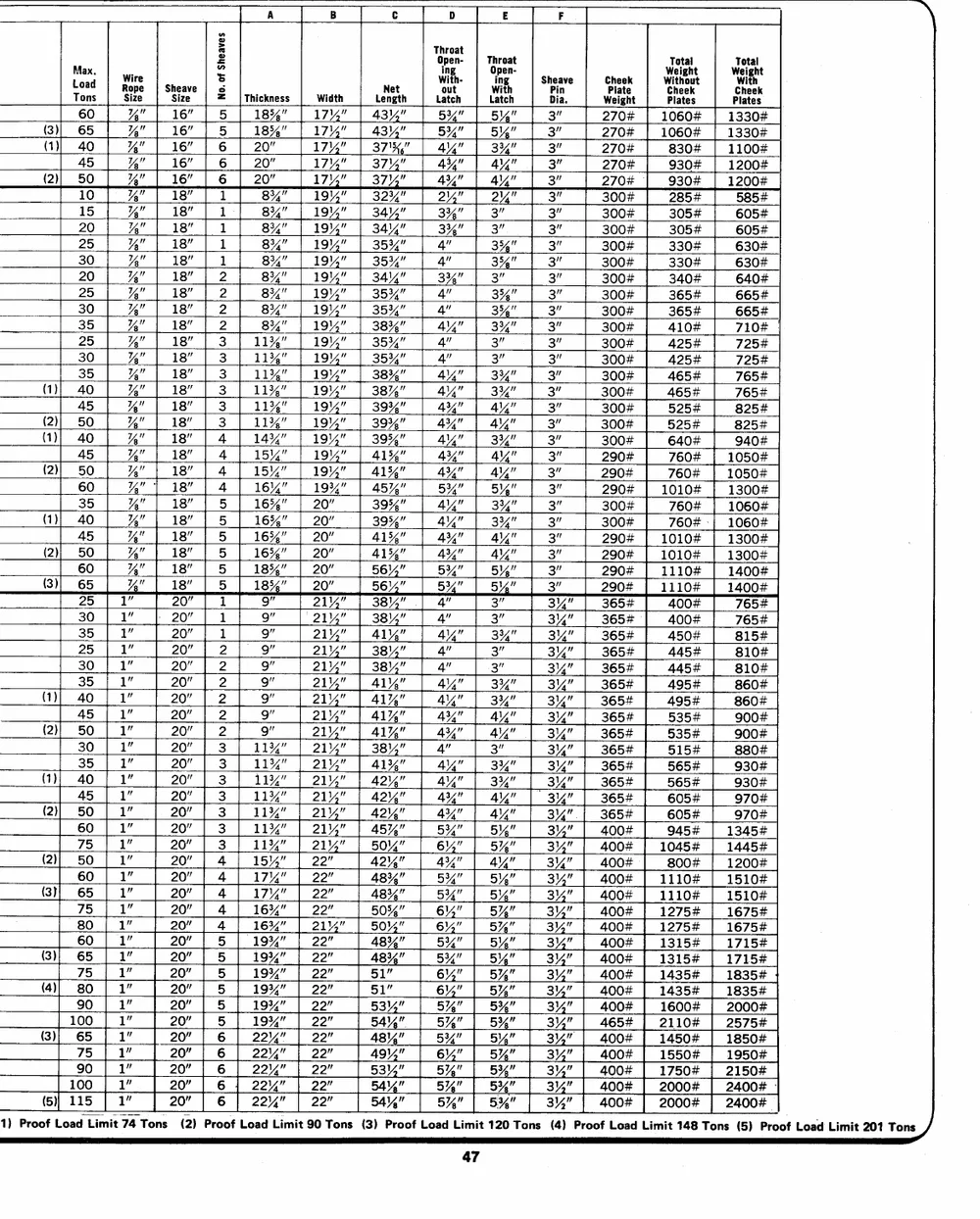

The original catalog pages

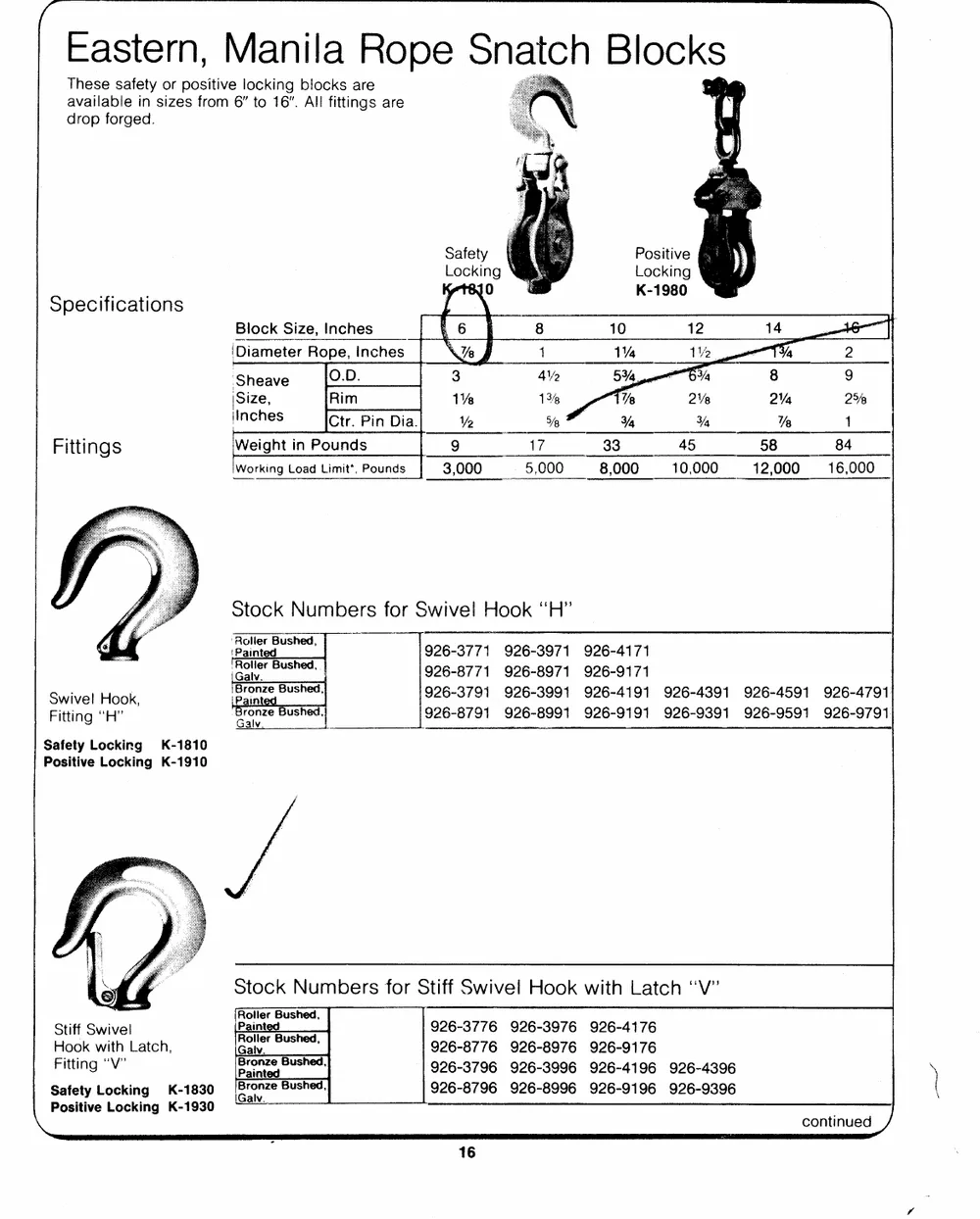

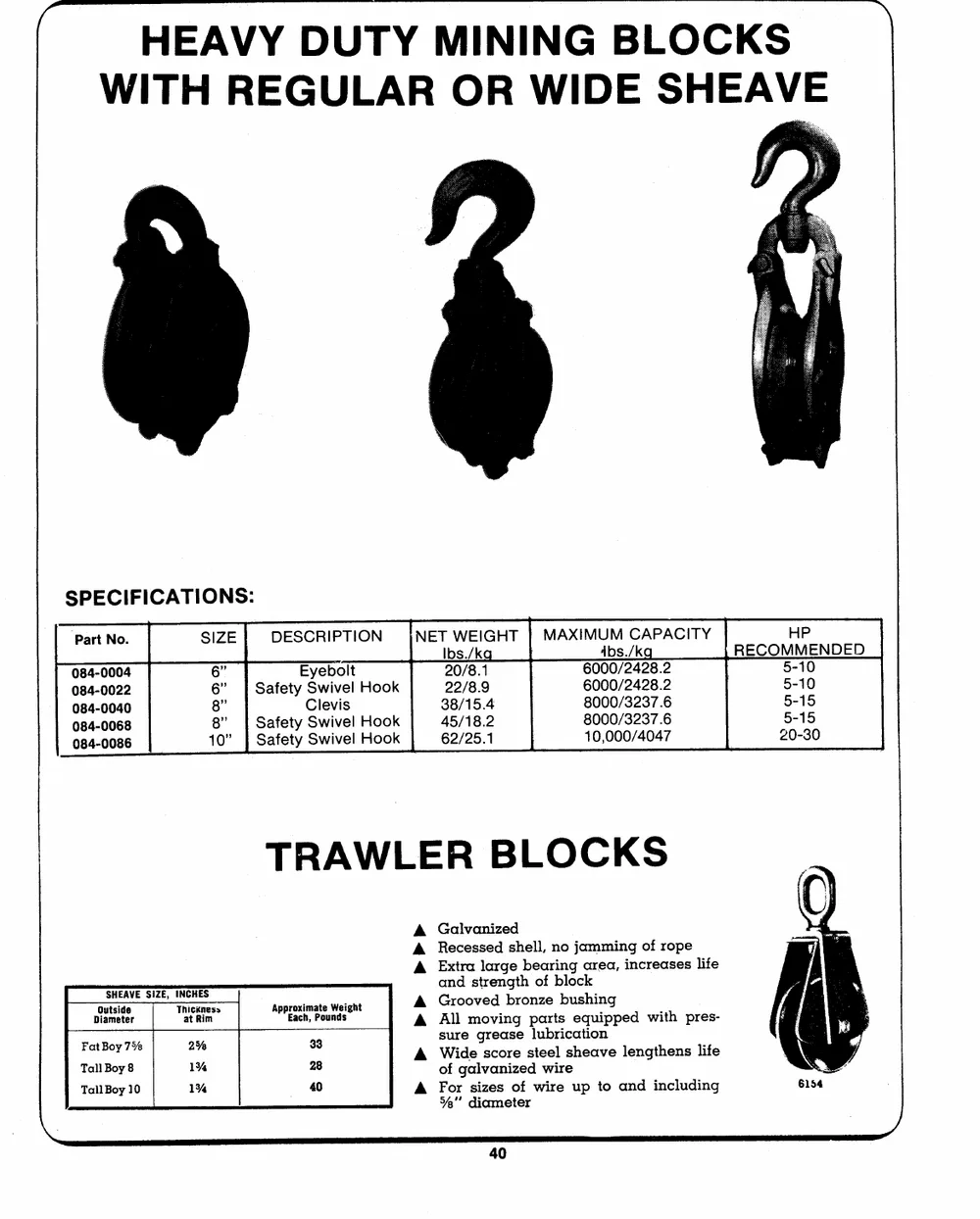

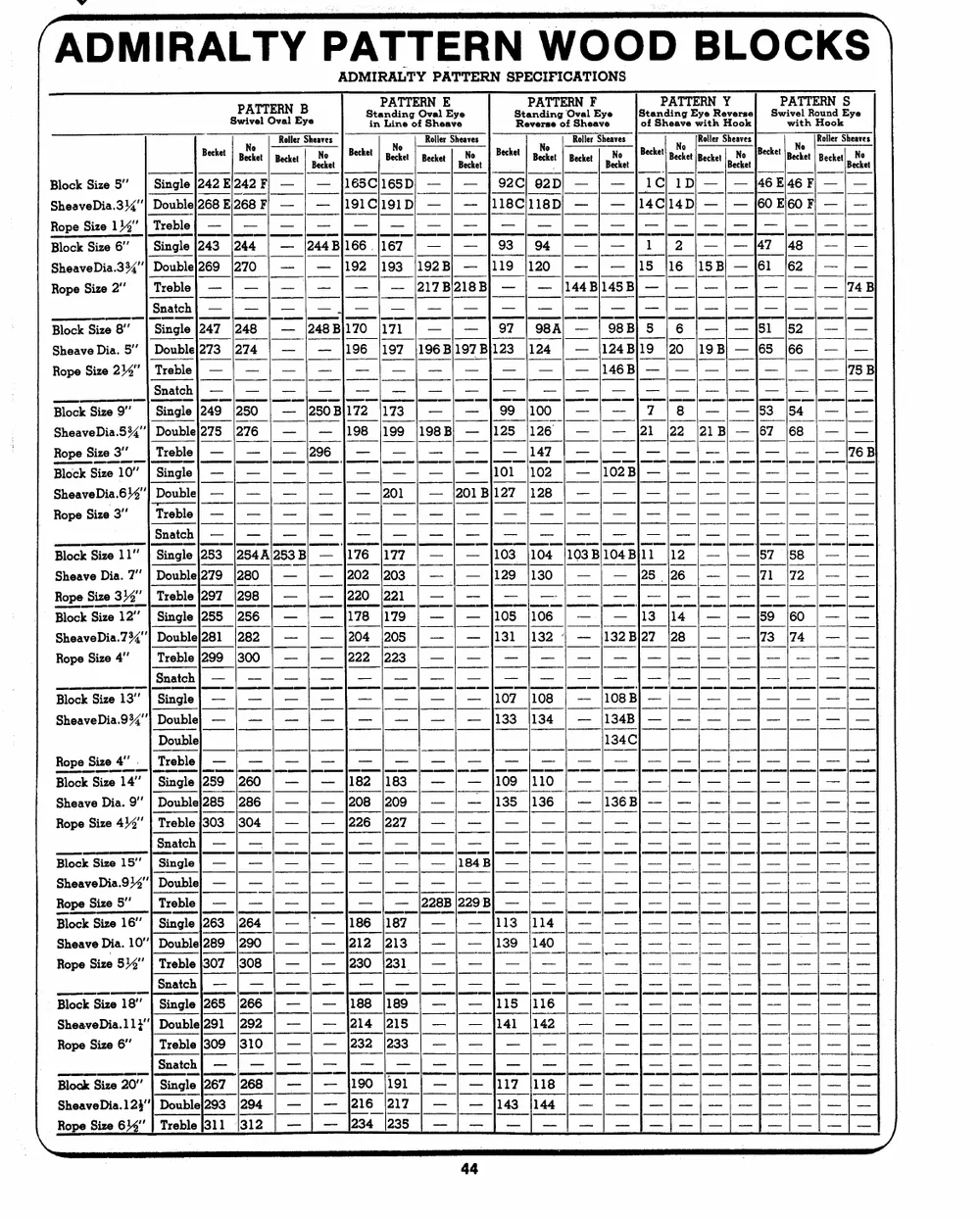

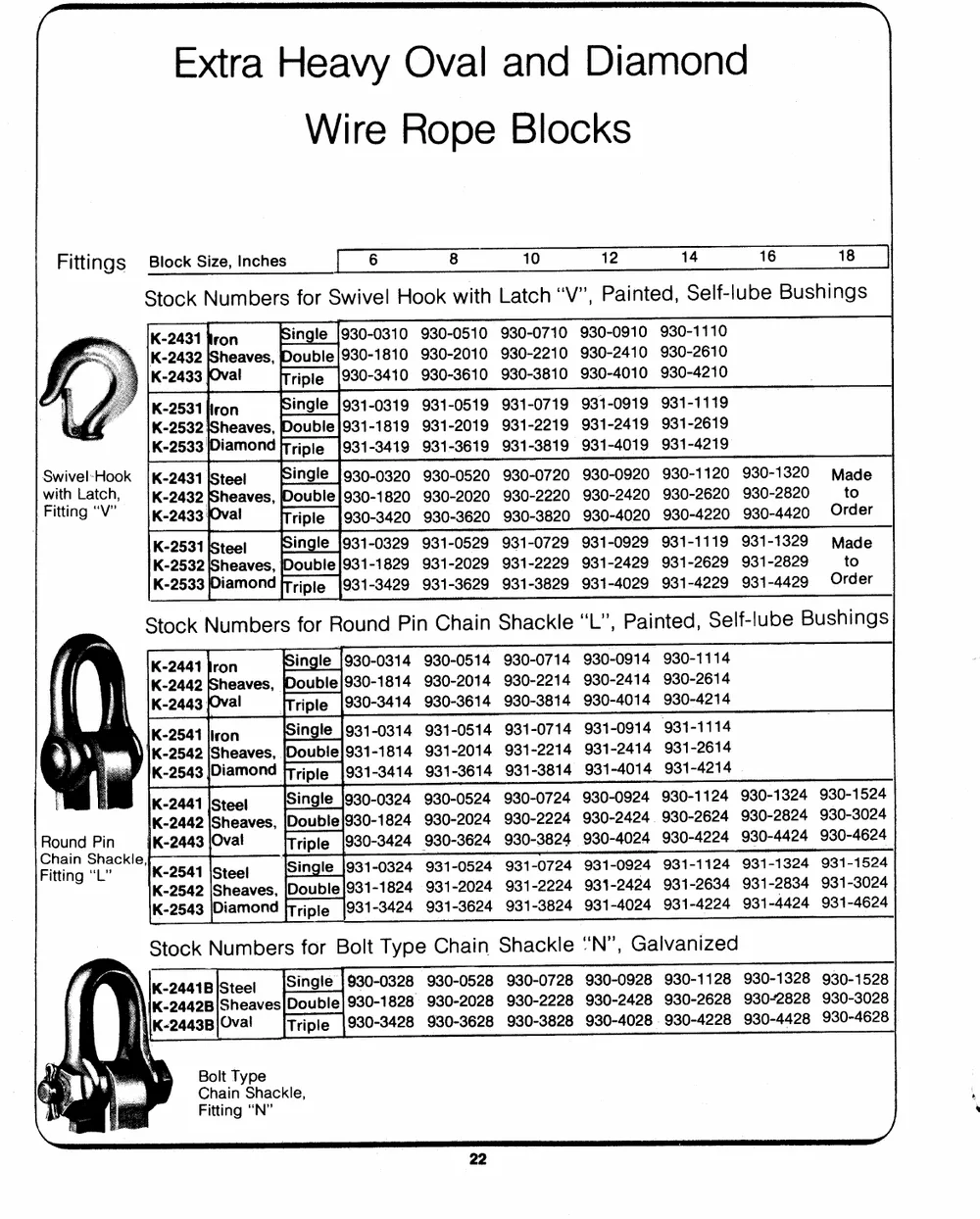

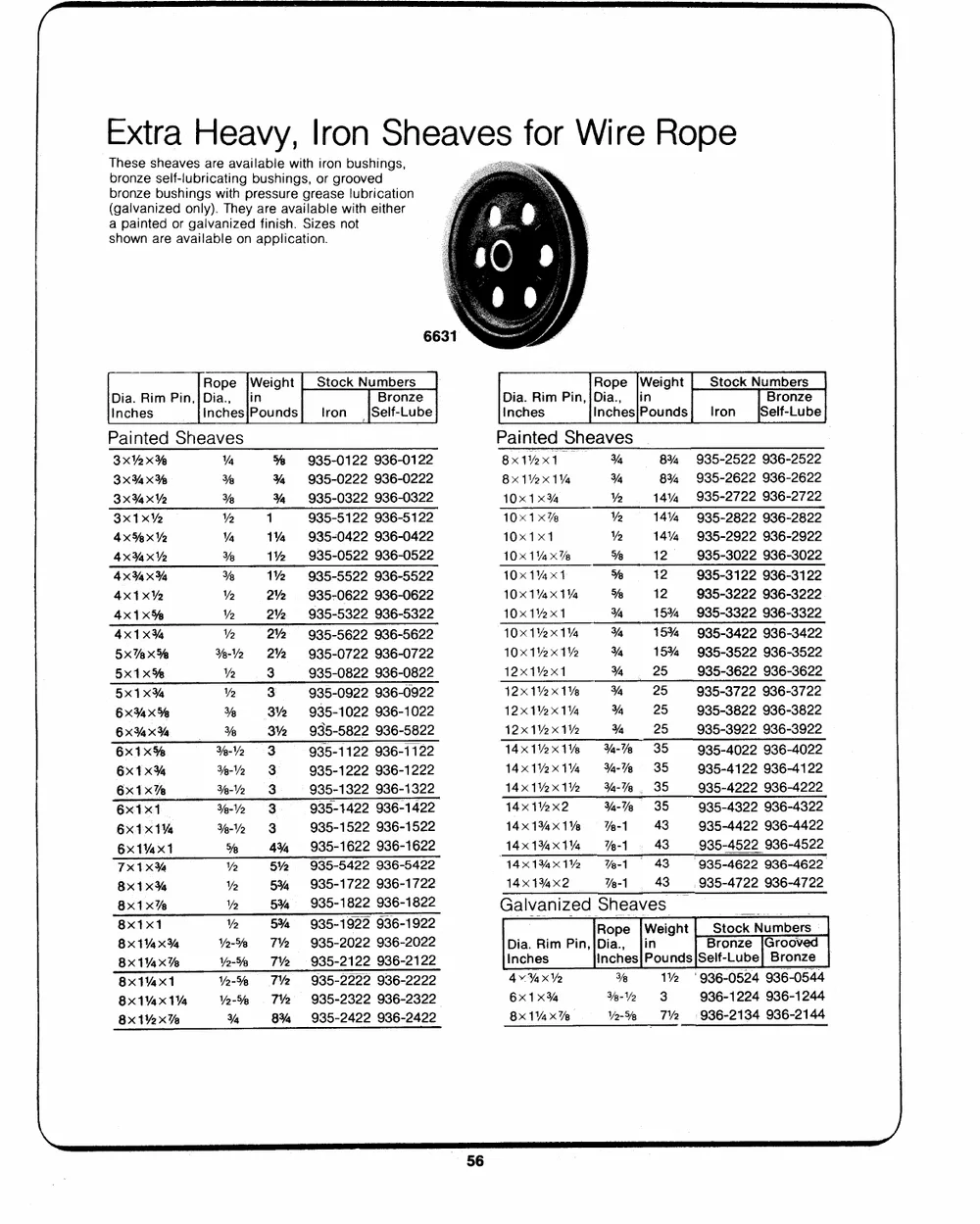

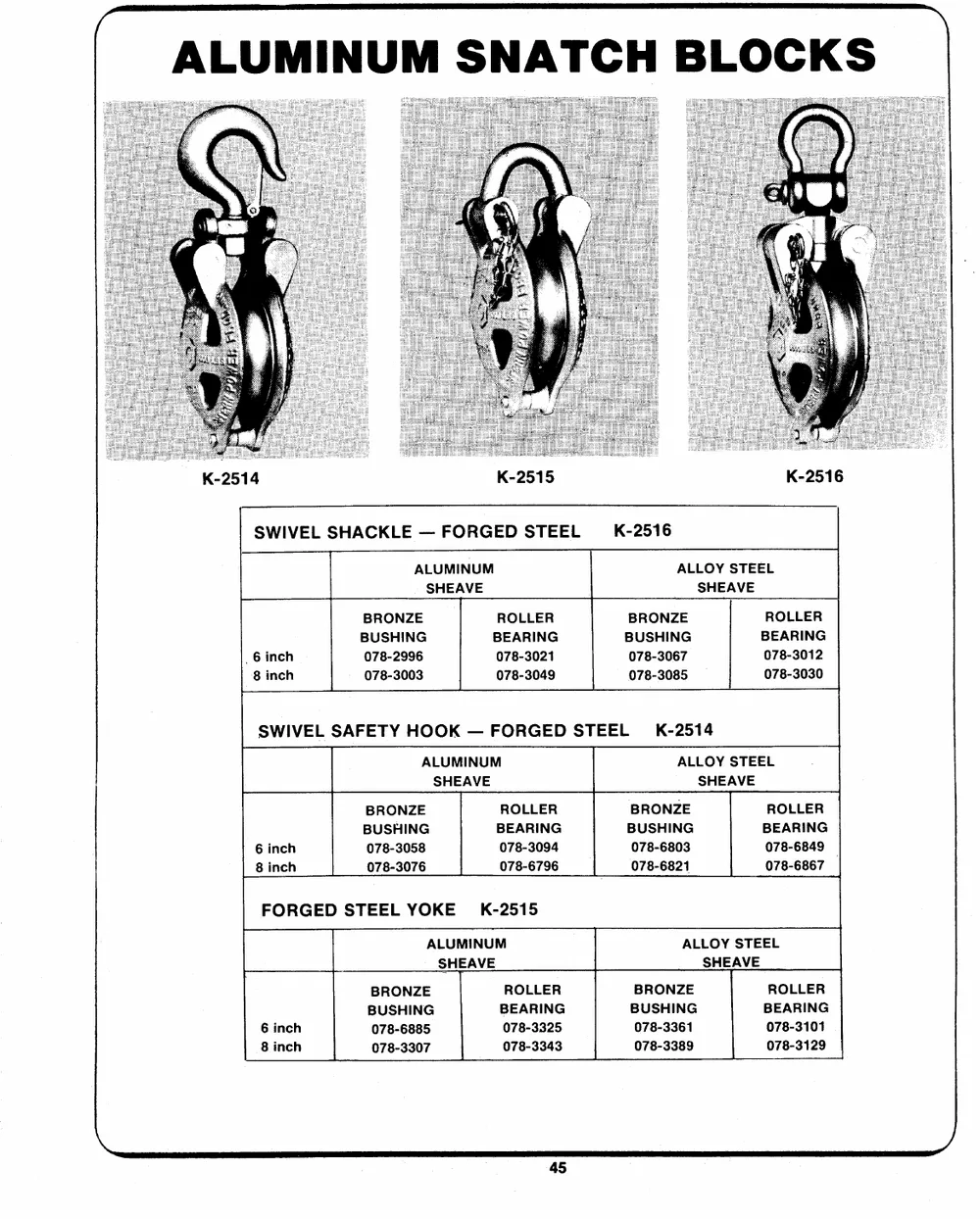

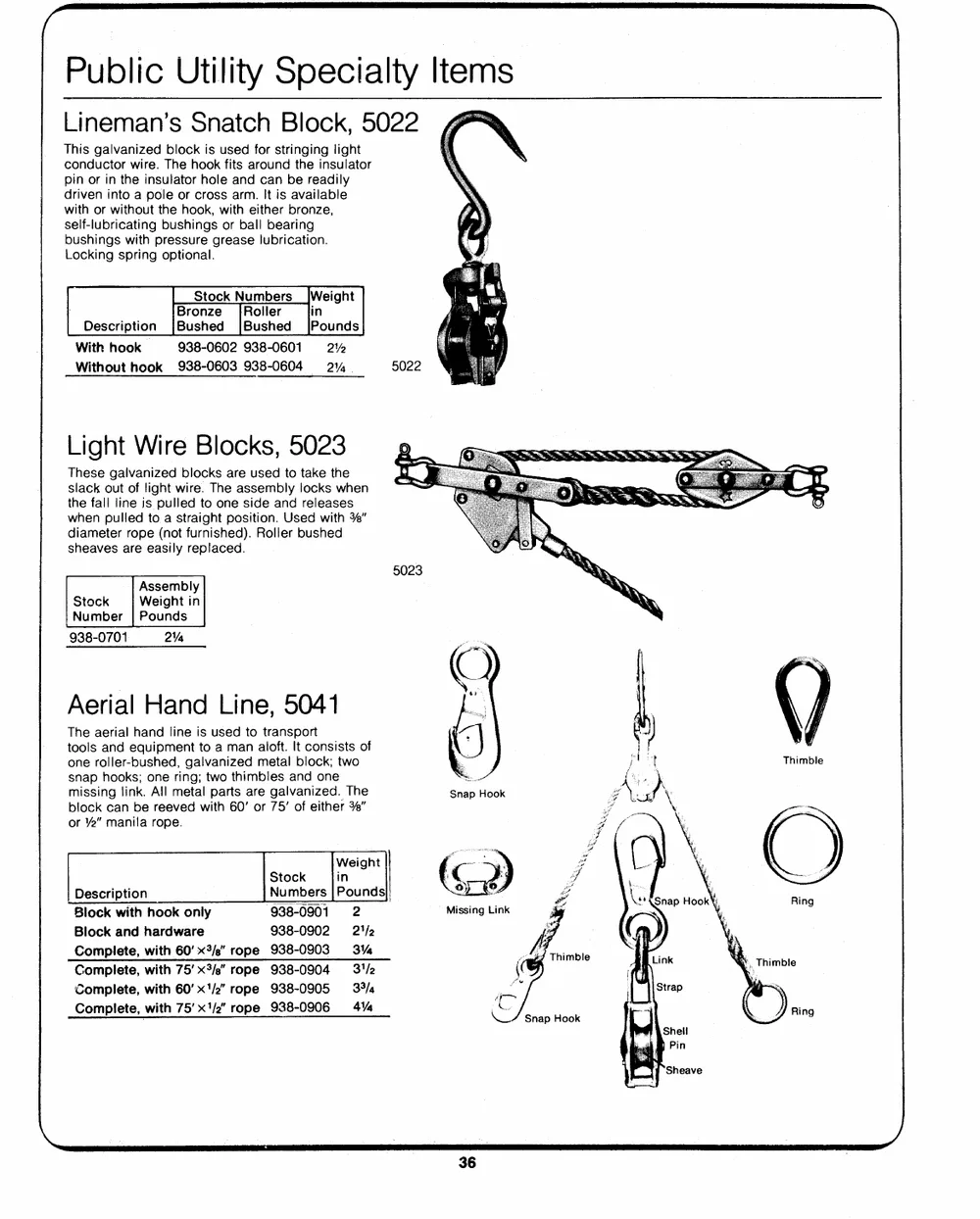

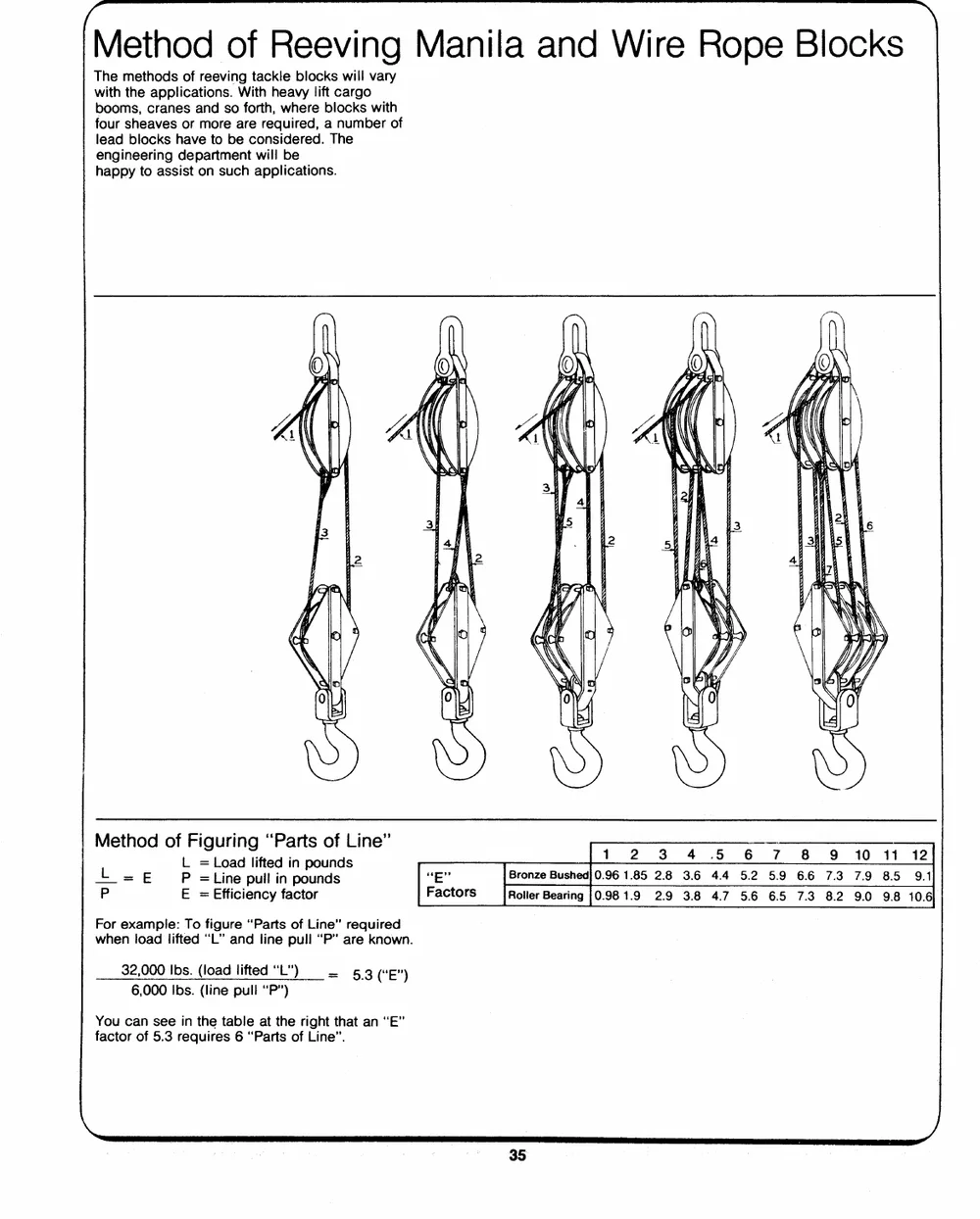

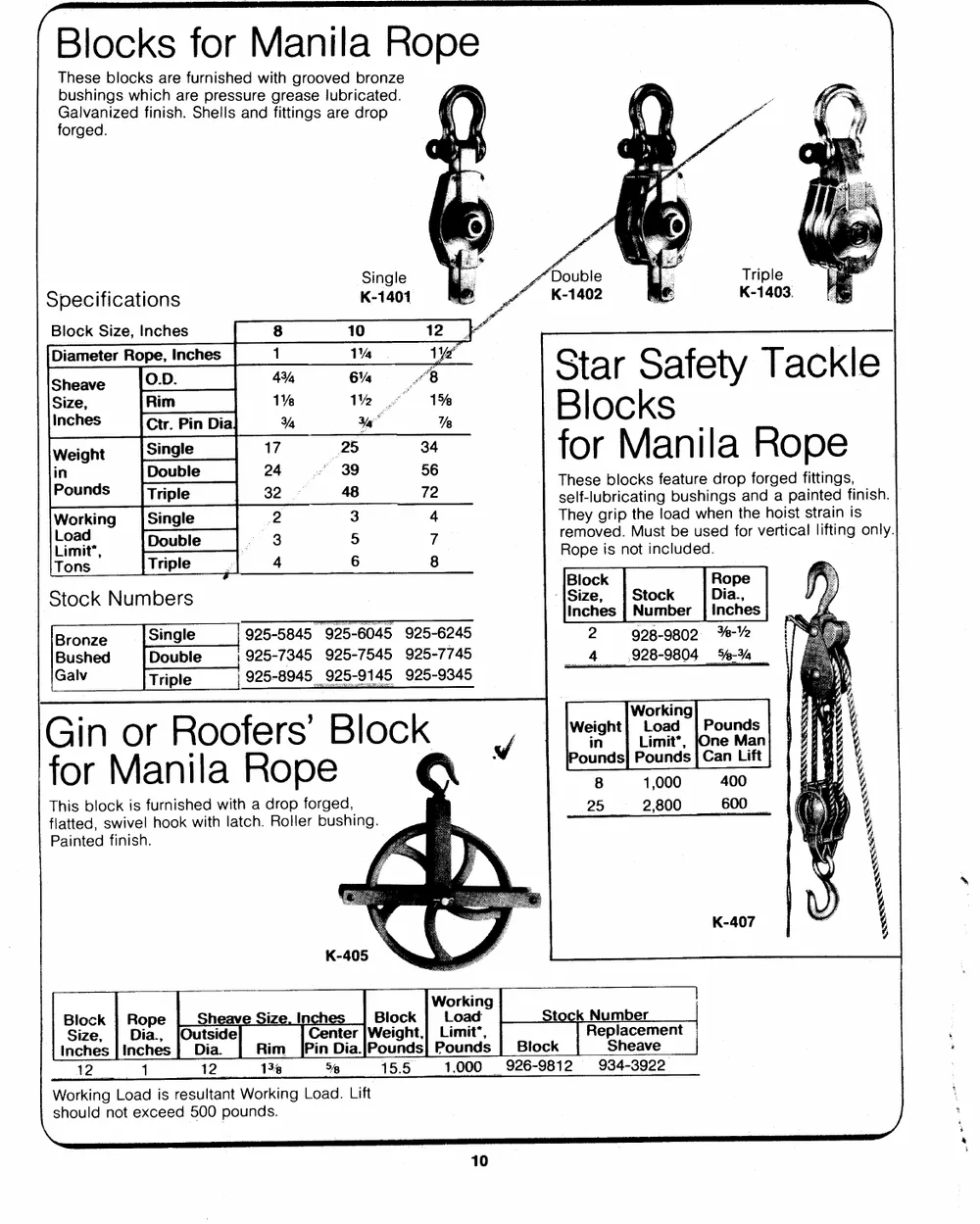

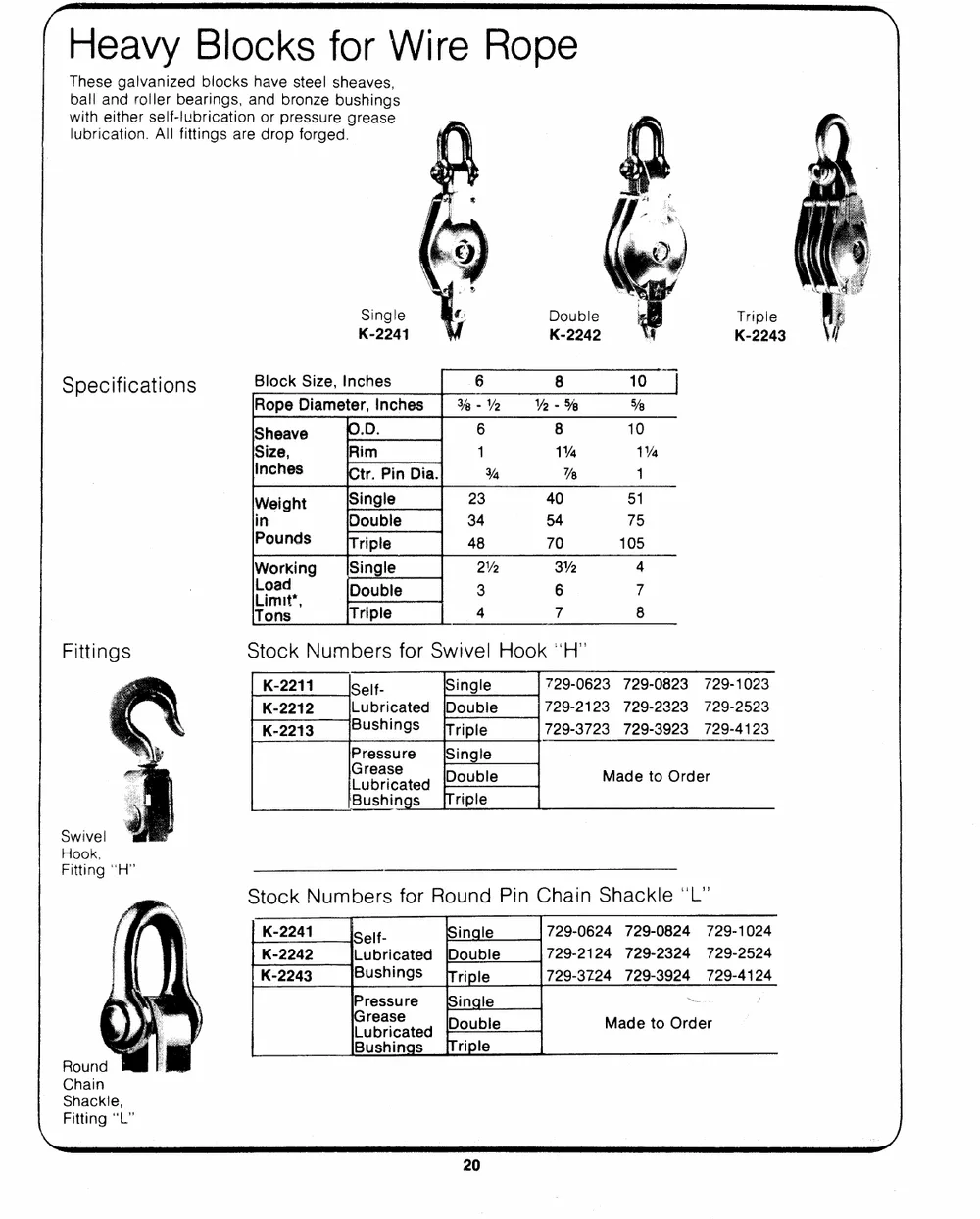

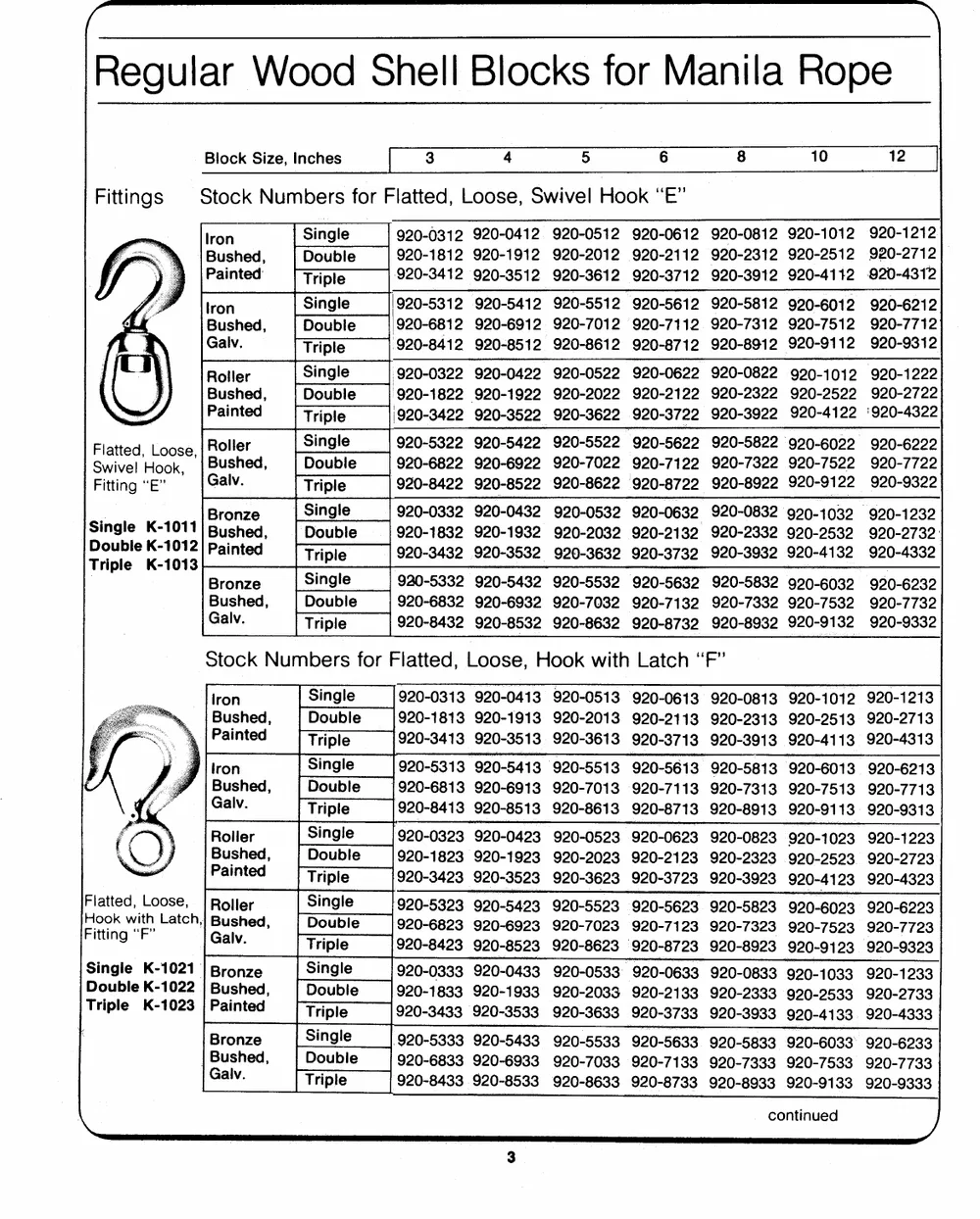

Blocks and Sheaves — page 2 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 3
Blocks and Sheaves — page 3 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 4

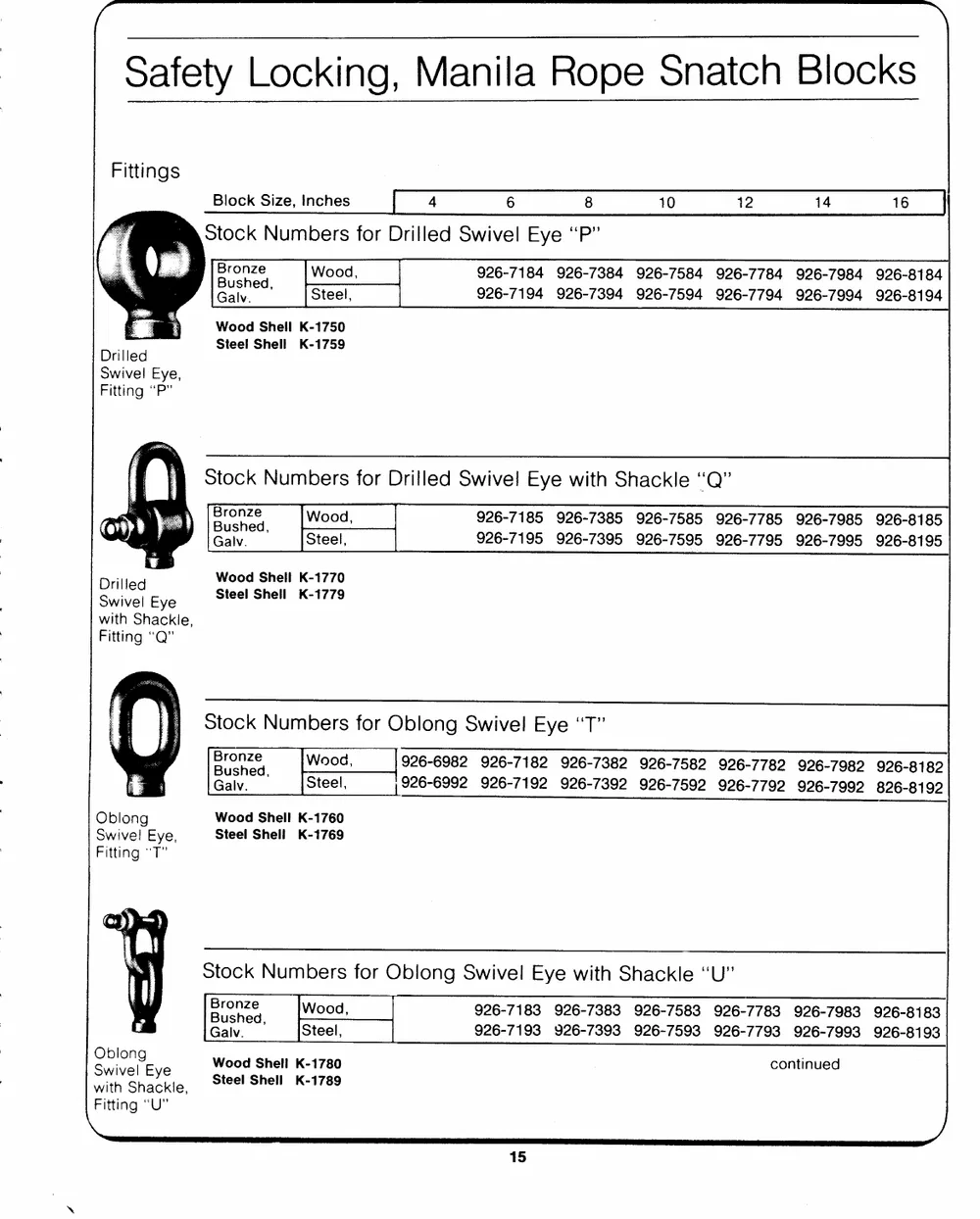

Blocks and Sheaves — page 4 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 5
Blocks and Sheaves — page 5 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 6
Blocks and Sheaves — page 6 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 7
Blocks and Sheaves — page 7 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 8

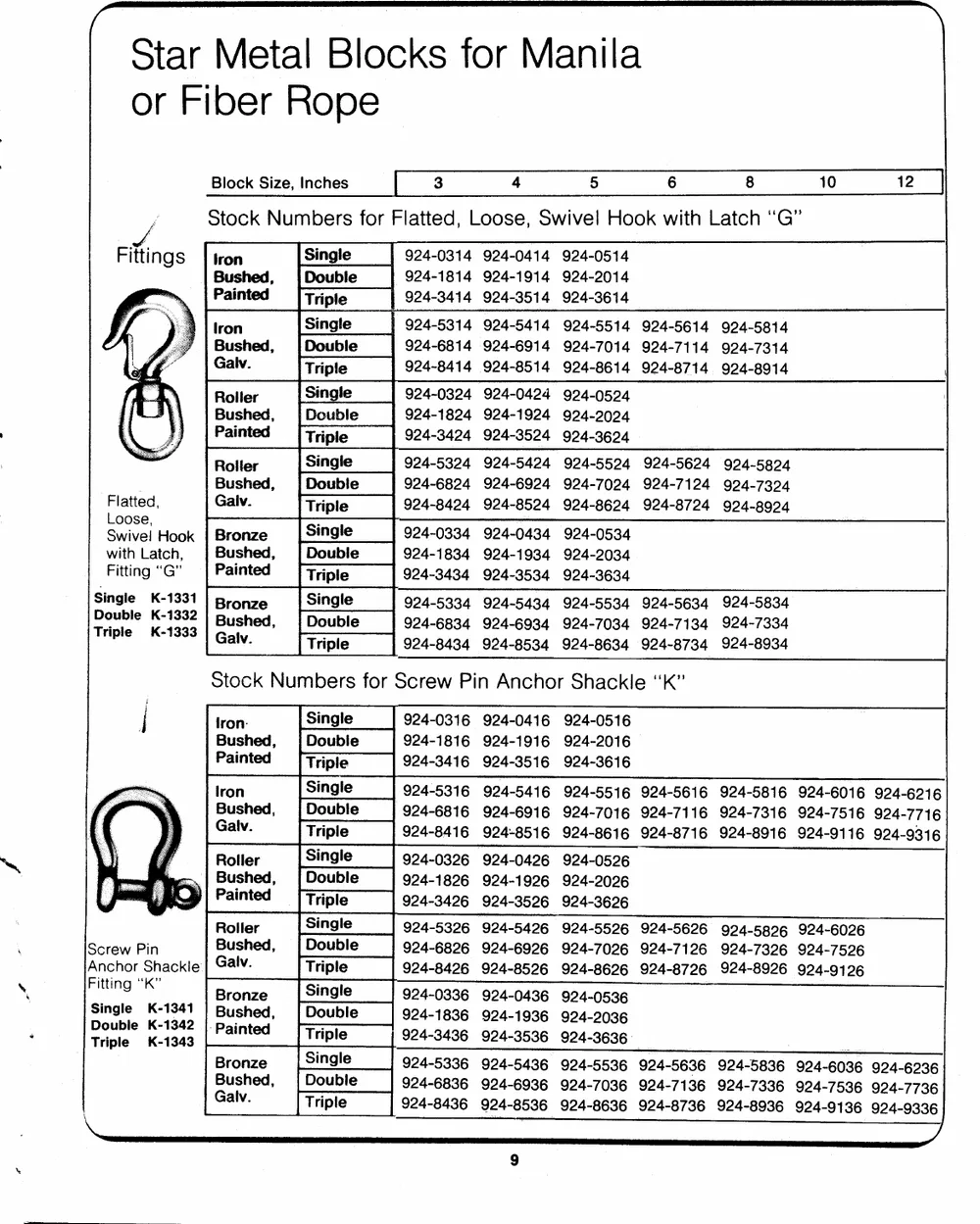

Blocks and Sheaves — page 8 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 9
Blocks and Sheaves — page 9 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 10
Blocks and Sheaves — page 10 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 11
Blocks and Sheaves — page 11 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 12

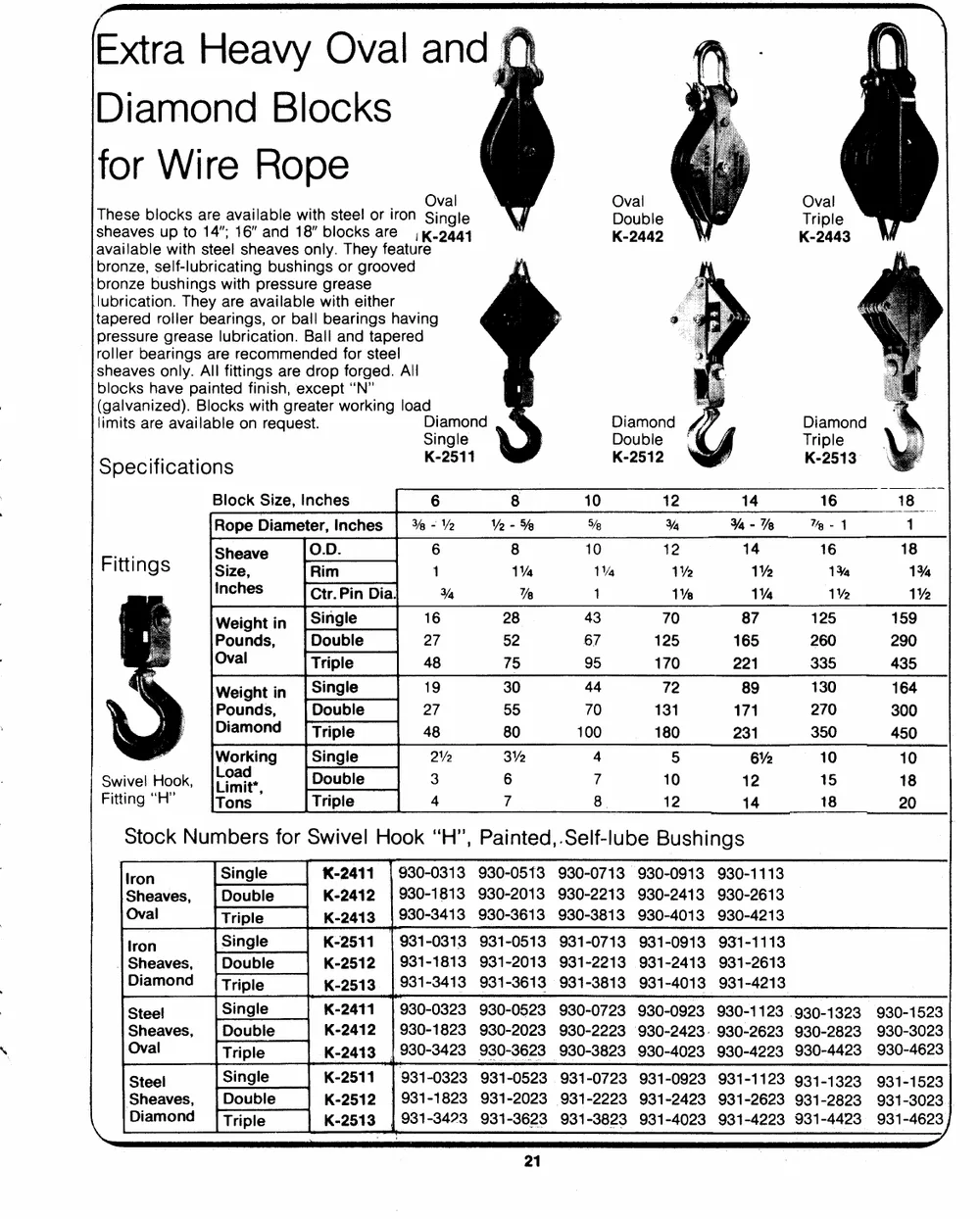

Blocks and Sheaves — page 12 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 13
Blocks and Sheaves — page 13 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 14
Blocks and Sheaves — page 14 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 15
Blocks and Sheaves — page 15 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 16

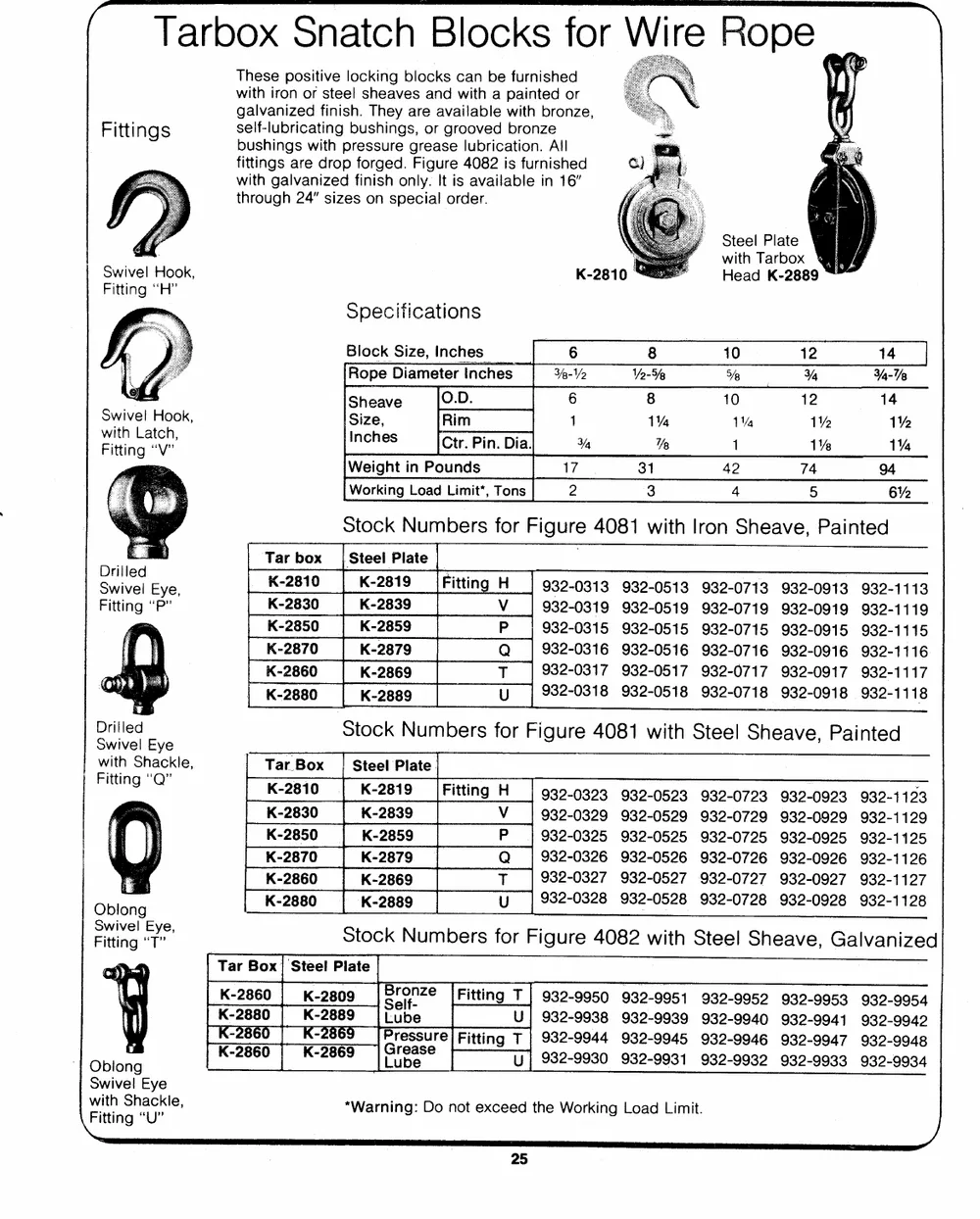

Blocks and Sheaves — page 16 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 17
Blocks and Sheaves — page 17 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 18
Blocks and Sheaves — page 18 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 19

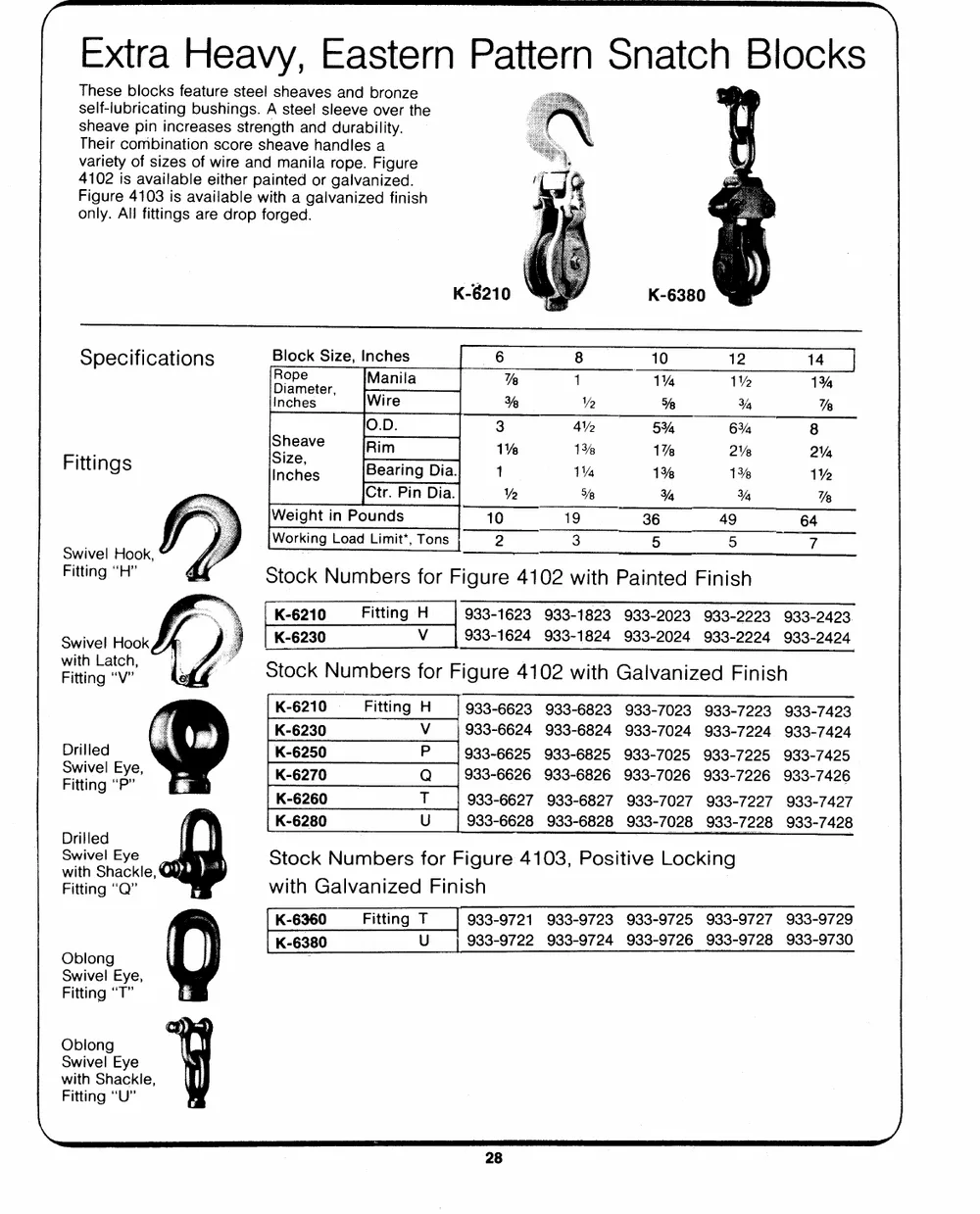

Blocks and Sheaves — page 19 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 20
Blocks and Sheaves — page 20 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 21
Blocks and Sheaves — page 21 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 22
Blocks and Sheaves — page 22 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 23

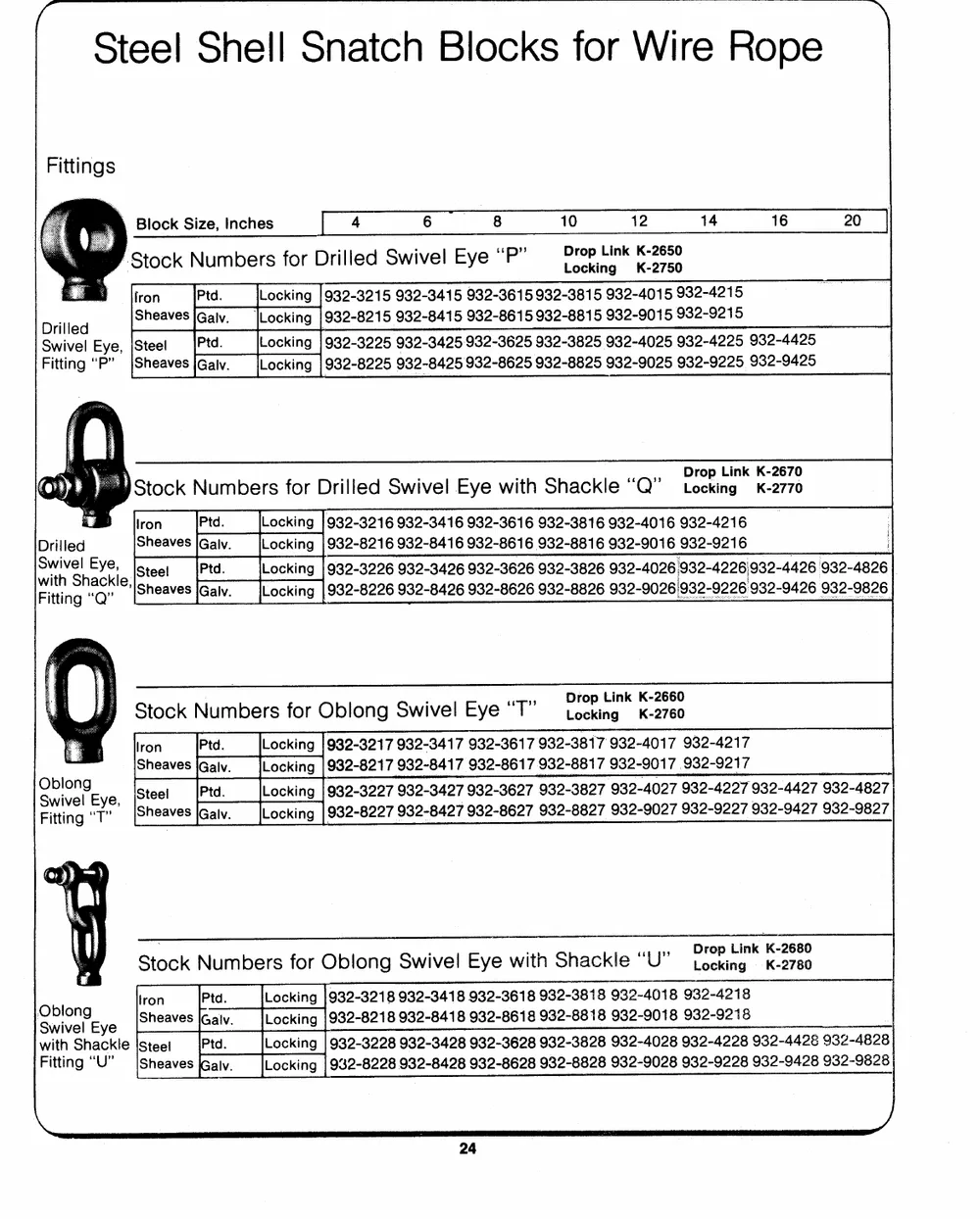

Blocks and Sheaves — page 23 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 24
Blocks and Sheaves — page 24 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 25
Blocks and Sheaves — page 25 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 26
Blocks and Sheaves — page 26 of the Dibblee Industries catalog (W.J. Keating, 1940–)

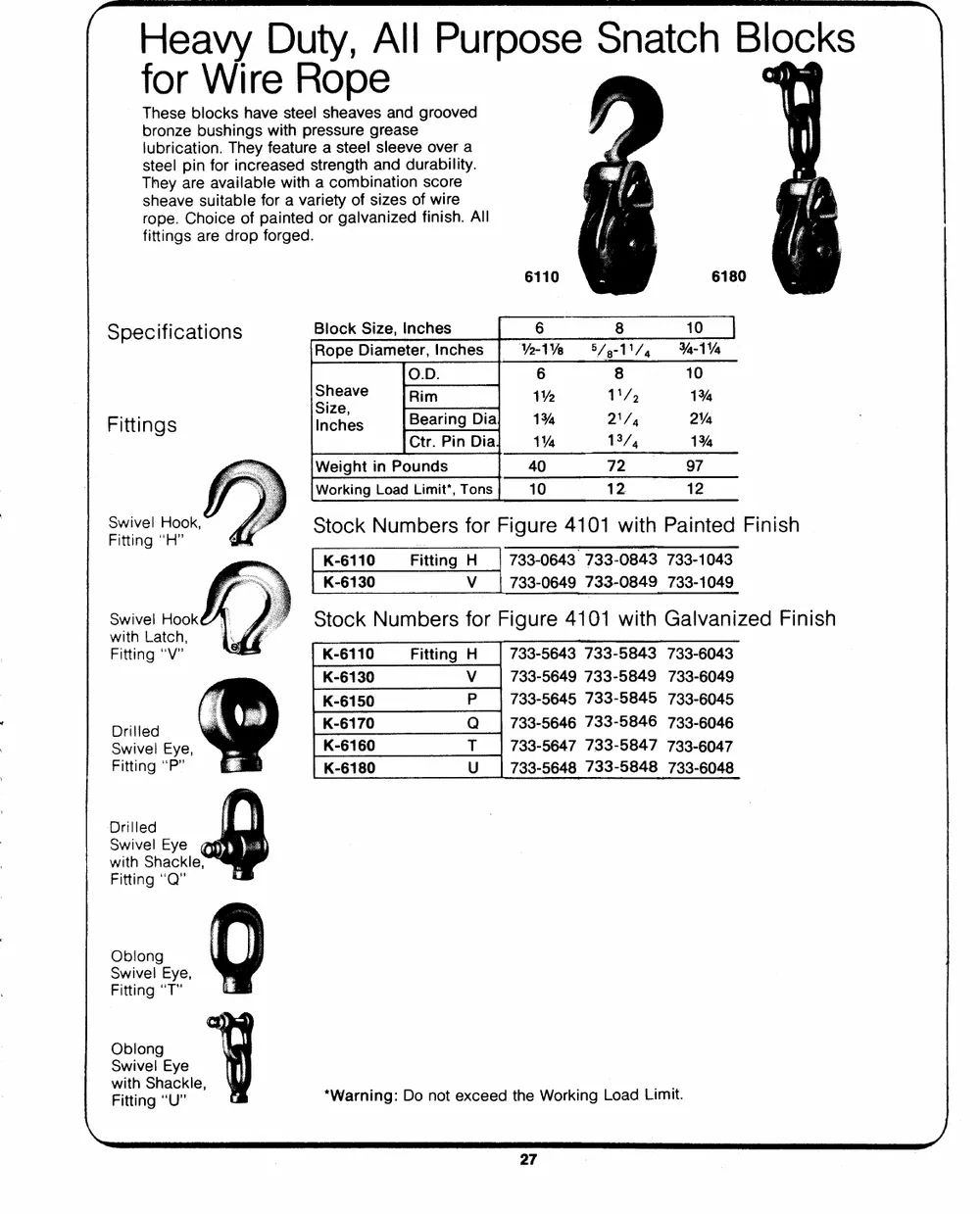

Page 27
Blocks and Sheaves — page 27 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 28
Blocks and Sheaves — page 28 of the Dibblee Industries catalog (W.J. Keating, 1940–)

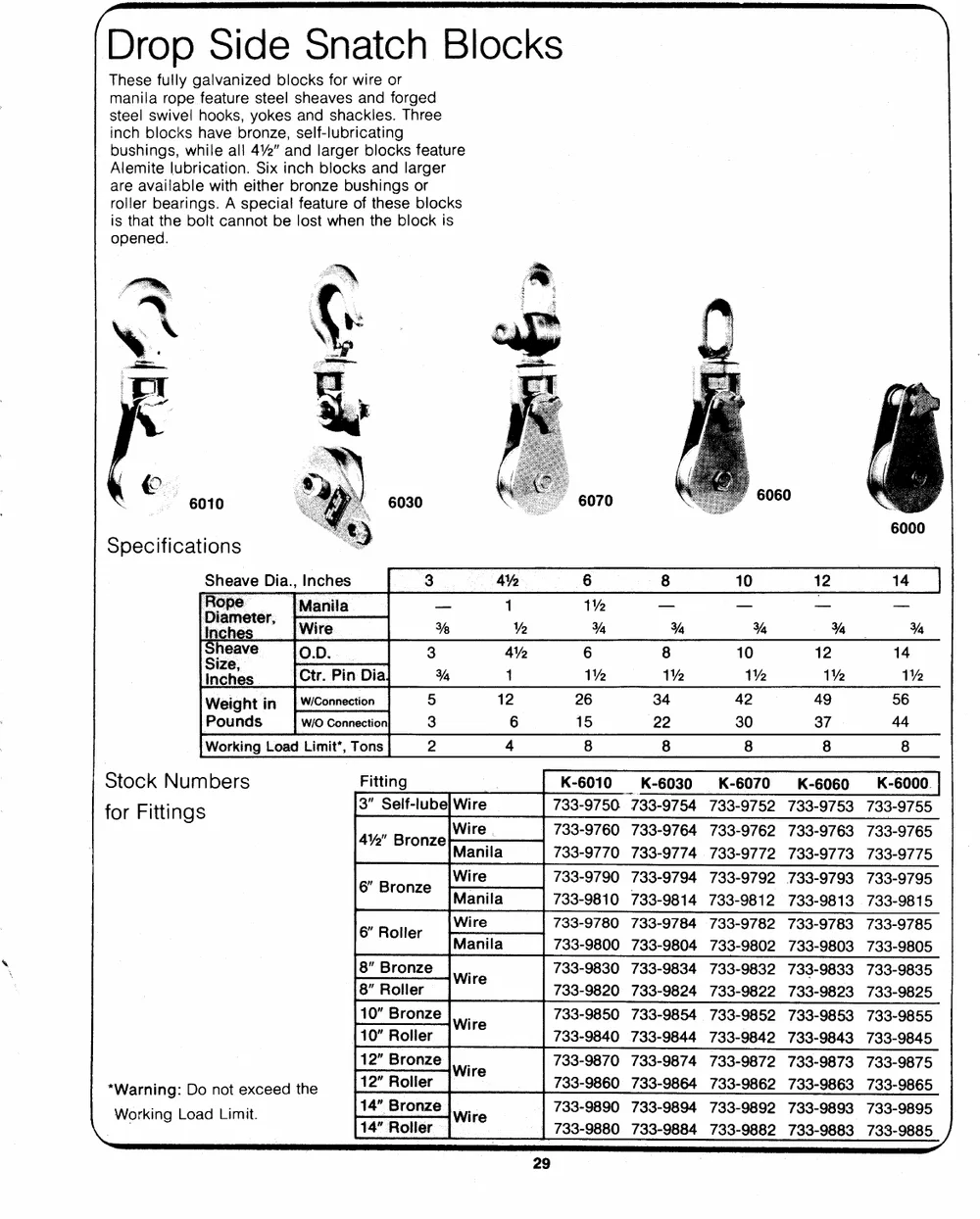

Page 29

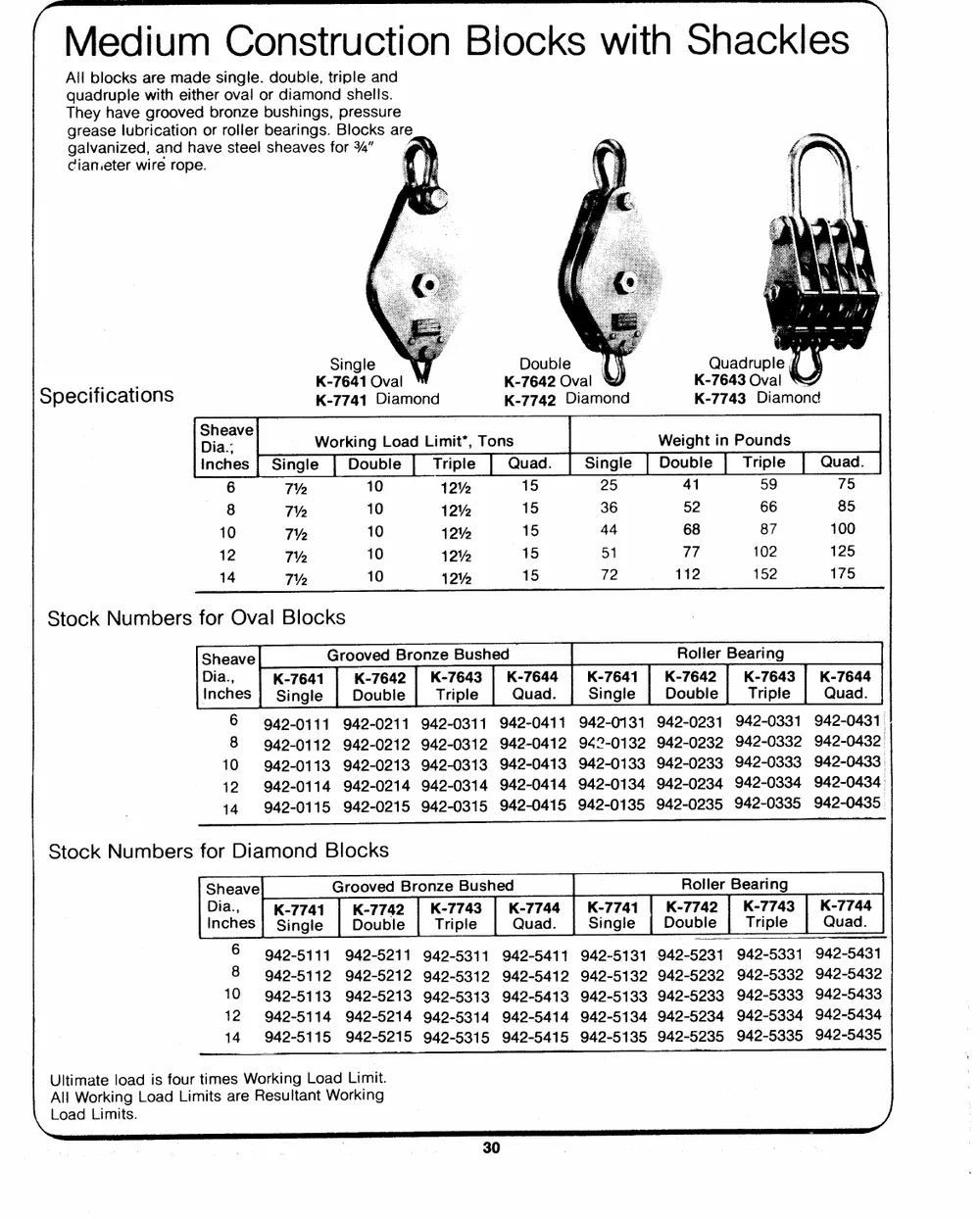

Blocks and Sheaves — page 29 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 30
Blocks and Sheaves — page 30 of the Dibblee Industries catalog (W.J. Keating, 1940–)

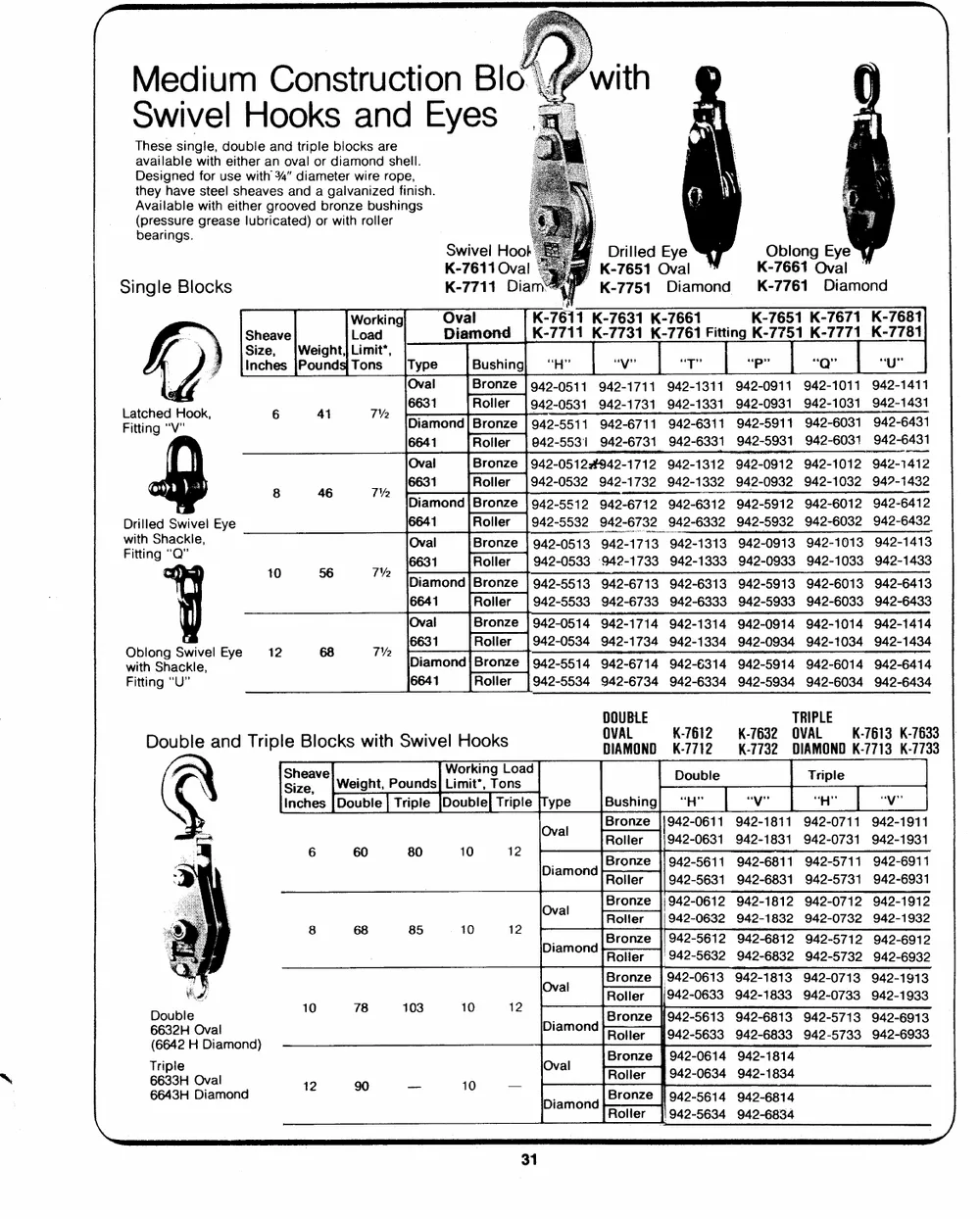

Page 31
Blocks and Sheaves — page 31 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 32

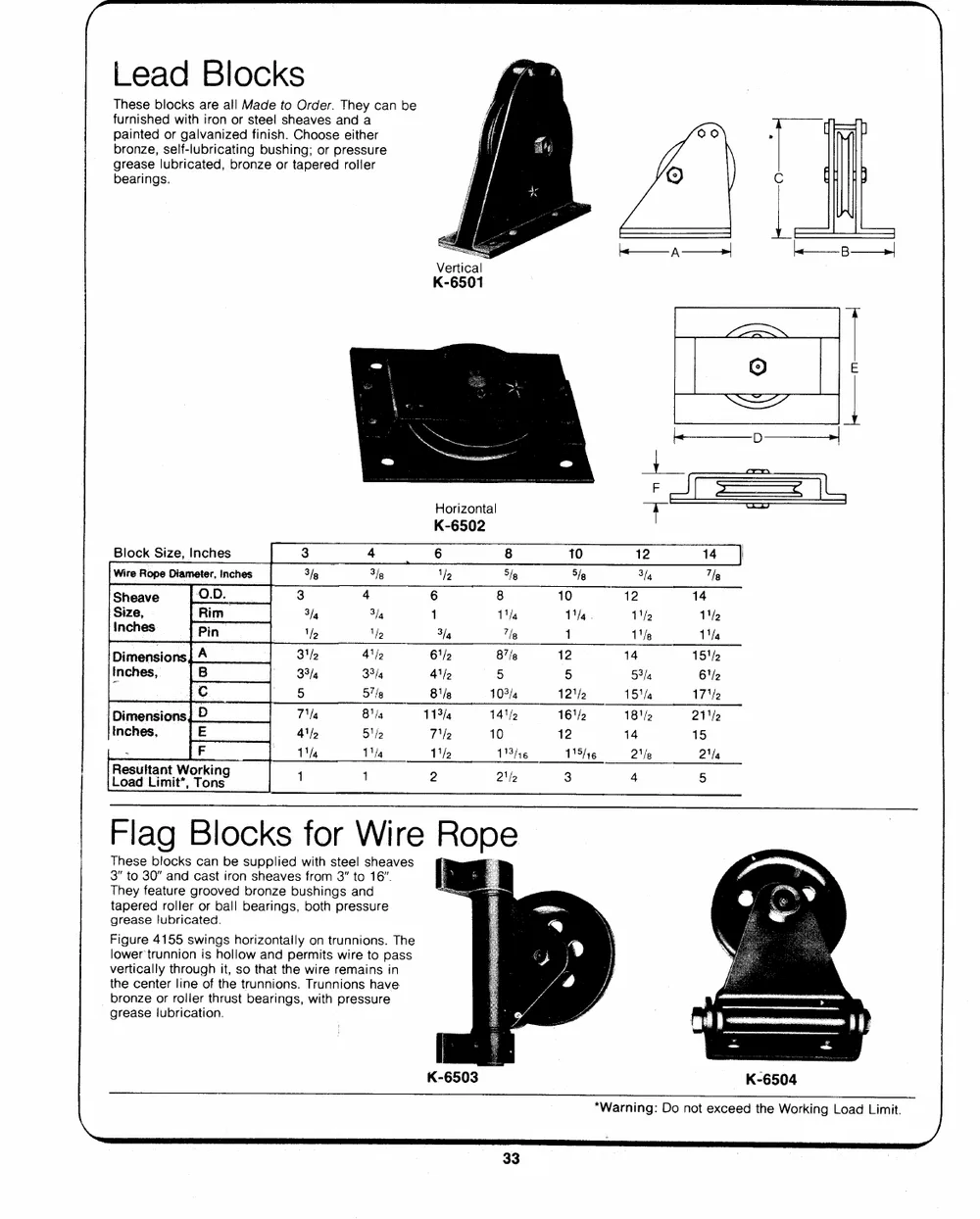

Blocks and Sheaves — page 32 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 33
Blocks and Sheaves — page 33 of the Dibblee Industries catalog (W.J. Keating, 1940–)

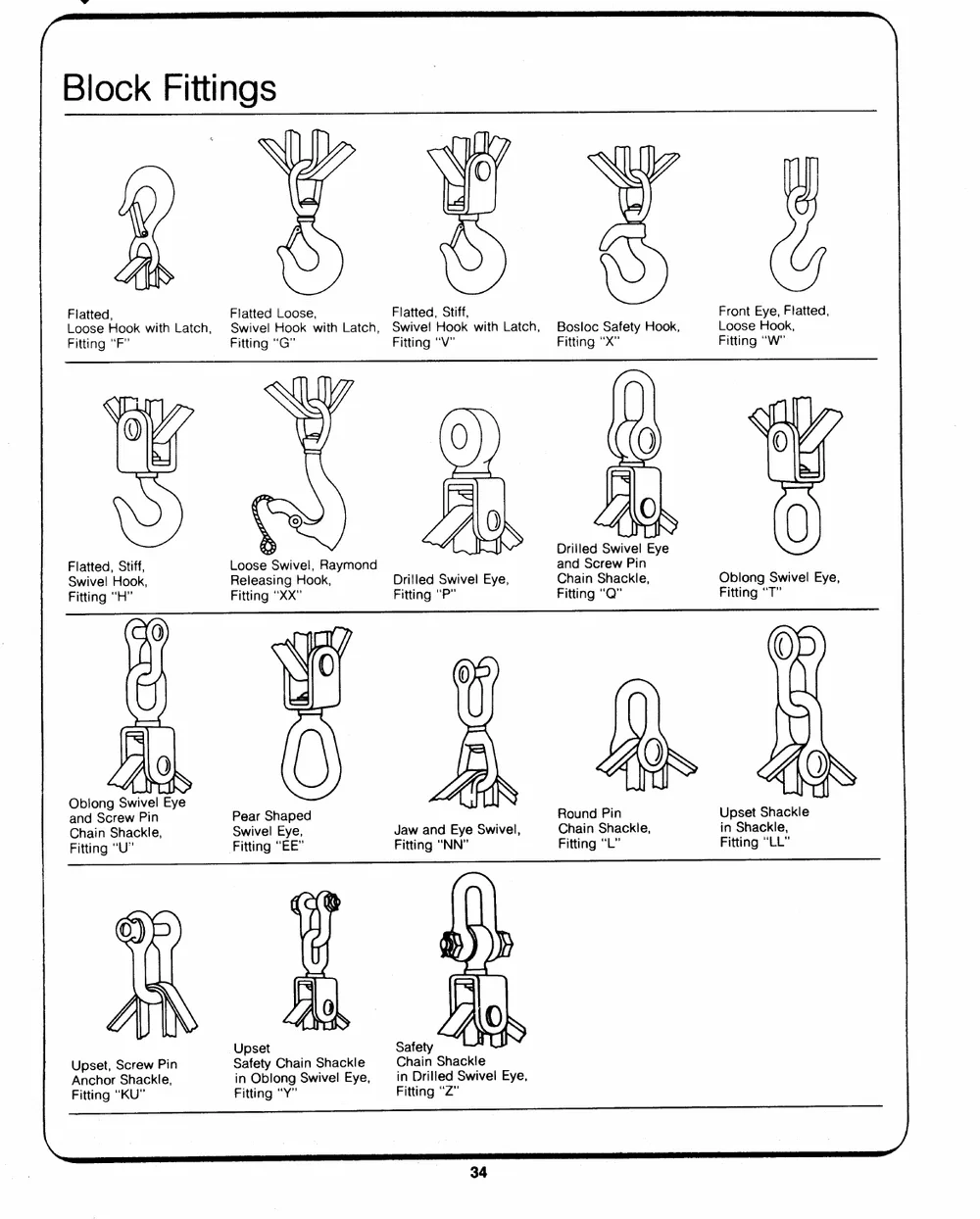

Page 34
Blocks and Sheaves — page 34 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 35
Blocks and Sheaves — page 35 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 36

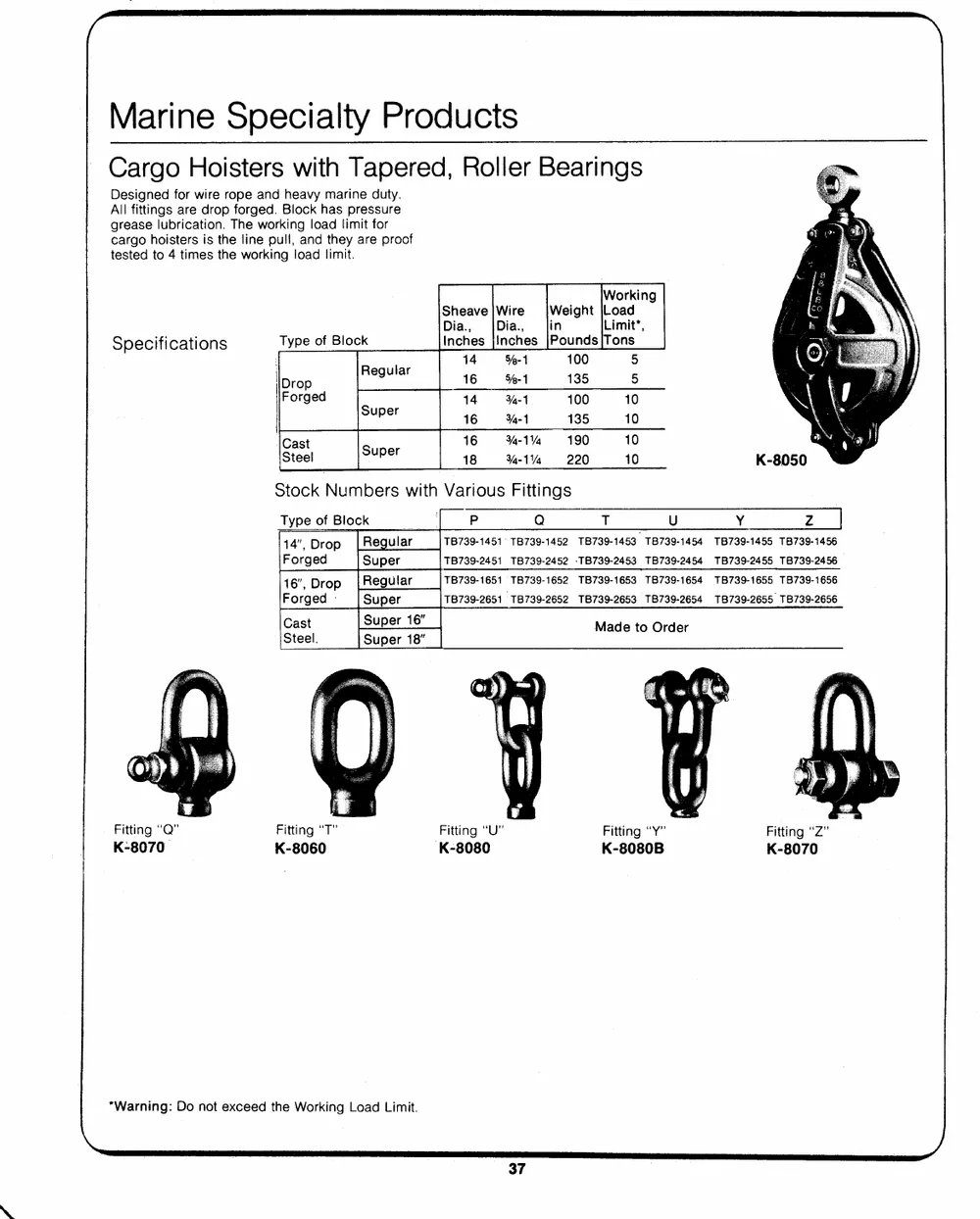

Blocks and Sheaves — page 36 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 37

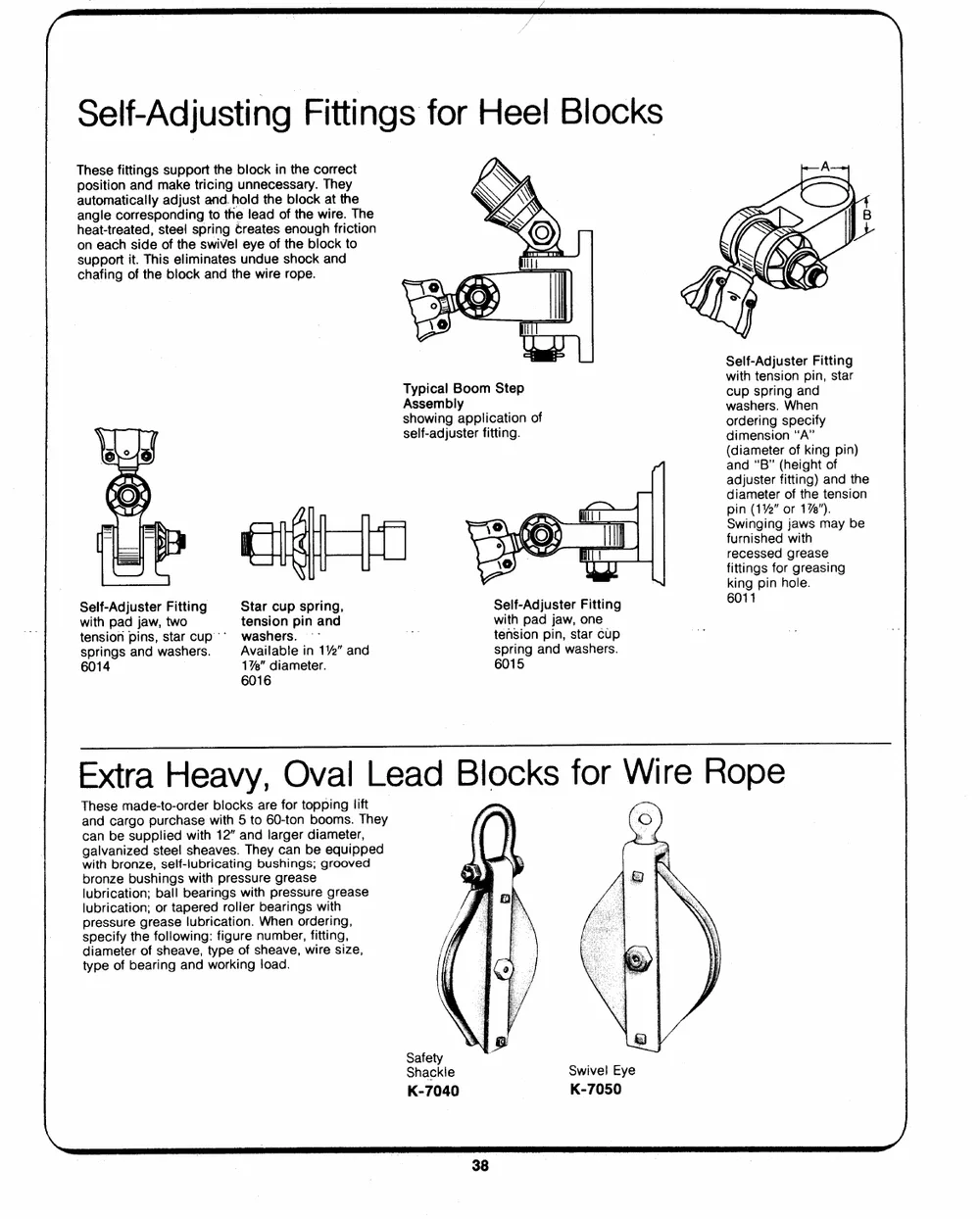

Blocks and Sheaves — page 37 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 38
Blocks and Sheaves — page 38 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 39
Blocks and Sheaves — page 39 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 40

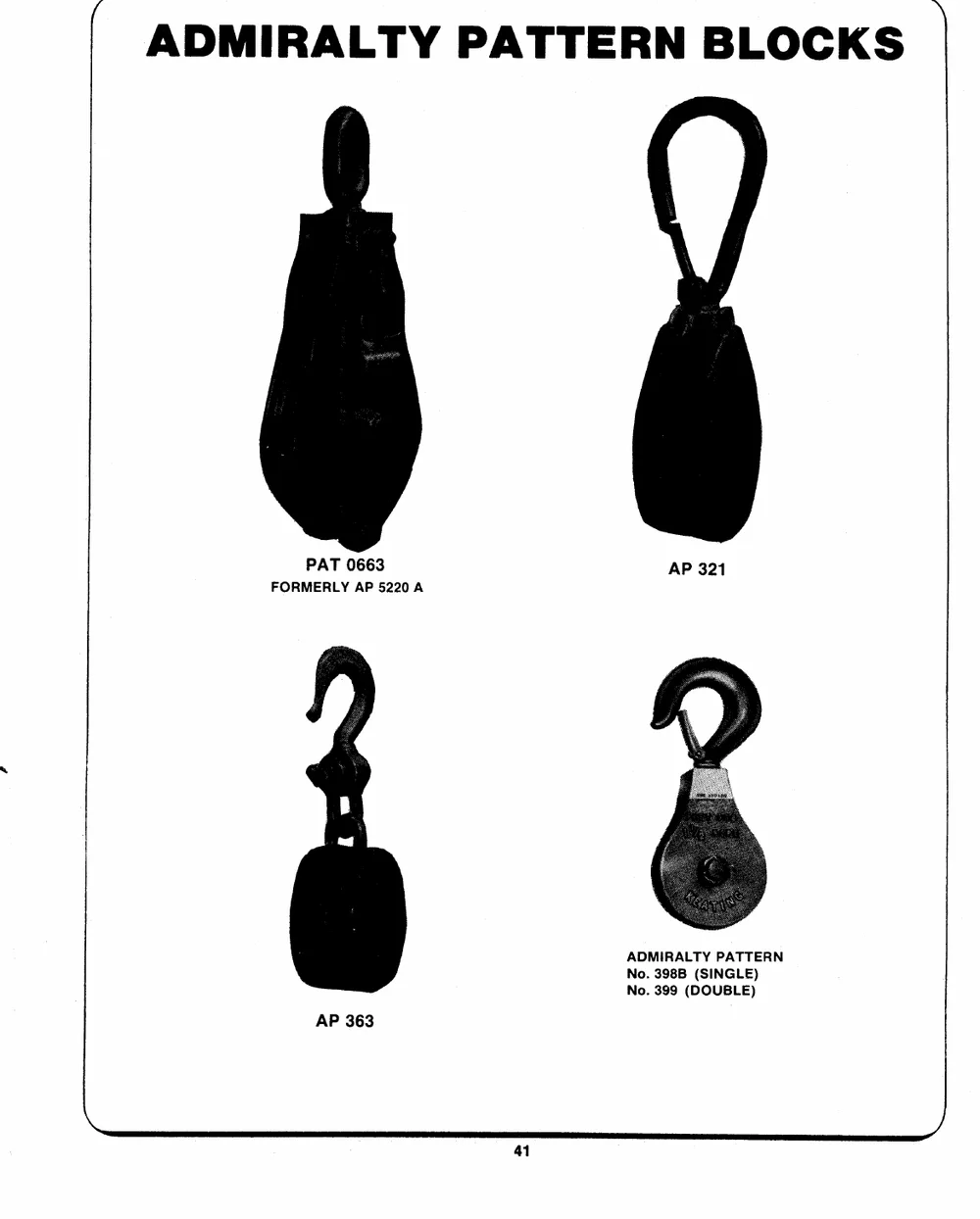

Blocks and Sheaves — page 40 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 41
Blocks and Sheaves — page 41 of the Dibblee Industries catalog (W.J. Keating, 1940–)

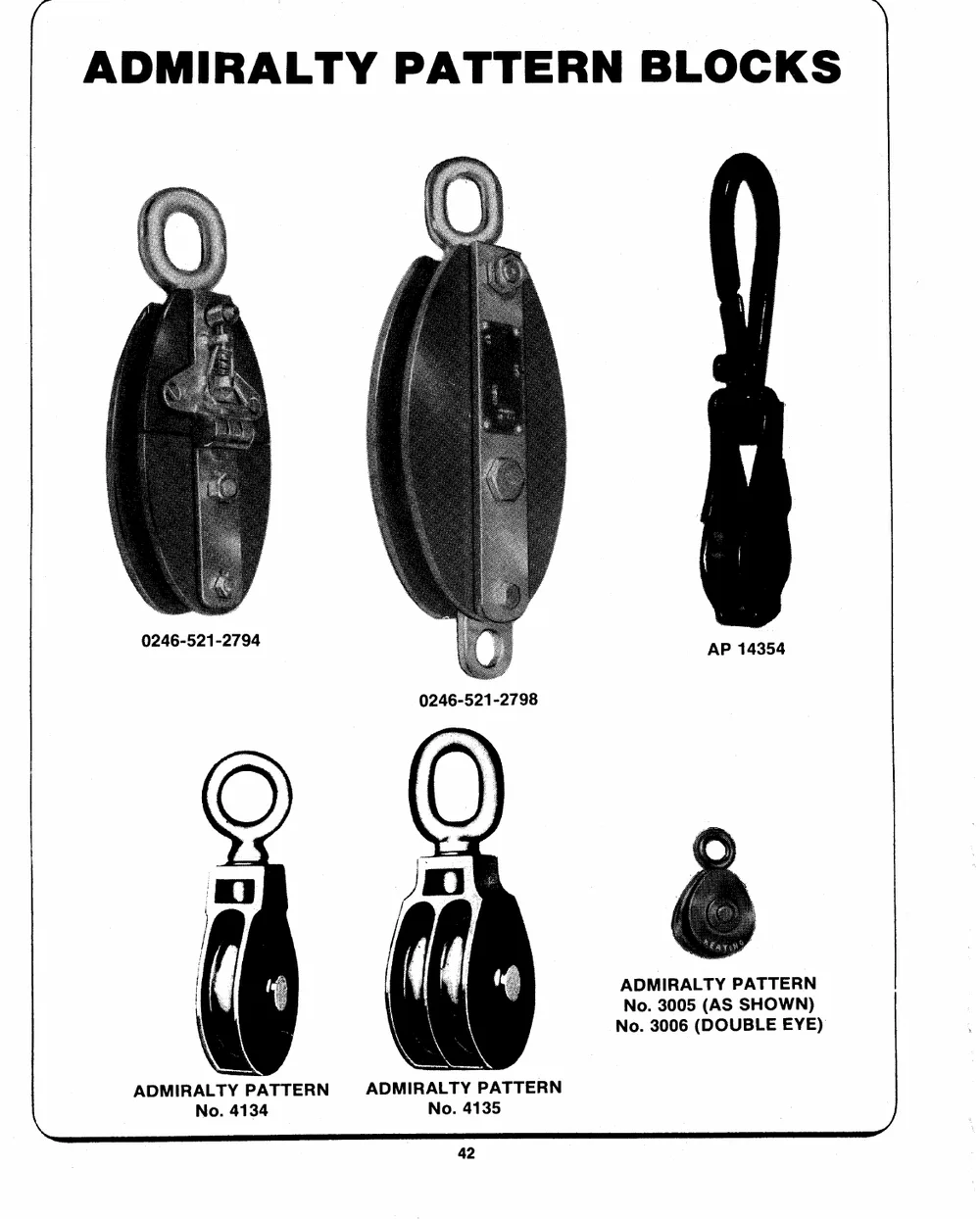

Page 42

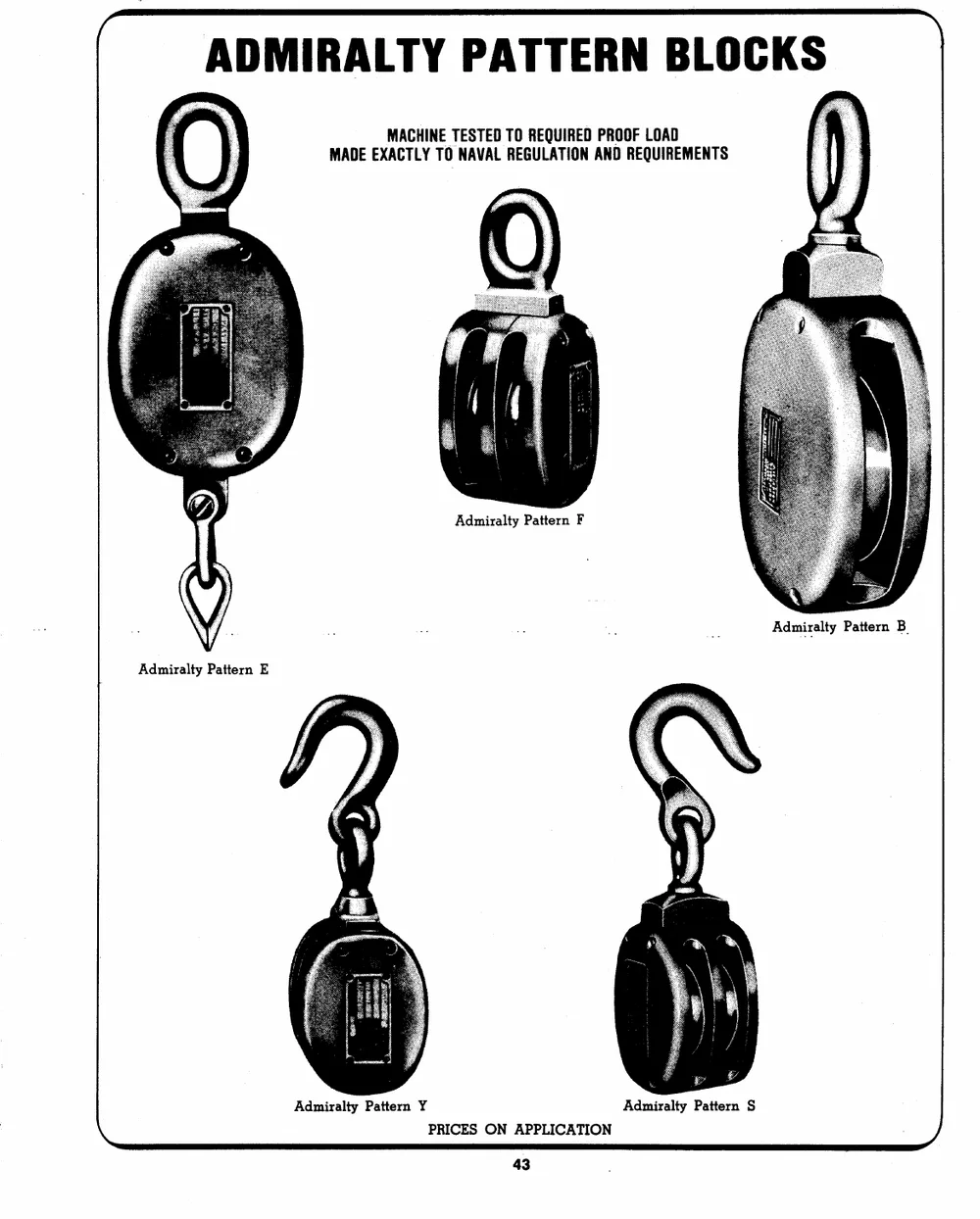

Blocks and Sheaves — page 42 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 43
Blocks and Sheaves — page 43 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 44
Blocks and Sheaves — page 44 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 45
Blocks and Sheaves — page 45 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 46
Blocks and Sheaves — page 46 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 47
Blocks and Sheaves — page 47 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 48
Blocks and Sheaves — page 48 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 49

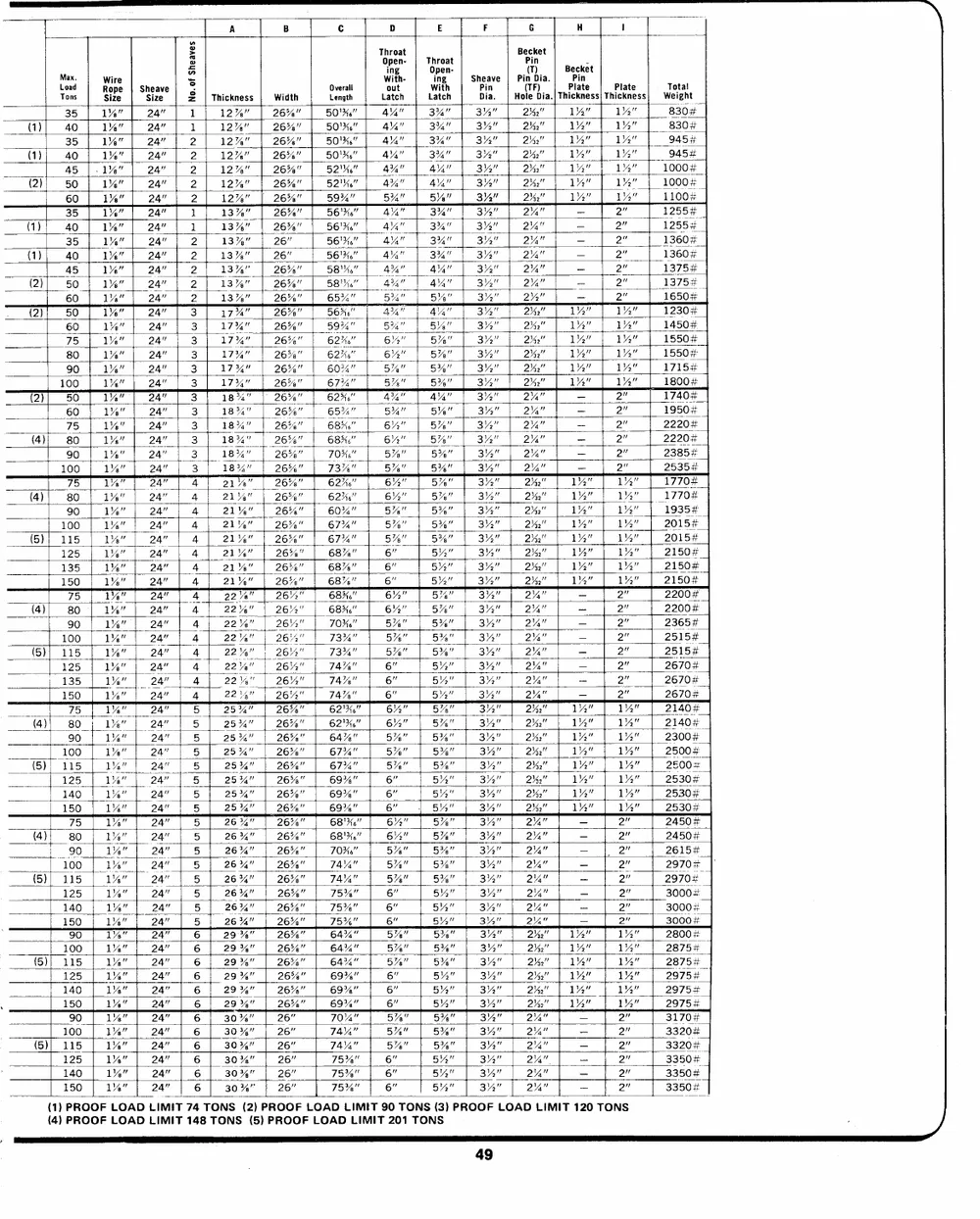

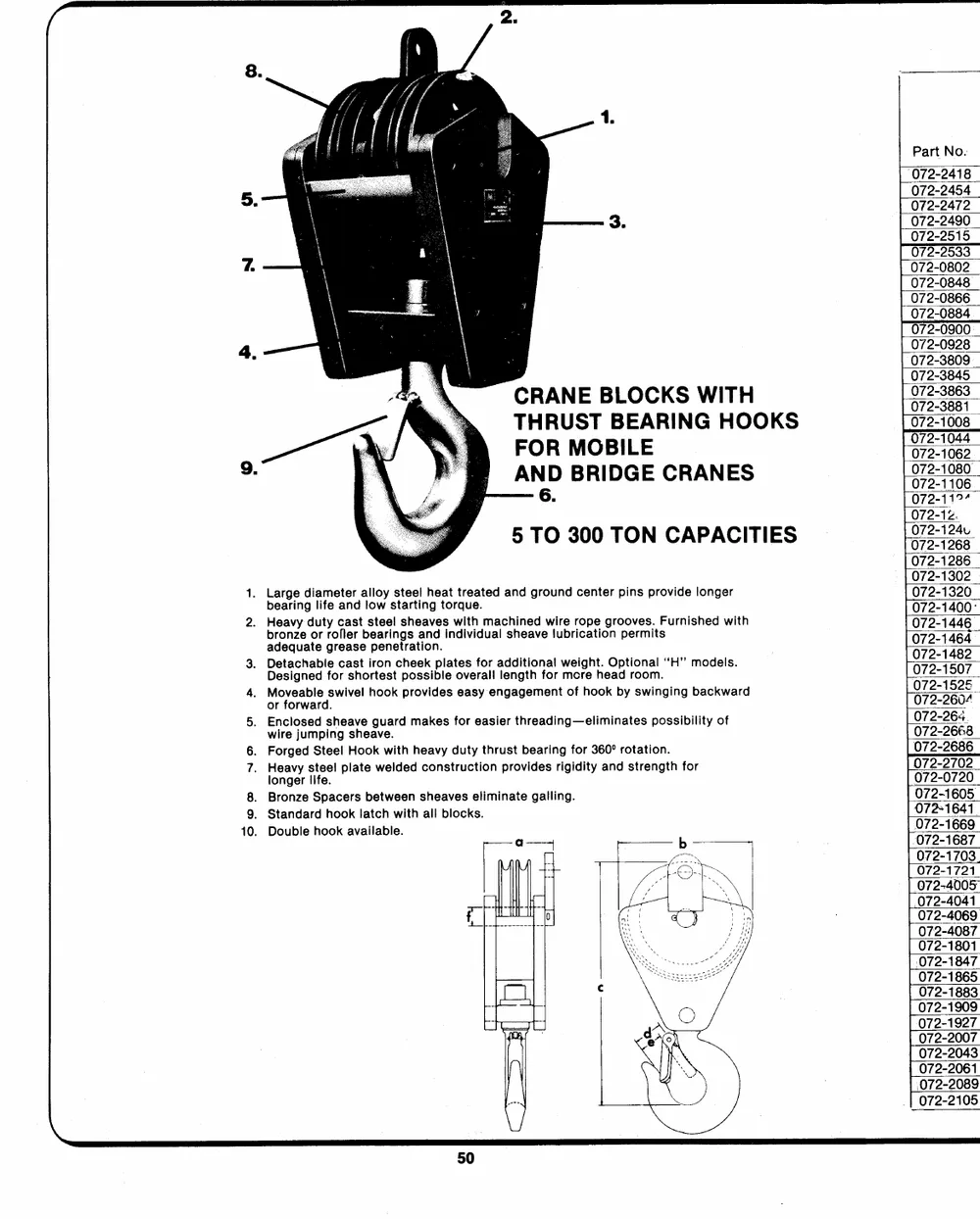

Blocks and Sheaves — page 49 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 50

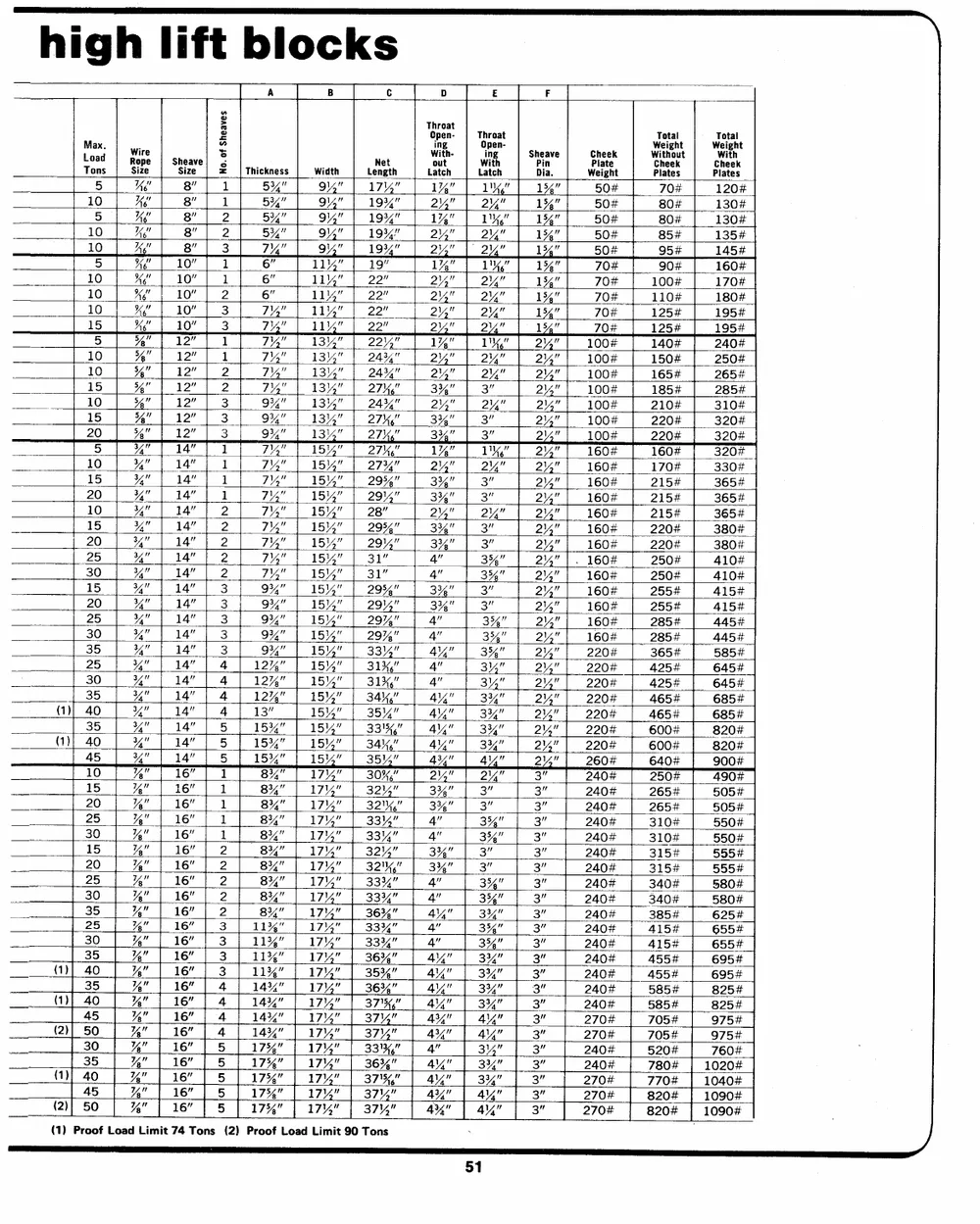

Blocks and Sheaves — page 50 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 51
Blocks and Sheaves — page 51 of the Dibblee Industries catalog (W.J. Keating, 1940–)

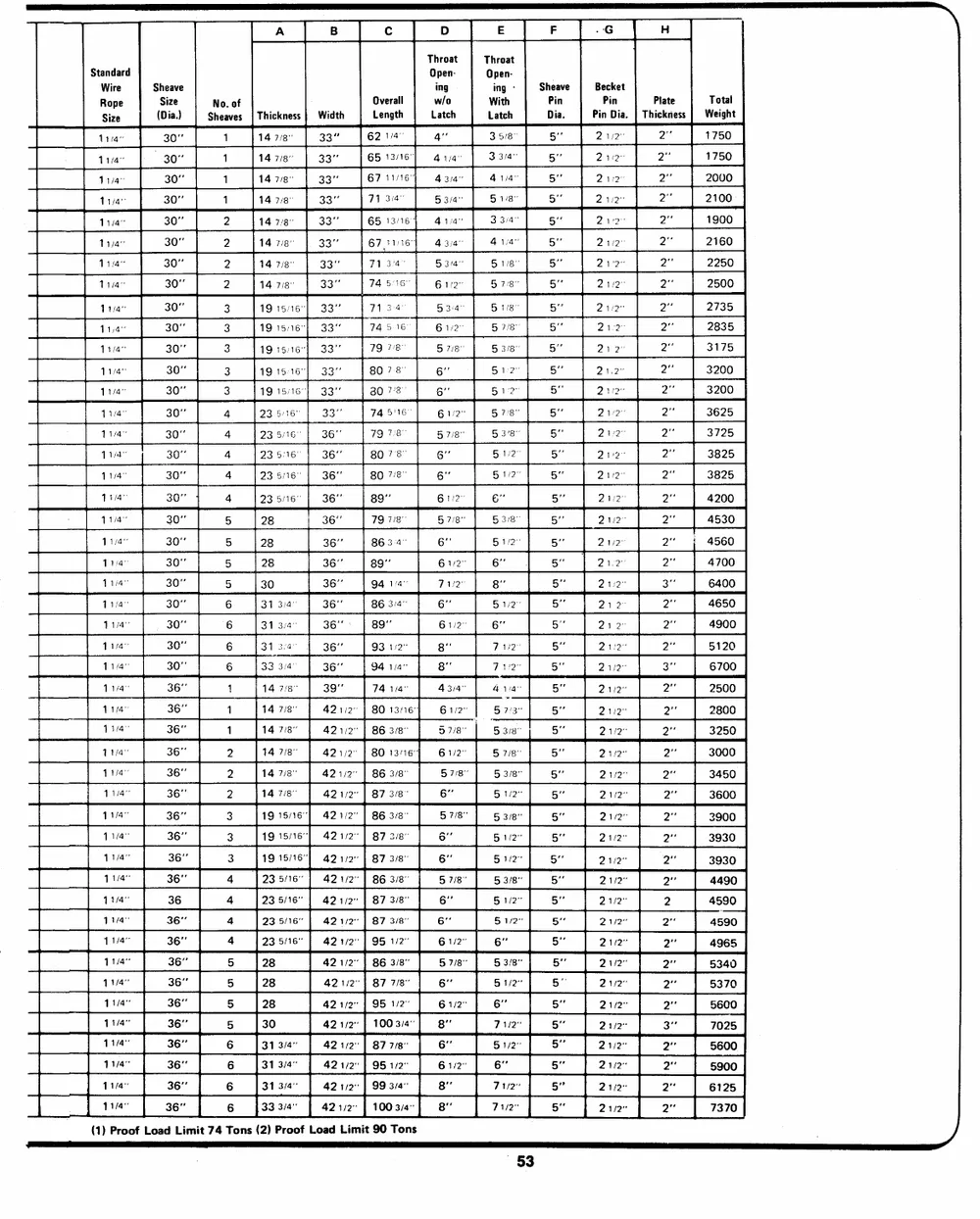

Page 52

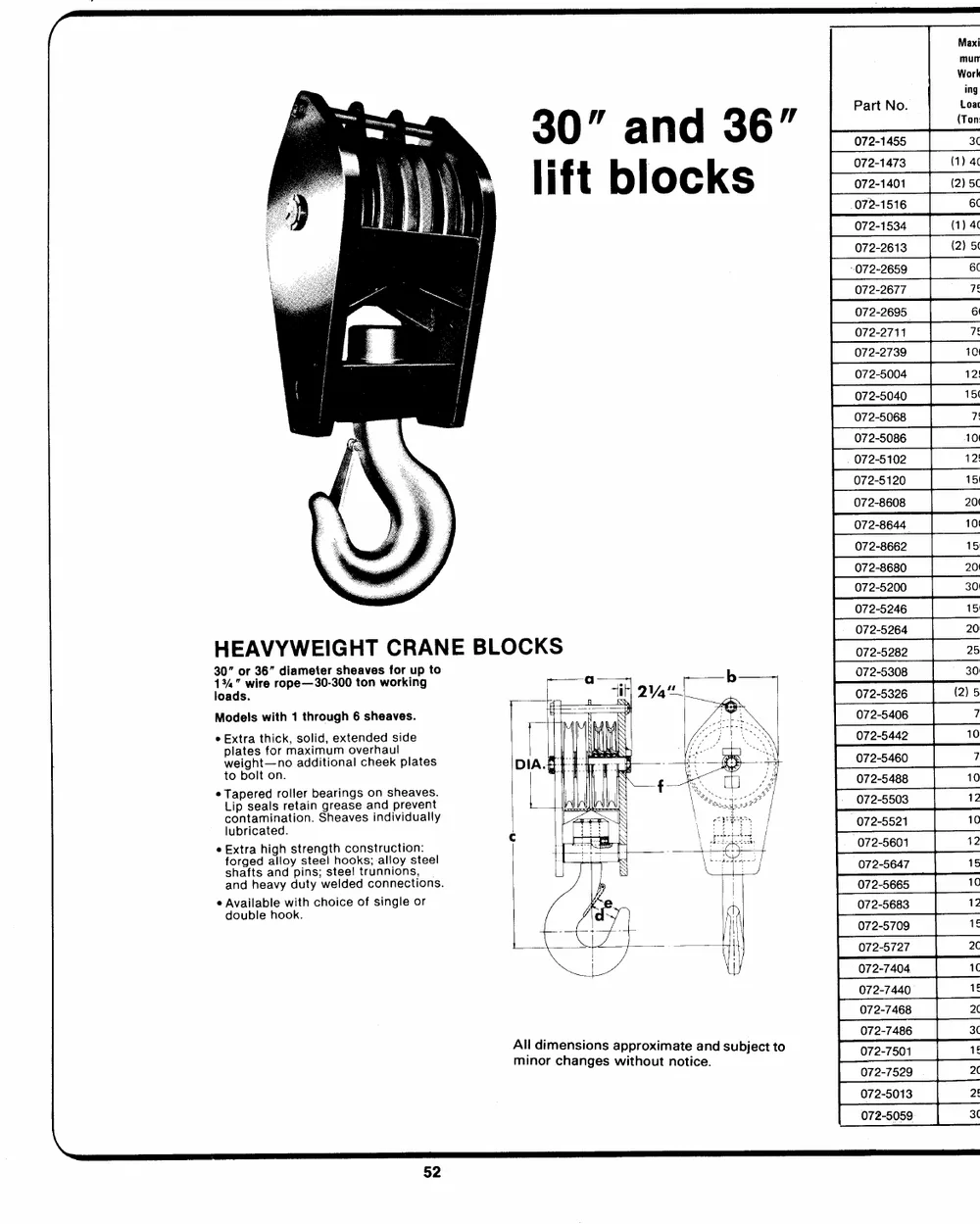

Blocks and Sheaves — page 52 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 53

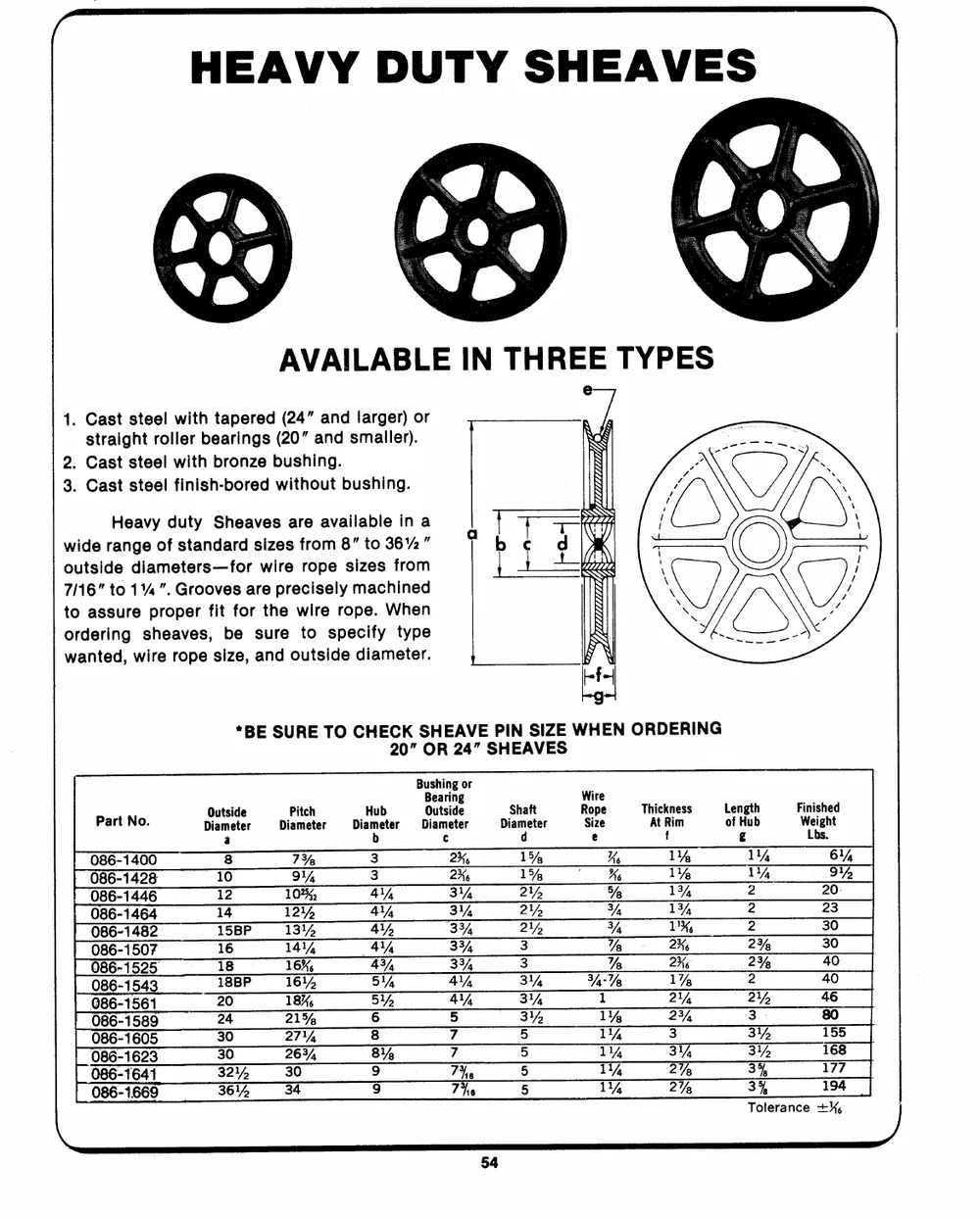

Blocks and Sheaves — page 53 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 54

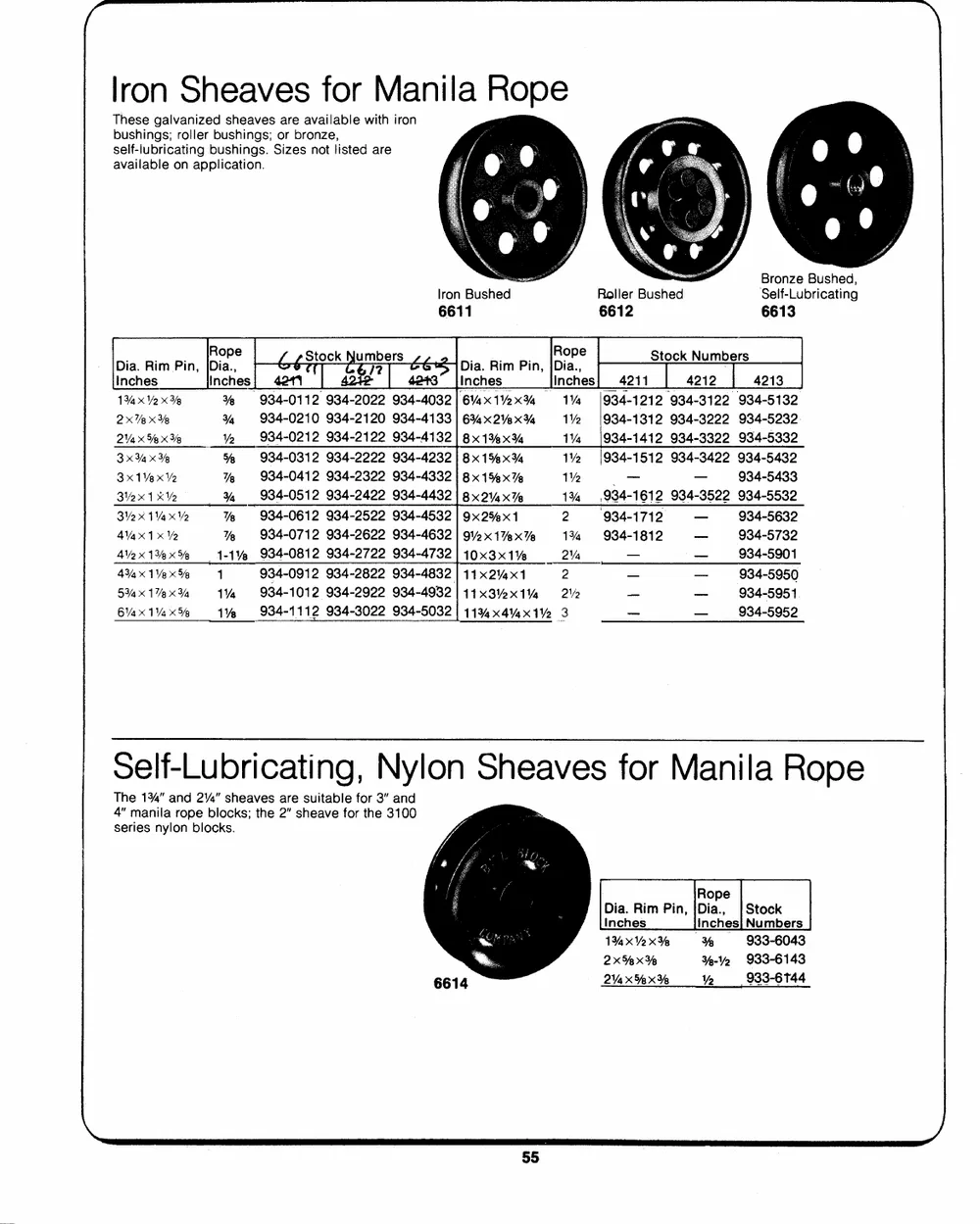

Blocks and Sheaves — page 54 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 55
Blocks and Sheaves — page 55 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 56
Blocks and Sheaves — page 56 of the Dibblee Industries catalog (W.J. Keating, 1940–)

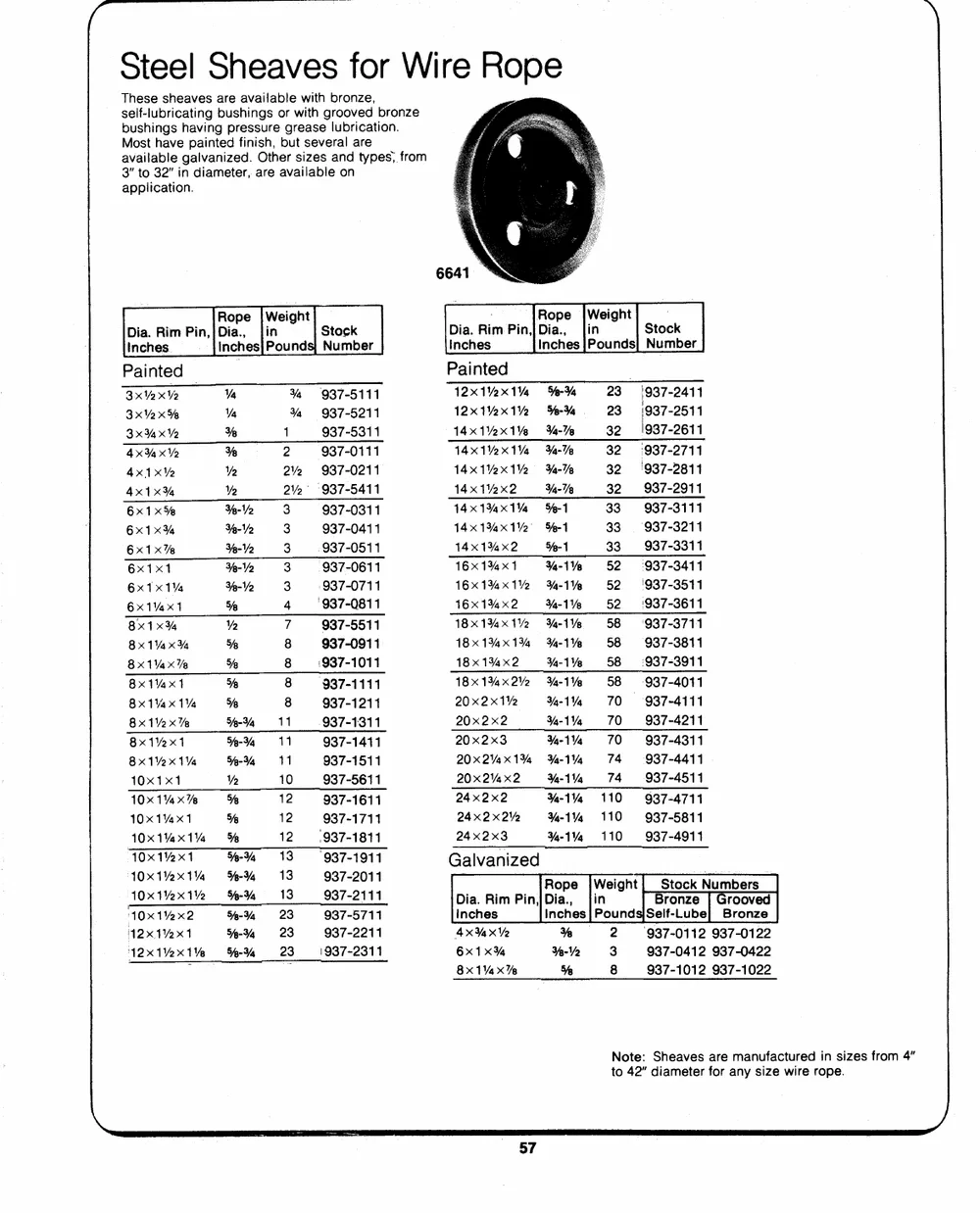

Page 57
Blocks and Sheaves — page 57 of the Dibblee Industries catalog (W.J. Keating, 1940–)
Page 58

Pages digitized from the Dibblee Industries printed catalog (W.J. Keating lineage, 1940–). Click any page to enlarge; the chapter PDF remains the authoritative source.

Detailed product specs

Blocks for Manila Rope (Bronze Bushed, Galvanized) 9 variants · 9 stock # Star Safety Tackle Blocks for Manila Rope 2 variants · 2 stock # Gin or Roofers' Block for Manila Rope 1 variants · 1 stock # Nylon Blocks for Manila Rope 1 variants Nylon Blocks for Manila Rope — Fittings 5 variants Painters' Staging Blocks 3 variants · 3 stock # Ideal Steel Blocks for Manila Rope 28 variants Star Metal Blocks for Manila or Fiber Rope 28 variants Eastern, Manila Rope Snatch Blocks — Swivel Hook, Fitting 'H' 18 variants · 18 stock # Eastern, Manila Rope Snatch Blocks — Stiff Swivel Hook with Latch, Fitting 'V' 14 variants · 14 stock # Eastern, Manila Rope Snatch Blocks — Drilled Swivel Eye, Fitting 'P' 12 variants · 12 stock # Eastern, Manila Rope Snatch Blocks — Drilled Swivel Eye with Shackle, Fitting 'Q' 12 variants · 12 stock # Eastern, Manila Rope Snatch Blocks — Oblong Swivel Eye, Fitting 'T' 12 variants · 12 stock # Eastern, Manila Rope Snatch Blocks — Oblong Swivel Eye with Shackle, Fitting 'U' 12 variants · 12 stock # Regular Wood Shell Blocks for Manila Rope 36 variants Heavy Wood Shell Blocks for Manila Rope - Specifications 10 variants Heavy Wood Shell Blocks - Reversed Eye Hook Fitting D 3 variants Heavy Wood Shell Blocks - Flatted, Loose, Swivel Hook Fitting E 3 variants Heavy Wood Shell Blocks - Screw Pin Anchor Shackle Fitting K 3 variants Drop Link Manila Rope Snatch Blocks — Swivel Hook Fitting 'H' 7 variants Drop Link Manila Rope Snatch Blocks — Stiff Swivel Hook with Latch Fitting 'V' 5 variants Drop Link Manila Rope Snatch Blocks — Drilled Swivel Eye Fitting 'P' 6 variants Drop Link Manila Rope Snatch Blocks — Drilled Swivel Eye with Shackle Fitting 'Q' 6 variants Drop Link Manila Rope Snatch Blocks — Oblong Swivel Eye Fitting 'T' 7 variants Drop Link Manila Rope Snatch Blocks — Oblong Swivel Eye with Shackle Fitting 'U' 6 variants Star Metal Blocks for Manila or Fiber Rope — Flatted, Loose, Swivel Hook, Fitting "E" 18 variants Star Metal Blocks for Manila or Fiber Rope — Flatted, Loose Hook with Latch, Fitting "F" 18 variants Star Metal Blocks for Manila or Fiber Rope — Flatted, Loose, Swivel Hook with Latch, Fitting "G" 18 variants Star Metal Blocks for Manila or Fiber Rope — Screw Pin Anchor Shackle, Fitting "K" 18 variants Regular Wood Shell Blocks for Manila Rope - Round, Loose Hook "A" 7 variants Regular Wood Shell Blocks for Manila Rope - Flatted, Loose, Swivel Hook "E" 7 variants Regular Wood Shell Blocks for Manila Rope - Flatted, Loose, Hook with Latch "F" 7 variants Safety Locking Manila Rope Snatch Blocks — Specifications 7 variants Safety Locking Snatch Blocks — Swivel Hook, Fitting "H" 44 variants Safety Locking Snatch Blocks — Swivel Hook with Latch, Fitting "V" 36 variants Safety Locking Snatch Blocks — Drilled Swivel Eye, Fitting "P" 12 variants Safety Locking Snatch Blocks — Drilled Swivel Eye with Shackle, Fitting "Q" 12 variants Safety Locking Snatch Blocks — Oblong Swivel Eye, Fitting "T" 14 variants Safety Locking Snatch Blocks — Oblong Swivel Eye with Shackle, Fitting "U" 12 variants Team Snatch Blocks for Wire Rope 4 variants All-Steel Snatch Blocks with Tapered Roller Bearings 3 variants Heavy Duty, All Purpose Snatch Blocks for Wire Rope (Figure 4101) 8 variants Heavy Duty Snatch Block — Specifications by Block Size 3 variants Regular Diamond & Oval Wire Rope Blocks - Specifications 5 variants Regular Diamond & Oval Wire Rope Blocks - Swivel Hook Fitting H 12 variants Regular Diamond & Oval Wire Rope Blocks - Swivel Hook with Latch Fitting V 12 variants Regular Diamond & Oval Wire Rope Blocks - Round Pin Chain Shackle Fitting L 12 variants Galvanized Regular Diamond and Oval Wire Rope Blocks, Fitting L 8 variants Steel Shell Snatch Blocks for Wire Rope — Drilled Swivel Eye, Fitting "P" 4 variants Steel Shell Snatch Blocks for Wire Rope — Drilled Swivel Eye with Shackle, Fitting "Q" 4 variants Steel Shell Snatch Blocks for Wire Rope — Oblong Swivel Eye, Fitting "T" 4 variants Steel Shell Snatch Blocks for Wire Rope — Oblong Swivel Eye with Shackle, Fitting "U" 4 variants Tarbox Snatch Blocks for Wire Rope — Specifications (Figure 4081/4082) 5 variants Tarbox Snatch Blocks — Figure 4081 with Iron Sheave, Painted 6 variants Tarbox Snatch Blocks — Figure 4081 with Steel Sheave, Painted 6 variants Tarbox Snatch Blocks — Figure 4082 with Steel Sheave, Galvanized 4 variants Extra Heavy, Eastern Pattern Snatch Blocks 18 variants · 1 stock # Drop Side Snatch Blocks 7 variants Drop Side Snatch Blocks — Stock Numbers by Fitting (Sheave Size / Bearing / Rope) 15 variants Heavy Blocks for Wire Rope - Swivel Hook 'H' Fitting 9 variants · 9 stock # Heavy Blocks for Wire Rope - Round Pin Chain Shackle 'L' Fitting 9 variants · 9 stock # Extra Heavy Oval and Diamond Blocks for Wire Rope - Swivel Hook 'H', Painted, Self-lube Bushings 12 variants Extra Heavy Oval and Diamond Blocks - Specifications 7 variants Self-Adjusting Fittings for Heel Blocks 4 variants · 4 stock # Extra Heavy, Oval Lead Blocks for Wire Rope 2 variants · 2 stock # Special, Extra Heavy, Diamond and Oval Blocks for Wire Rope 6 variants · 6 stock # Admiralty Pattern Blocks 12 variants Heavy Duty Mining Blocks — With Regular or Wide Sheave 5 variants · 5 stock # Trawler Blocks 3 variants Extra Heavy Oval and Diamond Wire Rope Blocks — Swivel Hook with Latch 'V', Painted, Self-lube Bushings 12 variants Extra Heavy Oval and Diamond Wire Rope Blocks — Round Pin Chain Shackle 'L', Painted, Self-lube Bushings 12 variants Extra Heavy Oval and Diamond Wire Rope Blocks — Bolt Type Chain Shackle 'N', Galvanized 3 variants Steel Shell Snatch Blocks for Wire Rope — Specifications 7 variants Steel Shell Snatch Blocks for Wire Rope — Swivel Hook 'H' (Drop Link K-2610 / Locking K-2710) 8 variants Steel Shell Snatch Blocks for Wire Rope — Swivel Hook with Latch 'V' (Drop Link K-2630 / Locking K-2730) 8 variants Lineman's Snatch Block, 5022 2 variants · 1 stock # Light Wire Blocks, 5023 1 variants · 1 stock # Aerial Hand Line, 5041 6 variants · 6 stock # Cargo Hoisters with Tapered, Roller Bearings - Specifications 6 variants Cargo Hoisters - Stock Numbers with Various Fittings 6 variants Cargo Hoister Fittings 5 variants Heavy Construction Blocks with Shackles 7 variants Heavy Construction Blocks with Shackles — Stock Numbers (Bronze Bushed, Oval) 4 variants Heavy Construction Blocks with Shackles — Stock Numbers (Bronze Bushed, Diamond) 4 variants Heavy Construction Blocks with Shackles — Stock Numbers (Roller Bearing, Oval) 4 variants Heavy Construction Blocks with Shackles — Stock Numbers (Roller Bearing, Diamond) 4 variants Lead Blocks (Vertical & Horizontal) 7 variants Flag Blocks for Wire Rope 2 variants Medium Construction Blocks with Shackles 5 variants Medium Construction Blocks with Shackles — Oval Block Stock Numbers 5 variants Medium Construction Blocks with Shackles — Diamond Block Stock Numbers 5 variants Medium Construction Blocks with Swivel Hooks and Eyes — Single Blocks 16 variants Medium Construction Double and Triple Blocks with Swivel Hooks 16 variants Heavy Duty Sheaves 14 variants · 14 stock # Iron Sheaves for Manila Rope 24 variants Self-Lubricating, Nylon Sheaves for Manila Rope 3 variants · 3 stock # Bronze Sheaves for Wood Blocks 13 variants Heavyweight Crane Blocks — 30" and 36" Lift Blocks 47 variants · 47 stock # Extra Heavy, Iron Sheaves for Wire Rope - Painted 53 variants · 53 stock # Extra Heavy, Iron Sheaves for Wire Rope - Galvanized 3 variants · 3 stock # Steel Sheaves for Wire Rope - Painted 54 variants · 54 stock # Steel Sheaves for Wire Rope - Galvanized 3 variants · 3 stock # Admiralty Pattern Wood Blocks - Pattern B (Swivel Oval Eye) 38 variants Admiralty Pattern Wood Blocks - Pattern E (Standing Oval Eye in Line of Sheave) 30 variants Admiralty Pattern Wood Blocks - Pattern F (Standing Oval Eye Reverse of Sheave) 28 variants Admiralty Pattern Wood Blocks - Pattern Y (Standing Eye Reverse of Sheave with Hook) 12 variants Admiralty Pattern Wood Blocks - Pattern S (Swivel Round Eye with Hook) 15 variants Aluminum Snatch Blocks - Swivel Shackle Forged Steel 2 variants Aluminum Snatch Blocks - Swivel Safety Hook Forged Steel 2 variants Aluminum Snatch Blocks - Forged Steel Yoke 2 variants High Lift Crane Blocks with Thrust Bearing Hooks 62 variants · 5 stock # High Lift Crane Blocks with Thrust Bearing Hooks for Mobile and Bridge Cranes 61 variants · 61 stock # 24" High Lift Heavyweight Crane Blocks — T Series (Extended Side Plates) 69 variants · 69 stock #
Full chapter text (extracted from the original PDF)

Verbatim text extracted from the original chapter PDF (1940–). The original catalog is in English; spec tables may render imperfectly — the PDF remains the authoritative source.

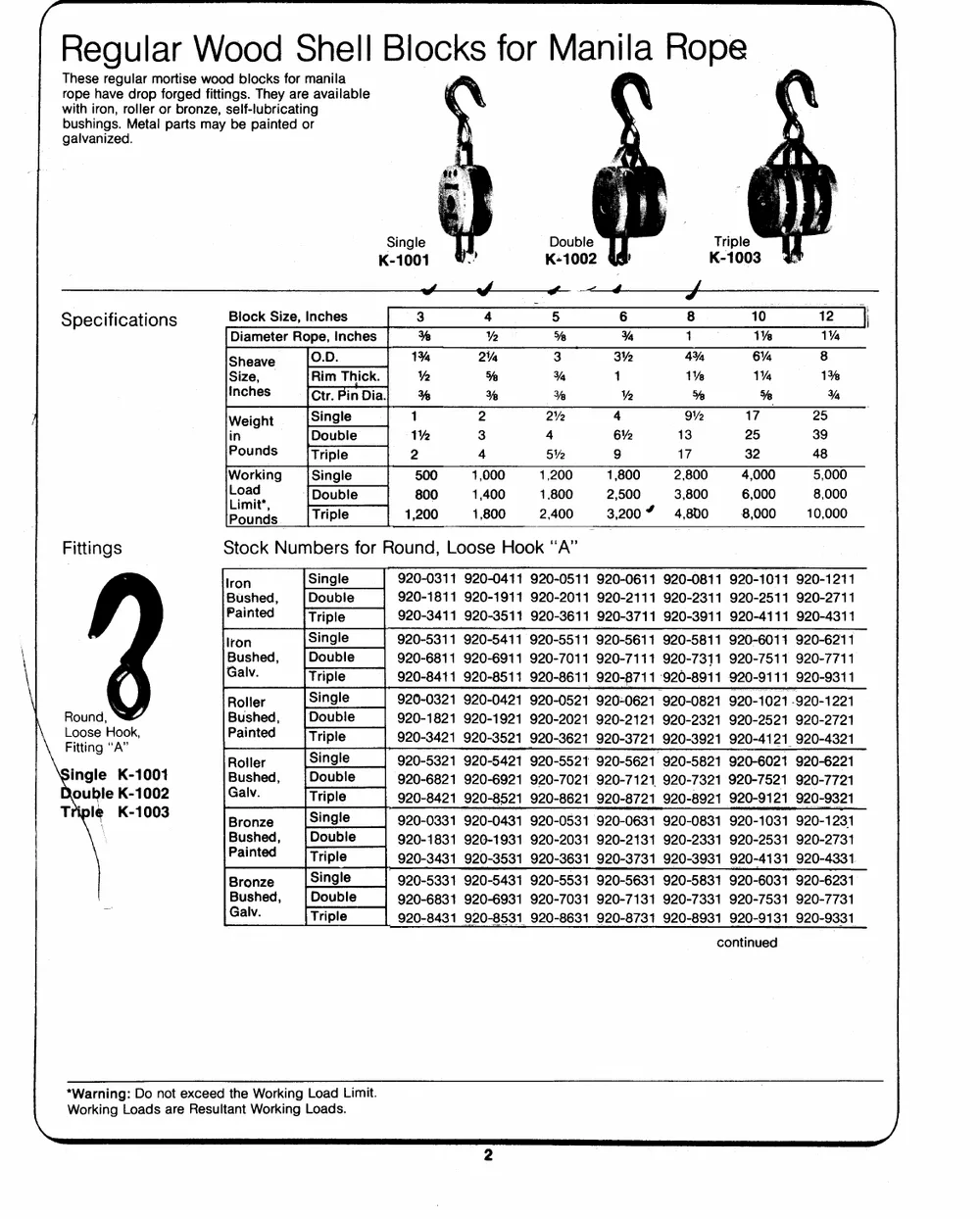

These regular mortise wood blocks for manila ; 2
rope have drop forged fittings. They are available 1%
with iron, roller or bronze, self-lubricating v
bushings. Metal parts may be painted or "
galvanized. ; .
; Zitn
Single Double Triple J
K-1001 K-1002 K-1003
Specifications Block Size, Inches 3 4 5 6 8 10 12 |
Diameter Rope, Inches % v2 % % 1 1% 1%
Sheave |0.D. | 1% 2% 3 3% 4% 6% 8
Size, Rim Thick. Ve % Ys 1 1% 1% 1%
Weight [Single | 1 2 2¥e 4 9¥e 17 25
in 1% 3 4 6% 13 25 39
Pounds 2 4 5¥2 9 17 32 48
Working [Single | 500 1,000 1,200 1,800 2,800 4,000 5,000
a 800 1,400 1800 2,500 3,800 6,000 8,000
Pounds 1200 1800 2400 3,200 4,800 8,000 10,000
Fittings Stock Numbers for Round, Loose Hook “A”
—_ [Single _| 920-0311 920-0411 920-0511 920-0611 920-0811 920-1011 920-1211
Bushed, 920-1811 920-1911 920-2011 920-2111 920-2311 920-2511 920-2711
Painted 920-3411 920-3511 920-3611 920-3711 920-3911 920-4111 920-4311
Iron iSingle ——-|_ 920-5311 920-5411 920-5511 920-5611 920-5811 920-6011 920-6211
Bushed, 920-6811 920-6911 920-7011 920-7111 920-7311 920-7511 920-7711
Galv. 920-8411 920-8511 920-8611 920-8711 920-8911 920-9111 920-9311
Roller [Single _| 920-0321 920-0421 920-0521 920-0621 920-0821 920-1021 920-1221
Round, Bushed, 920-1821 920-1921 920-2021 920-2121 920-2321 920-2521 920-2721
eine — Painted 920-3421 920-3521 920-3621 920-3721 920-3921 920-4121 920-4321
Roller [Single ___| 920-5321 920-5421 920-5521 920-5621 920-5821 920-6021 920-6221
Single K-1001 Bushed, 920-6821 920-6921 920-7021 920-7121 920-7321 920-7521 920-7721
Double K-1002 Galv. 920-8421 920-8521 920-8621 920-8721 920-8921 920-9121 920-9321
Tee See Bronze [Single | 920-0331 920-0431 920-0531 920-0631 920-0831 920-1031 920-1231
Bushed, 920-1831 920-1931 920-2031 920-2131 920-2331 920-2531 920-2731
Painted 920-3431 920-3531 920-3631 920-3731 920-3931 920-4131 920-4331
Bronze 920-5331 920-5431 920-5531 920-5631 920-5831 920-6031 920-6231
Bushed, 920-6831 920-6931 920-7031 920-7131 920-7331 920-7531 920-7731
Galv. 920-8431 920-8531 920-8631 920-8731 920-8931 920-9131 920-9331
continued
“Warning: Do not exceed the Working Load Limit.
Working Loads are Resultant Working Loads.

Block Size, Inches 3 4 5 6 8 10 12
Fittings | Stock Numbers for Flatted, Loose, Swivel Hook “E”
Iron [Single | 920-0312 920-0412 920-0512 920-0612 920-0812 920-1012 920-1212
Bushed, 920-1812 920-1912 920-2012 920-2112 920-2312 920-2512 920-2712
) 4 |Painted 920-3412 920-3512 920-3612 920-3712 920-3912 920-4112 920-4312
YP Non [Single _| 920-5312 920-5412 920-5512 920-5612 920-5812 920-6012 920-6212
Bushed, 920-6812 920-6912 920-7012 920-7112 920-7312 920-7512 920-7712
Galv. 920-8412 920-8512 920-8612 920-8712 920-8912 920-9112 920-9312
Roller | Single | 920-0322 920-0422 920-0522 920-0622 920-0822 920-1012 920-1222
Bushed, 920-1822 920-1922 920-2022 920-2122 920-2322 920-2522 920-2722
Painted 920-3422 920-3522 920-3622 920-3722 920-3922 920-4122 '920-4322
Flatted. Loose [Roller [Single | 920-5322 920-5422 920-5522 920-5622 920-5822 920-6022 920-6222
Swivel Hook, | Bushed, 920-6822 920-6922 920-7022 920-7122 920-7322 920-7522 920-7722
Fitting “E” Galv. 920-8422 920-8522 920-8622 920-8722 920-8922 920-9122 920-9322
Bronze  |Single | 920-0332 920-0432 920-0532 920-0632 920-0832 920-1032 920-1232
Single K-1011| Bushed, 920-1832 920-1932 920-2032 920-2132 920-2332 920-2532 920-2732:
=a ip nies Painted 920-3432 920-3532 920-3632 920-3732 920-3932 920-4132 920-4332
Bronze  |Single — | 920-5332 920-5432 920-5532 920-5632 920-5832 920-6032 920-6232
Bushed, 920-6832 920-6932 920-7032 920-7132 920-7332 920-7532 920-7732
Galv. 920-8432 920-8532 920-8632 920-8732 920-8932 920-9132 920-9332
Stock Numbers for Flatted, Loose, Hook with Latch “F”
_ Iron | Single |920-0313 920-0413 920-0513 920-0613 920-0813 920-1012 920-1213
ie Bushed, [Double — |920-1813 920-1913 920-2013 920-2113 920-2313 920-2513 920-2713
- Painted [Triple __|920-3413 920-3513 920-3613 920-3713 920-3913 920-4113 920-4313
i | Single 1920-5313 920-5413 920-5513 920-5613 920-5813 920-6013 920-6213
9 |Bushed, | Double [920-6813 920-6913 920-7013 920-7113 920-7313 920-7513 920-7713
Ky {Galv. [Triple [920-8413 920-8513 920-8613 920-8713 920-8913 920-9113 920-9313
( Roller [Single _ [920-0323 920-0423 920-0523 920-0623 920-0823 920-1023 920-1223
@) Bushed, | Double [920-1823 920-1923 920-2023 920-2123 920-2323 920-2523 920-2723
Painted [Triple {920-3423 920-3523 920-3623 920-3723 920-3923 920-4123 920-4323
Flatted, Loose, |Roller | Single —_ [920-5323 920-5423 920-5523 920-5623 920-5823 920-6023 920-6223
— — Latch,| Bushed, 920-6823 920-6923 920-7023 920-7123 920-7323 920-7523 920-7723
9 Galv. [Triple [920-8423 920-8523 920-8623 920-8723 920-8923 920-9123 920-9323
Single K-1021|Bronze | Single | 920-0333 920-0433 920-0533 920-0633 920-0833 920-1033 920-1233
Double K-1022 | Bushed, 920-1833 920-1933 920-2033 920-2133 920-2333 920-2533 920-2733
Triple K-1023 | Painted 920-3433 920-3533 920-3633 920-3733 920-3933 920-4133 920-4333
Bronze |Single | 920-5333 920-5433 920-5533 920-5633 920-5833 920-6033 920-6233
Bushed, 920-6833 920-6933 920-7033 920-7133 920-7333 920-7533 920-7733
Gan. 920-8433 920-8533 920-8633 920-8733 920-8933 920-9133 920-9333
continued

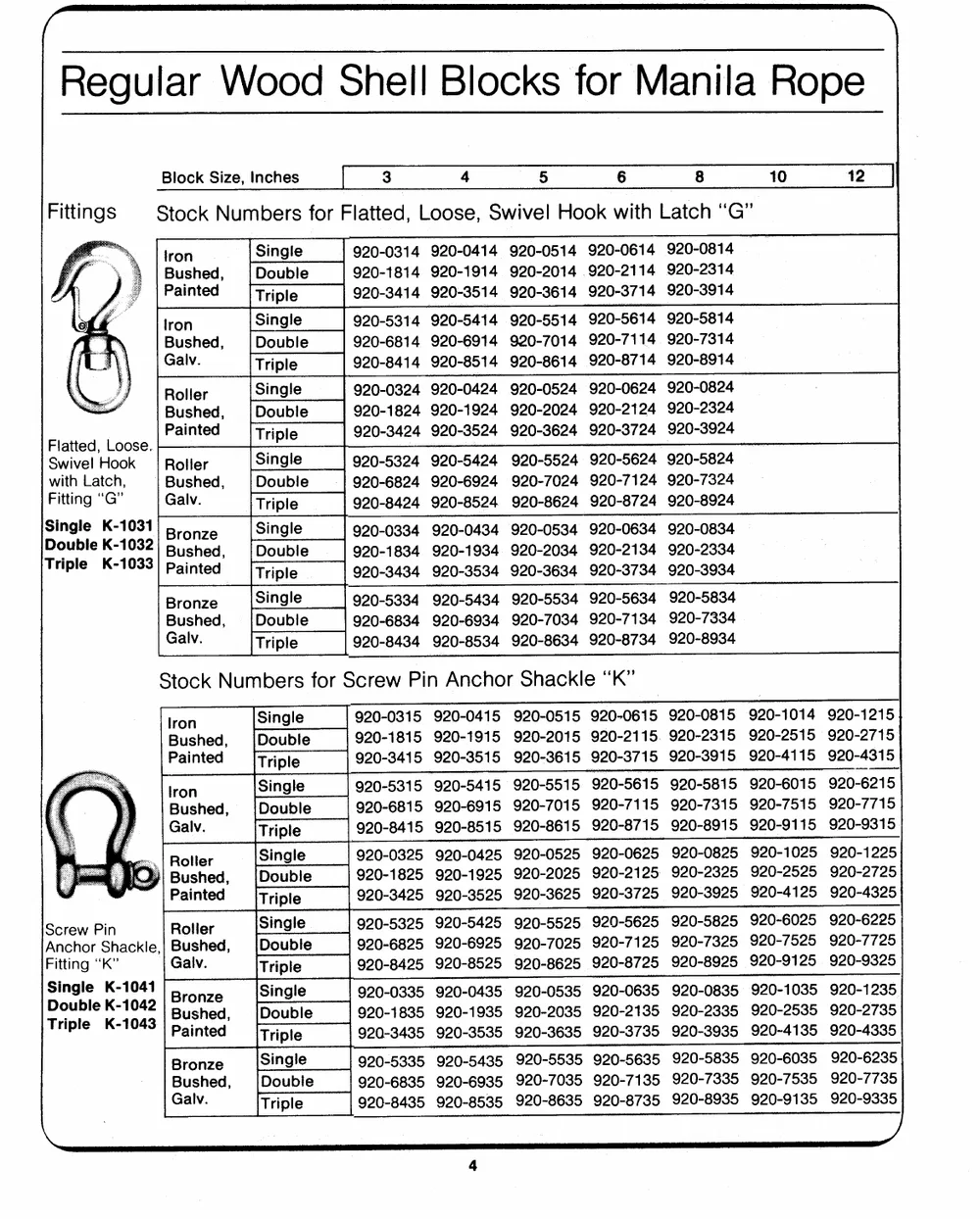

Block Size, Inches 3 4 5 6 8 10 12
Fittings Stock Numbers for Flatted, Loose, Swivel Hook with Latch “G”
ron [Single | 920-0314 920-0414 920-0514 920-0614 920-0814
-_ Bushed, 920-1814 920-1914 920-2014 920-2114 920-2314
/ | Painted 920-3414 920-3514 920-3614 920-3714 920-3914
: Iron [Single _| 920-5314 920-5414 920-5514 920-5614 920-5814
Bushed, 920-6814 920-6914 920-7014 920-7114 920-7314
Galv. 920-8414 920-8514 920-8614 920-8714 920-8914
Roller |Single __ | 920-0324 920-0424 920-0524 920-0624 920-0824
Bushed, 920-1824 920-1924 920-2024 920-2124 920-2324
Painted 920-3424 920-3524 920-3624 920-3724 920-3924
Flatted, Loose.
Swivel Hook |Roller [Single | 920-5324 920-5424 920-5524 920-5624 920-5824
with Latch, —_| Bushed, 920-6824 920-6924 920-7024 920-7124 920-7324
Fitting "G Galv. 920-8424 920-8524 920-8624 920-8724 920-8924
—— cae Bronze [Single _| 920-0334 920-0434 920-0534 920-0634 920-0834
Triple. K.1033| Bushed: 920-1834 920-1934 920-2034 920-2134 920-2334
, Painted 920-3434 920-3534 920-3634 920-3734 920-3934
Bronze [Single | 920-5334 920-5434 920-5534 920-5634 920-5834
Bushed, 920-6834 920-6934 920-7034 920-7134 920-7334
ail 920-8434 920-8534 920-8634 920-8734 920-8934
Stock Numbers for Screw Pin Anchor Shackle ‘“K”
ven [Single | 920-0315 920-0415 920-0515 920-0615 920-0815 920-1014 920-1215
Bushed, 920-1815 920-1915 920-2015 920-2115 920-2315 920-2515 920-2715
Painted 920-3415 920-3515 920-3615 920-3715 920-3915 920-4115 920-4315
Hon [Single | 920-5315 920-5415 920-5515 920-5615 920-5815 920-6015 920-6215
Bushed, 920-6815 920-6915 920-7015 920-7115 920-7315 920-7515 920-7715
f | Galv. 920-8415 920-8515 920-8615 920-8715 920-8915 920-9115 920-9315
Roller [Single _| 920-0325 920-0425 920-0525 920-0625 920-0825 920-1025 920-1225
§—) OEE 920-1825 920-1925 920-2025 920-2125 920-2325 920-2525 920-2725
Painted 920-3425 920-3525 920-3625 920-3725 920-3925 920-4125 920-4325
Screw Pin Roller [Single _| 920-5325 920-5425 920-5525 920-5625 920-5825 920-6025 920-6225
Anchor Shackle,| Bushed, 920-6825 920-6925 920-7025 920-7125 920-7325 920-7525 920-7725
Fitting “K” Galv. 920-8425 920-8525 920-8625 920-8725 920-8925 920-9125 920-9325
Single logy [Bronze  [Single__| 920-0335 920-0435 920-0535 920-0635 920-0835 920-1035 920-1235
Triple K-1043 | Bushed, 920-1835 920-1935 920-2035 920-2135 920-2335 920-2535 920-2735
Painted 920-3435 920-3535 920-3635 920-3735 920-3935 920-4135 920-4335
Bronze [Single _| 920-5335 920-5435 920-5535 920-5635 920-5835 920-6035 920-6235
Bushed, 920-6835 920-6935 920-7035 920-7135 920-7335 920-7535 920-7735
Gav. 920-8435 920-8535 920-8635 920-8735 920-8935 920-9135 920-9335

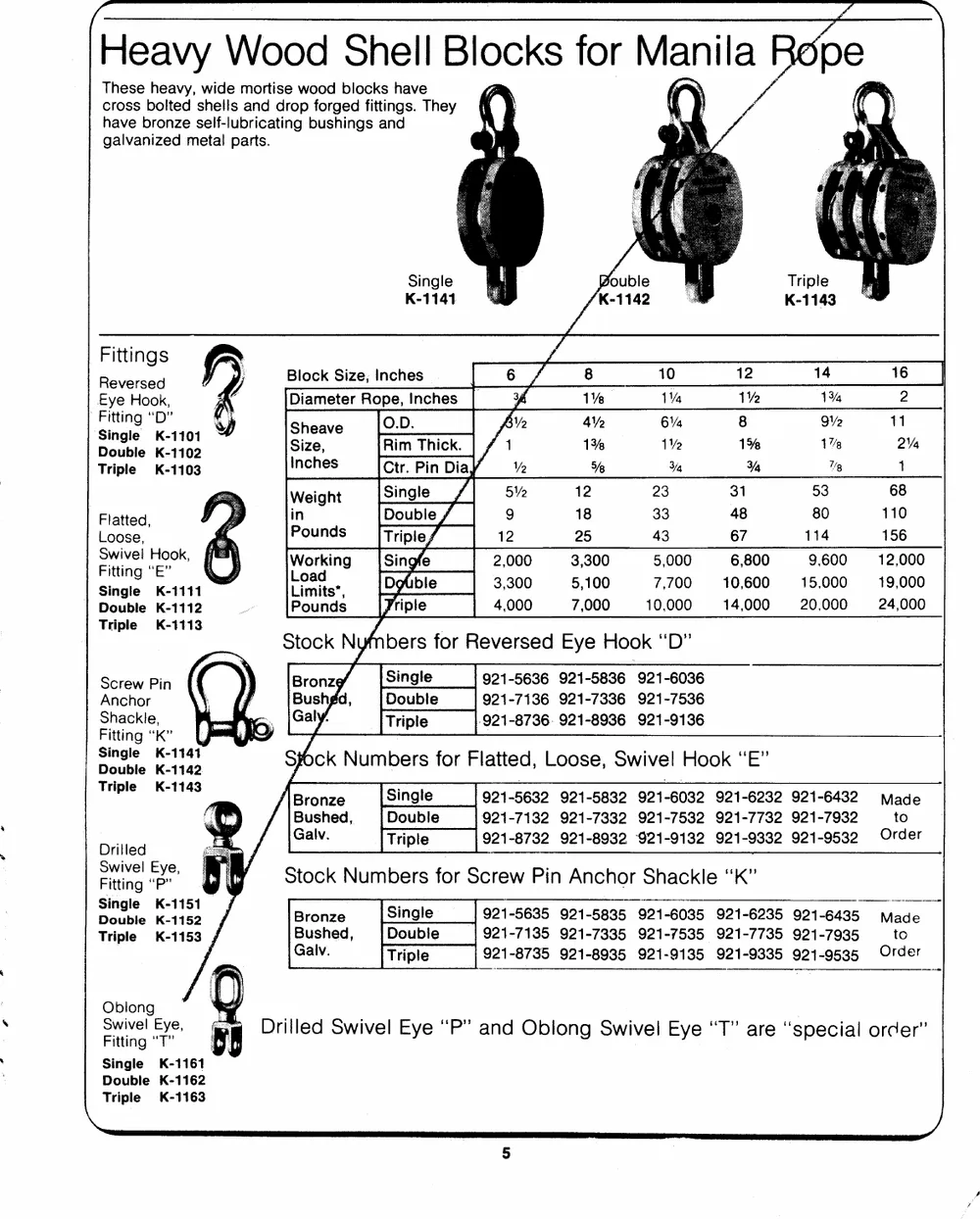

These heavy, wide mortise wood blocks have G oe
cross bolted shells and drop forged fittings. They \ ‘@ j
have bronze self-lubricating bushings and aT =
galvanized metal parts. ») : \ Ch aN
Single [iy Double Triple i
K-1141 “J K-1142 4 K-1143
Fittings
Reversed y Block Size, Inches 6 8 10 12 14 16 |
Eye Hook, Diameter Rope, Inches VY 1% 1% 1% 1% 2
id S Sheave |OD. | 3% 4¥e 6% 8 ove "
te eae Size, Rim Thick. | 1 1% 1% 1% 1% 2¥A
Triple K-1103 Inches V2 % ¥% % % 1
= Weight 5% 12 23 31 53 68
Flatted Y 5 in 9 18 33 ion 80 110
Loose, Fa Pounds 12 25 43 67 114 156
aes ee (| Working 2,000 3,300 5,000 6,800 9,600 12,000
Load... [Double
Single K-1111 Limits’, Double 3,300 5,100 7,700 10,600 15,000 19,000
Double K-1112 Pounds 4,000 7,000 10,000 14,000 20,000 24,000
Triple K-1113
Stock Numbers for Reversed Eye Hook “D”
Screw Pin Bronze [Single | 921-5636 921-5836 921-6036
Anchor Bushed, 921-7136 921-7336 921-7536
Shackle, Galv. 921-8736 921-8936 921-9136
Fitting "K”
—— Stock Numbers for Flatted, Loose, Swivel Hook ‘“E”
Double K-1142
ee eter Bronze [Single _| 921-5632 921-5832 921-6032 921-6232 921-6432 Made
| Bushed, 921-7132 921-7332 921-7532 921-7732 921-7932 _to
Scie’ Galv. 921-8732 921-8932 921-9132 921-9332 921-9532 Order
nie ess jg
eiiaa re Stock Numbers for Screw Pin Anchor Shackle “K”
See ae Bronze [Single _| 921-5635 921-5835 921-6035 921-6235 921-6435 Made
Triple K-1153 Bushed, 921-7135 921-7335 921-7535 921-7735 921-7935 _to
Galv. 921-8735 921-8935 921-9135 921-9335 921-9535 Order
Oblong 0
sabia a Bs Drilled Swivel Eye “P” and Oblong Swivel Eye “T” are “special order”
itting |b
Single K-1161
Double K-1162
Tripie K-1163

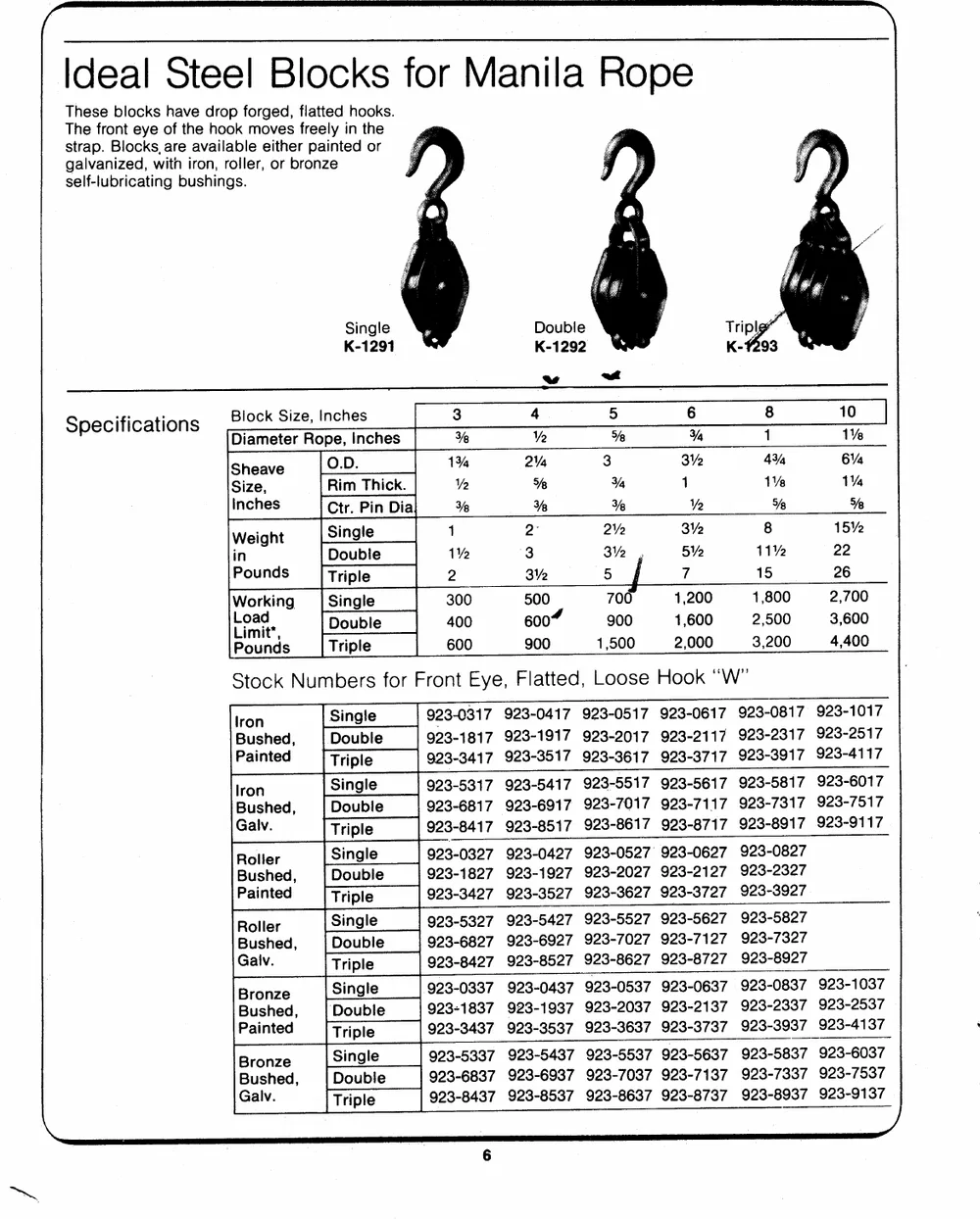

These blocks have drop forged, flatted hooks.

The front eye of the hook moves freely in the

strap. Blocks, are available either painted or

galvanized, with iron, roller, or bronze

self-lubricating bushings.

Single Double Triple
K-1291 K-1292 K-1293

Specifications ida Size, Inches 3 4 5 6 8 10
Diameter Rope, Inches % V2 % % 1 1%
Shee [0D | 1% +o% 3 Ge  «& 6%
Size, Rim Thick. Va % Vs 1 1% 1%
Inches Ctr. Pin Dia Ye % ¥% Ye 5% Se
weight [Single | 1 2 2% 9% 8 18%
Pounds 2 3% 5 7 15 26
Working [Single | 300 500 700 1,200 1,800 2,700
een 400 600 900 1,600 2,500 3,600
Pounds 600 900 1,500 2,000 3,200 4,400
Stock Numbers for Front Eye, Flatted, Loose Hook “W”
ew [Single _| 923-0317 923-0417 923-0517 923-0617 923-0817 923-1017
Bushed, 923-1817 923-1917 923-2017 923-2117 923-2317 923-2517
Painted 923-3417 923-3517 923-3617 923-3717 923-3917 923-4117
iron [Single | 923-5317 923-5417 923-5517 923-5617 923-5817 923-6017
Bushed, 923-6817 923-6917 923-7017 923-7117 923-7317 923-7517
Galv. 923-8417 923-8517 923-8617 923-8717 923-8917 923-9117
Roller |Single | 923-0327 923-0427 923-0527 923-0627 923-0827
Bushed, 923-1827 923-1927 923-2027 923-2127 923-2327
Painted 923-3427 923-3527 923-3627 923-3727 923-3927
Roller [Single _| 923-5327 923-5427 923-5527 923-5627 923-5827
Bushed, 923-6827 923-6927 923-7027 923-7127 923-7327
Galv. 923-8427 923-8527 923-8627 923-8727 923-8927
Bronze  |Single _| 923-0337 923-0437 923-0537 923-0637 923-0837 923-1037
Bushed, 923-1837 923-1937 923-2037 923-2137 923-2337 923-2537
Painted 923-3437 923-3537 923-3637 923-3737 923-3937 923-4137
Bronze  |Single _| 923-5337 923-5437 923-5537 923-5637 923-5837 923-6037
Bushed, 923-6837 923-6937 923-7037 923-7137 923-7337 923-7537
Galv. 923-8437 923-8537 923-8637 923-8737 923-8937 923-9137

or Fiber Rope ‘@. —r
These drop forged steel blocks are available with 4 y é
iron, roller, or bronze self-lubricating bushings. a Kv H,
Sizes 3” to 5” available painted or galvanized; E m7 lie
6” and larger available galvanized. All fittings # us a uy?
are drop forged. st it i } a
Single OS Double Sa Tile ===.
K-1301 K-1302 [pm K-1303 a8
Specifications

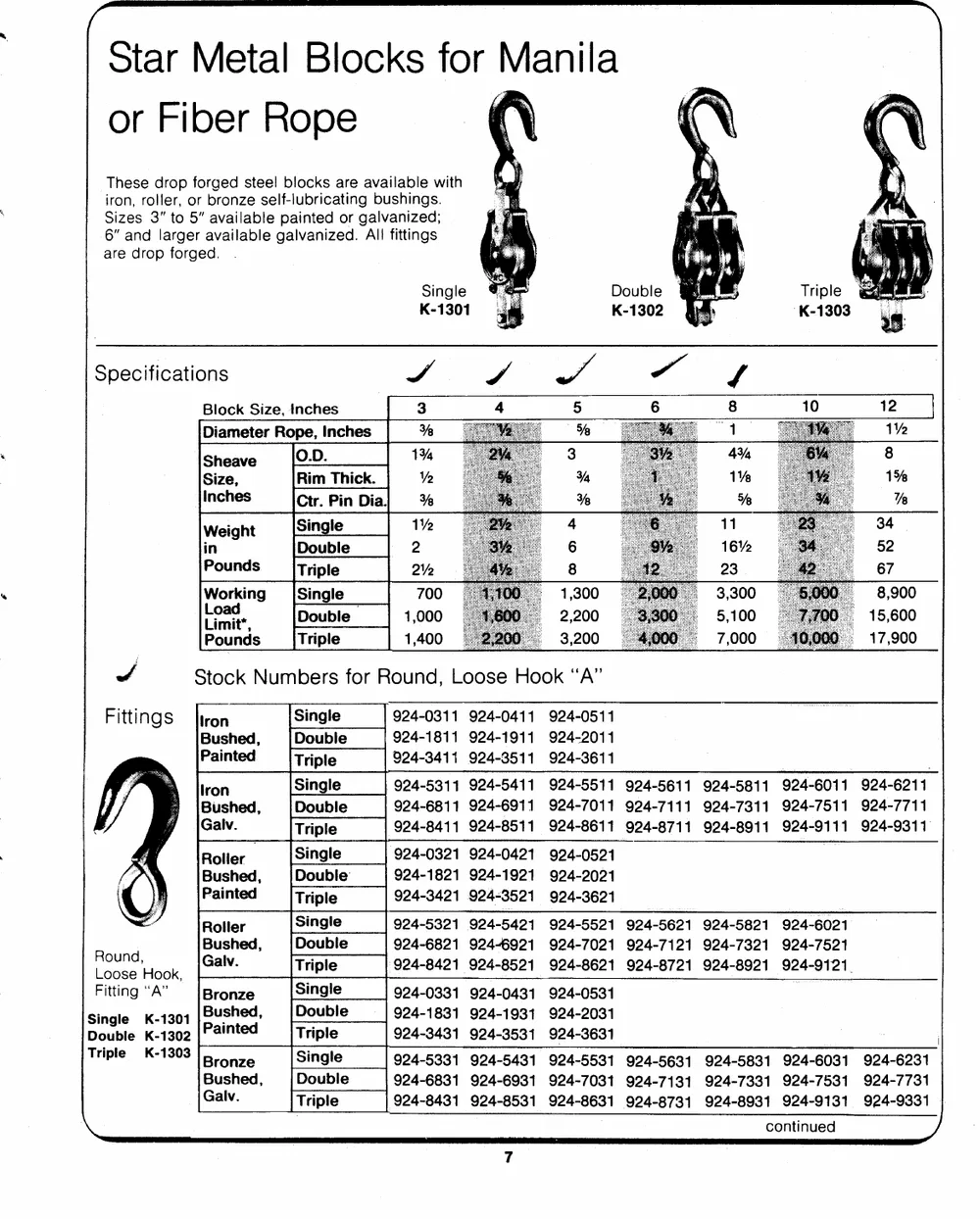

Block Size, Inches 3 4 5 6 8 10 12
Diameter Rope, Inches % Ee ~« owe 1 Gone | (1%
inches |cr.PinDial % | %  % | #  % ™% 7%
Weight Single | 1% 2 4 ot —
Working 700 | 4,400 1,300 | 2000 3,300 $000 8,900
yon 1,000 4,600 2,200 | 3800 5,100 7,700 15,600
Pounds 1,400 2200 3,200 4000 7,000 10,000 17,900
Stock Numbers for Round, Loose Hook “A”
Fittings liron [Single | 924-0311 924-0411 924-0511
Bushed, 924-1811 924-1911 924-2011
Painted 924-3411 924-3511 924-3611
Lanes Single __| 924-5311 924-5411 924-5511 924-5611 924-5811 924-6011 924-6211
Bushed, 924-6811 924-6911 924-7011 924-7111 924-7311 924-7511 924-7711
Galv. 924-8411 924-8511 924-8611 924-8711 924-8911 924-9111 924-9311
Roller [Single _| 924-0321 924-0421 924-0521
(4 Bushed, 924-1821 924-1921 924-2021
Painted 924-3421 924-3521 924-3621
Roller [Single _| 924-5321 924-5421 924-5521 924-5621 924-5821 924-6021
— Bushed, 924-6821 924-6921 924-7021 924-7121 924-7321 924-7521
vila Galv. 924-8421 924-8521 924-8621 924-8721 924-8921 924-9121
Loose Hook,
Fitting “A” [Bronze [Single__| 924-0331 924-0431 924-0531
Single K-1301 |Bushed, 924-1831 924-1931 924-2031
Double K-1302 |Painted 924-3431 924-3531 924-3631 |
Triple K-1303 |p onze —«[Single —_| 924-5331 924-5431 924-5531 924-5631 924-5831 924-6031 924-6231
Bushed, 924-6831 924-6931 924-7031 924-7131 924-7331 924-7531 924-7731
Galv. 924-8431 924-8531 924-8631 924-8731 924-8931 924-9131 924-9331
continued

Block Size, Inches 3 4 5 6 8 10 12

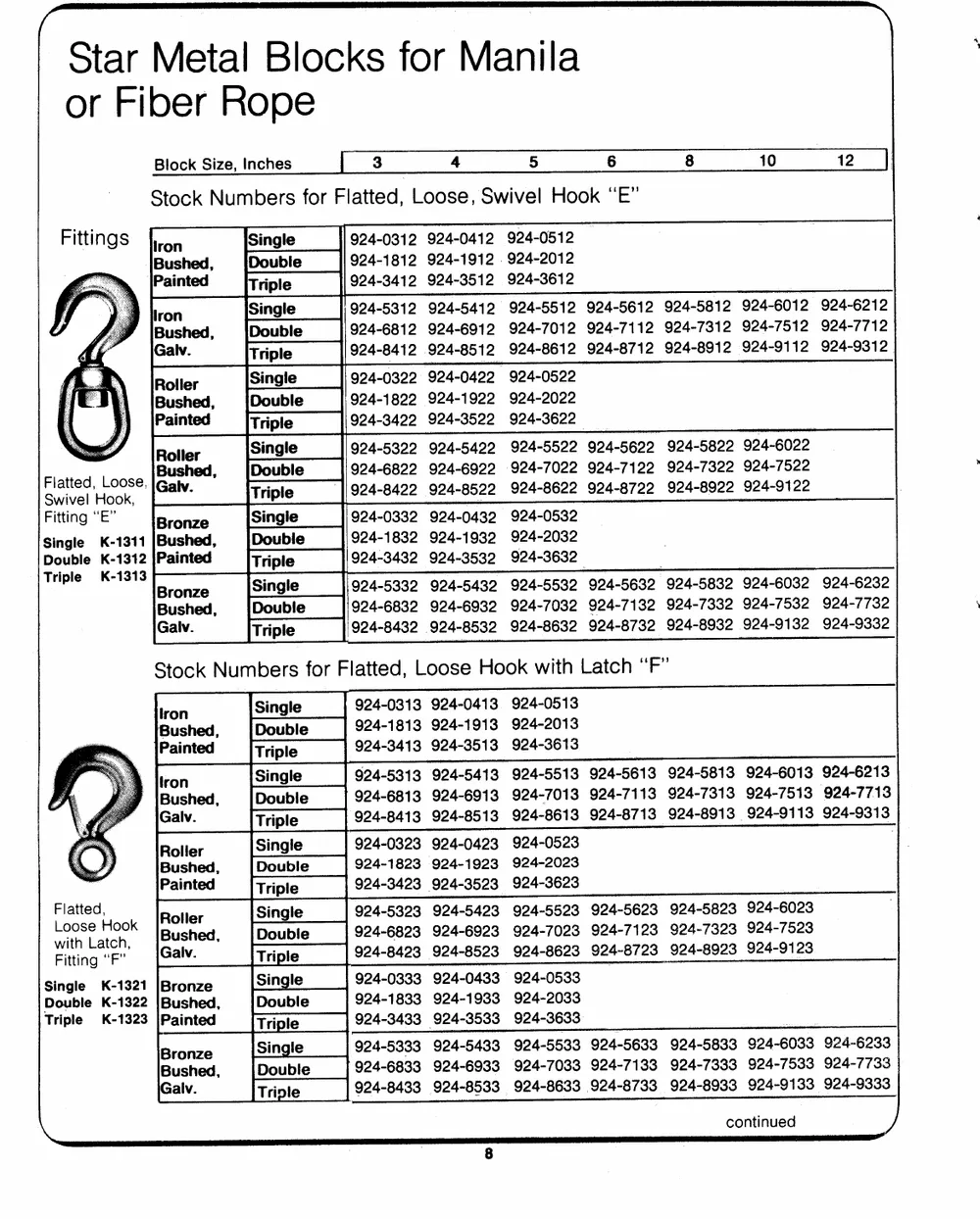

Stock Numbers for Flatted, Loose, Swivel Hook “E”
Fittings lon Single _|| 924-0312 924-0412 924-0512
Bushed, 924-1812 924-1912 924-2012
2 Painted 924-3412 924-3512 924-3612
i/ a Single _ | 924-5312 924-5412 924-5512 924-5612 924-5812 924-6012 924-6212
JJ) \Bushed, 924-6812 924-6912 924-7012 924-7112 924-7312 924-7512 924-7712
l, Galv. 924-8412 924-8512 924-8612 924-8712 924-8912 924-9112 924-9312
s Roller Single —_ || 924-0322 924-0422 924-0522
| Bushed, 924-1822 924-1922 924-2022
Painted 924-3422 924-3522 924-3622
= Roller 924-5322 924-5422 924-5522 924-5622 924-5822 924-6022
Bushed, 924-6822 924-6922 924-7022 924-7122 924-7322 924-7522
Flatted, Loose, |Galy. - 9 924-8622 9
Swivel Hook, 924-8422 924-8522 924-8622 924-8722 924-8922 924-912
Fitting E”  Ieronze 924-0332 924-0432 924-0532
Single K-1311 |Bushed, Double _]1 624-1882 924-1932 924-2032
Double K-1312|Painted [Triple __| 924-3432 924-3532 924-3632
Triple K-1313 |
Bronze [Single _|/924-5332 924-5432 924-5532 924-5632 924-5832 924-6032 924-6232
Bushed, [Double  |/924-6832 924-6932 924-7032 924-7132 924-7332 924-7532 924-7732
Galv. Triple | 924-8432 924-8532 924-8632 924-8732 924-8932 924-9132 924-9332
Stock Numbers for Flatted, Loose Hook with Latch “F”
tron Single _ | 924-0313 924-0413 924-0513
Bushed, 924-1813 924-1913 924-2013
Painted 924-3413 924-3513 924-3613
WA iron Single _| 924-5313 924-5413 924-5513 924-5613 924-5813 924-6013 924-6213
PR fF |Bushed, 924-6813 924-6913 924-7013 924-7113 924-7313 924-7513 924-7713
\ fo |Galv. 924-8413 924-8513 924-8613 924-8713 924-8913 924-9113 924-9313
Roller Single _ | 924-0323 924-0423 924-0523
@ Bushed, 924-1823 924-1923 924-2023
Painted 924-3423 924-3523 924-3623
Flatted . [Rotter ISingle | 924-5323 924-5423 924-5523 924-5623 924-5823 924-6023
with Latch [Bushed, 924-6823 924-6923 924-7023 924-7123 924-7323 924-7523
Hein ues — |Galv. 924-8423 924-8523 924-8623 924-8723 924-8923 924-9123
Fitting “F
Single K-1321 IBronze [Single __| 924-0333 924-0433 924-0533
Double K-1322 |Bushed, 924-1833 924-1933 924-2033
Triple K-1323 |Painted 924-3433 924-3533 924-3633
Bronze [Single _| 924-5333 924-5433 924-5533 924-5633 924-5833 924-6033 924-6233
Bushed, 924-6833 924-6933 924-7033 924-7133 924-7333 924-7533 924-7733
Galv. 924-8433 924-8533 924-8633 924-8733 924-8933 924-9133 924-9333
continued

Block Size, Inches 3 4 5 6 8 10 12
Stock Numbers for Flatted, Loose, Swivel Hook with Latch “G”
Fittings | tron [Single | 924-0314 924-0414 924-0514
Bushed, 924-1814 924-1914 924-2014
__ | Painted 924-3414 924-3514 924-3614
ay ir ISingle | 924-5314 924-5414 924-5514 924-5614 924-5814
| _/ | Bushed, 924-6814 924-6914 924-7014 924-7114 924-7314
S Galv. 924-8414 924-8514 924-8614 924-8714 924-8914
Ss Roller {Single | 924-0324 924-0424 924-0524
bad Bushed, 924-1824 924-1924 924-2024
Painted 924-3424 924-3524 924-3624
Roller [Single _| 924-5324 924-5424 924-5524 924-5624 924-5824
Bushed, 924-6824 924-6924 924-7024 924-7124 924-7324
Flatted, Galv. 924-8424 924-8524 924-8624 924-8724 924-8924
Loose,
Swivel Hook | Bronze [Single | 924-0334 924-0434 924-0534
with Latch, | Bushed, 924-1834 924-1934 924-2034
Fitting “G" | Painted 924-3434 924-3534 924-3634
Single K-1331 | Bronze [Single | 924-5334 924-5434 924-5534 924-5634 924-5834
mule Teng | Bushed, 924-6834 924-6934 924-7034 924-7134 924-7334
P Galv. 924-8434 924-8534 924-8634 924-8734 924-8934
Stock Numbers for Screw Pin Anchor Shackle ‘K”
iron. [Single —_| 924-0316 924-0416 924-0516
Bushed, 924-1816 924-1916 924-2016
Painted 924-3416 924-3516 924-3616
lan [Single _| 924-5316 924-5416 924-5516 924-5616 924-5816 924-6016 924-6216
Bushed, 924-6816 924-6916 924-7016 924-7116 924-7316 924-7516 924-7716
Galv. 924-8416 924-8516 924-8616 924-8716 924-8916 924-9116 924-9316
} Roller [Single _| 924-0326 924-0426 924-0526
pe | Bushed, 924-1826 924-1926 924-2026
é RQ) | Painted 924-3426 924-3526 924-3626
Roller [Single | 924-5326 924-5426 924-5526 924-5626 924-5826 924-6026
Screw Pin Bushed, 924-6826 924-6926 924-7026 924-7126 924-7326 924-7526
Anchor Shackle | Galv. 924-8426 924-8526 924-8626 924-8726 924-8926 924-9126
Fitti “K"
ming Bronze Single | 924-0336 924-0436 924-0536
Single K-1349 | Bushed, 924-1836 924-1936 924-2036
Triple K-1343 Painted | Triple 924-3436 924-3536 924-3686 sd
Bronze [Single | 924-5336 924-5436 924-5536 924-5636 924-5836 924-6036 924-6236
Bushed, 924-6836 924-6936 924-7036 924-7136 924-7336 924-7536 924-7736
Galv. 924-8436 924-8536 924-8636 924-8736 924-8936 924-9136 924-9336

These blocks are furnished with grooved bronze
bushings which are pressure grease lubricated. GS T aN Y
Galvanized finish. Shells and fittings are drop \ BF ‘@ el ;
forged. ny A A) , q
Single " Double 1 Triple kj
Specifications K-1401 ; K-1402 ; K-1403. a
Block Size, Inches |] 81012
Diameter Rope, Inches 1 1% 1% S S f T
ne Ce en tar Safety Tackle
Size, Rim =| 1% 1% 1% BI ocks
Inches |cw.PinDial 4
weight [Single [1758 for Manila Rope
24 39 ith
Pounds : 3 48 86 These blocks feature drop forged fittings,
= 72 self-lubricating bushings and a painted finish.
Working [Single | 2 3 4 They grip the load when the hoist strain is
Load 3 5 7 removed. Must be used for vertical lifting only.
Limit’, - Rope is not included.
Tons 68 |
Block Rope f ))
Stock Numbers Size, Dia., :
Inches Inches ” i.
Bronze Single 925-5845 925-6045 925-6245 2 928-9802 %-% i SS re
Bushed Double 925-7345 925-7545 925-7745 4 928-9804 %-% | Ay
Galv Triple 925-8945 925-9145 925-9345 . ‘y
. ) Working | 7a '
Gin or Roofers’ Block Weight] Load [Pounds | | 11
in Limit*, }One Man| j 78 @¢ y
for Manila Ro e Pounds| Pounds | Can Lift ALY Y
p 8 1,000 400 ‘aay |
This block is furnished with a drop forged, 25 2,800 600 cm 431 4
flatted, swivel hook with latch. Roller bushing. —_—_—_——— |e y
Painted finish. . mee 4
Block | Rope pave e. Inches Block | Load ock Number
Size, | Dia. [Outside Pas Weight,| Limit*, | acs Replacement
Inches | Inches | Dia. Pin Dia.j/Pounds}| Pounds Sheave
12 1 12 13% 58 15.5 1.000 926-9812 934-3922
Working Load is resultant Working Load. Lift
should not exceed 500 pounds.

These blocks have nylon shells and sheaves, =.
plated straps and connections. All fittings are ie \ x
drop forged. by 1 Ve )
Single i Double L- Triple iy
K-1591 © K-1592  @ K-1593 ©
om Rope Sheave Size, Inches Weight in Pounds Pounds
ize, Dia., enter
2 ¥-V2 2 % ¥% 7 12 16 500 1,000 1,200
Fittings
fy) \ Stock Number
Flatted, I ‘cose, LZ Fitting | Single | Double | Triple _|
Loe, ce, Swivel Hook Flatted, Loose, Swivel Hook “E” _| 999-0212 922-2212 922-3212
Saal Biting" Loose, Hook with Latch “F” 922-0213 922-2213 922-3212
ale — Single K-1531 Loose, Swivel Hook with Latch ““G’] 922-0214 922-2214 922-3214
Double K-1512 Double K-1532 Screw Pin Anchor Shackle ‘‘K’’ 922-0215 922-2215 922-3215
Triple K-1513 Triple K-1533 Flatted, Loose, Front Hook “W” 922-0217 922-2217 922-3217
j Screw Pin
Loose, Hook 2” Anchor ,
With Latch, é Shackle, (® an
Fitting “F” Fitting “K” , X \
Single K-1521 Single K-1541 N
Double K-1522 Double K-1542 " é
Triple K-1523 Triple K-1543 i

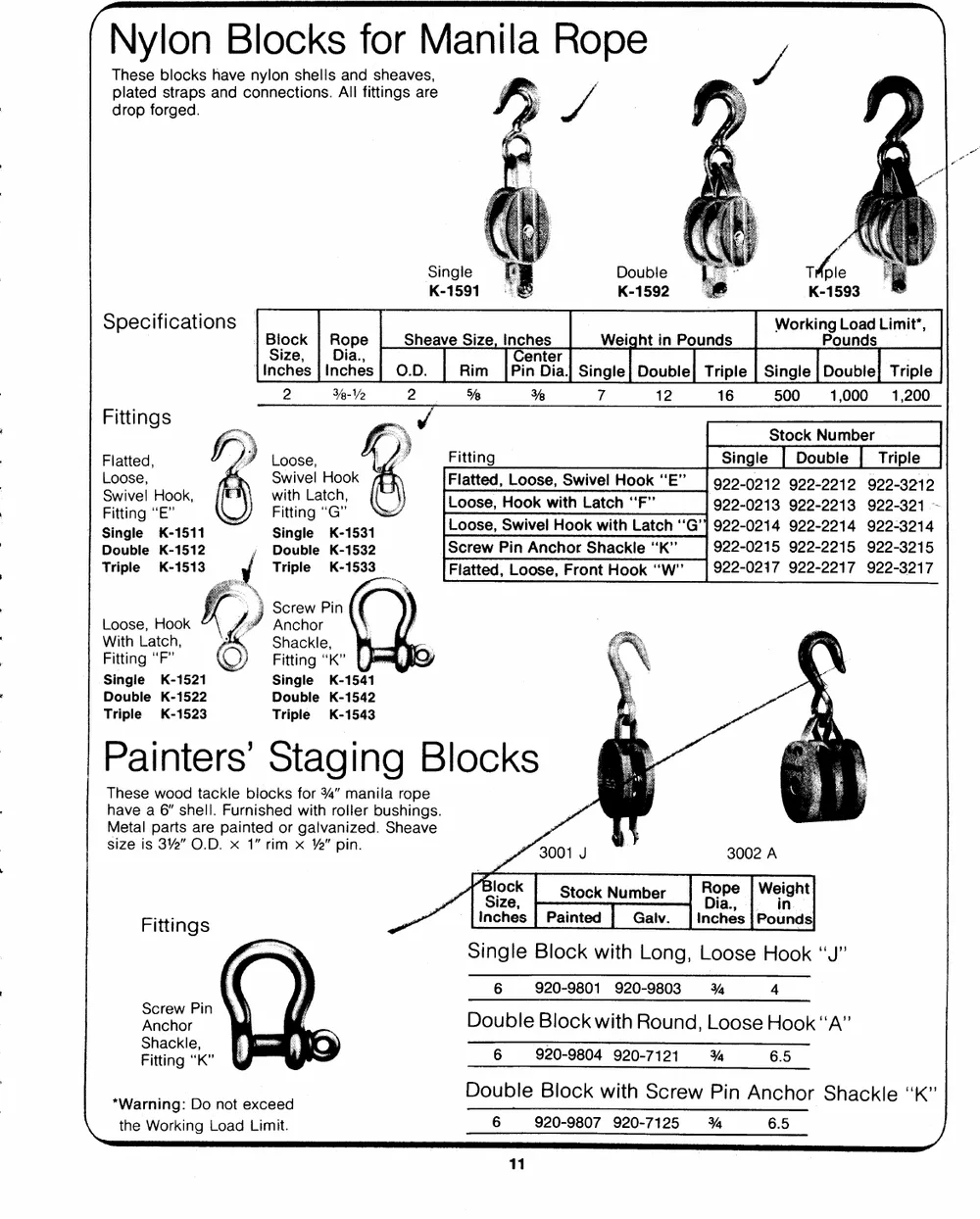

Painters’ Staging Blocks TT
These wood tackle blocks for 34” manila rope \ } ,
have a 6” shell. Furnished with roller bushings. $
Metal parts are painted or galvanized. Sheave
size is 3%” O.D. x 1” rim x ¥%" pin. 3001 J 3002 A
Block | Stock Number | Rope | Weight
inches | Painted | Galv. | snchbe'| Bout
_— nches n
Fittings ches | Pounds
Single Block with Long, Loose Hook “J”
6 920-9801 920-9803 % 4
Sc Pin j .
Anchor Double Block with Round, Loose Hook ‘‘A”
Shackle, a
Fitting “K" 6 920-9804 920-7121 % 6.5
Warnina: Do not , Double Block with Screw Pin Anchor Shackle ‘'K”
“Warning: Do not excee ee
the Working Load Limit. _6 920-9807 920-7125 % 6.5

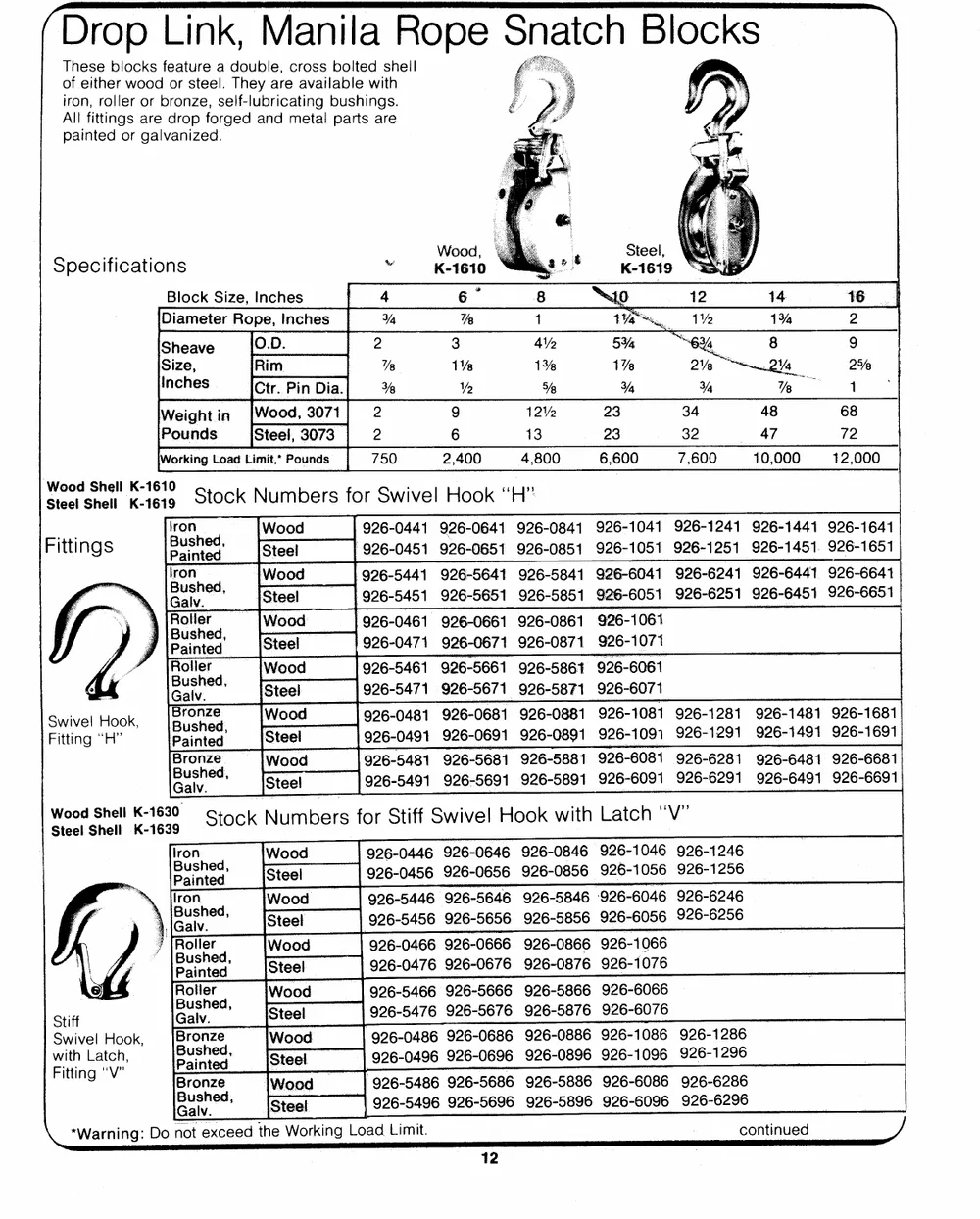

Drop Link, Manila Rope Snatch Blocks
These blocks feature a double, cross bolted shell ff :
of either wood or steel. They are available with > ‘a
iron, roller or bronze, self-lubricating bushings. é pe j
All fittings are drop forged and metal parts are /
painted or galvanized. op ran
i WwW
Lee . Wood, WA Steel, Ye q
Specifications K-1610 s*f K-1619 iB
Block Size, Inches 4 6 8 10 12 14 16 |
Diameter Rope, Inches % % 1 1% 1% 1% 2
Sheave |OD. | 2 3 AV 5% 6% 8 9
Size, eZ 1% 1% 1% 2%a 2V% 25
Inches [Ctr. PinDia|  % Vp % Ys Vs % 1
Weight in |Wood, 3071] 2 9 12¥. 23 34 48 68
Pounds Steel, 3073 2 6 13 23 32 47 72
750 2,400 4800 6,600 7,600 10,000 12,000
Wood Shell K-1610 . cops
Steel Shel! Kieig. Stock Numbers for Swivel Hook “H
- On [Wood | 926-0441 926-0641 926-0841 926-1041 926-1241 926-1441 926-1641
Fittings iota 926-0451 926-0651 926-0851 926-1051 926-1251 926-1451 926-1651
ae Wood —_—_—| 926-5441 926-5641 926-5841 926-6041 926-6241 926-6441 926-6641
Gav. _|Steel_ | 926-5451 926-5651 926-5851 926-6051 926-6251 926-6451 926-6651
| ae Wood | 926-0461 926-0661 926-0861 926-1061
Painted Steel | 926-0471 926-0671 926-0871 926-1071 .
J eltes Wood ~—>_| 926-5461 926-5661 926-5861 926-6061
Gav. [Steel | 926-5471 926-5671 926-5871 926-6071
Swivel Hook, [Bronze [Wood | 926-0481 926-0681 926-0881 926-1081 926-1281 926-1481 926-1681
Fitting “H” Painted {Steel | 926-0491 926-0691 926-0891 926-1091 926-1291 926-1491 926-1691
Bronze 926-5481 926-5681 926-5881 926-6081 926-6281 926-6481 926-6681
hae” 926-5491 926-5691 926-5891 926-6091 926-6291 926-6491 926-6691
Wood Shell K-1630 . F . hy”
Stecl Shel K.te3g LOCK Numbers for Stiff Swivel Hook with Late
Won 926-0446 926-0646 926-0846 926-1046 926-1246
eulret Steel | 926-0456 926-0656 926-0856 926-1056 926-1256
ron Wood —_| 926-5446 926-5646 926-5846 926-6046 926-6246
lgaiv. [Steel __—| 926-5456 926-5656 926-5856 926-6056 926-6256
| f i Dotler Wood | 926-0466 926-0666 926-0866 926-1066
1 Sana Steel | 926-0476 926-0676 926-0876 926-1076
C Coe 926-5466 926-5666 926-5866 926-6066
Stiff Gav. [Steel | 926-5476 926-5676 926-5876 926-6076
Swivel Hook, —_ [Bronze 926-0486 926-0686 926-0886 926-1086 926-1286
with Latch, —|Bushed. [Steer | 926-0496 926-0696 926-0896 926-1096 926-1296
Fitting "V"
— Bronze [Wood _| 926-5486 926-5686 926-5886 926-6086 926-6286
a 926-5496 926-5696 926-5896 926-6096 926-6296
*Warning: Do not exceed the Working Load Limit. continued

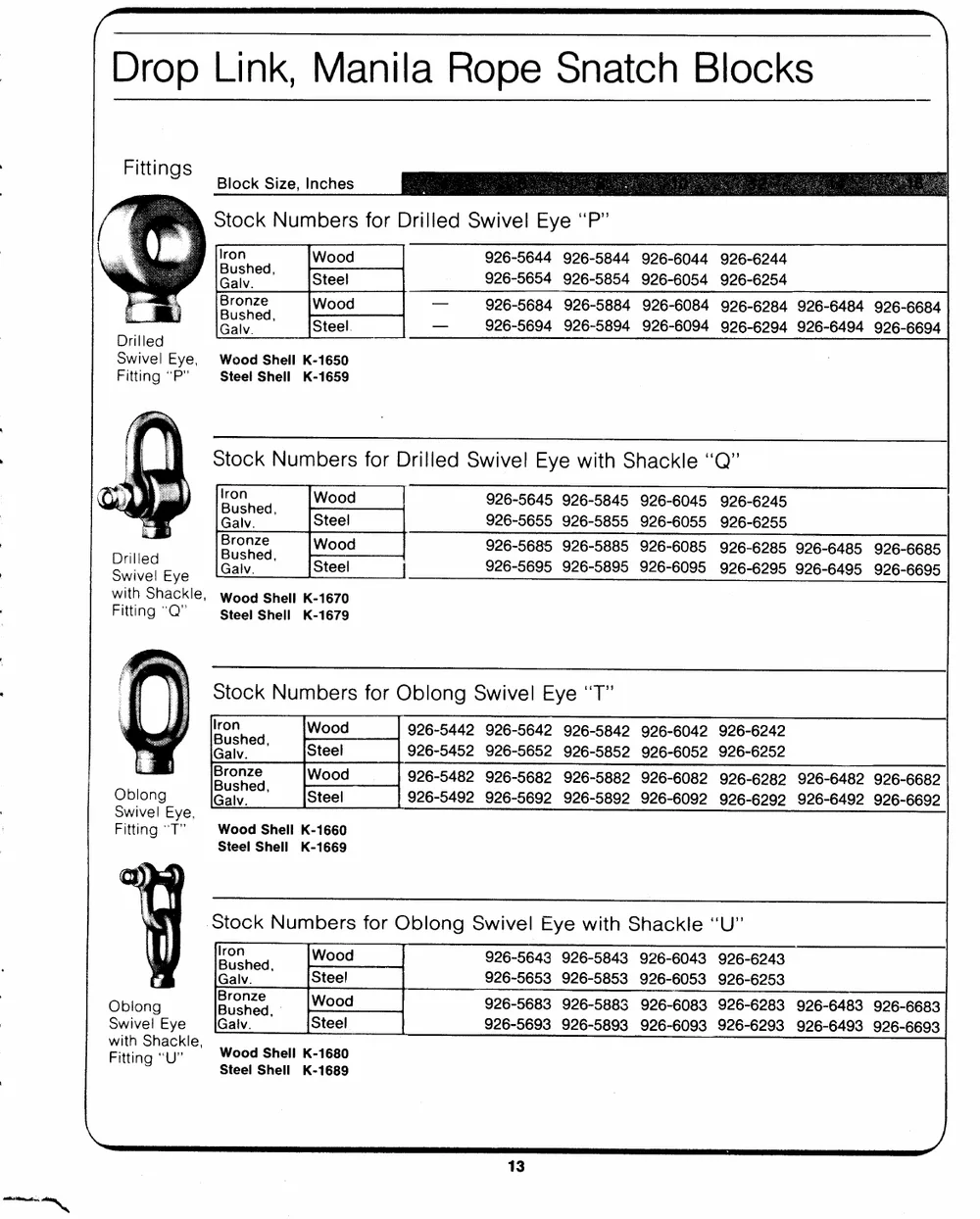

Drop Link, Manila Rope Snatch Blocks
Fittings =
Block Size, Inches : :
Ba Stock Numbers for Drilled Swivel Eye “P”
, To] Iron 926-5644 926-5844 926-6044 926-6244
‘tie. eo 926-5654 926-5854 926-6054 926-6254
= Bronze — 926-5684 926-5884 926-6084 926-6284 926-6484 926-6684
ae — 926-5694 926-5894 926-6094 926-6294 926-6494 926-6694
Drilled
Swivel Eye, Wood Shell K-1650
Fitting “P” Steel Shell K-1659
Q Stock Numbers for Drilled Swivel Eye with Shackle “Q”
. >) On 926-5645 926-5845 926-6045 926-6245
= Galv. 926-5655 926-5855 926-6055 926-6255
' Saad 926-5685 926-5885 926-6085 926-6285 926-6485 926-6685
alibi Eye (Gav. [Steel 926-5695 926-5895 926-6095 926-6295 926-6495 926-6695
with Shackle, Wood Shell K-1670
Fitting “Q Steel Shell K-1679
a 4 . [Tin ate)
8) Stock Numbers for Oblong Swivel Eye “T
YO’ ae 926-5442 926-5642 926-5842 926-6042 926-6242
“y Gate 926-5452 926-5652 926-5852 926-6052 926-6252
roe Wood —_| 926-5482 926-5682 926-5882 926-6082 926-6282 926-6482 926-6682
Oblong fa 926-5492 926-5692 926-5892 926-6092 926-6292 926-6492 926-6692
Swivel Eye,
Fitting “T” Wood Shell K-1660
Steel Shell K-1669
Stock Numbers for Oblong Swivel Eye with Shackle “U”
lron 7 if = =
Od [Wood 926-5643 926-5843 926-6043 926-6243
Galv. Steel 926-5653 926-5853 926-6053 926-6253
Stleng pregze 926-5683 926-5883 926-6083 926-6283 926-6483 926-6683
Swivel Eye |Galv. 926-5693 926-5893 926-6093 926-6293 926-6493 926-6693
aor Wood Shell K-1680
Steel Shell K-1689

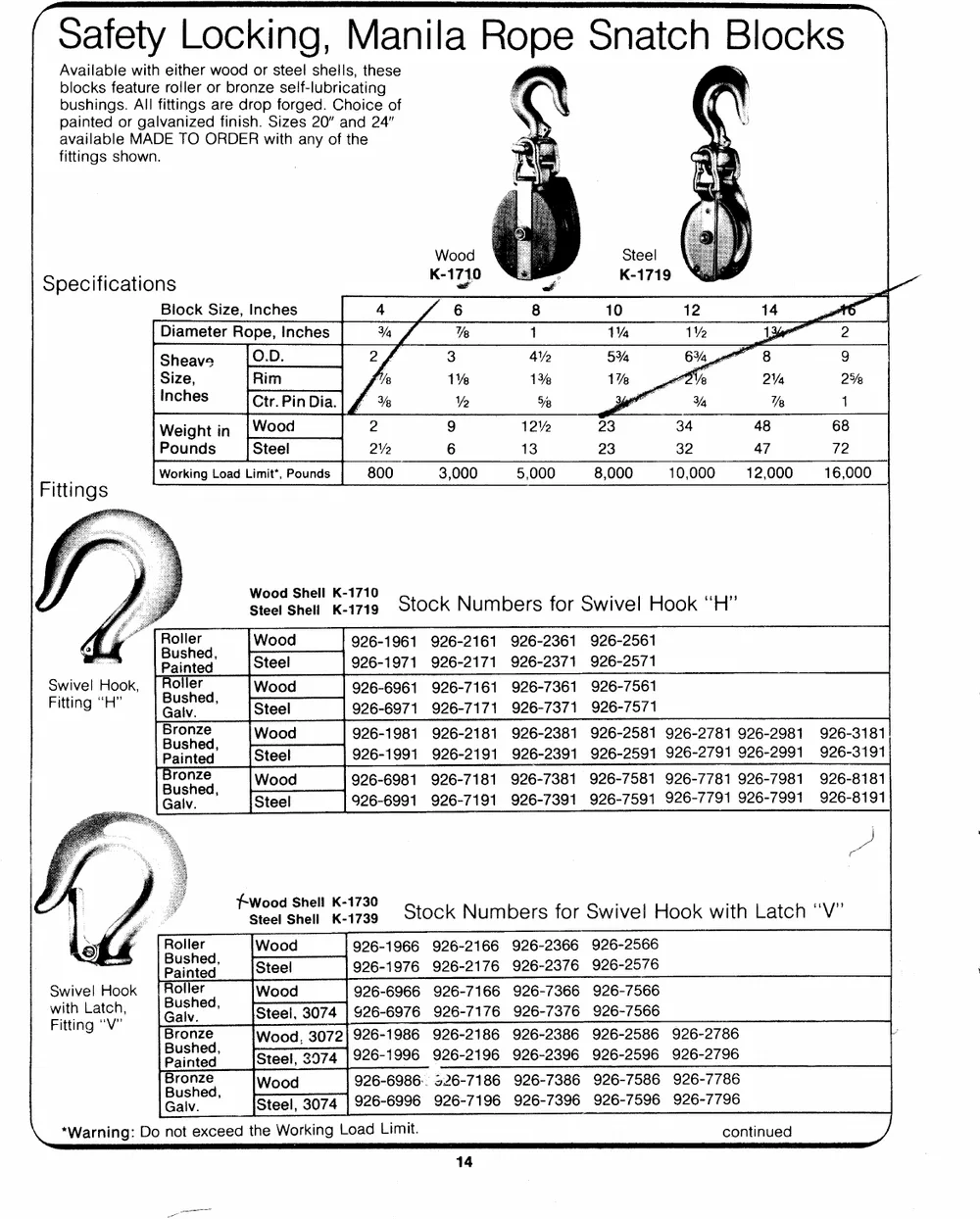

Safety Locking, Manila Rope Snatch Blocks
Available with either wood or steel shells, these >
blocks feature roller or bronze self-lubricating \ ,
bushings. All fittings are drop forged. Choice of \ \ ‘
painted or galvanized finish. Sizes 20” and 24” XN > .
available MADE TO ORDER with any of the RN = b
fittings shown. al om ual
=i aah 4
Wood j Steel \ 4]
Specifications 1710 ——
Block Size, Inches 4 6 8 10 12 14 16
Diameter Rope, Inches % %e 1 1% 1% 1% 2
Sheave |0.D. | 2 3 4¥2 5% 6% 8 9
Size, Rim | 1% 1% 1% 2%, 2% 2%
Inches Ctr.PinDia.|  % Vp 5% Ys Ys 1 1
Weight in 2 9 12% 23 34 “6 a8
Pounds {Steel =| 2% 6 13 23 32 47 72
_ 800 3,000 5,000 8,000 10,000 12,000 16,000
Fittings
; Wood Shell K-1710 . cain
f)) Steel Shell K-1719 tock Numbers for Swivel Hook ‘“‘H
Ai [folter | Wood _| 926-1961 926-2161 926-2361 926-2561
Painted {Steel | 926-1971 926-2171 926-2371 926-2571
Swivel Hook, | Roller = |Wood _| 926-6961 926-7161 926-7361 926-7561
Fitting "H" —|@alv._[Steel___ | 926-6971 926-7171 926-7371 926-7571
Bronze = [Wood _| 926-1981 926-2181 926-2381 926-2581 926-2781 926-2981 926-3181
Painted |Steel —- | 926-1991 926-2191 926-2391 926-2591 926-2791 926-2991 926-3191
oe, 926-6981 926-7181 926-7381 926-7581 926-7781 926-7981 926-8181
Galv. | 926-6991 926-7191 926-7391 926-7591 926-7791 926-7991 926-8191
| 7 Wood Shell K-1730 ; , roy
| G7 Steel Shell _K.1739 Stock Numbers for Swivel Hook with Latch “V
lle Roller 926-1966 926-2166 926-2366 926-2566
ocala 926-1976 926-2176 926-2376 926-2576
Swivel Hook Roller = [Wood _| 926-6966 926-7166 926-7366 926-7566
tld A Galv._|Steel, 3074 | 926-6976 926-7176 926-7376 926-7566
ee Bronze Wood, 3072| 926-1986 926-2186 926-2386 926-2586 926-2786
Busted: Steel, 2974 1926-1996 926-2196 926-2396 926-2596 926-2796
a 926-6986 926-7186 926-7386 926-7586 926-7786
Gav. _[Steel, 3074 | 926-6996 926-7196 926-7396 926-7596 926-7796
*Warning: Do not exceed the Working Load Limit. continued

So Ne | Ary
se =p ee AOI
Safety Locking, Manila Rope Snatch Blocks
inh DCs. ~ rn ae
Fittings
Block Size, Inches 4 6 8 10 12 14 16
mm Stock Numbers for Drilled Swivel Eye ‘“P”
0) Htc! 926-7184 926-7384 926-7584 926-7784 926-7984 926-8184
at lal 926-7194 926-7394 926-7594 926-7794 926-7994 926-8194
.¥ ‘ Wood Shell K-1750
. Steel Shell K-1759
Drilled
Swivel Eye,
Fitting “P”
Stock Numbers for Drilled Swivel Eye with Shackle “Q”
eae 926-7185 926-7385 926-7585 926-7785 926-7985 926-8185
Galv. 926-7195 926-7395 926-7595 926-7795 926-7995 926-8195
‘ Wood Shell K-1770
raise Steel Shell K-1779
wivel Eye
with Shackle,
Fitting “Q"
Stock Numbers for Oblong Swivel Eye “T”
Galv. | |Steel, 926-6992 926-7192 926-7392 926-7592 926-7792 926-7992 826-8192
Oblong Wood Shell K-1760
Swivel Eye, Steel Shell K-1769
Fitting “T"
Stock Numbers for Oblong Swivel Eye with Shackle “U”
Brovze 926-7183 926-7383 926-7583 926-7783 926-7983 926-8183
Galv. | 926-7193 926-7393 926-7593 926-7793 926-7993 926-8193
Oblong .
with Shackle,
Fitting “U"

Eastern, Manila Rope Snatch Blocks
These safety or positive locking blocks are aa
available in sizes from 6" to 16”. All fittings are j
drop forged. 2 ‘
Safety Positive
Locking Locking
oo, K-1810 K-1980
Specifications
Block Size, Inches 6 8 10 12 14 16 |
!Diameter Rope, Inches Us) 1 1% 1¥2 1% 2
Sheae [00 | 3 a <a
‘Size, Rim | 1% 1% 1% 2% 2% 25%
iInches Ve Sf % 4 h
Fittings Weight in Pounds 9 17 33 45 58 84
Working Load Limit’, Pounds 3,000 5,000 8,000 10,000 12,000 16,000
y fa. Stock Numbers for Swivel Hook ‘“H”
| Painted 926-3771 926-3971 926-4171
Goan cues. 926-8771 926-8971 926-9171
Suies) Haak preees BOs 926-3791 926-3991 926-4191 926-4391 926-4591 926-4791
iting “H” ronze Bushed, 926-8791 926-8991 926-9191 926-9391 926-9591 926-9791
Fitting “H Galv.
Safety Locking K-1810
Positive Locking K-1910
8 Stock Numbers for Stiff Swivel Hook with Latch “V”
Roller Bushed,
Stiff Swivel Painted 926-3776 926-3976 926-4176
Hook with Latch, 926-8776 926-8976 926-9176
Fitting “V" 926-3796 926-3996 926-4196 926-4396
Safety Locking K-1830 926-8796 926-8996 926-9196 926-9396
Positive Locking K-1930 :
continued

Eastern, Manila Rope Snatch Blocks

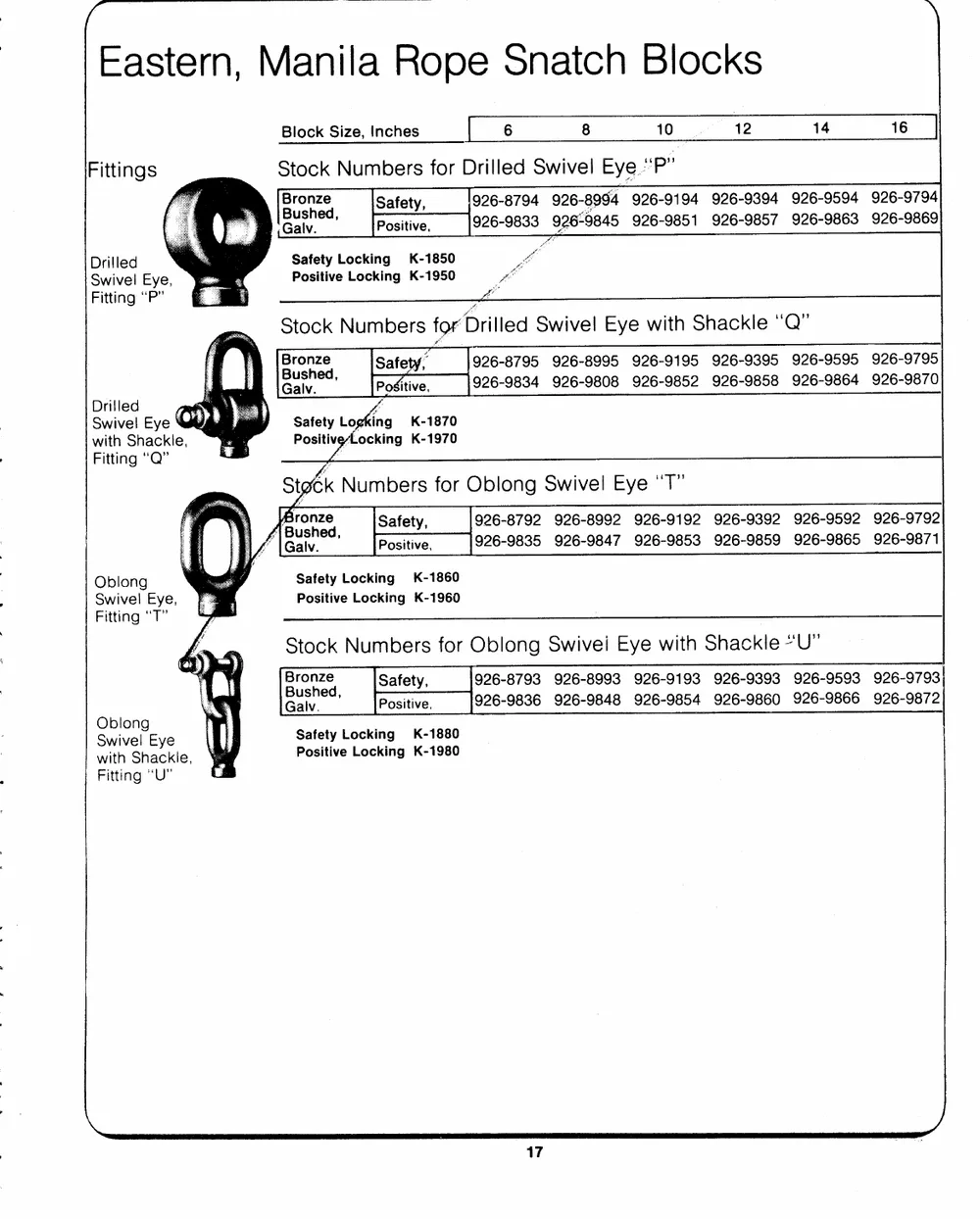

Block Size, Inches 6 8 10 12 14 16
Fittings Stock Numbers for Drilled Swivel Eye “P”
e Bronze, _|Safety, 926-8794 926-8994 926-9194 926-9394 926-9594 926-9794
ts) Galv Positive, _ [926-9833 926-9845 926-9851 926-9857 926-9863 926-9869
Drilled : Safety Locking K-1850
Swivel Eye, —— Positive Locking K-1950
Fitting "P” (i
Stock Numbers for Drilled Swivel Eye with Shackle “Q”
Bronze [Safety, _|926-8795 926-8995 926-9195 926-9395 926-9595 926-9795
Bay’ [Rositive, __ 1926-9834 926-9808 926-9852 926-9858 926-9864 926-9870
Drilled
Swivel Eye Safety Locking K-1870
with Shackle, Positive Locking K-1970
Fitting “Q” oe
Stock Numbers for Oblong Swivel Eye “T”
eee Safety, 926-8792 926-8992 926-9192 926-9392 926-9592 926-9792
Galv._|Positive, __|926-9835 926-9847 926-9853 926-9859 926-9865 926-9871
Oblong Safety Locking K-1860
Swivel Eye, Positive Locking K-1960
Fitting “T"
Stock Numbers for Oblong Swivei Eye with Shackle “U”
Bronze Safety, _|926-8793 926-8993 926-9193 926-9393 926-9593 926-9793
Galv._[Positive, __ [926-9836 926-9848 926-9854 926-9860 926-9866 926-9872
Oblong
Swivel Eye Safety Locking K-1880
with Shackle, Positive Locking K-1980
Fitting “U"

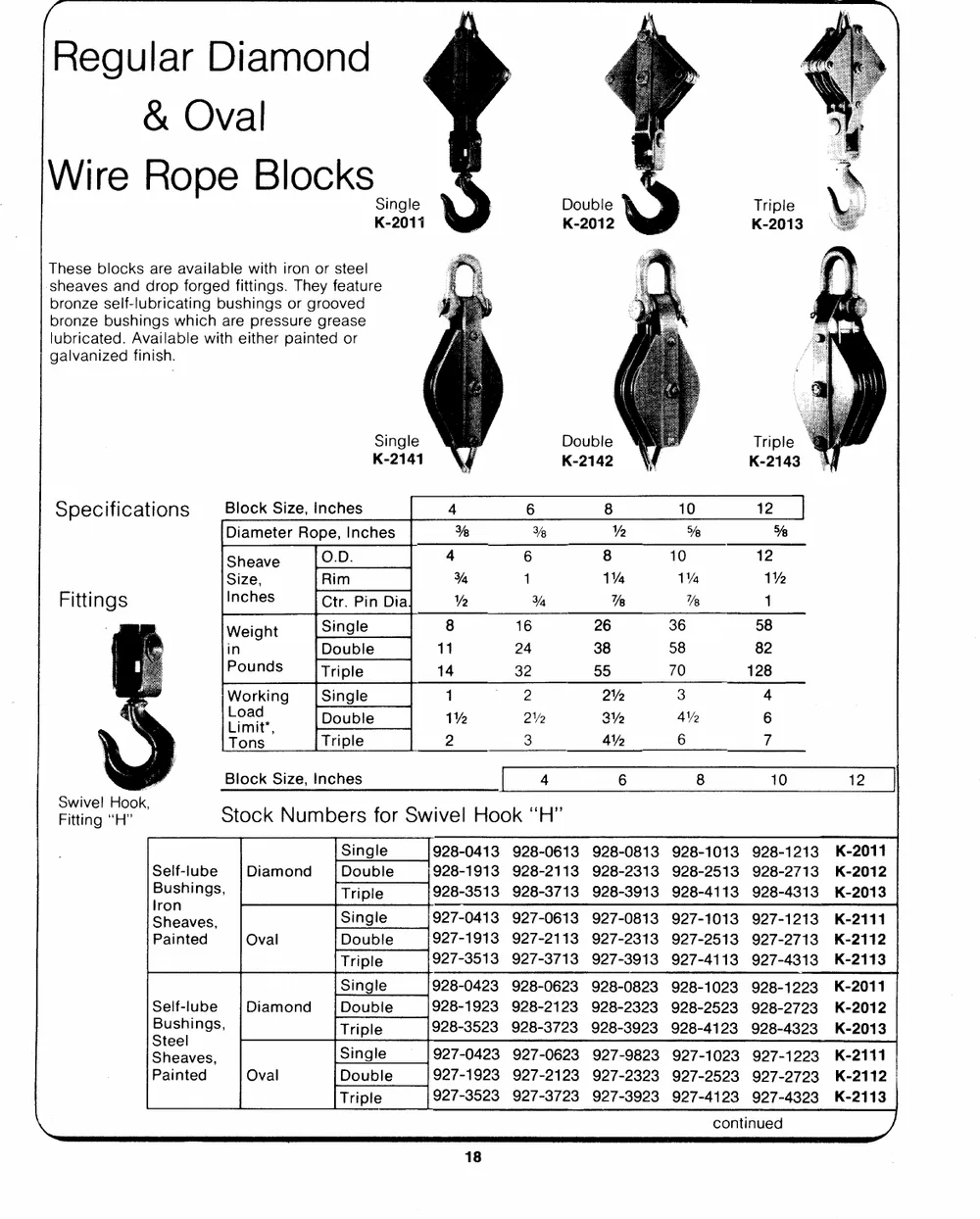

Regular Diamond &
& Oval .
Wire Rope Blocks 4A
Single Double Triple \
K-2011 K-2012 K-2013
These blocks are available with iron or steel \) if i ay
sheaves and drop forged fittings. They feature q
bronze self-lubricating bushings or grooved , ( @
bronze bushings which are pressure grease = ha
lubricated. Available with either painted or i ~
galvanized finish. i
Single Double Triple ‘@e
K-2141 K-2142 \ K-2143
Specifications Block Size, Inches 4 6 8 10 12
Diameter Rope, Inches % ¥% Va Ye %
Sheave }0.D. | 4 6 8 10 12
Fittings Inches Ye Ya % 7a 1
weigin 8 2% 9 88
in 11 24 38 58 82
Pounds 14 32 55 70 128
Working 1 2 2% 3 4
oe 1% 2V2 3V2 4% 6
Tons _ 2 3 4¥e 6 7
Block Size, Inches 4 6 8 10 12
Swivel Hook, : “pps
Fitting “H" Stock Numbers for Swivel Hook “H
[Single _]928-0413 928-0613 928-0813 928-1013 928-1213 K-2011
Self-lube |Diamond [Double 928-1913 928-2113 928-2313 928-2513 928-2713 K-2012
Bushings, Triple [928-3513 928-3713 928-3913 928-4113 928-4313 K-2013
ron
Sheaves, [Single |927-0413 927-0613 927-0813 927-1013 927-1213 K-2111
Painted | Oval [Double |927-1913 927-2113 927-2313 927-2513 927-2713 K-2112
[Triple [927-3513 927-3713 927-3913 927-4113 927-4313 K-2113
928-0423 928-0623 928-0823 928-1023 928-1223 K-2011
Self-lube |Diamond |Double _ |928-1923 928-2123 928-2323 928-2523 928-2723 K-2012
— Triple [928-3523 928-3723 928-3923 928-4123 928-4323 K-2013
Sheaves, [Single __|927-0423 927-0623 927-9823 927-1023 927-1223 K-2111
Painted | Oval [Double __|927-1923 927-2123 927-2323 927-2523 927-2723 K-2112
Triple _ | 927-3523. 927-3723 927-3923 927-4123 927-4323 K-2113
continued

Block Size, Inches 4 6 8 10 12
Fittings cay
Stock Numbers for Swivel Hook with Latch ‘V
[Single [k-2031]928-0419 928-0619 928-0819 928-1019 928-1219
A Self-lube | Diamond | Double] K-2032]928-1919 928-2119 928-2319 928-2519 928-2719
| \ oe [Triple | K-2033]928-3519 928-3719 928-3919 928-4119 928-4319
ron ,
® |sheaves, | Single | K-2131| 927-0419 927-0619 927-0819 927-1010 927-1219
Painted [Oval [Double] K-2132|927-1919 927-2119 927-2319 927-2519 927-2719
fi K-2133| 927-3519 927-3719 927-3919 927-4119 927-4319
‘ [Single | K-2031|928-0429 928-0629 928-0829 928-1029 928-1229
. Self-lube | Diamond [ Double] K-2032}928-1929 928-2129 928-2329 928-2529 928-2729
a cee [Triple | K-2033]928-3529 928-3729 928-3929 928-4129 928-4329
a Sheaves. | Single | K-2131]927-0429 927-0629 927-0829 927-1029 927-1229
with Lath, Painted | Oval [Double] K-2132]927-1929 927-2129 927-2329 927-2529 927-2729
Fitting “V" [Triple | K-2133]927-3529 927-3729 927-3929 927-4129 927-4329
Stock Numbers for Round Pin Chain Shackle “L”
Single | K-2041 ]928-0414 928-0614 928-0814 928-1014 928-1214
Self-lube |Diamond [Double | K-2042 ]928-1914 928-2114 928-2314 928-2514 928-2714
stella Triple | K-2043 }928-3514 928-3714 928-3914 928-4114 928-4314
Sheaves, [Single | K-2141 ]927-0414 927-0614 927-0814 927-1014 927-1214
Painted —_| Oval [Double | K-2142 |927-1914 927-2114 927-2314 927-2514 927-2714
Triple | K-2143 ]927-3514 927-3714 927-3914 927-4114 927-4314
Air K-2041 |928-0424 928-0624 928-0824 928-1024 928-1224
i Self-lube |Diamond [Double | K-2042 ]928-1924 928-2124 928-2324 928-2524 928-2724
Round Pin a a Triple | K-2043 }928-3524 928-3724 928-3924 928-4124 928-4324
Chain Shackle, | Sheaves, [Single | K-2141 [927-0424 927-0624 927-0824 927-1024 927-1224
Parte h Painted =| Oval [Double | K-2142 }927-1924 927-2124 927-2324 927-2524 927-2724
Triple | K-2143 }927-3524 927-3724 927-3024 927-4124 927-4324
Galvanized Regular Diamond and Oval Wire Rope Blocks, Fitting “L”
Grooved Bronze
Bronze Self-Lubricating Pressure Grease Lubrication
Block Size, Inches A 6 8
[iron Sheaves |928-5414 928-5614 928-5814 928-5434 928-5634 928-5834
biamond | Steel Sheaves |928-5424 928-5624 928-5824 928-5444 928-5644 928-5844
famo
3 | Iron Sheaves |928-6914 928-7114 928-7314 928-6934 928-7134 928-7334
| Steel Sheaves |928-6924 928-7124 928-7324 928-6944 928-7144 928-7344
| iron Sheaves _|927-5414 927-5614 927-5814 927-5434 927-5634 927-5834
Oval | Steel Sheaves |927-5424 927-5624 927-5824 927-5444 927-5644 927-5844
| Iron Sheaves _|927-6914 927-7114 927-7314 927-6934 927-7134 927-7334
Steel Sheaves |927-6924 927-7124 927-7324 927-6944 927-7144 927-7344

yop)
These galvanized blocks have steel sheaves,
ball and roller bearings, and bronze bushings
with either self-lubrication or pressure grease
lubrication. All fittings are drop forged.
Single £ Double Triple i,
K-2241 K-2242 4 K-2243
Specifications Block Size, Inches 6 8 10 |
Rope Diameter, Inches ¥% - Ve V2 - ¥% Ye
Sheave po. =| «6 8 10
Size, a 1% 1%
Weight [Single | 23 40 51
Pounds [rriple | 48701085
Working Single 2%2 3% 4
Limit*, -
ons 4 7 8
Fittings Stock Numbers for Swivel Hook ‘'H”
K-2211_|geif. Single | 729-0623 729-0823 729-1023
| K-2212 [Lubricated 729-2123 729-2323 729-2523
| K-2213 [Bushings 729-3723 729-3923 729-4123
Pressure
Lubricated Double Made to Order
) Bushings
Swivel
Hook,
Fitting “H" —
Stock Numbers for Round Pin Chain Shackle “L”
\ K-2241—_|oois. Single _| 729-0624 729-0824 729-1024
| K-2242 __|Lubricated 729-2124 729-2324 729-2524
| K-2243 [Bushings 729-3724 729-3924 729-4124
NS Pressure Single _|
) Wp lubricated Double Made to Order
4 | s Bushings
Round §
J, -Chain
Shackle;
> Fitting. “L”

Sie
Extra Heavy Oval and | a
Diamond Blocks ?
for Wire Rope ek I
; , __ Oval Oval Oval
These blocks are available with steel or iron Single Double y Y Triple
sheaves up to 14”; 16” and 18” blocks are |.9444 K-2442 K-2443
available with steel sheaves only. They feature
bronze, self-lubricating bushings or grooved i
bronze bushings with pressure grease a.
lubrication. They are available with either
tapered roller bearings, or ball bearings having a g P ue) ,
pressure grease lubrication. Ball and tapered :
roller bearings are recommended for steel 3 7"
sheaves only. All fittings are drop forged. All ag
blocks have painted finish, except “N” A a
(galvanized). Blocks with greater working load _ “a 4
limits are available on request. Diamond Diamond 4 Diamond .-
Single Double A Triple Aw
oft. ah K-2511 K-2512 ~# K-251 \y
Specifications :
Block Size, Inches 6 8 10 12 14 16 18
Rope Diameter, Inches | % - 2 v2 - ¥% Se % %-% %- 1 1
a Sheave |O.D. 6 8 10 12 14 16 18
Fittings —|size, Rim | 1 1% 1% 1% 1% 1% 1%
Inches % % 1 1¥.8 1% 1% 1%
Weight in |Single | 16 28 43 70 87 125 159
Pounds, 27 52 67 125 165 260 290
Oval 48 75 95 170 221 335 435
Weight in [Single | 19 90 44 72 89 130 164
Pounds, 27 55 70 131 171 270 300
y {Diamond 48 80 100 180 231 350 450
Working [Single | 2% 3% 4 5 6Y2 10 10
Swivel Hook, en 3 6 7 10 12 15 18
Fitting “H" — Tons ” 4 7 8 12 14 18 20
Stock Numbers for Swivel Hook “H”, Painted, .Self-lube Bushings
—_ [Single | K-2411 | 930-0313 930-0513 930-0713 930-0913 930-1113
Sheaves, K-2412 | 930-1813 930-2013 930-2213 930-2413 930-2613
Oval K-2413 | 930-3413 930-3613 930-3813 930-4013 930-4213
ron [Single | 931-0313 931-0513 931-0713 931-0913 931-1113
Sheaves, 931-1813 931-2013 931-2213 931-2413 931-2613
Diamond 931-3413 931-3613 931-3813 931-4013 931-4213
Steet [Single _| K-2411 | 930-0323 930-0523 930-0723 930-0923 930-1123 930-1323 930-1523
Sheaves, K-2412 | 930-1823 930-2023 930-2223 930-2423 930-2623 930-2823 930-3023
Oval K-2413 | 930-3423 930-3623 930-3823 930-4023 930-4223 930-4423 930-4623
Steel lSingle | 931-0323 931-0523 931-0723 931-0923 931-1123 931-1323 931-1523
Sheaves, 931-1823 931-2023 931-2223 931-2423 931-2623 931-2823 931-3023
Diamond 931-3423 931-3623 931-3823 931-4023 931-4223 931-4423 931-4623

Fittings Block Size, Inches 6 8 10 12 14 16 18
Stock Numbers for Swivel Hook with Latch “V”, Painted, Self-lube Bushings
K-2431 tron Single 1930-0310 930-0510 930-0710 930-0910 930-1110
f=, |k-2432 Sheaves, Double|930-1810 930-2010 930-2210 930-2410 930-2610
p/; ) |K-2433 Oval Fripte [930-3410 930-3610 930-3810 930-4010 930-4210
, My ron Single [931-0319 931-0519 931-0719 931-0919 931-1119
of heaves, [Double}931-1819 931-2019 931-2219 931-2419 931-2619
Diamond frriple }931-3419 931-3619 931-3819 931-4019 931-4219
Swivel-Hook |K-2431 [Steel Single |930-0320 930-0520 930-0720 930-0920 930-1120 930-1320 Made
pd “4 K-2432 Sheaves, |Double|930-1820 930-2020 930-2220 930-2420 930-2620 930-2820 _ to
Ing K-2433 Oval Triple |930-3420 930-3620 930-3820 930-4020 930-4220 930-4420 Order
K-2531|stee! Single [931-0329 931-0529 931-0729 931-0929 931-1119 931-1329 Made
K-2532|Sheaves, [Double |931-1829 931-2029 931-2229 931-2429 931-2629 931-2829 _ to
K-2533 Diamond frripie [931-3429 931-3629 931-3829 931-4029 931-4229 931-4429 Order
Stock Numbers for Round Pin Chain Shackle “L”, Painted, Self-lube Bushings
K-2441 ron Single 1930-0314 930-0514 930-0714 930-0914 930-1114
K-2442 Sheaves, \Double|930-1814 930-2014 930-2214 930-2414 930-2614
K-2443 [Oval Triple [930-3414 930-3614 930-3814 930-4014 930-4214
K-2541 |iron Single 931-0314 931-0514 931-0714 931-0914 931-1114
K-2542 |Sheaves, [Double|931-1814 931-2014 931-2214 931-2414 931-2614
way |K-2543 [Diamond [Triple [931-3414 931-3614 931-3814 931-4014 931-4214
K-2441 |stee! [Single |a30-0324 930-0524 930-0724 930-0924 930-1124 930-1324 930-1524
K-2442 |Sheaves, |Double|930-1824 930-2024 930-2224 930-2424 930-2624 930-2824 930-3024
Round Fin K-2443 |Oval Triple [930-3424 930-3624 930-3824 930-4024 930-4224 930-4424 930-4624
ain kl
Fitting “L"  IK-2541 |steet_ [Single [931-0324 931-0524 931-0724 931-0924 931-1124 931-1324 931-1524
K-2542 |Sheaves, |Double|931-1824 931-2024 931-2224 931-2424 931-2634 931-2834 931-3024
K-2543 [Diamond ffripte [931-3424 931-3624 931-3824 931-4024 931-4224 931-4424 931-4624
Stock Numbers for Bolt Type Chain Shackle “N”, Galvanized
k-2441BI|Stee! [Single |930-0328 930-0528 930-0728 930-0928 930-1128 930-1328 930-1528
K-2442B|Sheaves|Double] 930-1828 930-2028 930-2228 930-2428 930-2628 930-2828 930-3028
K-2443B|Oval [Triple |930-3428 930-3628 930-3828 930-4028 930-4228 930-4428 930-4628
Bolt Type
Chain Shackle,
j Fitting “N”

These blocks can be furnished with steel or . ‘\
iron sheaves up to 14”. Steel sheaves are yy \
available in 16” and larger sizes. Blocks have a,
bronze, self-lubricating bushings and are q cat
available painted or galvanized. Grooved bronze ly: ie
bushings with pressure grease lubrication are { i) >
available. All fittings are drop forged. v3 i a CAN
oo, Drop Links i Locking ;
Specifications K-2610 £ K-2710 ==
Block Size, Inches 4 6 8 10 12 14 16 20
Rope Diameter, Inches ¥% Yw-% w-% % Y% %-% Te-1 1% - 1%
Sheave 0.0. | 4 6 8 10 12 14 16 20
Size, Rim | 1 1% 1% 1% 1% 1% 2M
Inches Ctr. Pin Dia] ¥% % % 1 1% 1% 1% 1%
Weight in {Drop Link 6 14 26¥2 38 65 94 140 —
. Pounds 6 16 28 49 73 104 172 265
FittiNQS Working Load Limit", Tons | _1 2 3 4 5 62 10 15
J . apy DOP Link K-2610
A Stock Numbers for Swivel Hook “H” Locking K-2710
Swivel Hook,[Iron Drop Link | 932-1513 932-1713 932-1913 932-2113 932-2313 932-2513
Fitting “H” Sheaves. 932-3213 932-3413 932-3613 932-3813 932-4013 932-4213
ed Drop Link | 932-6513 932-6713 932-6913 932-7113 932-7313 932-7513
Galv. 932-8213 932-8413 932-8613 932-8813 932-9013 932-9213
eal Drop Link | 932-1523 932-1723 932-1923 932-2113 932-2323 932-2523 932-2723
Painted. 932-3223 932-3423 932-3623 932-3823 932-4023 932-4223 932-4423 932-4823
lll Drop Link | 932-6523 932-6723 932-6923 932-7123 932-7323 932-7523 932-7723
Galv. _ 932-8223 932-8423 932-8623 932-8823 932-9023 932-9223 932-9423 932-9823
a ; ; cum Drop Link K-2630
1 f Stock Numbers for Swivel Hook with Latch “V” Locking K-2730
s) © Hee ee Drop Link | 932-1519 932-1719 932-1919 932-2119 932-2319 932-2519
Swivel Hook |Painted - 932-3219 932-3419 932-3619 932-3819 932-4019 932-4219
ent iron, [Drop Link | 932-6519 932-6719 932-6919 992-7119 932-7319 932-7519
— Galv. 932-8219 932-8419 932-8619 932-8819 932-9019 932-9219
a Drop Link | 932-1529 932-1729 932-1929 932-2129 932-2329 932-2529 932-2729
Painted. 932-3229 932-3429 932-3629 932-3829 932-4029 932-4229 932-4429
Sr wes Drop Link | 932-6529 932-6729 932-6929 932-7129 932-7329 932-7529 932-7729
Galv. 932-8229 932-8429 932-8629 932-8829 932-9029 932-9229 932-9429
*Warning: Do not exceed the Working Load Limit. continued

Fittings
e( Block Size, Inches 4 6 8 10 12 14 16 20 ||
~ s , “Dp” Drop Link K-2650
. Stock Numbers for Drilled Swivel Eye “P Locking K-2750
i iron‘ |Ptd. —_ Locking |932-3215 932-3415 932-3615 932-3815 932-4015 932-4215
Srilted Sheaves |Galv. [Locking |932-8215 932-8415 932-8615 932-8815 932-9015 932-9215
Swivel Eye, [Steel |Ptd. _ [Locking |932-3225 932-3425 932-3625 932-3825 932-4025 932-4225 932-4425
Fitting “P” [Sheaves 932-8225 932-8425 932-8625 932-8825 932-9025 932-9225 932-9425
xy Drop Link K-2670
Stock Numbers for Drilled Swivel Eye with Shackle “Q” Locking -2770
Iron |Ptd. _ [Locking |932-3216 932-3416 932-3616 932-3816 932-4016 932-4216
Drilled Sheaves |Galv. Locking |932-8216 932-8416 932-8616 932-8816 932-9016 932-9216
ot ei Stee! |Ptd. [Locking 932-3226 932-3426 932-3626 932-3826 932-4026 932-4226|932-4426 932-4826
Fitting “OQ” [Sheaves 932-8226 932-8426 932-8626 932-8826 932-9026|932-9226 932-9426 932-9826
. cy Drop Link K-2660
Stock Numbers for Oblong Swivel Eye “T Locking K-2760
iron |Ptd. _ [Locking [932-3217 932-3417 932-3617 932-3817 932-4017 932-4217
Sheaves 932-8217 932-8417 932-8617 932-8817 932-9017 932-9217
Seal eee Steel 932-3227 932-3427 932-3627 932-3827 932-4027 932-4227 932-4427 932-4827
Fitting “T” [Sheaves 932-8227 932-8427 932-8627 932-8827 932-9027 932-9227 932-9427 932-9827
. . apps Drop Link K-2680
; Stock Numbers for Oblong Swivel Eye with Shackle “U Locking K-2780
iron Pt. 932-3218 932-3418 932-3618 932-3818 932-4018 932-4218
eave Eve Sheaves |Galv. 932-8218 932-8418 932-8618 932-8818 932-9018 932-9218
with Shackle |stee_|Ptd. [Locking | 932-3228 932-3428 932-3628 932-3828 932-4028 932-4228 932-4428 932-4828
Fitting “U" —|Sheaves Galv. 942-8228 932-8428 932-8628 932-8828 932-9028 932-9228 932-9428 932-9828

These positive locking blocks can be furnished = \) iy]
with iron or steel sheaves and with a painted or ECN
galvanized finish. They are available with bronze, =) \
Fittings self-lubricating bushings, or grooved bronze = bd
bushings with pressure grease lubrication. All =
fittings are drop forged. Figure 4082 is furnished ol feet vy
~ with galvanized finish only. It is available in 16” BS} Y/ N .
iw through 24” sizes on special order. Co 1
; Vb Kas = /~Cs Steel Plate |
. Ny with Tarbox Yama
Swivel Hook, K-2810 ae Head K-2889 =
Fitting “H”
Specifications
Block Size, Inches 6 8 10 12 14
| io Rope Diameter Inches ¥%-Vo Ve-5/ %e Vy -7e
Sheave |0.0. | 6 8 w 12 14
Swivel Hook, Size, Rim] 1% 1% 1%. 1%
Pitting “ inches Ys %e 1 1% 1%
Weight in Pounds 17 31 42 74 94
a 1) 2 3 4 5 6Y2
we: Stock Numbers for Figure 4081 with Iron Sheave, Painted
Pe Steel Plate
rilled rT.
Swivel Eye, | K-2810 | K-2819 932-0313 932-0513 932-0713 932-0913 932-1113
Fitting “P” | K-2830 | K-2839 [| ——-V_| 932-0319 932-0519 932-0719 932-0919 932-1119
| K-2850 | K-2859 | ~~ P_| 932-0315 932-0515 932-0715 932-0915 932-1115
K-2870 K-2879 | —— Q__| 932-0316 932-0516 932-0716 932-0916 932-1116
K-2860 K-2869 932-0317 932-0517 932-0717 932-0917 932-1117
K-2880 932-0318 932-0518 932-0718 932-0918 932-1118
exe - Stock Numbers for Figure 4081 with Steel Sheave, Painted
wivel Eye
with Shackle, Tar Box | Steel Plate
Fitting “Q”
: | K-2810 | K-2819 [Fitting H_ | 932-0323 932-0523 932-0723 932-0923 932-1123
| K-2830 | K-2839 | ~~ V_| 932-0329 932-0529 932-0729 932-0929 932-1129
| K-2850 | K-2859 | — P_| 932-0325 932-0525 932-0725 932-0925 932-1125
K-2870 K-2879 | —_— Q_| 932-0326 932-0526 932-0726 932-0926 932-1126
K-2860 K-2869 932-0327 932-0527 932-0727 932-0927 932-1127
ai K-2880 932-0328 932-0528 932-0728 932-0928 932-1128
ong
Swivel Eye, F : .
Fitting “T" Stock Numbers for Figure 4082 with Steel Sheave, Galvanized
K-2860 | K-2809 ae Fitting T | 932-9950 932-9951 932-9952 932-9953 932-9954
K-2880 | K-2889 |Lube 932-9938 932-9939 932-9940 932-9941 932-9942
| K-2860 | K-28609 | Pressure | Fitting T | 932-9944 932-9945 932-9946 932-9947 932-9948
Oblong K2860 | 2869 [Tube 932-9930 932-9931 932-9932 932-9933 932-9934
Swivel Eye
with Shackle, “Warning: Do not exceed the Working Load Limit.
Fitting “U"

These blocks have steel sheaves and bronze, \
self-lubricating bushings. They have a painted \
finish, and all fittings are drop forged.
4091 H “ata Fitting ““V”
Stock Numbers _| Rope Sheave Size, Inches _| Weight | Load
Dia., Center jin Limit*,
4091 H | 4091 V | Inches Pin Dia} Pounds} Tons
932-9905 932-9919 6 1 1 16 3
932-9906 932-9921 % 8 1% 1% 36 4
932-9907 932-9923 % 10 1% 1% 55 5
932-9908 932-9925 % 12 1% 1% 81 6
All-Steel Snatch Blocks with Tapered
Roller Bearings
These blocks feature steel sheaves and -
tapered, roller bearings with pressure grease ai
lubrication. All fittings are drop forged. ¢ =
Swivel | }] ‘«; Swivel
Shackle Wjgxasae? Clevis sag Hook
4093 Q y 4094 aa 4095 H
Stock Numbers Rope Sheave Size, Inches Weight in Pounds Load
4093 Q 4094 Inches Dia. 4093 Q| 4094 Tons
932-9909 932-9912 932-9915 ‘%-% 6 1% 1% 30 24 34 6
932-9910 932-9913 932-9916 %-% 8 1% 1% 41 34 53 8
932-9911 932-9914 932-9917 %4-% 10 1% 2 79 67 82 10
*Warning: Do not exceed the Working Load Limit.

rleavy Dely. All Purpose Snatch Blocks
These blocks have steel sheaves and grooved 7
bronze bushings with pressure grease y
lubrication. They feature a steel sleeve over a A
steel pin for increased strength and durability. a!
They are available with a combination score _ = ] /
sheave suitable for a variety of sizes of wire i ee
rope. Choice of painted or galvanized finish. All Vp f
fittings are drop forged. ae
Specifications Block Size, Inches 6 8 10
Rope Diameter, Inches Ye-1¥e = 5/g-11/, Ya- 1%
lod. =| 6 8 10
Sheave 1 11/
Sire, 1% 2 1%
Fittings Inches 1% 21/4 2%
Weight in Pounds 40 72 97
rine oo y a Stock Numbers for Figure 4101 with Painted Finish
K-6110 Fitting H 733-0643 733-0843 733-1043
K-6130 V 733-0649 733-0849 733-1049
eis coms i 7% Stock Numbers for Figure 4101 with Galvanized Finish
with Latch, \
Fitting “V” K-6110 Fitting H 733-5643 733-5843 733-6043
K-6130 Vv 733-5649 733-5849 733-6049
/K-6150 —s—~P._| 733-5645 733-5845 733-6045
Drilled . te) K-6170 Q 733-5646 733-5846 733-6046
Swivel Eye, - K-6160 T 733-5647 733-5847 733-6047
Fitting “P” ia K-6180 U__| 733-5648 733-5848 733-6048
Drilled
Swivel Eye
with Shackle,
Fitting “Q”
Oblong
Swivel Eye,
Fitting “T”
Oblong
Swivel Eye
with Shackle, ; —
Fitting “U” “Warning: Do not exceed the Working Load Limit.

Extra Heavy, Eastern Pattern Snatch Blocks

These blocks feature steel sheaves and bronze : Xe

self-lubricating bushings. A steel sleeve over the = f |

sheave pin increases strength and durability. { \ Ss

Their combination score sheave handles a = U

variety of sizes of wire and manila rope. Figure - \. :

4102 is available either painted or galvanized. / =

Figure 4103 is available with a galvanized finish *) wee) are.

only. All fittings are drop forged. ) —.

K-6210 c K-6380
Specifications Block Size, Inches 6 8 10 12 14

Inches ¥% V2 % VY %
Sheave 1 ky r] 1 4
g Inches 1 1% 1% 1% 1%
Cc Weight in Pounds 10 19 36 49 64
YJ) J \werning Loaa tin tons | 23 BT
Swivel Hook, So
Fitting “H" q Stock Numbers for Figure 4102 with Painted Finish
: , K-6210 Fitting H 933-1623 933-1823 933-2023 933-2223 933-2423
Swivel Hook ; K-6230 Vv 933-1624 933-1824 933-2024 933-2224 933-2424
Piting "v off Stock Numbers for Figure 4102 with Galvanized Finish
K-6210 Fitting H 933-6623 933-6823 933-7023 933-7223 933-7423
K-6230 Vv 933-6624 933-6824 933-7024 933-7224 933-7424
Drilled /K-6250 ——s—~P_—=|. 933-6625 933-6825 933-7025 933-7225 933-7425
ae rye. K-6270 Q | 933-6626 933-6826 933-7026 933-7226 933-7426
ittin
2 K-6260 T 933-6627 933-6827 933-7027 933-7227 933-7427
K-6280 U 933-6628 933-6828 933-7028 933-7228 933-7428
Drilled
Swivel Eye Stock Numbers for Figure 4103, Positive Locking
with Shackle, _ . .
Fitting “Q” with Galvanized Finish
K-6360 Fitting T 933-9721 933-9723 933-9725 933-9727 933-9729
K-6380 U 933-9722 933-9724 933-9726 933-9728 933-9730
Oblong
Swivel Eye,
Fitting “T”
Oblong
Swivel Eye
with Shackle,
Fitting “U”

These fully galvanized blocks for wire or
manila rope feature steel sheaves and forged
steel swivel hooks, yokes and shackles. Three
inch blocks have bronze, self-lubricating
bushings, while all 4%” and larger blocks feature
Alemite lubrication. Six inch blocks and larger
are available with either bronze bushings or
roller bearings. A special feature of these blocks
is that the bolt cannot be lost when the block is
opened.
6010 gy 6030 6070 ee 6060
Specifications
Sheave Dia., Inches 3 4% 6 8 10 12 14
Rope [Manila | o— 1  —  —  — =
heave 3 4Y: 6 8 10 12 14
inches % 1 1%. 1% 1% 1% 1%
Weight in 5 12 26 34 42 49 56
Pounds 3 6 15 22 30 37 44
2 4 8 8 8 8 8
Stock Numbers Fitting K-6010 K-6030 K-6070 K-6060 K-6000
for Fittings 3” Self-lube|Wire _| 733-9750 733-9754 733-9752 733-9753 733-9755
- Bronze(Wite— 733-9760 733-9764 733-9762 733-9763 733-9765
[Manila —_—‘|_ 733-9770 733-9774 733-9772 733-9773 733-9775
—— Wire _—| 733-9790 733-9794 733-9792 733-9793 733-9795
[Manila __| 733-9810 733-9814 733-9812 733-9813 733-9815
2 Rehr 733-9780 733-9784 733-9782 733-9783 733-9785
[Manila —_|_ 733-9800 733-9804 733-9802 733-9803 733-9805
733-9830 733-9834 733-9832 733-9833 733-9835
8” Roller 733-9820 733-9824 733-9822 733-9823 733-9825
110" Bronze | 733-9850 733-9854 733-9852 733-9853 733-9855
733-9840 733-9844 733-9842 733-9843 733-9845
Teen NWigg 733-9870 733-9874 733-9872 733-9873 733-9875
“Waring: Do not exceed the 12” Roller 733-9860 733-9864 733-9862 733-9863 733-9865
Working Load Limit. 114” Bronze | ica 733-9890 733-9894 733-9892 733-9893 733-9895
14” Roller 733-9880 733-9884 733-9882 733-9883 733-9885

All blocks are made single. double, triple and
quadruple with either oval or diamond shells.
They have grooved bronze bushings, pressure
grease lubrication or roller bearings. Blocks are
galvanized, and have steel sheaves for 34” aw
cian.eter wire rope. \ | \
VBS z
if é e\.\a\W
Single Double \ Quadruple t
wigs : K-7641 Oval K-7642 Oval & K-7643 Oval &7
Specifications K-7741 Diamond K-7742 Diamond K-7743 Diamond
Dia.; Working Load Limit*, Tons Weight in Pounds
inches | Single | Double | Triple | Quad. | Singie | Double | Triple [ Quad. |
6 Tip 10 121% 15 25 41 59 75
8 To 10 121% 15 36 52 66 85
10 7% 10 12% 15 44 68 87 100
12 TV2 10 12% 15 51 77 102 125
14 7% 10 12V 15 72 112 152 175
i oe EEE
Stock Numbers for Oval Blocks
Sheave Grooved Bronze Bushed Roller Bearing
Dia., K-7641 K-7642 | K-7643 | K-7644 | K-7641 | K-7642 | K-7643 | K-7644
Inches | Single Double Triple Quad. Single Double |_ Triple Quad.
6 942-0111 942-0211 942-0311 942-0411 942-0131 942-0231 942-0331 942-0431
8 942-0112 942-0212 942-0312 942-0412 942-0132 942-0232 942-0332 942-0432
10 942-0113 942-0213 942-0313 942-0413 942-0133 942-0233 942-0333 942-0433
12 942-0114 942-0214 942-0314 942-0414 942-0134 942-0234 942-0334 942-0434
14 942-0115 942-0215 942-0315 942-0415 942-0135 942-0235 942-0335 942-0435
Stock Numbers for Diamond Blocks
Sheave Grooved Bronze Bushed Roller Bearing
Dia., K-7741 | K-7742 | K-7743 | K-7744 | K-7741 | K-7742 | K-7743 | K-7744
Inches | Single Double Triple Quad. Single | Double | Triple Quad.
6 942-5111 942-5211 942-5311 942-5411 942-5131 942-5231 942-5331 942-5431
8 942-5112 942-5212 942-5312 942-5412 942-5132 942-5232 942-5332 942-5432
10 942-5113 942-5213 942-5313 942-5413 942-5133 942-5233 942-5333 942-5433
12. 942-5114 942-5214 942-5314 942-5414 942-5134 942-5234 942-5334 942-5434
14 942-5115 942-5215 942-5315 942-5415 942-5135 942-5235 942-5335 942-5435
ran Arne pn lee a eRe ee ear
Ultimate load is four times Working Load Limit.
All Working Load Limits are Resultant Working
Load Limits.

These single, double and triple blocks are ? q
available with either an oval or diamond shell. rf '
Designed for use with 3%” diameter wire rope,
they have steel sheaves and a galvanized finish. Ms
Available with either grooved bronze bushings é
(pressure grease lubricated) or with roller
bearings. ;
Swivel Hook Drilled Eye Oblong Eye
K-7611 Oval K-7651 Oval K-7661 Oval
Single Blocks K-7711 Diamond K-7751 Diamond K-7761 Diamond
Working Oval K-7611 K-7631 K-7661 K-7651 K-7671 K-7681
Sheave Load Diamond | K-7711 K-7731 K-7761 Fitting K-7751 K-7771 K-7781
j Size, |Weight, Limit*,
; Inches |Pounds| Tons Type sy" ye a
. Oval =| Bronze |.942-0511 942-1711 942-1311 942-0911 942-1011 942-1411
saishiiel GBR se we zy, |8831___[Roller_|942-0531_942-1731 942-1331 942-0931 942-1031 _942-1431
Fitting “V" Diamond] Bronze | 942-5511 942-6711 942-6311 942-5911 942-6031 942-6431
6641 [Roller | 942-5531 942-6731 942-6331 942-5931 942-6031 942-6431
Oval | Bronze [942-0512 942-1712 942-1312 942-0912 942-1012 942-1412
P a 7y, (6831 /Roller }942-0532 942-1732 942-1332 942-0932 942-1032 949-1432
Diamond |Bronze | 942-5512 942-6712 942-6312 942-5912 942-6012 942-6412
Drilled Swivel Eye 6641 [Roller |942-5532 942-6732 942-6332 942-5932 942-6032 942-6432
oe Oval 942-0513 942-1713 942-1313 942-0913 942-1013 942-1413
oes 6 ig zy, {8831 Roller | 942-0533 942-1733 942-1333 942-0933 942-1033 942-1433
Diamond [Bronze | 942-5513 942-6713 942-6313 942-5913 942-6013 942-6413
6641 {Roller | 942-5533 942-6733 942-6333 942-5933 942-6033 942-6433
O [Bronze | 942-0514 942-1714 942-1314 942-0914 942-1014 942-1414
wma eee 4 - 7 [Roller |942-0534 942-1734 942-1334 942-0934 942-1034 942-1434
Ww 2 7 ee eee
wth Stacks, Diamond|Bronze | 942-5514 942-6714 942-6314 942-5914 942-6014 942-6414
Fitting “U” 6641 [Roller |942-5534 942-6734 942-6334 942-5934 942-6034 942-6434
DOUBLE TRIPLE
F : F VAL K-7612 -71632 OVAL K-7613 K-7
Double and Triple Blocks with Swivel Hooks aa ahet K-7712 phe DIAMOND ype egies
Inches ype pow Tow Tow Tow |
942-0611 942-1811 942-0711 942-1911
= late [Roller ||942-0631 942-1831 942-0731 942-1931
; & 80 Diamond [ronze_|| 942-5611 942-6811 942-5711 942-6911
 ) amon {Roller _ || 942-5631 942-6831 942-5731 942-6931
r [Bronze |/942-0612 942-1812 942-0712 942-1912
pe | to 10 |Roller ||942-0632 942-1832 942-0732 942-1932
3 : = & — 942-5612 942-6812 942-5712 942-6912
ef [Roller | 942-5632 942-6832 942-5732 942-6932
; [Bronze | 942-0613 942-1813 942-0713 942-1913
hs 5 [Roller |/942-0633 942-1833 942-0733 942-1933
Double alo in Diamond Bronze 942-5613 942-6813 942-5713 942-6915
(oH Deven) [Roller 1942-5633 942-6833 942-5733 942-6933
“ae vat | Bronee 942-0614 942-1814
6633H Oval ~ ™ _ ——— [Roller 942-0634 942-1834
6643H Diamond Diamond [Bronze [942-5614 942-6814
[Roller ||942-5634 942-6834

These single, double, trip!e and quadruple
blocks have steel sheaves and a galvanized
finish. They are available with either grooved
bronze bushings or roller bearings. Blocks with
five or‘more sheaves can be made to order.
S f A eee os
ry 6733LD 6734ZD
Single Double Triple ®&JY Blocks with Shackle eee —
; : Link and Shackl ti IS
K-7841 Oval K-7842 Oval K-7843 Oval pica to order. ° re to ace
K-7941 Diamond «-7942 Diamond K-7943 Diamond
Specifications
Block Size, Inches 10 12 14 16 18 20 24
Wire Rope, Inches Ya % % % 1 4s 1%
[Single | 94 118 131 195 260 420 575
—_ 112 157 205 295 385 580 840
Pounds 148 197 275 370 475 690 1,230
Quad. | _191 276 $55 545 660 770 1,700
1 15 18 20 25
Working Single 10 10 0
ons 15 15 20 25 30 35 45
Limit’, 20 20 30 35 45 55 65
Tons Quad. | 25 25 40 50 65 75 90
Stock Numbers
K-7841 [Single — |942-2113 942-2114 942-2115 942-2116 942-2117 942-2118 942-2119
era K-7842 [Double  |942-2213 942-2214 942-2215 942-2216 942-2217 942-2218 942-2219
ual ’ |K-7843 [Triple _ | 942-2313 942-2314 942-2315 942-2316 942-2317 942-2318 942-2319
K-7844 | Quad. __|942-2413 942-2414 942-2415 942-2416 942-2417 942-2418 942-2419
K-7941 [Single [942-7113 942-7114 942-7115 942-7116 942-7117 942-7118 942-7119
cer mee K-7942 [Double  |942-7213 942-7214 942-7215 942-7216 942-7217 942-7218 942-7219
Diamond |K-7943 [Triple _ | 942-7313 942-7314 942-7315 942-7316 942-7317 942-7318 942-7319
K-7944 [Quad. __|942-7413 942-7414 942-7415 942-7416 942-7417 942-7418 942-7419
K-7841 |Single — |942-2133 942-2134 942-2135 942-2136 942-2137 942-2138 942-2139
ced K-7842 942-2233 942-2234 942-2235 942-2236 942-2237 942-2238 942-2239
Oval | K-7843 942-2333 942-2334 942-2335 942-2336 942-2337 942-2338 942-2339.
K-7844 [Quad. | 942-2433 942-2434 942-2435 942-2436 942-2437 942-2438 942-2439
K-7941 |Single _|942-7133 942-7134 942-7135 942-7136 942-7137 942-7138 942-7139
Seales K-7942 [Double  |942-7233 942-7234 942-7235 942-7236 942-7237 942-7238 942-7239
Diamond |K-7943 [Triple |942-7333 942-7334 942-7335 942-7336 942-7337 942-7338 942-7339
K-7944 |Quad. | 942-7433 942-7434 942-7435 942-7436 942-7437 942-7438 942-7439
Ultimate load is four times Working Load Limit.
All Working Load Limits are Resultant Working
Load Limits. .

These blocks are all Made to Order. They can be y
furnished with iron or steel sheaves and a
painted or galvanized finish. Choose either O°
bronze, self-lubricating bushing; or pressure
grease lubricated, bronze or tapered roller |
bearings. | (0) Cc
Vertical
Horizontal A ae
Block Size, Inches 3 4 6 8 10 12 14 ||
Sheave [|00. | 3 4 6 8 10 12 14
Size, }Rim | 3/4 3/4 1 1/4 1/4 1/2 1/2
Inches Pin | "le "le 3/4 7/8 1 1'/g 1/4
Dimensions 31/2 4/2 61/2 87/s 12 14 151/2
Inches, |B | 3% 33/4 41/2 5 5 53/4 6/2
Fig. 4152 5 57/e Bie 10a 12"l2 1514 17"/2
Dimensions iD 7/4 81/4 113/4 14/2 16/2 18 1/2 21"/2
Inches, [E | 41/2 51/2 7'/2 10 12 14 15
Fig. 4153 11/4 1"/4 1/2 13/16 15/16 21/g 21/4
Resultant Working ;
Load Limit", Tons ' : 2 eve ° ‘ °
These blocks can be supplied with steel sheaves . }
3” to 30” and cast iron sheaves from 3” to 16”. ee :
They feature grooved bronze bushings and ~——— r } 7 v
tapered roller or ball bearings, both pressure — . 4 e
grease lubricated. «@ ; & .
Figure 4155 swings horizontally on trunnions. The C) \ N ;
lower trunnion is hollow and permits wire to pass ej} | Y: ss
vertically through it, so that the wire remains in oe ] f ;
the center line of the trunnions. Trunnions have / od y/ 2
bronze or roller thrust bearings, with pressure of y Eee BE ETE
grease lubrication. S: r iT lcceemetaneumemeed ii
K-6503 K-6504
“Warning: Do not exceed the Working Load Limit.

Flatted, Flatted Loose, Flatted, Stiff, Front Eye, Flatted,
Loose Hook with Latch, Swivel Hook with Latch, Swivel Hook with Latch, Bosloc Safety Hook, Loose Hook,
Fitting “F” Fitting “G" Fitting “V" Fitting “X" Fitting “W"
LO | | Lf lok
7; KY) Drilled Swivel Eye
Flatted, Stiff, Loose Swivel, Raymond and Screw Pin
Swivel Hook, Releasing Hook, Drilled Swivel Eye, Chain Shackle, Oblong Swivel Eye,
Fitting “H” Fitting “XX” Fitting “P” Fitting “Q” Fitting “T”
Oblong Swivel Eye 4
and Screw Pin Pear Shaped Round Pin Upset Shackle
Chain Shackle, Swivel Eye, Jaw and Eye Swivel, Chain Shackle, in Shackle,
Fitting “U" Fitting “EE” Fitting “NN” Fitting “L” Fitting “LL”
als fr SS
AHS
Upset Safety O a!
Upset, Screw Pin Safety Chain Shackle Chain Shackle
Anchor Shackle, in Oblong Swivel Eye, in Drilled Swivel Eye,
Fitting “KU” Fitting “Y” Fitting “Z”
nnn:

Method of Reeving Manila and Wire Rope Blocks
The methods of reeving tackle blocks will vary
with the applications. With heavy lift cargo
booms, cranes and so forth, where blocks with
four sheaves or more are required, a number of
lead blocks have to be considered. The
engineering department will be
happy to assist on such applications.
Lone | WONG. Worry 4 4 Ase ep } 4 CROYS WS \)
Method of Figuring ‘Parts of Line” ~
L. =Load lifted in pounds 12
P E = Efficiency factor Factors
For example: To figure “Parts of Line” required
when load lifted “L” and line pull “P” are known.
32,000 Ibs. (load lifted “L") = 53 (“E")
6,000 Ibs. (line pull “P’”)
You can see in the table at the right that an “E”
factor of 5.3 requires 6 “Parts of Line”.

Lineman’s Snatch Block, 5022 4
This galvanized block is used for stringing light &
conductor wire. The hook fits around the insulator \ .
pin or in the insulator hole and can be readily
driven into a pole or cross arm. It is available
with or without the hook, with either bronze, Va
self-lubricating bushings or ball bearing
bushings with pressure grease lubrication.
Locking spring optional. ell
[Stock Numbers _|Weight ee
Bronze {Roller in poe
Description |Bushed |Bushed |Pounds Ly)

With hook 938-0602 938-0601 2% (— :

Without hook 938-0603 938-0604 2% 5022 He

Light Wire Blocks, 5023. g SSS

These galvanized blocks are used to take the a) : =~ i. @ Oo *« os oe yt

slack out of light wire. The assembly locks when te ae SS —— J _—

the fall line is pulled to one side and releases 7 eae SSSASss e)

when pulled to a straight position. Used with %” fee i »

diameter rope (not furnished). Roller bushed oi

sheaves are easily replaced. wi ~% .

Assembly yo.

Stock Weight in WY
Number | Pounds

938-0701 2V%4 ( :

Aerial Hand Line, 5041

The aerial hand line is used to transport : ")

tools and equipment to a man aloft. It consists of |

one roller-bushed, galvanized metal block; two J rt Thimble

snap hooks; one ring; two thimbles and one - Ce

missing link. All metal parts are galvanized. The Snap Hook p Ng \

block can be reeved with 60’ or 75’ of either %” 7 \

or ¥2" manila rope. 4 / \ ()

sos le ( a , Z

Description oe Pounds = “ \a Snap Hook\y Ring
Block with hook only 938-0901 2 Missing Link
Block and hardware 938-0902 2'/2 vy;
Complete, with 60’ x3/s” rope 938-0903 3% it :

—_—_—$———— Thimble Link Thimble
Complete, with 75’ x/e” rope 938-0904  3¥/2 (
Complete, with 60’ 1/2" rope 938-0905  3%/a pa Strap :

i "x 1/2" 38-0906 4% u i
Complete, with 75’ x'/2" rope 9 a \~ J sap Hook Ring
Shell
Pin
Sheave

Cargo Hoisters with Tapered, Roller Bearings “
Designed for wire rope and heavy marine duty. ~~
All fittings are drop forged. Block has pressure -
grease lubrication. The working load limit for a)
cargo hoisters is the line pull, and they are proof ‘
tested to 4 times the working load limit ; cin
Working : =)
Sheave|Wire |Weight jLoad co
Dia., Dia., in Limit’, h &
Specifications Type of Block Inches |Inches |Pounds|Tons oe
Regular he
Drop 16 S-1 135 5 ¥ a
[Forged 1400 Yd 100 10 | \"
Super *
Cast 16 %-1% 190 10 eX. Ne)
Steel Super 18 %-1% 220 ‘10 K-8050
Stock Numbers with Various Fittings
Type of Block P Q T U Y 4
14", Drop [Regular |18739-1451 18739-1452 18739-1453 18739-1454 TB739-1455 TB739-1456
Forged [Super _| 78739-2451 18739-2452 -TB739-2453 TB739-2454 1B739-2455 18739-2456
16’, Drop [Regular |78739-1651 18739-1652 18739-1653 TB739-1654 TB730-1655 TB739-1656
Forged [Super _| 18739-2651 18739-2652 18739-2653 18739-2654 1B739-2655 1B739-2656
Cast Made to Order
Steel Super 18"
Fitting “Q” Fitting “T” Fitting “U" Fitting “Y” Fitting “Z”
K-8070 K-8060 K-8080 K-8080B K-8070
“Warning: Do not exceed the Working Load Limit.

These fittings support the block in the correct A A
position and make tricing unnecessary. They ( —_
automatically adjust and. hold the block at the ‘ a )
angle corresponding to the lead of the wire. The S vy SS B
heat-treated, steel spring ¢reates enough friction <0) FS jr
on each side of the swivel eye of the block to wt oe
support it. This eliminates undue shock and iT ‘ /S) Vp
chafing of the block and the wire rope. eros SSAC >
BOW, gs Afra
a owe
=_" Self-Adjuster Fitting
. with tension pin, star
Typical Boom Step cup spring and
Assembly washers. When
showing appacetion of ordering specify
\ LS i self-adjuster fitting. dimension “A”
Oe poopy hel mie pin)
S and “B” (height o'
(x adjuster fitting) and the
OC} i _— diameter of the tension
=|N = as _— Swinging jaws may be
| L 38 260) TI furnished with
= we QS Th | recessed grease
_) eo UT) fittings for greasing
king pin hole.
Self-Adjuster Fitting Star cup spring, Self-Adjuster Fitting 6011
with pad jaw, two tension pin and with pad jaw, one
tension pins, star cup washers. tension pin, star cup
springs and washers. Available in 1%” and spring and washers.
6014 1%" diameter. 6015
Extra Heavy, Oval Lead Blocks for Wire Rope
These made-to-order blocks are for topping lift
and cargo purchase with 5 to 60-ton booms. They
can be supplied with 12” and larger diameter, )
galvanized steel sheaves. They can be equipped ia
with bronze, self-lubricating bushings; grooved ‘ ¥ -
bronze bushings with pressure grease >) on
lubrication; ball bearings with pressure grease ; D
lubrication; or tapered roller bearings with )
pressure grease lubrication. When ordering, /
specify the following: figure number, fitting, y/ /, | \
diameter of sheave, type of sheave, wire size, { f &\ ,
type of bearing and working load. (0) oe
Safety
Shackle Swivel Eye
K-7040 K-7050

Special, Extra Heavy, Diamond and Oval
These made-to-order blocks for 15 to 60-ton fo (4
booms are available with 12” diameter and larger y ays f J
steel sheaves. They can be equipped with P i
bronze, self-lubricating bushings; grooved a
bronze bushings, ball bearings or roller bearings
having pressure grease lubrication. = oo (ome yy ( 4
When ordering specify: figure number, fitting, AY \ \\
diameter and type of sheave, wire size, type of \ \
bearing, working load, and amount of extra \
weight, if required. \ :
Weighted, Weighted Block with
Plate-Extended Block swiveling twin cargo
with swivel hook. hook and swivel
K-8181 becket.
Diamond Block with Oval Block with Oval Block with Oval Block with
reverse shackle and reverse shackle. reverse shackle, link extended jaw.
swivel becket. K-8191 and safety shackle. K-8193
K-8195 K-8192

SPECIFICATIONS:
Part No. SIZE | DESCRIPTION |NET WEIGHT | MAXIMUM CAPACITY
Ibs./kg dbs./kg RECOMMENDED
084-0004 6” Eyebolt 20/8.1 6000/2428.2 5-10
084-0022 6” | Safety Swivel Hook 22/8.9 6000/2428.2 5-10
084-0040 8” Clevis 38/15.4 8000/3237.6 5-15
084-0068 8” Safety Swivel Hook 45/18.2 8000/3237.6 5-15
084-0086 10” | Safety Swivel Hook 62/25.1 10,000/4047 20-30
A Galvanized 4
A Recessed shell, no jamming of rope vi
A Extra large bearing area, increases life
and strength of block 7
SHEAVE SIZE, INCHES . / ‘
Outside Thickness Approximate Weight A Grooved bronze bushing
ase re | ming | Pounds A All moving parts equipped with pres- Hi w 3
sure grease lubrication "
foKeoes 2% A Wide score steel sheave lengthens life \ y/
Tall Boy 8 1% 28 of galvanized wire & 4
Tall Boy 10 1% 40 A For sizes of wire up to and including 6194
5%" diameter

ADMIRALTY PATTERN BLOCKS

0246-521-2794 ‘@ ap 14384
0246-521-2798
1 | % Lio We ADMIRALTY PATTERN
wy OS ae No. 3005 (AS SHOWN)
, Een No. 3006 (DOUBLE EYE)
Say
ADMIRALTY PATTERN ADMIRALTY PATTERN
No. 4134 No. 4135

MACHINE TESTED TO REQUIRED PROOF LOAD )
MADE EXACTLY TO NAVAL REGULATION AND REQUIREMENTS
j 3 : i : eg > | - 3 3 2 | fi. j er Re
Admiralty Pattern F De Bi Le 4 Es
Admiralty Pattern B
Admiralty Pattern E
Admiralty Pattern Y Admiralty Pattern S
PRICES ON APPLICATION

ADMIRALTY PATTERN SPECIFICATIONS
PATTERN B Py Ps hl PN lg Rat aml z.
Swivel Oval Eye in Line of Sheave Reverse of Sheave of Sheave with Hook with Hook
Becket | Becket | a Becket | Becket | ae Becket | Becket | gXt., | [Becket [Becket |, Mo |" [Becket | Becket, Ne
Block Size 5” | Single |242 £242 F| — | — |iesciiesp| — | — | 92C] e2p| — | — | 1C| 1D| — | — [a6 lae F| — | —
SheaveDia.3}4"| Double|268 E268 F| — | — f191Cji91D| — | — |1lsciliep| — | — |i4ciiap| — | — [60 Eleo F| — | — |
Rope Size 134” | Treble| — | — | —|—|—|—|—|—|—|—|—|—|-|—l-l-|— |- eS
Block Size 6” | Single [243 |244 | — [24aB|le6 lle7 | — | — | 93 | 94 | — | — |1 | 2 |—|—f7 [as | —|—
SheaveDia.3%4"| Double|269 270 | — | — fi92 193 |192B| — [119 [120 | — | — fis fie |isB| —|61 |e2 | — | —
Rope Size 2” | Treble} — | — | — | — | — | — |217Bl2isB] — | — |144B\145B| — | — |— |_| — | —| — /7aB
Snatch} — | — | —|—|—|—|—/—}—/—/—]/—]/—/—_/_/_|/_!/_|/_/\ _
Block Size 8” | Single |247 [248 | — |248B|170 |171 | — | — | 97 | 98A| — | 983] 5 |6 |—|—J|s1 |s2 |—|—
Sheave Dia. 5” | Double|273 |274 | — | — |196 |197 |196B\197B\123 |124 | — 124B\19 |20 l19B| — 65 66 |—|—
Rope Size 214” | Treble “—!/— fo} F—y/—y—]/—]—]—] — fas] —[—|/—_|—_]—_/_ |— fsa
_| Snatch ae ee ee ee a ed en es ee ee eee ee ee ee ee
Block Size 9” | Single |249 250 | — |2s0Bl172 [173 | — | — | 99 |100 |— |—|7 |e |—|—|s3 sa |—|—
SheaveDia.5%4"| Double|275 276 | — | — |198 [199 |198B) — {128 |lae | — | — |21 [22 |21B — 67 [es | — | —
Rope Size 3” | Treble| — | — | — age | —| —| —|—|— a7 |—|—|—|—|—|—|—[—1|— ben
Block Size 10” | Single] — [ — | — | — | — | — | — | — |101 |102 | — liozp]—|—|—|—|—|—|—|—|
SheaveDia.6}4"| Double) — | — | — | — | — |201 | — |2o1Bl127 lize | — | — | —|—|—|—|—|—|—|/_—|
Rope Size 3” Treble) — |—|—|—|—/—/—/—]/—)/)—/—/—]/—/_/—!l_]/_/_/_/_—
‘Snatch}| — | — |} — | —]|—}/—}/—|/—}—/—]/—]/—]/—/—/_/_]/_/_/_/—_
Block Size 11” | Single [253 |254A|2535| — |176 [177 | — | — |103 [104 |lo3Blo4Bll1 |12 |—|—|57 \ss | — | —
Sheave Dia. 7” | Double|279 |280 | — | — |202 [203 | — | — |i29 |130 | — | — |28 26 | —|—|z1 |72 |—|—
Rope Size 334” [Treble |297 [208 | — | — |220 |azi1 | — | — a rs en ee
Block Size 12” | Single 285 [256 | — | — |178 |179 | — | — |i0s los | — | — fis |14 |—|—J|59 60 |—|—
SheaveDia.734"| Double|281 |282 | — | — |204 |205 | — | — |131 |132 | — |132Bl27 28 |—|—l|73 74 |—|—
Rope Size 4” ‘Treble 299 [300 | — | — 222 l223 |— | —|—|—j|—)—|—|—/—}/—]—|—|—_/—
Snatch} — | — | —|—]—|—}!—|/—|!—!—]/—/—]—!/—_/_—l_|/_/_/_l
Block Size 13” Single p—|—[—|—. — |— |— |— fio7 log | — llogp}] ——|—|—-|—|—|—|—|—
SheaveDia.934""| Double) — | — | — | — | — | — | — | — ]133 l134 | — |134B)] —|/—|—}/—]|]—/—]/—]/—_|
‘Double! =| | | | | | | | | |  +~W|aael | | | | |) |
Rope Sise 4” - | Treble| — | — | — | — | — | — |— | — | — | — | — | — [— |= |— |—]-]/— ]/ = |=
Block Size 14” | Single |259 |260 | — | — |1e2 |le3 | — | — |1o9 10 | — | —|—|—|—|—|—|—|—|—|
Sheave Dia. 9” | Double|285 |286 | — | — |208 |209 | — | — |i35 l136 | — |136B] —|—|—|—]—|—|—|—
Rope Size 414” Treble {303 |304 | — | — 226 laa7 | —|—}—|/—j|—1|—1|—|—|—/|—|!—|—|_/|—
Snatch} — | — | —/}—|—}/—}/—]|—]—|/—/—/—]/—_/_/—_!|—|l_/_|_|_
Block Size 15” Single| — | — | —|—]|—|—|— \ress] —|—|—/—{—|—/_|/_]|_|/_|_l_—
SheaveDia.934"| Doublel — | —|—|—|—|—|—1—|—|—|-1— lo Ocoee
Rope Size 5” | Treble) — | — | — | — | — | — |azeplazon]) — | — | — | — | |—|/—|/—]—]|/—]—/—_|
Block Size 16” | Single |263 |264 | — | — |1@6 lle7 | — | — fila \114.| — | — |—|—|—|—|—|—|_—|—
Sheave Dia. 10"| Double|289 |290 | — | — |2i2 |2i3 | — | — |i39 ji40 | —  — |—|—|—/—]—|/—/—|/—
Rope Size 544" | Treble |307 |308 | — | — l230 |231 | —|—|—{—|—/—1|—|—/—/—]—/I—|/—|—_ |
Snatch} — | —|—|/—{}]—|—|/—/—]/—]/—1/—]/—]/—_/_/_/_!/_|_/_/_—
Block Size 18” | Single 265 |266 | — | — |les liso | — | — flis lle | — | — |—|—|—|—]—|—|—|—
SheaveDia.11}"| Double|291 [292 | — | — Jia |ais | — | — fiai |i42 | — | — [—|—|—|—]—/—/—]}—
Rope Size 6” | Treble [309 [310 | — | — ja32 i233 | — | — | — | — | — | — |—|—|—|—]—)—f— J —
Snatch | — |= s—|—|—|— ri. | —| —]|—|—o1t—1i—)/—|—_/—/—1/—_|—!1_—
Block Size 20” | Single |267 268 | — | — [190 jiol | — | — |ti7 tie | — | — |—|—|—|—]—|—|—|—
SheaveDia.124"| Double|293 |204 | — | — |aie j2i7 | — | — |i4s 144 | — | — |—|—|—|—]—|—|—|—
Rope Size 614’ | Treble |311 {312 | — | — 234 j235 | — | — | —|—|—}/—]}—|—|—|—|—|—|/—|/—

neo, = aad MF 4
K-2514 K-2515 K-2516
SWIVEL SHACKLE — FORGED STEEL K-2516
ALUMINUM ALLOY STEEL
SHEAVE SHEAVE
BRONZE ROLLER BRONZE ROLLER
BUSHING BEARING BUSHING BEARING
6 inch 078-2996 078-3021 078-3067 078-3012
8 inch 078-3003 078-3049 078-3085 078-3030
SWIVEL SAFETY HOOK — FORGED STEEL  K-2514
ALUMINUM ALLOY STEEL
SHEAVE SHEAVE
BRONZE ROLLER BRONZE ROLLER
BUSHING BEARING BUSHING BEARING
078-3058 078-3094 078-6803 078-6849
078-3076 078-6796 078-6821 078-6867
FORGED STEEL YOKE K-2515
a ALUMINUM ALLOY STEEL
SHEAVE SHEAVE
BRONZE ROLLER BRONZE ROLLER
BUSHING BEARING BUSHING BEARING
078-6885 078-3325 078-3361 078-3101
078-3307 078-3343 078-3389 078-3129

ae awe

high lift blocks a

CRANE BLOCKS WITH 072-0107

THRUST BEARING HOOKS 072-3603

i “ = 072-0205

— -~s. 072-0241

Net ae 072-0269

WV Q yn 072-0303

a VA 1h 072-0321

SSbab \ 072-0401

"=.4 072-0447

‘a\S 072-0465

AWN 072-0660
vod pa. 07250686 _

Ya G 072-0704

=a ww. J] 072-0722

- Spe 072-2409

WIS = ore 289

\\ /} ae aA 072-2506 _

X - 072-2524

INA 072-0018

v ee 072-0054

| ‘ip 072-0072

a ww 072-0090

—— y e 072-0116

“ cae + 072-0134
tt @ 072-3612
f eel 072-3658
RR ee : 3 072-3694 _
ae es » 072-0214

Bien 072-0330
re, « |. 072-0410
page ee ee 072-0474

fae ie ig eee 072-0517

re ee 072-0615
ss Se ee ee 072-0651

Poa fT eB Tl lc TT ob fT ec T FY
Throat

Open- Throat Total Total

Max. ing Open- Weight Weight

Wire With- in Sheave Cheek Without Wi

Tons Size Latch Latch Dia. Weight Plates Plates
| 60 | %” | 16” | 5 | 18%” | 17%" | 43%” | 5%” | 5%” | 3” | 270# | 1060# | 1330# |
(3] 65 | %” | 16" | 5 | 18%” | 17%" [ 43%" [ 5%” | 5%” [ 3” | 270% [ 1060# | 1330# |
(i 40 | %" | 16” | 6 [ 20” | 17%" | 37%" | ay” [ 3%” [ 3” [| 270% | 830# | 1100# |
| 45 | %” | 16” | 6 | 20” | 17%" | 37%" | 4%” | ay" | 3” [| 270# | 930# | 12004 |
(2y|_50_[ %” | 16” | 6 | 20" 7" [374 [ay [ay” [3 | 270# [ 930# | 1200# |
| 10 | %” | 18” | 1 | 38%" | 19%" | 32%" T 2y" | 24" | 3” | 300% | 285% | 585# |

| 15 | %” | 18” | 1 | 3%” | 19%" | 34x” | 3%” | 3” | 3” | 300% | 305# | 605#

| 25 | %” | 18” | 1 | 3%” | 19%" | 35%” | 4” | 3%” | 3” | 300% | 330# | 630#

| 30 | %” | 18” [1 | 3%” | 19%" | 35%” | 4” | 3%” | 3” | 300% | 330# | 630#
| 20 | %” | 18” | 2 | 38%” | 19%" | 34%” | 3%” | 3” | 3” | 300% | 340# | 640# |
| 25 | %” | 18” | 3 | 11%” | 19%” | 35%” [| 4” [ 3" | 3” | 300% | 425# | 725# |
(mf 40 | %”" | 18” | 3 | 11%” | 19%” | 3a%” [ 44” | 3%” [| 3” | 300# | 4e5# | 7es# |
(2]_ 50 | %” | 18” | 3 | 11%” [ 19%” | 39%” | 4x” [ ay” | 3” | 300% | 525# | s25#_|
(2]_ 50 [| %” | 18” | 4 | 1sy” | i9%” | ain” | ax” [ ay” [ 3” | 290% | 7e0# | 1050# |
| 60 | %” | 18” | 4 | 16%” | 19%” | 45%” | 5%” | 5%” | 3” | 290% | 1010# | 1300# |

| 35 | %” | 18” | 5 | 16%” | 20” | 30%” | ay” | 3%” | 3” | 300# | 7e0# | 1060# |

mm} 40 | %” | 18” | 5 | 16%” | 20” | 30%” [ ay” | 3%” [ 3” | 300# | 760# -| 1060# |
| 45 [| %” | 18” | 5 | 16%” | 20" | 41%” | ay” | ay” [ 3” | 200% | 1010# | 1300¢# |
(50 | %” | 18” | 5 | 16%” | 20" | 41%” | ay” | ay” | 3” | 200% | 1010# | 1300# |
| 60 | %” | 18” | 5 | 18%” | 20" | 56%” | 5%” | 5%” | 3” | 290% | 1110# | 1400# |
(3) 65 | 7%" | 1g” | 5 | 18%” | 20” | 564” | 5%” | 5%” | 3” | 290% | 1110# | 1400¢# |
| 25 | 1” | 207] it 9” | 21%" J 38%" | 4” 7 3" | 34%" | 3657 | 4007 | 765? |
| 35 | 1” [ 207 [1 | 9” 21%" [41y%” | ay” | 3%” | 34” | 365# | 450# | 815# |
| 35 [ 1” | 207 | 2] 9” | aim Tain” Tay” | 3%” | 3y” | 365# | 495# | s60# |
mf 40 fa" | 20” [2 | 9” Tain” Tax” Tay” | 3%” | 3y” | 365# | 4954 | 860+ |
| 45 | a” [207 | 2 9” | 2iy" [ain [ay | ay” | 3y" | 365# | 535# | 9008 |
(at_ 50 | 1” | 20” | 2] 9” | 2iy" TaiK” | ay” [ ay” | 34” | 365# | 535# | 9008 |
| 45 [ 1” | 20” | 3 [11% | 214%" [aay | ay” | ay” | 34" | 365# | 605# | 9708 |
(a|_ 50 [ 1” | 20” | 3 | 11%” | 21%” [aay | ay” [ayn | 3y” | 365¢ | 605# | 970# |
| 75 [ i” | 20” | 3 | 11%” | aim" | 50%” T 64” | 5%” | 3%” | a00# | 1045¢ | 14454
(aj_so [| 1” [ 20” | 4 | 15%" | 22” [aay | ay” | ay” [ 3%” | aoo# | 800# | 1200# |
| 60 | 1” | 20” | 4 | az” | 22” | aay” | 5%” | 5%” | 3%” | 400# | 1110# | 1510¢# |
(y_65 [ 1” | 20” [ 4 | ivy” | 22” | aay” | 5%” [ 5%” | 3%” | ao0# | 1110# | 1510¢# |
| 75 | 1” | 20” | 4 | 16%" | 22” | 50%” | 6%” | 5%” | 3%” | a00# | 1275# | 16754 |

| so | 1” | 20” | 4 | 16%" | 21%” | 50%” | 64” | 5%” | 3%” | 400# | 1275# | 16754 |

| 60 [ 1” | 20” | 5 | 19%” | 22” | aay” | 5%” | 5%” | 3%” | a00# | _1315# | _1715# |
(@ 65 [| 1” | 20” | 5 | i9%” | 22” | asx” | 5%" [ 5%” | 3%” | ao0# | 13154 | 1715+ |
| 75 | 1” | 20” | 5 | 19%” | 22” | 51” | 6%” | 5%” | 3%” | a00# | 1435¢ | 18354 |
{go | 1” [ 20" | 5 | 19%” | 20” | 51” | 6%” | 5%” | 3%” | a0o# | 1435# | 1835¢ |
| 90 | 1” | 20” | 5 | 19%" | 22” | say” | 5%” | 5%” | 3%” | aoo# | 1600# | 2000# |

| 100 | 1” | 20” [| 5 | 19%" | 20” | say” | 5%” | 5%” | 3%” | aes¢ | 21104 | 2575# |
(3) tse} ut 207 | 6 | 22n" | 22” | ang’ | sx” { su” {ser [ aooe | 1as0e | 18508 |
20” | 6 | 22%” | 22” | 49%” | 6%” | 5%” | 3%” | 400# | 1550# | 1950# |
| 90 [ 1” | 20” | 6 | 22%" | 22” | 53%" | 5%” | 5%” | 3%” | a00# | 1750# | 2150# |

| 100 | 1” | 20” | 6 | 22%" | 22” Tsay” [| 5%” | 5%” | 3%” | 400# | 2000# | 2400 |
wil 11s [1 | 20" [6 | 22%" | 207 | say” | 5%" | 5%" | 3%” | 400% | 2000# | 24008

roof Load Limit 74 Tons (2) Proof Load Limit 90 Tons (3) Proof Load Limit 120 Tons (4) Proof Load Limit 148 Tons (5) Proof Load Limit 201 Tons

EXTENDED
SIDE PLATES
me Part No. _Model No.
fo Oia Neeser = ‘ T-Series
wm 8624” high ae
z ae <a - 072-2249 Z
. e Be \a 072-2267 | ee
a em \e\ 1 oc S 072-2285 _
J g | | 072-2301
4 ih) Be, 072-2329 |S
ee 072-2800 4 1247-35 _
| { 072-2846 | 1247-40 _
\ 072-2864 | 2247-35
072-2882 | 2247-40
3 4 saat 072-2908 | 2247-45
—— | = ——y 072-2926 | 2247-50 _
| XS | 072-1614 | 2247-60
| 072-1650 |
| 072-1678 |
072-4050 | 3247-50
072-4078 | 3247-60 _
072-4096 | 3247-75
: | 072-1810 | 324T-80_
; 072-1856 | 3247-90 _
072-1874 | 324T-100
| 072-2016 |
HEAVYWEIGHT CRANE BLOCKS oe
072-2212 424T-80 _
24” diameter sheaves for 1 1/8” 072-2258 | 4247-90 _
wire rope—35-300 ton working loads. (ese 424T-100_
Models with 1 through 6 sheaves. a aid 2V4"! b 072-2310 | 4247-125
e Extra thick, solid, extended side | 4 > 072-2338 | 424T-135_
plates for maximum overhaul anal ING J TEN 072-2819 |. 4247-150
weight—no additional cheek plates | | | Mi MM | LEER | 0722855]
to bolt on. || Ud) GAIN Vi: td y ee _ _
e Tapered roller bearings on sheaves | 24” at] fw TE a | 072-2691 | —---——
lip seals retain grease and | | Ly) WW go id Giepaas =
prevent contamination. ii | HIN en ee _
Sheaves individually lubricated. — PSN a ee
e €xtra high strength construction: é ITP NN TERY 072-0875]. OS™
forged alloy steel hooks; alloy stee! | eas NS IRS 072-0803 1 Sa4T 75
shafts and pins; forged steel Ho TST 072-0919}. 5247-80
ransiet a. heavy duty welded U Jy] & a. J ete 5247-90
e Available with choice of single or | Pe me 072-3854 | 5247-115.
double hook. | y) Ol 072-3872 | 5247-125
Plus the outstanding contruction | - iZ T 072-3890 | _524T-140
2 rue u \_ oN} | 072-1017 | 524-150
details shown below. X y WI) 072-1053 |
° Choice of low profile side plates 4 W oe
(TF Series) or extended side plates ee =
(T Series). T” SERIES t072-1115|
e Also available with 30”, 32” and | _ 072-1218 | aan
36” sheaves. (See pages 44 & 45) I “o7a-1259 | 6247-90
[072-1277 | 6247-100
072-1295 | 6247-115
072-1339 624T-140
{__072-1419.| 6247-150

Poa fe foe fo fe fe fe | wf |
2 Open- Throat Pin
a ing Open- (T) Becket
Max. Wire s With- ing | Sheave | Pin Dia.| Pin
Load Rope | Sheave | | Overall out With Pin (TF) Plate Plate Total
Tons Size Size z | Thickness Length Latch Latch Dia. Hole Dia.| Thickness| Thickness Weight
24” aur | 3%" | 3%" 14" | 8302
(| 40 | 1%” | 24” | 1 | 12%” | 26%” 3%" | 3%" 830#
1%" | 24” | 2 | 12%" | 26%" | 50%” | 4am” | 3%” | 3%" | 2%” | 1%” [| 1%" 9454
mu a0 Paver aar a Tae fast ayn [ au” [347 | 2a" V4" | 9452
| 45 [eam [2a | 2 | 12%" au" | ann | 3%" | 2%” | i" | 1%" | 1000%
(2)| 50 [ 1%” [| 24” | 2 | 12%” 52%" | 4%" | an” | 3%" | 2%” 1%” | 1000#
| 60 | 1%” | 24” 12%" 5%” | 5%” | 3%" | 2%” | 1%” | 1%" 1100#
35 24av | 1 | 13%" ay" | 3%" | 3%" | 2K" = 1255
(1) [40 24” 13%" 56%." 3%” | 3%" | au” | — | 2" 1255+
35 | 1%” [| 24” | 2 | 13%” 56%” | 4%” | 3%” | 3%” | 2%” | -— | 2” | 1360#
(1)] 40 [| 1%” | 24” 13%" | 26” 56%” | 4%” | 3%” | 3%” | au” | -— | 2a” | 1360#
45 | 1%” | 24” | 2 [ 13%" 58%" | 4%” | 4m” [ 3%” | aun | — | 2” | 1375#
(2)] 50 | 1%” | 24” | 2 | 13%” | 26%" | 58%” | 4%" | 4uy [| 3%" | 2%" +3 13752
60 | 1%” | 24” | 2] 13%" 65%" 5%” | 5%” | 3%” | 2%" 16502
| 60 [| 1%” | 2a” | 3 | 17%” | 26%” | 59%" | 5%” | 5%” | 3%” | 2%” | 1%” | 1%” | 1450#
75 | 1%" | 24” | 3 [| 17%" | 26%" | 62%" 6%" | 5%” 1550#
so [| 1%” | 24” | 3 [ 17%" | 26%” | 62%" 6%" | 5%" 15502
E90} wa" f 24 3 | 17%" | 26%” | 60%" | 5%” 1%" | 1715#
24” 17%" | 26%” | 67%” 5%” 1800#
(2)| 50 | 1%” | 24” | 3 | 18%” | 26%" | 62%" | 4%” | 4%" | 3%" | 24" | — | 2” | 1740%
75 24” | 3 | 18%” | 26%” | 68%.” 6%" [| 5%” | 3%” | 2%" 2220
aie 1%" | 24" 18%" | 26%" | 68%" | 6%" | 5%” | 3%” | 2%" =— 22207
90 | 1%” | 24” | 3 | 1s%” | 26%” | 70%” | 5%” | 5%” | 3%” | 2%” [ -— | 2” 2385#
| 100 | 1%” | 24” | 3 | 18%" | 26%" | 73%” 5%" | 5%” | 3%” | 2%” | — | 2” | 25352
75 | 1%" | 24” | 4 | 21%" | 26%" 5%" | 3%" | 2%" 1%" 1770#
(4)[ 80 | 1%” | 24” | 4 | ai” 62%." 5%" | 3%" | 2h" 1%" | 1770#
90 | 1%” | 24” | 4 zt | Belt ete 5%” | 5%” | 3%" | 2am” | 1%” | 1%” | 19354
100 | 1%” | 24” | 4 | 21%” | 26%” 5%" | 5%” | 3%" | 2%" 1%" | 2015#
(5)/ 115 | 1%” | 24” | 4 | 21%” 5%” | 5%” | 3%" 1%" 2015
| 125 | 1%” | 24” | 4 | 21%” | 26%” | 68%" 6” 5%" | 3%" 2150#
iw” | 24” | 4 [ 21%” | 26%" | 68%” 5%" | 3%" | 2%" 2150#
1%" | 24" | 4 | 22%" 5%" | 3%" 22007 _
(4)| 80 | 1%” | 24” | 4 | 22%” | 26%" | 68%” 5%” | 3%” a te 2200#
90 | 1%” | 24” | 4 | 22%" | 26%" | 70%" 5%" | 3%" | an” | — | 2” | 2365#
(S)] 115 | 1%” | 24” | 4 | 22%" | 26%" 5%” | 3%” | aun | — | 2” | 2515#
125 | 1%" | 24” 22%" | 26%” | 74%" | 6” [| 5%" | 3%” [| an” | — 26704
135 | 1%” | 24” | 4 | 22%" | 26%" | 74%” [| 6” | 5%” | 3%" | aun [| — 2670
150 | 1%” | 24” | 4 [| 22%" | 26%" | 7an” [ 6” | 5%" | 3u%" 2” 26702
| 75 | 1%" | 24” | 5 6%" | 5%” | 3%" 21404
90 | 1%” | 24” | 5 | 25%” 57%" 34" 1%" | 2300#
100 | 1%” | 24” 25%" 5%" | 5%” | 3%" | 2%” | 1%” | 1%" | 25002
—(5)] 115 | 1%" | 24” | 5 | 25%" 5%" 3%" | 2%” | 1%" | 1%” | 25002 _
125 | 1%” | 24” | 5 | 25%” ae | gee” ter | 54” | 3%" | 2%” | 1%” | 1%” | 25304
140 | 1%" | 24” | 5 | 25%" 69%" 5%" 2%" 2530#
150 | 1%” | 24” | 5 | 25%” | 26%" | 69%” | 6” | 5%" 14" | 2530#
ma a" {| 24” | 5 | 26%" | 26%" | 68%" | 6%" | 5%” | 3%" | 2%" | — | 2" | 24504
“a 80 | 14" | 24” eax” | 6%” | 5%” | 3%" | 247 | — | 2” | 2a50¢
1oo | 1%” | 24” | 5 | 26%” | 26%” | 74K” 5%" | 5%” | 3%" | 2%” a 2970#
(5)/ 115 [| 1%" | 24” 26%" 5%" | 3%" | 2%" | — | an 29702
125 | 1%" | 24” | 5 | 26%" | 26%" | 75%” | 6” | 54” | 3%" | 24" | — | 2” | 30002
| 140 | 1%” | 24” 26%" | 26%" je 8 5%” | 3%" | an” | - | 2” | 3000+
| 150 | 1%” | 24” | 5 | 26%" 75%" 5%” | 3%" | 2%” | — | 2" | 3000#
90 24” | 6 | 29%” | 26%" | 64%" | 5%" | 5%” | 3%" | 2%" 2800 #
100 | 1%” | 24” | 6 | 29%” | 26%" | 64%” | 5%” | 5%” | 3%" | 2m” 28753
—(5)/ 115 | 1%” | 24” | 6 [ 29%” 5%” | 3%" | 2%" 1%” | 2875+
125 | 1%" | 24” | 6 | 29%" 54" 2975%
| 140 | 1%” | 24” | 6 [ 29%” 69%" 54" 1%” | 1%” | 29752
150_| 1%” | 24” | 6 | 29%” By" 29752
90 | 1%” | 24” | 30%” | 26” o%” | 5%” | 3%” | 2%” | — | 2 31707
_ 100 24” | 30%” | 26” 5%” | 3%” | 2%” ae 3320#
(5) 115 | 1%” | 24” 30%" 74%" 5%" | 5%” | 3%" | 24" 33204
125 | 1%” | 24” tS 30%" 6” 3%" | 2%" 33504 _
140 | 1%” | 24” 30%” | 26” 6” | 5%” | 3%” | 2%” 33502
(1) PROOF LOAD LIMIT 74 TONS (2) PROOF LOAD LIMIT 90 TONS (3) PROOF LOAD LIMIT 120 TONS
(4) PROOF LOAD LIMIT 148 TONS (5) PROOF LOAD LIMIT 201 TONS

asf
‘aed }
/ CRANE BLOCKS WITH
9. AND BRIDGE CRANES
1. Large diameter alloy steel heat treated and ground center pins provide longer
bearing life and low starting torque.
2. Heavy duty cast steel sheaves with machined wire rope grooves. Furnished with
bronze or rofler bearings and individual sheave lubrication permits
adequate grease penetration.
3. Detachable cast iron cheek plates for additional weight. Optional ‘‘H”’ models.
Designed for shortest possible overall length for more head room.
4. Moveable swivel hook provides easy engagement of hook by swinging backward
or forward.
5. Enclosed sheave guard makes for easier threading—eliminates possibility of
wire jumping sheave.
6. Forged Steel Hook with heavy duty thrust bearing for 360° rotation. |
7. Heavy steel plate welded construction provides rigidity and strength for
longer life.
8. Bronze Spacers between sheaves eliminate galling.
9. Standard hook latch with all blocks.
10. Double hook available.
fT J Gi ey TR

high lift blocks
Poa ft oe Tle Tl op fT ce TF
A Throat
= Open- Throat Total Total
Max. Wire s With- 7 Sheave Cheek without wwii
Load Rope 3 out with Pin Plate Cheek Cheek
Tons Size = | Thickness Latch Latch Dia. Weight Plates Plates
| 5 | wet ert at 5%" [| 9%” | 17%” | im” | am” | 1m” [50% | 7o# [120% |
| 10 | % | er] at 5%” [| 9%" | 19%" | 2%" [ayy [ in” | 50% | so# | 130¢ |
| 5 | x | ert 2} 5%” | 9%" | 19%" [ 1%” | im | 1%” | 50% | 80% | 130¢# |
Lio | % | se” | 3 | 7m” | 9%” | 19%” [2 | ay” | in | 50% | o5# [145¢ |
ete et ye a ea | ie | dt | 208 | __90# | _160# |
%” | yo” | 1 | 6” | 11%” | 22" | an” | ay | iy” | 7o# | 100# [1702 |
%” | io” | 2] 6” | 11%" | 22” | 2%" | ay” | 1%” | 70# | 110# | 180# |
| 5 | %” | 12” | 1 ft 7%" | 13%" | 22%" | 1%" | 1%" | 2%"| 100# [| 140# | 240# |
| 10 | %” | 12” | 3 | 9%” | 13%" | 24%” [| ay” | ay” | 2y"| 100#
Hot a ae | ta ae tara tenet ane | aur} aeoe | 1708 | 330% |
Pas |” | 14” {a [ 7%" | 15%" | 29%" | 3%"

| 25 | %” | 14” | 4 | 12%” | 15%" | 31x” | 4” | 3%" [ 2y"| 220% | 425# | 645# |
| 30 [| %” | 14” | 4 | 12%” | 15%" | 31%” [ 4” | 3%" [| 2ay"| 220% | 425# | 645¢ |
(yf 4o | 4” | ia” | 4 | 13” | isy” | 35%" | ay” | 3%” [| 2%” | 220% | 4e5# | 685# |
| 30 | %” | 16” | 1 | 8%” | 17%” | 33%” | 4” | 3%” [ 3” [ 240# | 310% | 550# |
Hae ie gt 2 | Ba aa | sant tone ta” | af | 2aoe | aise {see |
| 20 | %" | 16” | 2 | 8%” | 17%” | 32%” | 3%” | 3” | 3” | 240# | 315%
| 30 | %” | 16” | 3 | 11%” | 17%” [ 33%" | 4” | 3%” | 3” | 240% | 4i5# | 655# |
_ | 35 | %” | 16” | 3 | 11%” | 17%" | 36%” | ay” | 3x” | 3” | 240% | a55¢ | e95# |
(nt 4o | %” | 16” | 3 | 11%” | 17%" | 35%" [ayn | 3x” | 3" | 240# | a55# | 695+ |
| 35 [| %” | 16” | 4 | 14%” | 17%” | 36%” | ay” | 3%” | 3” | 240% | 585% | 825+ |
(1) ao} ef ae ta fan’ fara’ | are | aur faye | av {20k { sast | azsd |
(2) 50 | %” | 16” | 4 | ay” | a7%” | 37%" | ay” [ ay” [ 3" | 270% | 7o5# | 975% |
| 30 | %” [ 16" | 5 | 17%" | 17%" | 33%” | 4” | 34" [ 3” [240 | s20¢ | 760# |
_ | 35 | %” | 16" | 5 | 17%" | 17%" | 36%” | ay” [ 3%” | 3” | 240% | 780# | 1020+ |
i ao _[ %" | 16" [5 | 17%” | 17%” | 37%" | ay” | 3x” | 3” [270% | 770# | 10404 |
_ | 45 [| %” | 16” | 5 | 17%" | 17%" [| 374" | ay” | ay” | 3" | 270% | s20# | 1090# |
@so | 4" [16 | 5 [ 17%” [arm [ 37m” [ar [aur | 3” | 270% | 820% | 1090#

(1) Proof Load Limit 74 Tons (2) Proof Load Limit 90 Tons

a Part No.
y aa a 072-1473 (
wel Ba Fi t oc S 072-1401 (
- Baw 072-1516
eH | 072-1534 (
\ } 072-2613 (
\ 2 se 072-2677
| < | 072-2695
3 | 072-2739
HEAVYWEIGHT CRANE BLOCKS oo
30” or 36” diameter sheaves for up to
1%” wire rope—30-300 ton working roo V4" oe 072-5308
loads. || 4—~ 072-5326
Models with 1 through 6 sheaves. | atau 7e . 072-5406
e Extra thick, solid, extended side | if | | | | {i IN [forbs \ 072-5442
plates for maximum overhaul | | UU ONS Vie ch AN
weight—no additional cheek plates pia. # fgg 072-5460
to bolt on. i a (a ry
; | Li | NU. ge 72-5488
¢ Tapered roller bearings on sheaves. } N RN Ss,
Lip seals retain grease and prevent | £ | WATIAWATIAINY Peas diiee?” 072-5503
contamination. Sheaves individually [ 7 oN oe 072-5521
lubricated. é TN cm | 072-5521
e Extra high strength construction: l i; an _\ pase | 072-5601
forged alloy steel hooks; alloy steel } i i pete 072-5647 |
shafts and pins; steel trunnions, LJ N J 072-5647
and heavy duty welded connections. / |i | | | 072-5665
e Available with choice of single or A H
double hook. | J dey) ay 072-5683
| ft ft | 072-5709
b KPA JN
7 F 072-7486
All dimensions approximate and subject to 072-7501
minor changes without notice.

Pate te Toftet rye sh |

Standard Open- Open-

Wire ing ing - Becket

Rope Overall wio With Pin Plate Total

Size Thickness Length Latch Latch Pin Dia. | Thickness | Weight
ie | so | tds Pose fore |e pase] | ae | 2 | 1780 |
Pave [a0 [rave gros me] are | ane] se [ave | 2h | 80 |
ae 30 are faa fern] ase | ae fe | 2 | 2 | 2000 |
Pe [ao [rare fae fre [se Pe | ot ae | | 2100
[ve | 20" [2 rare a” fos ere | ore] er [2 | 2 | 1000
ive Pa [2 Yrare [ser fore] ane | ee fs Pare | 2 | at00
ave [a0 [2 fare [ae re [soe oe] [ae | | ano |
veo 2 fare [oe free] oe | se] om | ae | | 200 |
re [es fioeep a fre | | oe] om | | ans
Te [907 [a free a [mee] om | sre] st | aie | 2” | 2006 |
PPive [a0 [2 frase] ae” [rove | sre | ove | sh [ave | 2 [anes |
Pw [or [a fro) se fore |e [sep fae | 2 | 3200
Pe [07 [3 roe oat aoe |e [se] s fae | 2 | 2200 |
Pe 0m [a fase ae fare [or se ee Pave [oe aaa
[Pie [ao [fase [ae Poor [ot Pei [oe fae [ae ae
Pf Tso Ts foe ae oso | io [sie] ise [ave [2 | asco |
[Pe [a0 [soe fee foo ee po | Pee |e | e700
Pf te | so Ts tao s6" Joa Pore Tie Ts Pave Ta” [a0 |
[ae [a0 [6 fare fae face |e se] oe par] 2 | 0650 |
Pf te Togo" Pg fatae: | a6 foose [se [ave Ts [aie [2 [ si20 |
[Pe [se [frre [ware Peon] ove | sm fo faim |e | 2000 |
[aver [6 [2 rare [anv [ecae | sre] soe) on fam | | aso,
ee [2 five [aie fere | o | sel fam | 2 | 000 |
ie [se [a fore | are feose | ove | sae] on | ave | 2 | sooo |
[ae [67 [a rsne | eam [eran |e | sam] spam | oT a0s0 |
Pe ee [ 3 rome az forse | om [sim] oe Pam | | ao |
ie [a6 [arse [ari [oove | sme | sxe] eam | a] ano)
re [ae [a ase ere fos | om | | fam] 2 | aces)
ae [ae [3 foe aie acre | se | ce] os Pa] ae] seen)
ve [aes foe [aa ore | [se] 8 | am] 2 | ean]
Pave [ae [sds ari fosie | om | ot [Le fam | 2] seo |
Pe [a6 [5 foo | ave room] eo | re] se pam] a | 7025 |
Pe Tee [6 farce | azar |e | se] [ae | 2 se00
Pe [se [6 Jara [azvefosve | om |e |e | ae] 2 | soo]
Pies [ae [6 Yaron [aaa ove |e [re] ss [am | | or |
[Pave [ae [6 fase [vere [rose] eo fe | fam | 2 | 370]

(1) Proof Load Limit 74 Tons (2) Proof Load Limit 90 Tons

1. Cast steel with tapered (24” and larger) or . be
straight roller bearings (20” and smaller). Re ae
2. Cast steel with bronze bushing. IN PNG TK
3. Cast steel finish-bored without bushing. 8 Fd SS
Heavy duty Sheaves are available in a > ! /\ ‘
wide range of standard sizes from 8” to 36% bed A
outside diameters—for wire rope sizes from | ji +2 \ i
7/16” to 1%". Grooves are precisely machined N \ (
to assure proper fit for the wire rope. When N “SS LS /
ordering sheaves, be sure to specify type \ YES 4 <
wanted, wire rope size, and outside diameter. y \ —
*BE SURE TO CHECK SHEAVE PIN SIZE WHEN ORDERING
20” OR 24” SHEAVES
Bushing or
Bearing Wire
Part N Outside Pitch Hub Outside Shaft Rope Thickness Length Finished
‘art No. Diameter Diameter Diameter Diameter Diameter Size At Rim of Hub Weight
a b c d e f g Lbs.
086-1400 8 7%, 3 2%, 15%, XK, 1% 1% 6%,
086-1428 10 9% 3 2 1% Ke 1% 1% 9%
086-1446 12 107% 4AM%, 3% 2% % 1% 2 20
086-1464 14 1214 4%, 3% 2% %, 1% 2 23
086-1482 15BP 134 4, 3% 2% 3/4 11%, 2 30
086-1507 16 141% 4%, 3% 3 % 2. 2% 30
086-1525 18 16%. 43/, 3% 3 % 2h 2% 40
086-1543 18BP 161% 5, al, 34, 5-% 1% 2 40
086-1561 20 18%, EA 4% 3% 1 2% 214 46
086-1589 24 21% 6 5 3y% 1% 2%, 3 80
086-1605 30 27h, 8 7 5 1% 3 31 155
086-1623 30 263, 8 7 5 1% 3% 3% 168
086-1641 32% 30 9 Te 5 1, 2%, 35, 177
086-1669 36, 34 9 The 5 1% 2% 3% 194
Tolerance +

These galvanized sheaves are available with iron ve
bushings; roller bushings; or bronze, fr
self-lubricating bushings. Sizes not listed are /  ) f ¢ &
available on application. i/ @ / ¢ : ‘Va
: Bronze Bushed,
Iron Bushed Roller Bushed Self-Lubricating
6611 6612 6613
Dia. Rim Pin, [Dia., Stock Numbers Dia. Rim Pin, |Dia.,
inches linches|_4211_|_4212_| 4213 inches inches
1%4x V2 x¥% ¥% 934-0112 934-2022 934-4032 | 6%4x1%2x% 1% |934-1212 934-3122 934-5132
2x*x% % 934-0210 934-2120 934-4133 | 6%4x2V%ex% 1¥%2  |934-1312 934-3222 934-5232
24x 5ax¥e V2 934-0212 934-2122 934-4132 | 8x13%4x% 1% _|934-1412 934-3322 934-5332
3x%x% % 934-0312 934-2222 934-4232] 8x154x% 1¥2 |934-1512 934-3422 934-5432
3x1%ex V2 Y 934-0412 934-2322 934-4332 | 8x15¢x% 1% — _ 934-5433
3%2x1X% % 934-0512 934-2422 934-4432 | gx2%x7% 1%  ,934-1612 934-3522 934-5532
3%2 xX 1V4 x V2 Ye 934-0612 934-2522 934-4532 | 9x25¢x1 2 ‘934-1712 — 934-5632
4Vax1x Ve Y% 934-0712 934-2622 934-4632] 9¥2x1%x%e 1% 934-1812 — 934-5732
4%2x 134 x% 1-1% 934-0812 934-2722 934-4732 | 10x3x1% 24 —_ 934-5901
4% 1Vex5e 1 934-0912 934-2822 934-4832 | 11x2%~x1 2 —_ — 934-5950
53%4x178x% 1% 934-1012 934-2922 934-4932]11x3%x1% 2% — — 934-5951
6% x 1%4 x Se 1¥% 934-1112 934-3022 934-5032 | 11% x4%4x1% 3 _ — 934-5952
ees
Self-Lubricating, Nylon Sheaves for Manila Rope
The 1%” and 2%" sheaves are suitable for 3” and
4" manila rope blocks; the 2” sheave for the 3100
series nylon blocks.
Rope
Dia. Rim Pin, |Dia., | Stock
Inches Inches} Numbers
1%xax% ¥% 933-6043
2x#x¥% ¥%-Y2 933-6143
6614 2%4x%ex% Ye: 933-6 T44

Extra Heavy, Iron Sheaves for Wire Rope

These sheaves are available with iron bushings, 5a

bronze self-lubricating bushings, or grooved —

bronze bushings with pressure grease lubrication

(galvanized only). They are available with either r t

a painted or galvanized finish. Sizes not =

shown are available on application. 5 0 9

psn el in ete
Dia. Rim Pin,|Dia., jin Bronze Dia. Rim Pin,|Dia., jin Bronze
Inches Inches|Pounds | iron _[eettLube| Inches Inches|Pounds

Painted Sheaves Painted Sheaves

3xxH% V2) % 935-0122 936-0122 8x1%2x1 % 8% 935-2522 936-2522
3x%xH ¥% % 935-0222 936-0222 8x1%2x1% % 8% 935-2622 936-2622
3x%x V2 ¥% % 935-0322 936-0322 10x1x% Ya 14% 935-2722 936-2722
3x1xz V2 1 935-5122 936-5122 10x1x% V2 14% 935-2822 936-2822
4x5ex V2 Wg 1% 935-0422 936-0422 10x1x1 V2 14% 935-2922 936-2922
4x¥%xV2 ¥% 1% 935-0522 936-0522 10x1%4x% % 12 935-3022 936-3022
4x¥x% ¥% 1¥2 935-5522 936-5522 10x1%4 x1 % 12 935-3122 936-3122
4x1xv2 V2 2%2 935-0622 936-0622 10x1%x1% % 12 935-3222 936-3222
4x1x% V2 2% 935-5322 936-5322 10x1%2x1 Y% 15%4 935-3322 936-3322
4x1x% Va 2%2 935-5622 936-5622 10x1%2x1% % 15% 935-3422 936-3422
5x*#x¥ %-V2 2¥2 935-0722 936-0722 10x1%2x1% % 15% 935-3522 936-3522
5x1x¥% V2 3 935-0822 936-0822 12x1%x1 Y% 25 935-3622 936-3622
5x1x% V2 3 935-0922 936-0922 12x1¥2x1% % 25 935-3722 936-3722
6x%x% ¥% 3% 935-1022 936-1022 12x1%2x1% % 25 935-3822 936-3822
6x¥%ax% ¥% 3% 935-5822 936-5822 12x1%2x1%2 %, 25 935-3922 936-3922
6x1x¥% %-V2 3 935-1122 936-1122 14x1%x1¥e %-% = 335 935-4022 936-4022
6x1x% %-V2 8 935-1222 936-1222 14x1%2x1% %-% 35 935-4122 936-4122
6x1x% R-V2 3 935-1322 936-1322 14x1%x1% Ze 35 935-4222 936-4222
6x1x1 Ye-ve 3 935-1422 936-1422 14x1%2x2 Y-%e 35 935-4322 936-4322
6x1x1% %-V2 8 935-1522 936-1522 14x1%x1¥%e = %-1 43 935-4422 936-4422
6x1%x1 % 4% 935-1622 936-1622 14x1%4x1% = %-1 43 935-4522 936-4522
7X1x¥% V2 5% + 935-5422 936-5422 “44x1%x1%2 Te-1~—«43-—S:935-4622 936-4622
8x1x% V2 5% 935-1722 936-1722 14x1%x2 %-1 43 935-4722 936-4722
8x1x% Ve 5% 935-1822 936-1822 Gaivanized Sheaves
8x1x1 Y2 5% 935-1922 936-1922
Bx1%ax% Yee Te 935-2022 936-2022 Dia. Rim Pin,|Dia., [in Bronze [Grooved
8x1%4x% Ye-Y¥e  T¥2 935-2122 936-2122 Inches Inches} Pounds
8x1%x1 Ve-%e T¥e 935-2222 936-2222 4v.¥%axVe % 1% | 936-0524 936-0544
8x1%4x1% Ye-%e T¥2 935-2322 936-2322 6x1x% Rw-V2 3 936-1224 936-1244
8x1v”x% % 8%4 935-2422 936-2422 8x1%4x% Ve-5@ T¥2 936-2134 936-2144

Steel Sheaves for Wire Rope

These sheaves are available with bronze, ;

self-lubricating bushings or with grooved bronze eae

bushings having pressure grease lubrication. —— s

Most have painted finish, but several are J f & <

available galvanized. Other sizes and types, from 7 J %

3” to 32” in diameter, are available on i e

application. 4 } *

pe. rn eg | (ere om

Dia. Rim Pin,}Dia., Jin Stock Dia. Rim Pin,|Dia., fin Stock

Inches Inches} Pounds; Number Inches Inches |Pounds} Number

Painted Painted

3xV2xVe2 Ya ¥% 937-5111 12x1”%x1% w% 23 1937-2411

3xex5e Va % 937-5211 12x1%x1% Y% 23 '937-2511

3x%x Ve ¥% 1 937-5311 14x1”x1% %-% 32 '937-2611

4x¥%x V2 % 2 937-0111 14x1%x1% %-% 32. 937-2711

4x1x% V2 2% 937-0211 14x1”x12 %-% 32 '937-2811

4x1x% Ya 2¥2 937-5411 14x1%x2 %-Ve 32 937-2911

6x1x5 H%-V2 3 937-0311 14x1%4x1% = 33 937-3111

6x1x% ¥%-V2 3 937-0411 14x1%x1%2 5-1 33 937-3211

6x1x% H%-V2 3 937-0511 14x1%4x2 %-1 33 = 937-3311

6x1x1 ¥%-V2 3 937-0611 16x1%4x1 Y%-1Ve 52 937-3411

6x1x1% %-V2 3 937-0711 16x1% x12 %-1% 52 937-3511

6x1V%4x1 5 4 937-0811 16x1%x2  %-1% ~=52 937-3611

8x1x% V2 7 937-5511 18x1%x1¥2 %-1% 58 937-3711

8x1%x% % 8 937-0911 18x1%x1% %-1%e = =958 = =937-3811

8x1%4x% ¥% 8 \937-1011 18x1%4x2 %-1% 58 937-3911

Bx1%ax1 5 8 987-1111 18x1%x2¥2 %-1% 58 937-4011
8x1%4xK1% ¥% 8 937-1211 20x2x1% Y%-1V¥4 70 937-4111
8x1l2x% 5e-% 11 937-1311 20x2x2 %-1V4 70 937-4211
Bx12x1  %% 11 987-1411 20x2x3 Y-1% 70 937-4311
8x1%2x1% BY «11 937-1511 20x2%4x1% %-1%4 74 937-4411

10x1x1 Ve 10 937-5611 20x 2% x2 %-1%, 74 937-4511
10x1%x% % 12 937-1611 24x2x2 ¥Y-1%4 110 937-4711

10x1%x1 % 12 937-1711 24x2x2%2 Y%-1Ve 110 937-5811
10x1%x1% % 12 937-1811 24x2x3 Ya-1V4 110 937-4911
toetaxt = eR 38 erat Galvanized

10x1%x1% w% 937-2011 : :
10x1%2x2 5e-% 23 937-5711 Inches Inches | Pound
12x1%x1 5-V%, 23 937-2211 4x¥%xV2 ¥% 2 937-0112 937-0122
12x1%x1% 8% 23 '937-2311 6x1x% ¥%-V2 3 937-0412 937-0422
TO 8x 1%4x% % 8 937-1012 937-1022

| Note: Sheaves are manufactured in sizes from 4”
to 42” diameter for any size wire rope.

ELEVATION Fig FLEES».
ra be / \ JN
‘ / / * ‘ ; == a RADIAL WEB eon he
\ Pa \ o ° EQUALLY PACED
SECTION AT A.B stcT ON AT AB
a an . 1 | vg St ny TX" _,
1a __ er t \¢4. aera Re Spots)
\f ~~ XS ves DIMENSION. TS ANT SHERVE Pin Jo, RADIAL WER
THICKNESS AADIAL wees THICKNESS
y OF SHEAVE | u 4 OF RIM
j u uw Fw oO 2i|2z¢|}/2/& oa ae) Zz Te
Ls C| o]| Hz] a] & |¥E| =] z 9) ao ja<Siza|we
N N | ful - kb =a Z| ele |e 218 S\<t
o| ao |aooj <1 < lFo}| Elz a} & [2<lad lou
_ K b Le] d]}/eflff{t
INS. | INS. | INS. INS.| INS. JINS.} INS. | INS.
20 6'/, FOR DIMENSIONS SEE SKETCH
2 4 18 6 11/4) 2174 | 27/16 | 37s '/g 5/,| 6] 3/g | 3/46 3/44 3/4 | 1'72
. 16] 5'/,| 10 2 | 23/16] 8/6] '%e | 2/16] 61 8/16 | 2/16 I716| 2% | 13/8
7 7 15 5 91/,| 17/,| 2 | Sie] '%e | 142] 6] 8/16} 3/16 | 8/8 | 97/16 | 1174
| P| 14] ay,| 9 | 13/4] 1776] 8/6} 7% | 172] 6| 8/6 | 2/16 | 7/0 | 8/08 | 11%
a 7 13 4 B17,] 18/g] Wig] 17a | Ze | 7716] 6] Za | RZie P7%ie | '%2 | 1'%8
_. ; 12] 4 | 73/,] 1°72 | 19/16 | Za Ye] Ze |e] 172 | 178
‘ 11 3'/, 7 13/g, | 17/16 | 3/16 3/ig | '/s 1/. 1 "/i6 1 |
10] 3 | 67,| 1°44] 15/16 | 3/16 3/161 %— 7/164 2/8 | 7/e |
9 3 53/,| 1178 | 13/16 | 2/16 3/ig | Ze | 3/a 1 ‘Za | 374
8 2'/, 5 1 Sig 3/16 5/30 /g 3/ y 3/4
6 2 33/, 3/4 | 3/16 | 3/16 5/30 | 3/32 15/16] 7/32 | °/a Hh
5 W/o) 3'/4a} 8/g | Ase | 5/32 et Vie $174 | 2/16 | '72
OTHER SIZES AVAILABLE ON REQUEST

Related chapters

14 Wire Rope Steel wire rope in 6×7, 6×19, 6×36, and 8×19 constructions, with hemp, synthetic, or independent wire-rope cores — for hauling, hoisting, suspending, and rigging applications across marine, mining, and industrial use. 18 Winches, Capstans and Hoists All-steel hand winches in 2-ton and 5-ton capacities, electric and hydraulic capstans, chain hoists, and the safety-brake, holding-dog, and free-spool accessories that ship with marine and industrial duty units. 10 Deck Fittings and Bollards Bollards, cleats, fairleads, chocks, hawsepipes, pad-eyes, and the cast and fabricated deck hardware that defines the working surface of every Canadian commercial and naval vessel.

Part of the Dibblee Industries product catalog — descended from W.J. Keating Limited (1940–).
